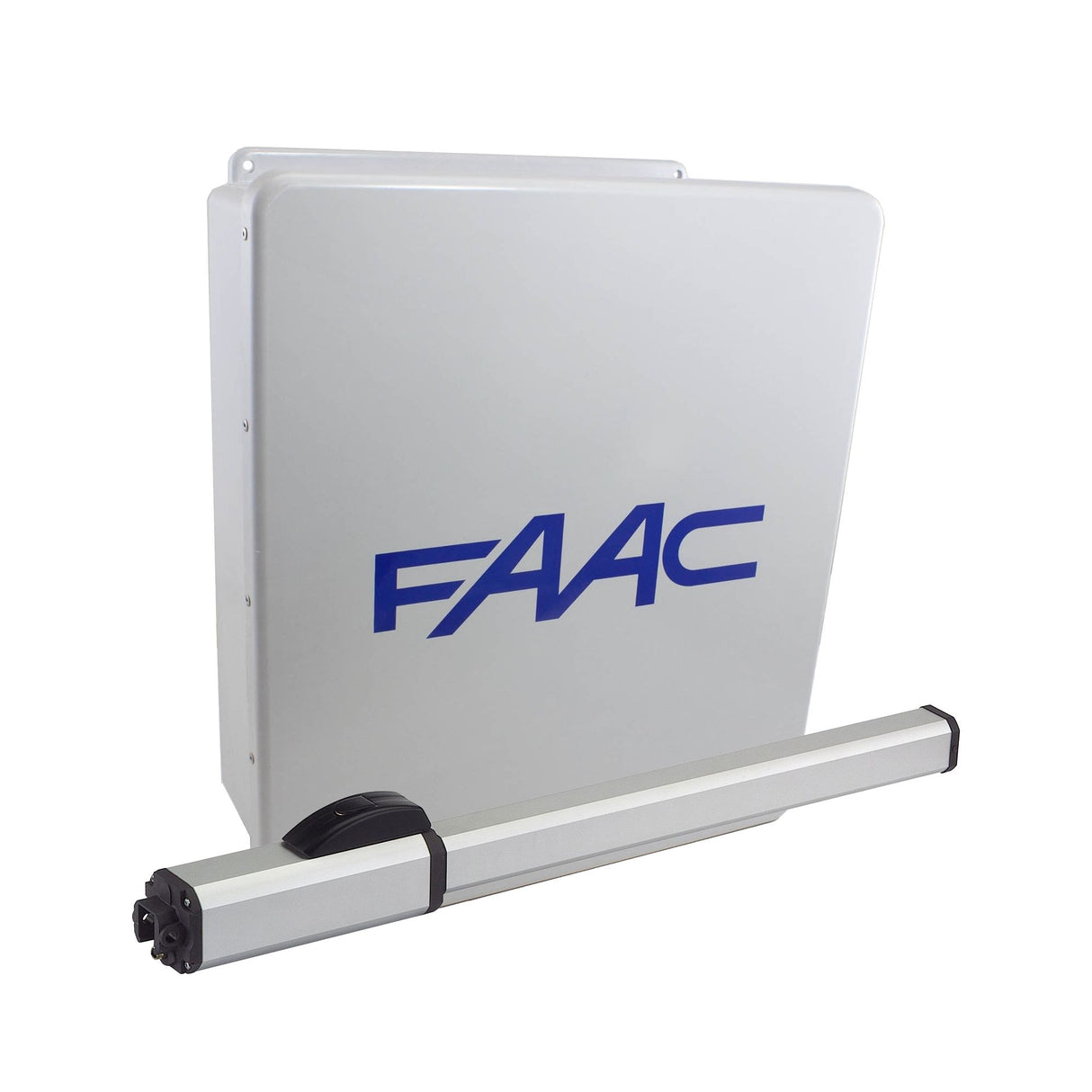

FAAC 402 Hydraulic Swing Gate Operator Kit - 115V
FAAC 402 Hydraulic Swing Gate Operator Kit - 115V is backordered and will ship as soon as it is back in stock.
Core Details
| Product Type | Swing Gate Operator |
| Application Type | Gate |
| Installation Type | Residential |
| Voltage | 115V |
| Power Type | AC |
| Mounting Type | Post Mounted |
| Mechanism Type | Hydraulic |
| Motor Type | Hydraulic |
| Horsepower (HP) | < 0.5 HP |
| Battery Backup | Not Compatible |
| UL/ETL Certification | Yes |
| Max Gate Weight | 10 Ft |
| Max Gate Length | 900 Lbs |
| Phase | Single-Phase |
| Weatherproof Rating | Rated for Outdoor Usage |
| Operating Temperature | -4°F to 131°F |
FAAC 402 Hydraulic Swing Gate Operator Kit - 115V
Description
Description
Advanced Residential Hydraulic Gate Opener with Full Accessory Kit
The FAAC 402 Hydraulic Swing Gate Operator (115V) is engineered for single residential gate applications requiring compact power and reliability. Designed for gates up to 10 feet and 900 lbs, this low-profile hydraulic operator ensures smooth motion, minimal maintenance, and superior durability. It comes as a complete kit including a 455D control panel, two remotes, safety photocells, and mounting hardware for a streamlined installation.
Key Features
- Supports single swing gates up to 10 ft and 900 lbs
- Hydraulic operation for smooth, powerful, and reliable performance
- Includes 455D control board with weather-resistant enclosure
- Two 4-button remotes (XT4) and FAF 722 safety photocells included
- Built-in hydraulic bypass valves for anti-crushing safety
- Manual release for power outages
- Designed for residential and light HOA use
- UL 325 compliant when properly installed
Technical Specifications
- Power Supply: 115VAC
- Gate Length Capacity: 10 ft
- Gate Weight Capacity: 900 lbs
- Operator Type: Hydraulic
- Operation Speed: ~16 seconds per 90° swing
- Power Consumption: 2.5 A
- Temperature Range: -33°F to 140°F
- Enclosure Protection: IP44
- Control Panel: 455D
- Mounting Type: Surface mounted
- Kit Includes: Operator arm, 455D enclosure, two XT4 remotes, photocells, mounting hardware
Conclusion
The FAAC 402 Single Kit (115V) offers a high-performance hydraulic solution for residential swing gates. Complete with control board, remotes, and safety devices, this kit provides long-term durability and secure automation in one package.
