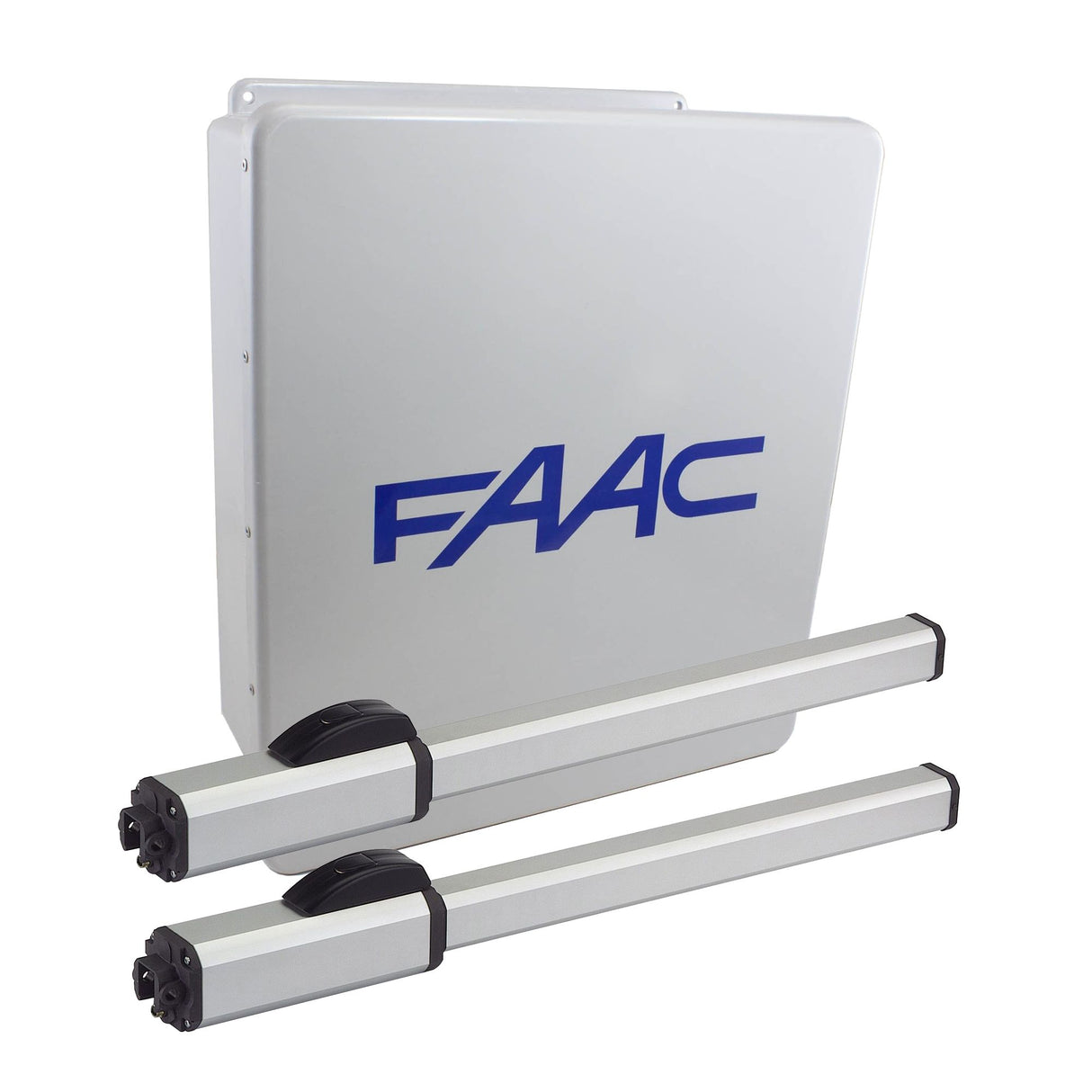

FAAC 402 Hydraulic Dual Swing Gate Operator Kit - 115V
FAAC 402 Hydraulic Dual Swing Gate Operator Kit - 115V is backordered and will ship as soon as it is back in stock.
Core Details
| Product Type | Swing Gate Operator |
| Application Type | Gate |
| Installation Type | Residential |
| Voltage | 115V |
| Power Type | AC |
| Mounting Type | Post Mounted |
| Mechanism Type | Hydraulic |
| Motor Type | Hydraulic |
| Horsepower (HP) | < 0.5 HP |
| Battery Backup | Not Compatible |
| UL/ETL Certification | Yes |
| Max Gate Weight | 10 Ft |
| Max Gate Length | 900 Lbs |
| Phase | Single-Phase |
| Weatherproof Rating | Rated for Outdoor Usage |
| Operating Temperature | -4°F to 131°F |
FAAC 402 Hydraulic Dual Swing Gate Operator Kit - 115V
Description
Description
Dual Swing Gate Hydraulic System for Light-Duty Residential Use
The FAAC 402 Dual Swing Gate Operator Kit is a complete 115V hydraulic automation solution for light-duty residential applications. Designed for dual-leaf swing gates up to 10 feet each or 900 lbs combined, this system offers smooth, quiet motion and lasting durability. Its pre-wired UL-listed control panel and weather-resistant hydraulic arms make it ideal for homeowners seeking reliable performance with minimal maintenance.
This system supports both inward and outward gate swing and is engineered to meet modern safety requirements.
Key Features
- Dual hydraulic gate operators designed for residential swing gates
- Handles gates up to 10 ft per leaf or 900 lbs total
- Quiet and smooth hydraulic operation with manual release
- Includes UL-listed 455D control board in a durable metal enclosure
- Weather-resistant with an IP44 protection rating
- Supports both inward and outward swing configurations
- Compatible with UL325 entrapment protection devices
Technical Specifications
- Power Supply: 115VAC
- Motor Type: Hydraulic
- Duty Cycle: 30 cycles per hour
- Maximum Gate Length: 10 ft per leaf
- Maximum Gate Weight: 900 lbs total
- Operating Temperature: -33°F to 140°F (-36°C to 60°C)
- Protection Rating: IP44
- Opening Angle: Up to 110°
- Manual Release: Hydraulic bypass
- Control Panel: 455D UL Listed, metal enclosure
- Mounting Type: Surface-mounted
- Kit Includes: FAAC 402 hydraulic operator (Qty 2), Pre-wired 455D UL-listed control panel with metal enclosure (Qty 1), Mounting brackets (Qty 2)
Conclusion
The FAAC 402 Dual Swing Gate Operator Kit delivers dependable hydraulic performance for dual swing gate systems. With proven components and a UL-compliant control panel, it provides secure, consistent operation for residential driveways and private entrances. Backed by FAAC’s engineering legacy, this kit ensures long-term reliability with minimal upkeep.
