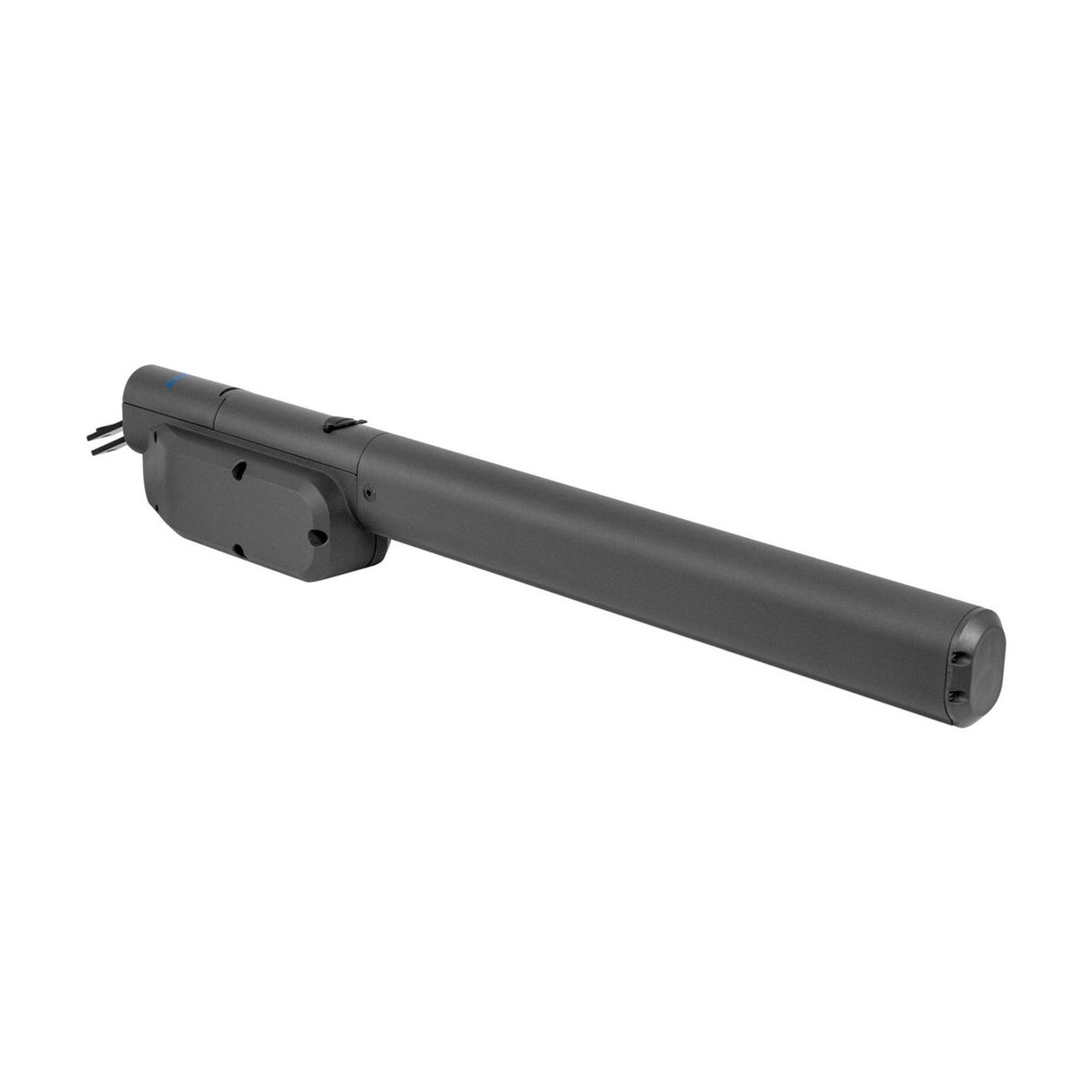

Eagle X9L Long Arm Swing Gate Operator - 115V
Eagle X9L Long Arm Swing Gate Operator - 115V is backordered and will ship as soon as it is back in stock.
Core Details
| Product Type | Swing Gate Operator |
| Application Type | Gate |
| Installation Type | Residential |
| Voltage | 115V |
| Power Type | AC |
| Mounting Type | Post Mounted |
| Mechanism Type | Screw Drive |
| Motor Type | DC Motor |
| Horsepower (HP) | < 0.5 HP |
| Battery Backup | Included |
| UL/ETL Certification | Yes |
| Smart Features | Universal Controller Compatible (Doorking 1800-500) |
| Max Gate Weight | 800 lbs |
| Max Gate Length | 16 ft |
| Phase | Single-Phase |
| Solar Ready | Not Solar Compatible |
| Included Accessories | Photoeye | Smart Device |
| Weatherproof Rating | Rated for Outdoor Usage |
Eagle X9L Long Arm Swing Gate Operator - 115V
Description
Description
Long-Arm Swing Gate Automation for Single Gates

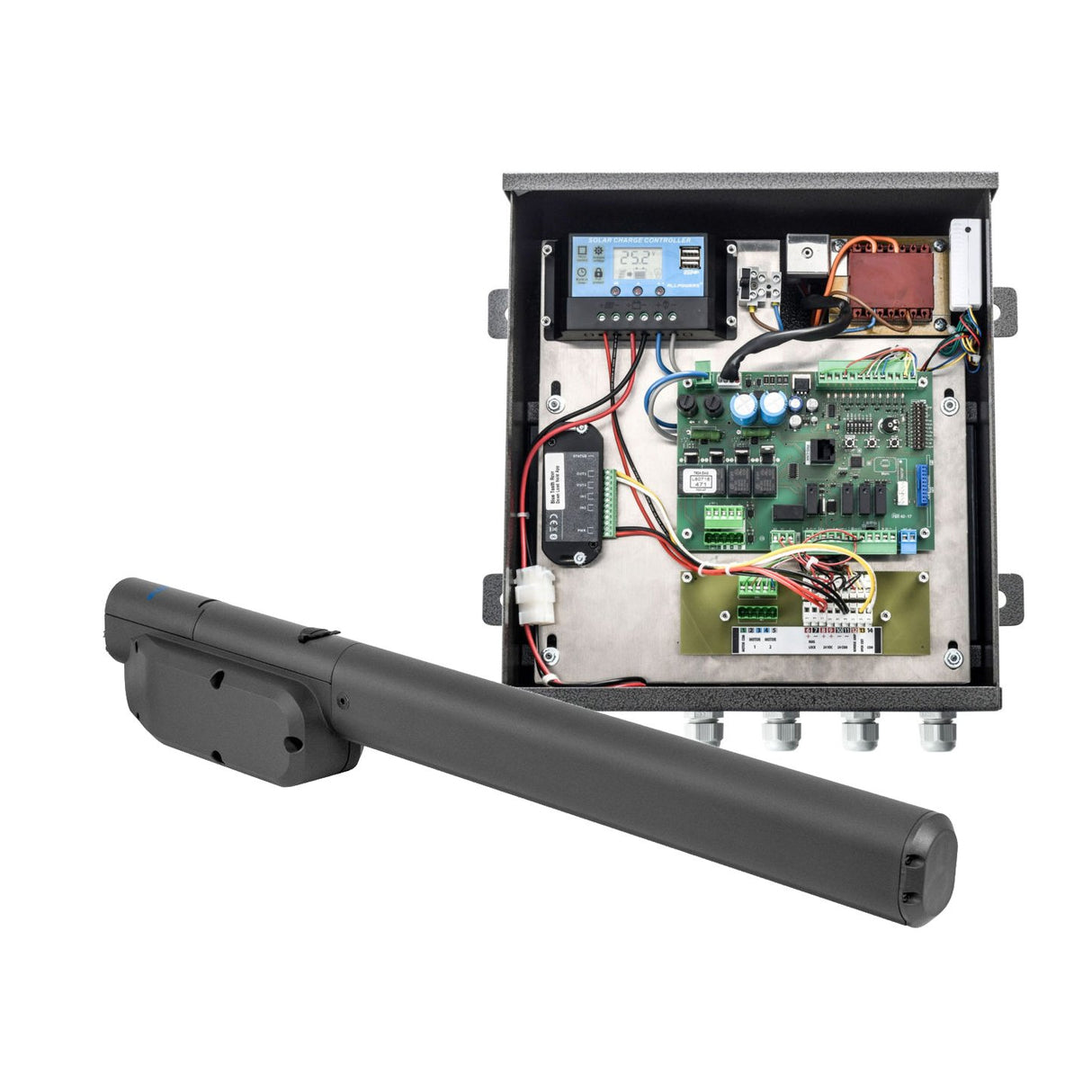

The Eagle X9L AC Long Arm Swing Gate Operator – 115V Single Kit is engineered for secure and efficient automation of single swing gates up to 16 feet long and 800 pounds. Designed to meet the demands of residential and light commercial security, the X9L combines heavy-duty performance with precision motion and UL 325-compliant safety features. The included 24VDC motor delivers quiet operation while ensuring smooth start/stop functionality for reduced mechanical stress and extended service life.
A fully integrated system, the kit includes a receiver and the EG360 Photo Eye, along with ERD (Electronic Reversing Device) for obstruction detection, providing dependable gate control with enhanced perimeter protection.
Key Features
- Long Arm Gate Compatibility – Supports swing gates up to 16 ft and 800 lbs, suitable for wide residential driveways or light commercial entries
- 110V AC Power Input – Easily connects to standard residential electrical systems for simplified installation
- 24VDC Motor – High-efficiency motor ensures smooth and quiet performance with soft start/stop
- UL 325 Compliant Safety – Integrated EG360 Photo Eye and ERD protect against entrapment and ensure safe operation
- Weather-Resistant Construction – Built to endure outdoor conditions for consistent year-round use
- Remote Ready – Includes Eagle receiver compatible with standard Eagle remotes
Technical Specifications
- Maximum Gate Length: 16 ft
- Maximum Gate Weight: 800 lbs
- Power Supply: 115V AC
- Motor: 24VDC
- Opening Speed: 90° in 25 seconds
- Safety Devices: EG360 Photo Eye and ERD
- Compliance: UL 325
Package Includes:
- EG363 Monitored Photo Eye
- EG380 Eagle Wi-Fi Opener
Conclusion
The Eagle X9L AC Long Arm Swing Gate Operator – 115V Single Kit delivers a reliable and secure automation solution for single swing gates, backed by Eagle’s reputation for robust engineering. With smooth operation, integrated safety, and long-arm compatibility, it’s ideal for those who require dependable perimeter access control in residential or commercial environments.
