Eagle II Residential Swing Gate Operator - 1/2HP

Residential Swing Gate Operator with Smart Control and UL325 Safety

The Eagle II Swing Gate Operator is built for residential applications, offering smooth, quiet, and reliable performance for gates up to 14 ft long and 400 lbs. Featuring a ½ HP continuous-duty AC motor, the Eagle II provides dependable operation and advanced functionality through the Diamond Control Board, one of the most feature-rich and installer-friendly control boards in the industry. This package includes the EG363 Monitored Photo Eye for UL325 safety compliance and the EG380 Eagle Wi-Fi Opener for smart control via smartphone or tablet.

Key Features

• ½ HP Continuous-Duty Motor: Designed for quiet, efficient operation with thermal overload protection.
• Diamond Control Board: Offers advanced programming options, easy diagnostics, and superior reliability.
• Quick Release Handle: Allows manual operation in the event of a power failure.
• No-Weld Swing Arm Assembly: Simplifies installation and provides smooth motion.
• EG363 Monitored Photo Eye: Meets UL325 safety standards for obstruction detection.
• EG380 Wi-Fi Opener: Enables wireless control, monitoring, and system alerts through a mobile device.
• Auto-Close Timer: Adjustable from 1 to 60 seconds.
• Open/Close Delay: Synchronizes gate movement for dual setups.
• 24VDC and 24VAC Accessory Outputs: Power for mag locks, receivers, or accessories.
• Built-In Motor Brake: Ensures smooth and precise stopping.
• Stop-Reverse Feature: Enhances safety by immediately reversing if an obstruction is detected.

Technical Specifications

• Motor: ½ HP continuous-duty AC
• Voltage: 115VAC
• Max Gate Weight: 400 lbs
• Max Gate Length: 14 ft
• Drive Chain: #40 nickel-plated
• Gear Reducer: Size 60 primary / Size 40 secondary

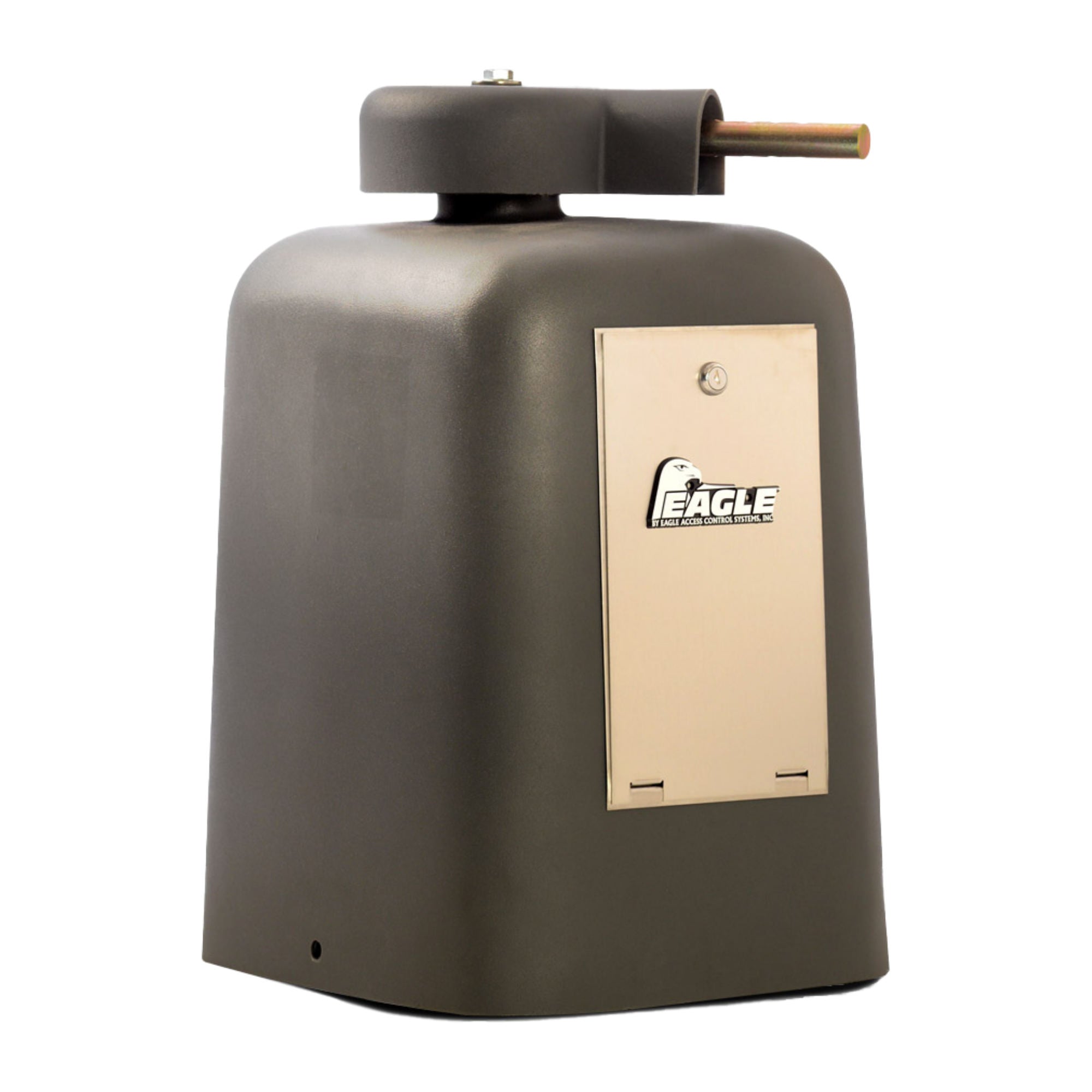

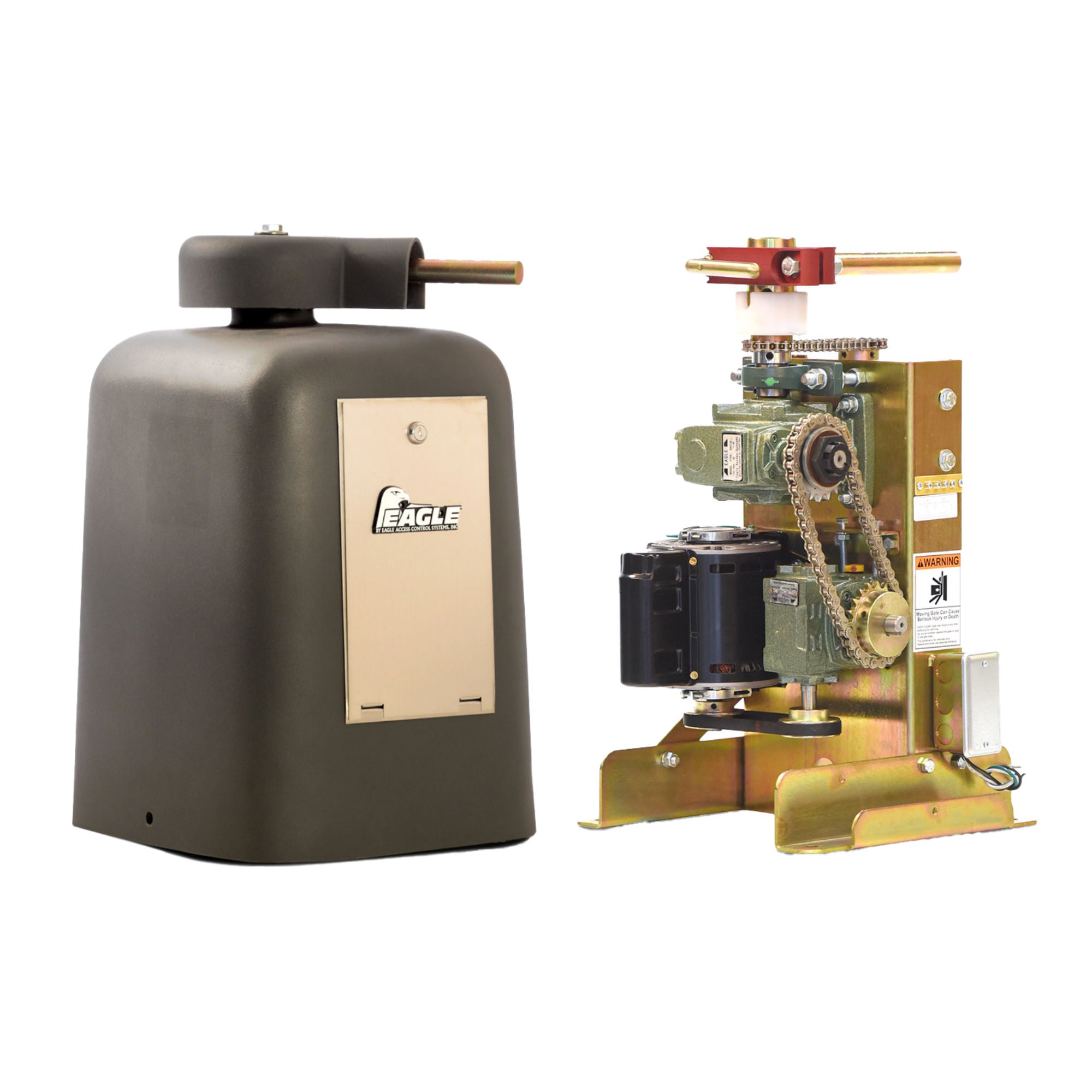

• Cover: UV-resistant, all-weather HDPE

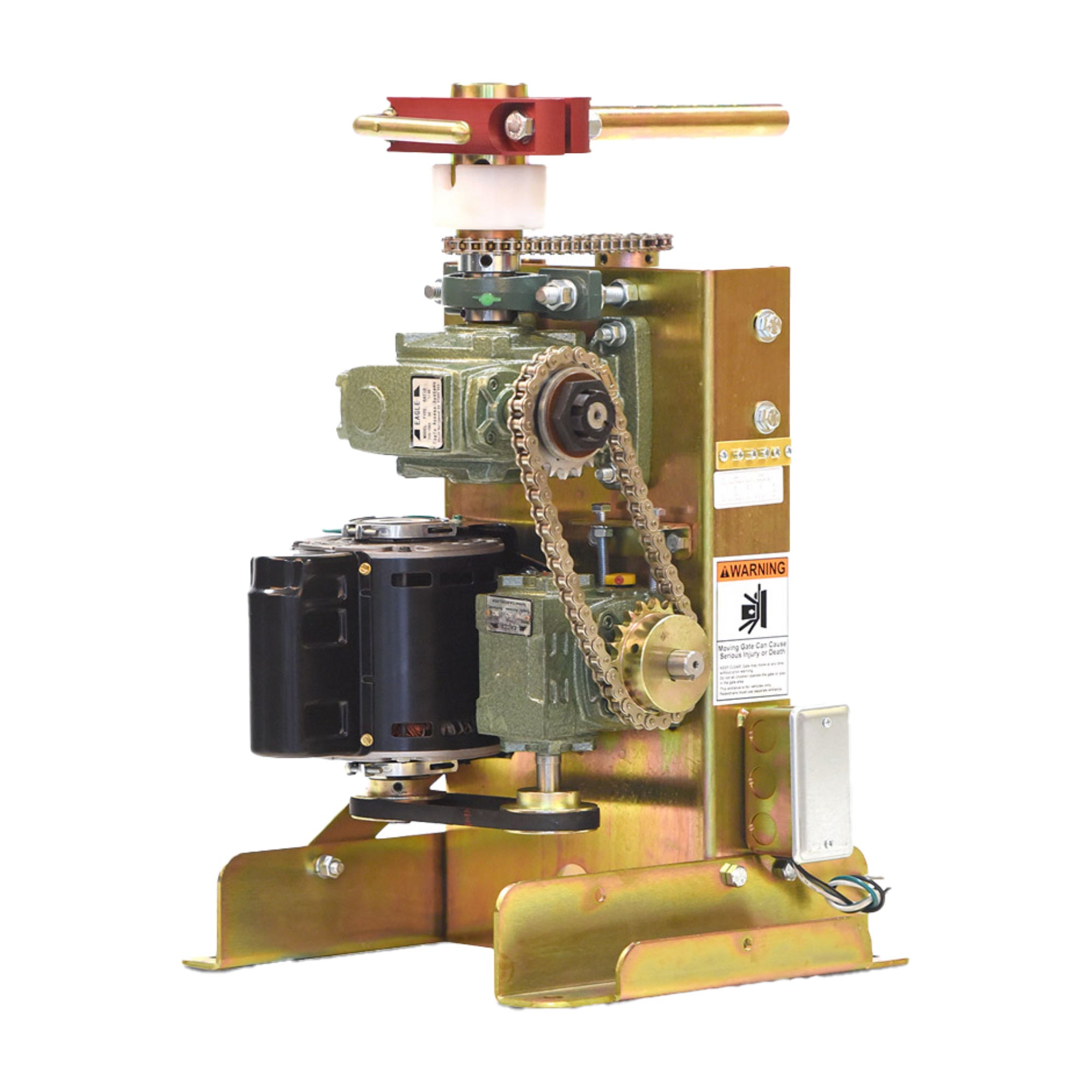

• Chassis: 3/16" zinc-plated steel
• Cycle Time: 14–18 seconds (approx.)
• Power Disconnect: Built-in for easy servicing
• Safety Listing: UL325 and UL991 ETL listed
• Accessories Included: EG363 Monitored Photo Eye, EG380 Wi-Fi Smart Opener

Conclusion

The Eagle II Swing Gate Operator delivers dependable performance, advanced features, and smart connectivity in one complete system. Ideal for residential use, it combines powerful operation with quiet efficiency and built-in safety compliance. With the included EG363 photo eye and EG380 Wi-Fi opener, this system is ready to provide years of secure, intelligent, and user-friendly gate control.
