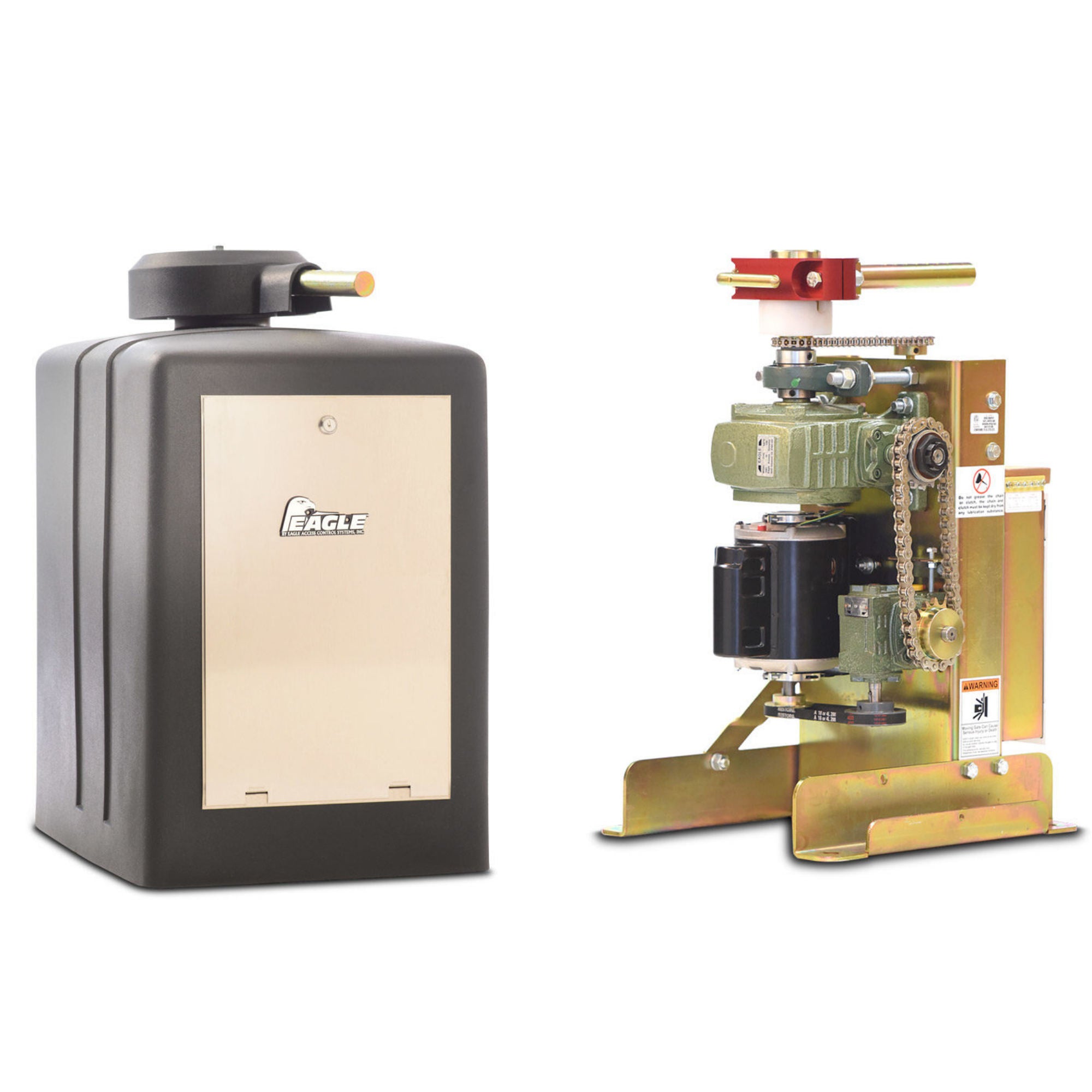

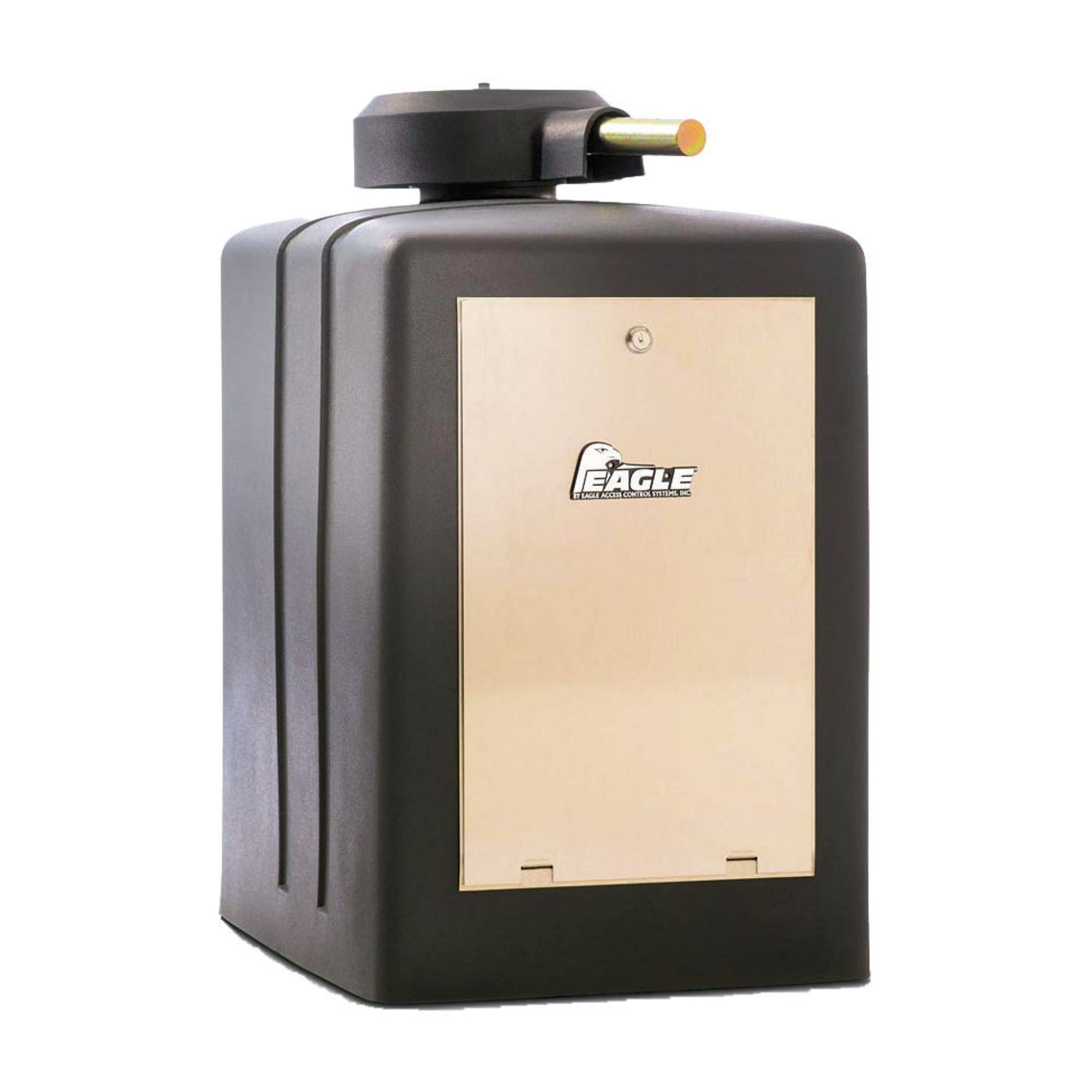

Eagle 200 Swing Gate Operator - 1/2HP
Eagle 200 Swing Gate Operator - 1/2HP is backordered and will ship as soon as it is back in stock.
Core Details
| Product Type | Swing Gate Operator |
| Application Type | Gate |
| Installation Type | Residential |
| Voltage | 115V |
| Power Type | AC |
| Mounting Type | Pad Mounted |
| Mechanism Type | Gear Drive |
| Motor Type | AC Motor |
| Horsepower (HP) | 0.5 HP |
| UL/ETL Certification | Yes |
| Smart Features | Wi-Fi Enabled |
| Max Gate Weight | 750 Lbs |
| Max Gate Length | 20 ft |
| Solar Ready | Not Solar Compatible |
| Included Accessories | Photoeye | Smart Device |
| Weatherproof Rating | Rated for Outdoor Usage |
Eagle 200 Swing Gate Operator - 1/2HP
Description
Description
Commercial Swing Gate Operator with Smart Control and UL325 Safety
The Eagle 200 Swing Gate Operator is a commercial-grade swing gate system built for strength, reliability, and smooth performance. Designed for gates up to 20 ft and 750 lbs, this operator features a ½ HP continuous-duty AC motor and the industry-renowned Diamond Control Board, offering advanced functionality, durability, and ease of installation. This complete package includes the EG360 Monitored Photo Eye for UL325-compliant safety and the EG380 Eagle Wi-Fi Opener for smartphone-based remote operation and monitoring.
Key Features
- ½ HP Continuous-Duty AC Motor: Provides consistent, quiet, and powerful operation.
- Diamond Control Board: Industry-leading logic board offering advanced programmability and diagnostic feedback.
- Quick Release Handle: Allows manual operation during power outages for convenience and safety.
- EG360 Monitored Photo Eye: Meets UL325 safety standards for obstruction detection.
- EG380 Wi-Fi Opener: Enables smartphone operation, alerts, and remote access via Wi-Fi.
- No-Weld Swing Arm Assembly: Simplifies installation and ensures smooth, low-maintenance operation.
- Built-In Surge and Lightning Protection: Guards the system from electrical damage.
- 24VDC & 24VAC Accessory Outputs: Provides power for accessories such as mag locks or keypads.
- Motor Brake and Adjustable Auto-Close Timer (1–60 sec): Enhances control and security.
- Stop-Reverse Function: Automatically reverses gate movement when an obstruction is detected.
- Weather-Resistant HDPE Cover: UV-stabilized for outdoor durability.
Technical Specifications
- Motor: ½ HP continuous-duty AC
- Power Supply: 115VAC, 60Hz, 5.7A
- Maximum Gate Length: 20 ft
- Maximum Gate Weight: 750 lbs
- Drive Chain: #50 nickel-plated
- Gear Reducer: Dual-stage (Size 60 & 40)
- Cycle Time: 18 seconds (0°–90°)

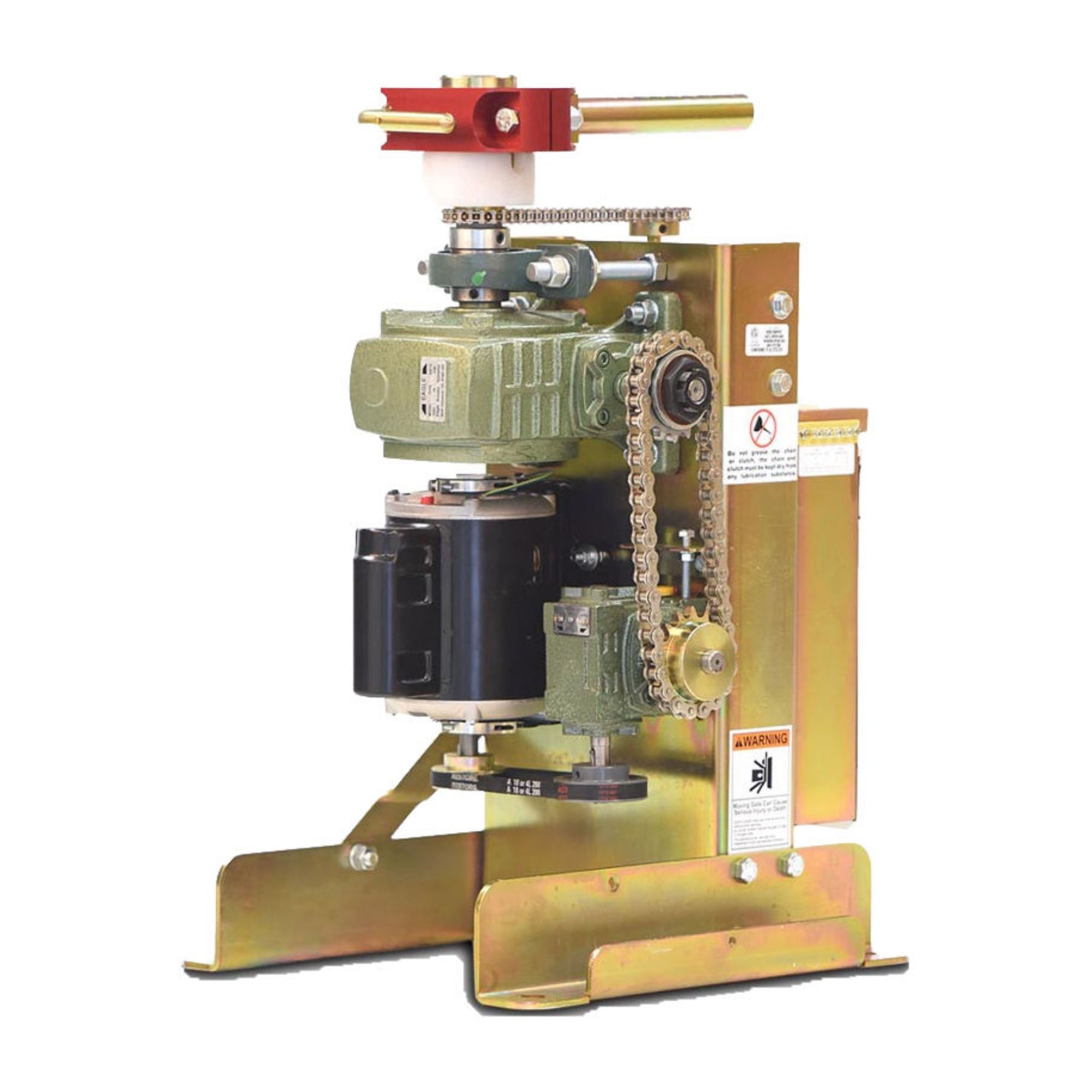

- Chassis: 3/16" zinc-plated steel
- Cover: All-weather, UV-resistant HDPE
- Accessory Power Output: 120VAC
- Safety Listing: UL325 and UL991 ETL listed
- Included Accessories: EG360 Monitored Photo Eye, EG380 Wi-Fi Opener
- Warranty: 5-year commercial / 7-year residential
Conclusion
The Eagle 200 Swing Gate Operator delivers commercial-grade reliability, advanced smart functionality, and safety compliance in one powerful package. Perfect for properties requiring dependable performance and remote control convenience, it combines precision engineering with modern connectivity for secure, efficient gate automation.
