Eagle 200 Swing Gate Opener - 1 HP

Commercial 1HP Swing Gate Operator with Wi-Fi and UL325 Safety

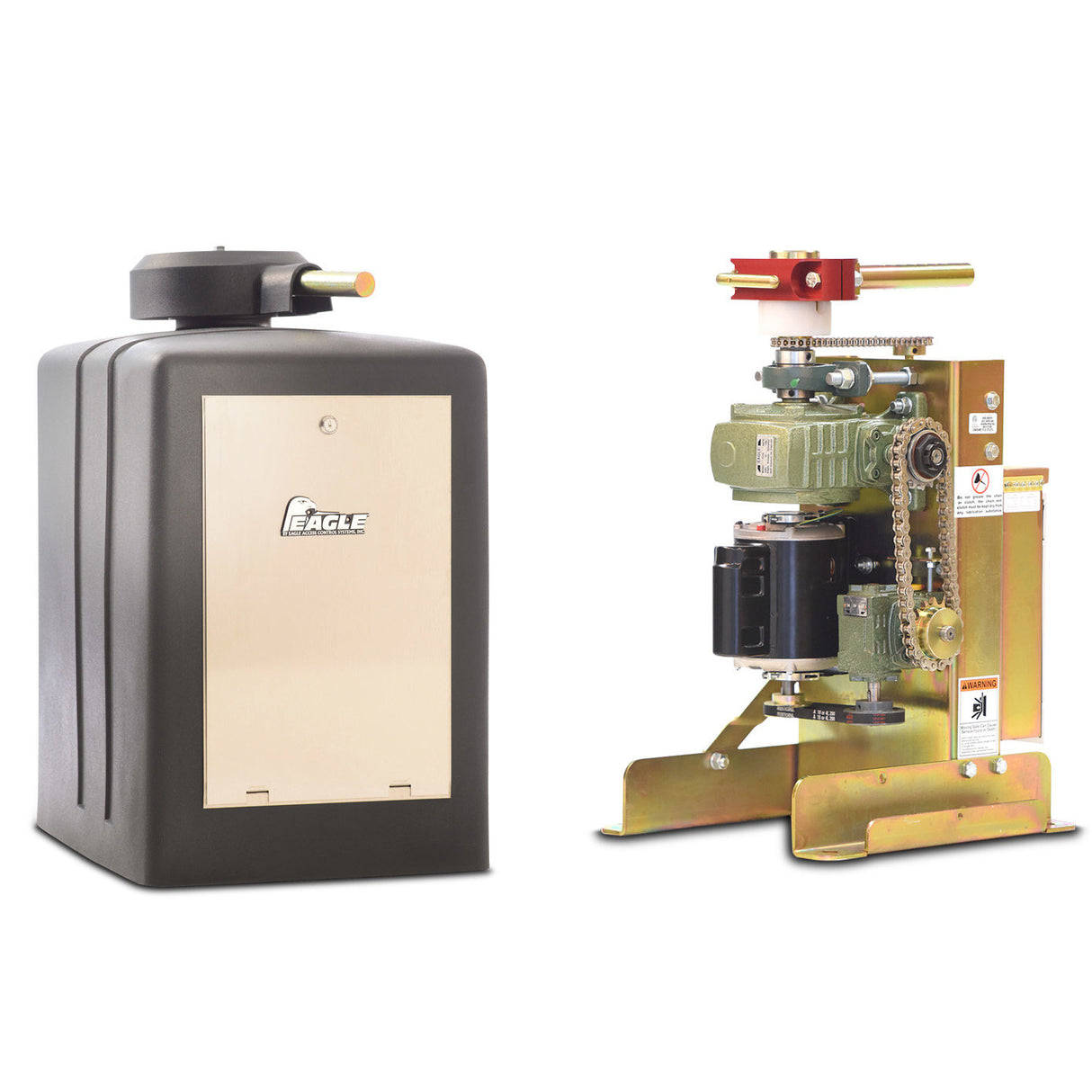

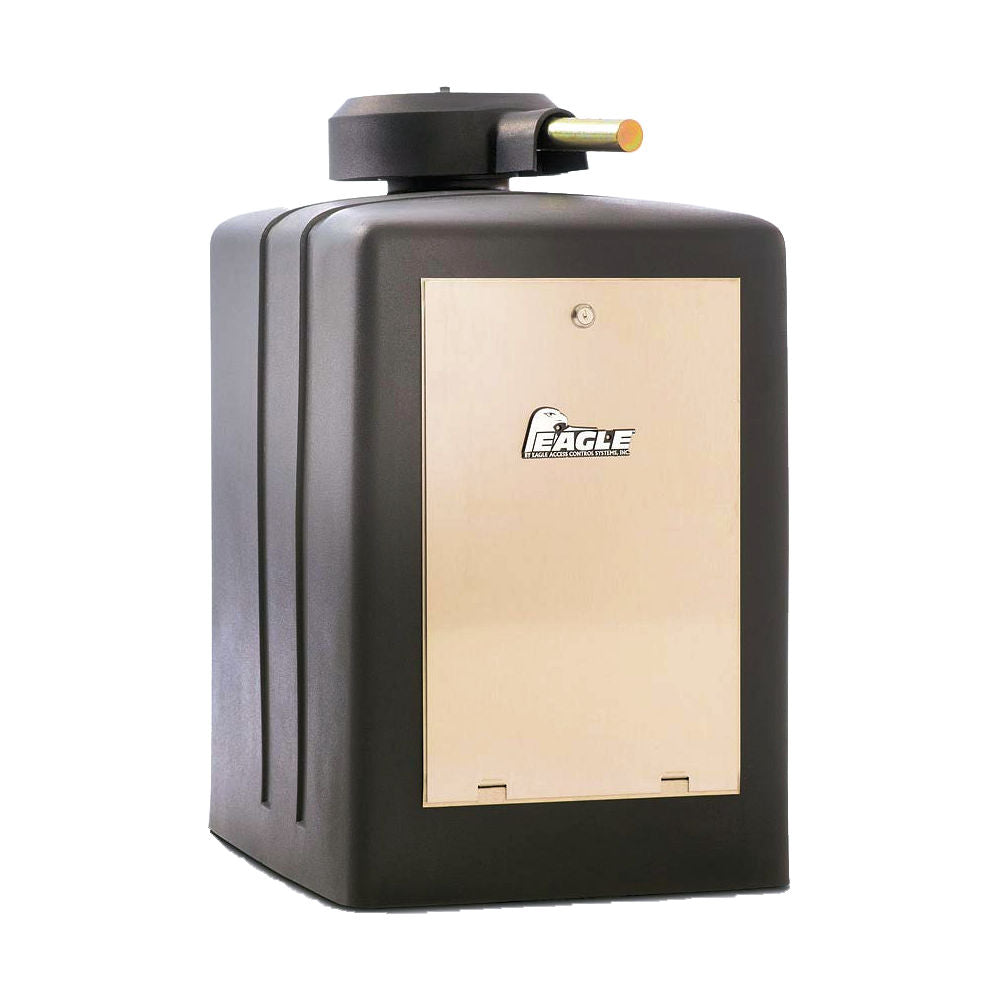

The Eagle 200 1HP Swing Gate Operator is a commercial-duty system engineered for strength, reliability, and long-lasting performance. Designed to handle gates up to 20 ft and 1,000 lbs, this operator uses a 1 HP continuous-duty AC motor combined with Eagle’s industry-leading Diamond Control Board for superior functionality, ease of programming, and long-term durability. This complete package includes the EG360 Monitored Photo Eye for UL325-compliant safety and the EG380 Eagle Wi-Fi Opener for remote smartphone access and control.

Key Features

• 1 HP Continuous-Duty AC Motor: Delivers robust torque and consistent operation for heavy gates.
• Diamond Control Board: Offers advanced programmability, built-in diagnostics, and plug-in loop detector slots.

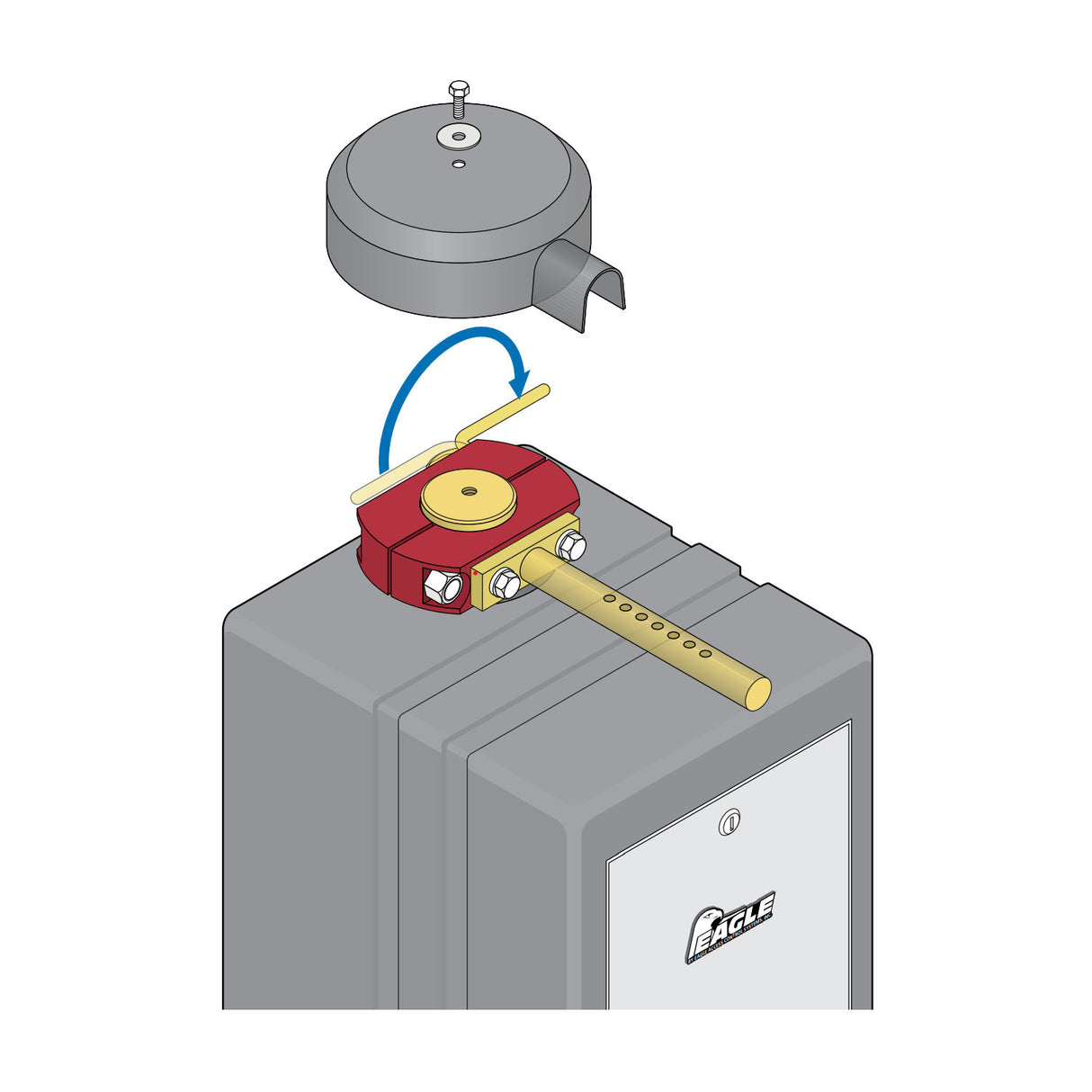

• Quick Release Handle: Allows for manual gate operation in case of power failure.
• EG360 Monitored Photo Eye: Provides UL325 safety compliance with reliable obstruction detection.
• EG380 Wi-Fi Opener: Enables smart control, real-time alerts, and wireless access via smartphone.
• No-Weld Swing Arm Assembly: Ensures smooth gate motion and easy installation.
• Dual Gear Reduction (Size 60 & 40): Enhances torque delivery and gate stability.
• Built-In Surge and Lightning Protection: Guards components from voltage spikes.
• Auto-Close Timer (1–60 seconds): Adjustable for precise control of gate closure.
• Stop-Reverse Safety Function: Automatically reverses when an obstruction is detected.
• Weather-Resistant Design: HDPE all-weather cover protects against corrosion and UV exposure.

Technical Specifications

• Motor: 1 HP continuous-duty AC
• Power Supply: 115VAC, 60Hz, 11A
• Maximum Gate Length: 20 ft
• Maximum Gate Weight: 1,000 lbs
• Drive Chain: #50 nickel-plated
• Gear Reducer: Dual-stage (Size 60 and 40)
• Cycle Time: 18 seconds (0°–90°)

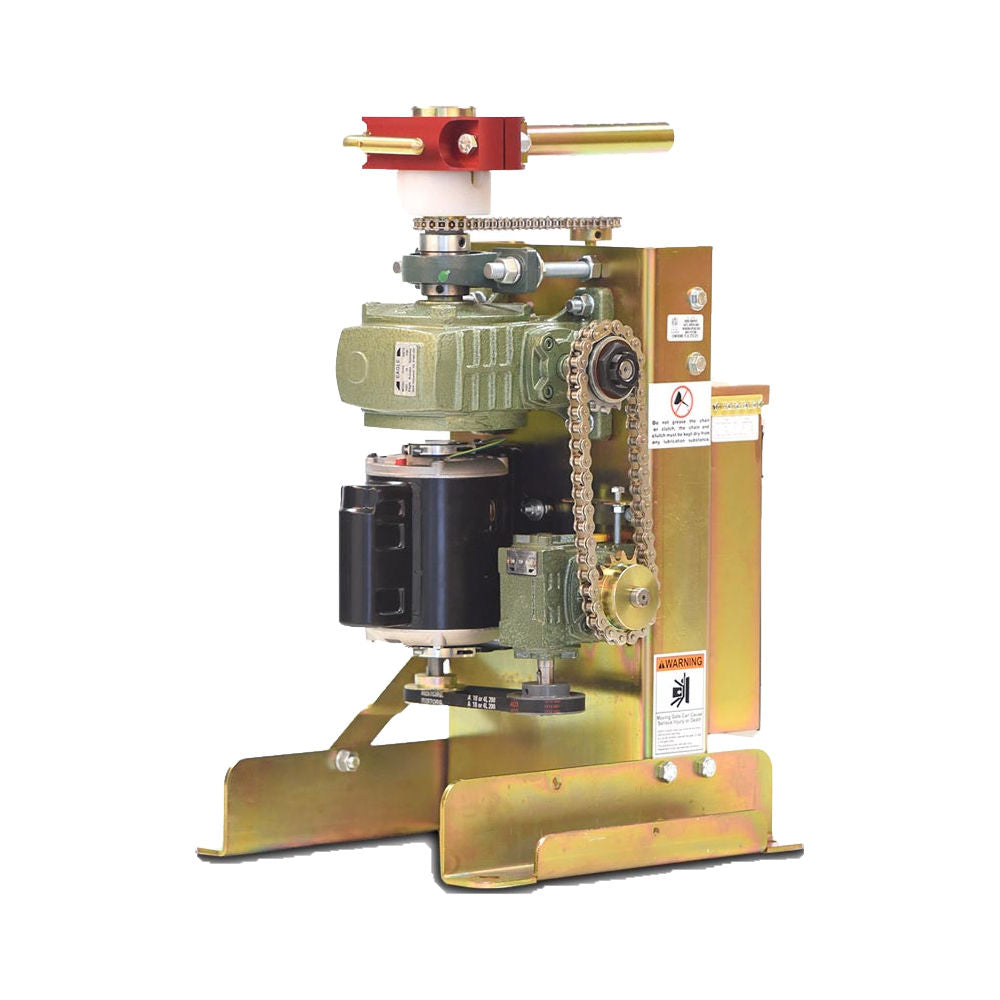

• Chassis: 3/16" zinc-plated steel
• Cover: UV-resistant HDPE all-weather housing
• Accessory Power Output: 120VAC
• Safety Listing: UL325 and UL991 ETL listed
• Included Accessories: EG360 Monitored Photo Eye, EG380 Wi-Fi Smart Opener
• Warranty: 5-year commercial / 7-year residential

Conclusion

The Eagle 200 1HP Swing Gate Operator provides powerful performance, advanced safety, and smart connectivity in one complete package. Ideal for commercial and industrial properties, it ensures smooth, quiet, and secure operation for even the heaviest gates while offering remote Wi-Fi control through the EG380 system.
