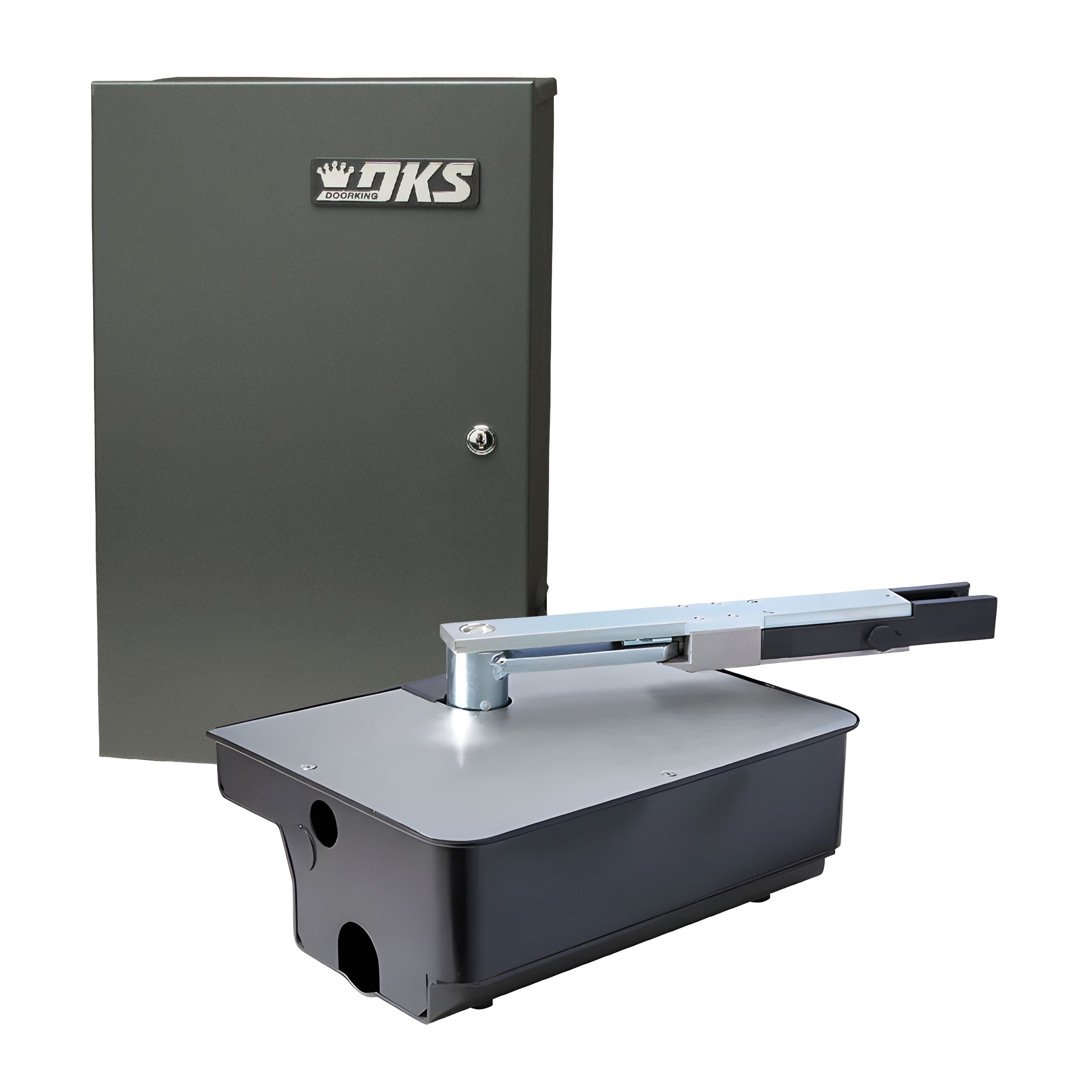

Doorking 6400 Single In-Ground Gate Opener Kit - 24V Solar

In-Ground Solar Gate Automation for Residential Swing Gates

The Doorking 6400 Single Gate Operator Kit (24V Solar) offers powerful in-ground automation for swing gates up to 8 feet and 300 pounds, optimized for solar installations where AC power is unavailable or impractical. Its low-profile in-ground actuator provides discreet operation, perfect for residential applications prioritizing aesthetics and energy independence. With a 24VDC configuration and built-in battery support, this system delivers reliable performance using a separately sold solar panel.

Key Features

• Designed for Solar Operation - Compatible with 24V solar setups using separately sold panel(s)
• Discreet In-Ground Mounting - Actuator remains hidden for a clean, unobtrusive appearance
• Battery Powered - Operates using rechargeable batteries for remote and off-grid installations
• Smooth Soft Start/Stop - Reduces mechanical stress and enhances longevity
• Manual Keyed Release - Allows secure manual gate operation in case of system failure
• Photocell Included - Ensures entrapment protection and UL 325 compliance

Technical Specifications

• Model: Doorking 6400 Single Kit - 24V Solar
• Mounting Type: In-Ground
• Max Gate Length: 8 ft
• Max Gate Weight: 300 lbs
• Power Type: Solar (24V battery powered)
• Solar Panel: Sold separately (24V panel or 12V panels wired in series)
• Motor Type: 24VDC continuous duty
• Control System: Solar-ready logic with built-in charger
• Battery Type: 12V 3.5Ah (x2) rechargeable batteries included
• Opening Speed: 90° in approx. 15 seconds
• Max Opening Angle: 90°
• Operating Temperature: 32°F to 115°F (optimal battery performance)
• Protection Rating: NEMA 4X / IP54 (control box)
• Actuator Weight: 80 lbs
• Control Box Size: 12.5″ W x 16.5″ H x 4.25″ D

Kit Includes

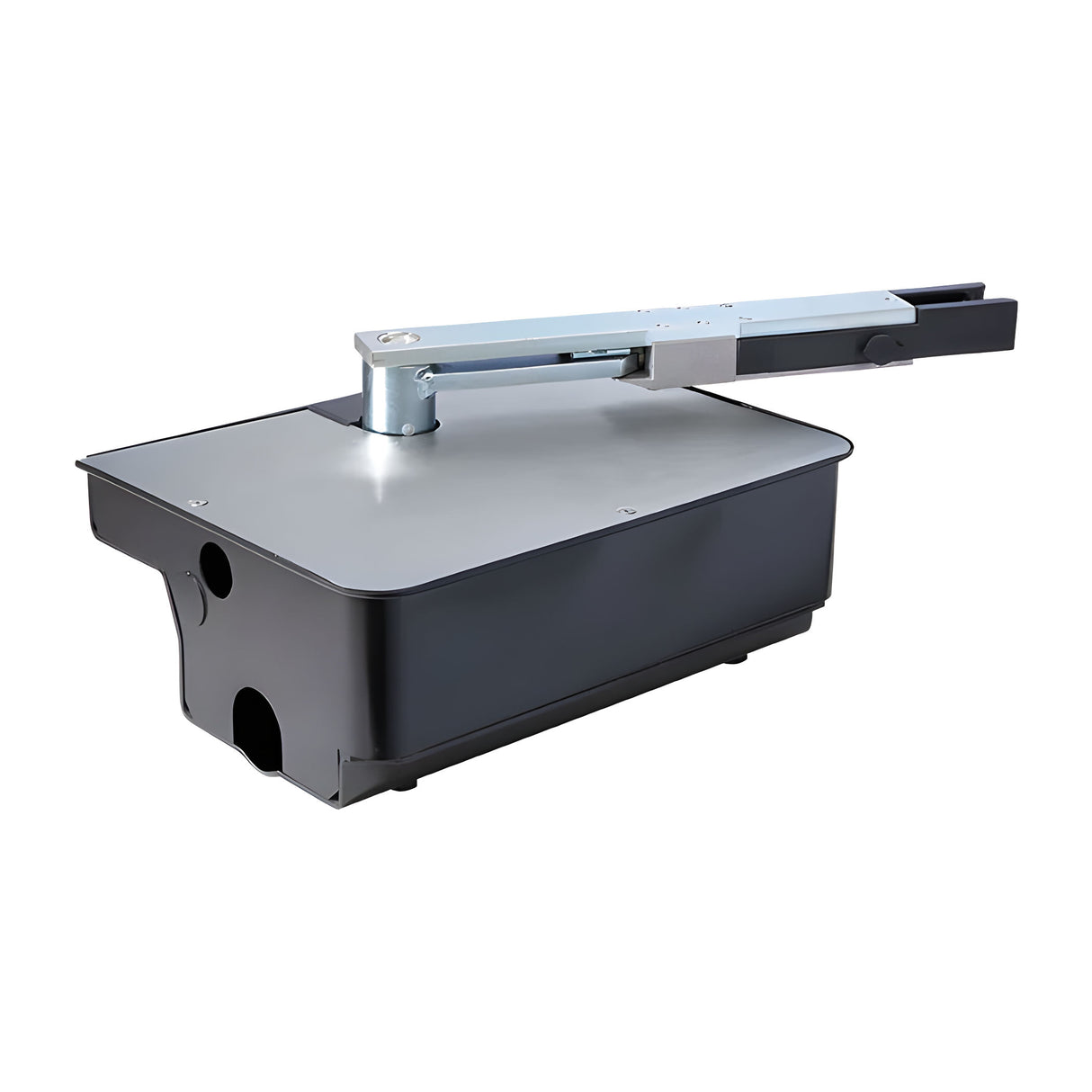

• (1) 6400 In-Ground Swing Gate Actuator
• (1) Solar-Ready Control Box with charger
• (2) 12V 3.5Ah Backup Batteries
• (1) Photocell for safety compliance
• (1) Keyed manual release mechanism
• All required mounting hardware

Conclusion

Ideal for solar-powered residential installations, the Doorking 6400 24V Single Kit delivers dependable, quiet swing gate automation with minimal visual impact. With solar compatibility, battery support, and UL-required safety features, it ensures long-term, eco-friendly access control where traditional AC power may not be available.
