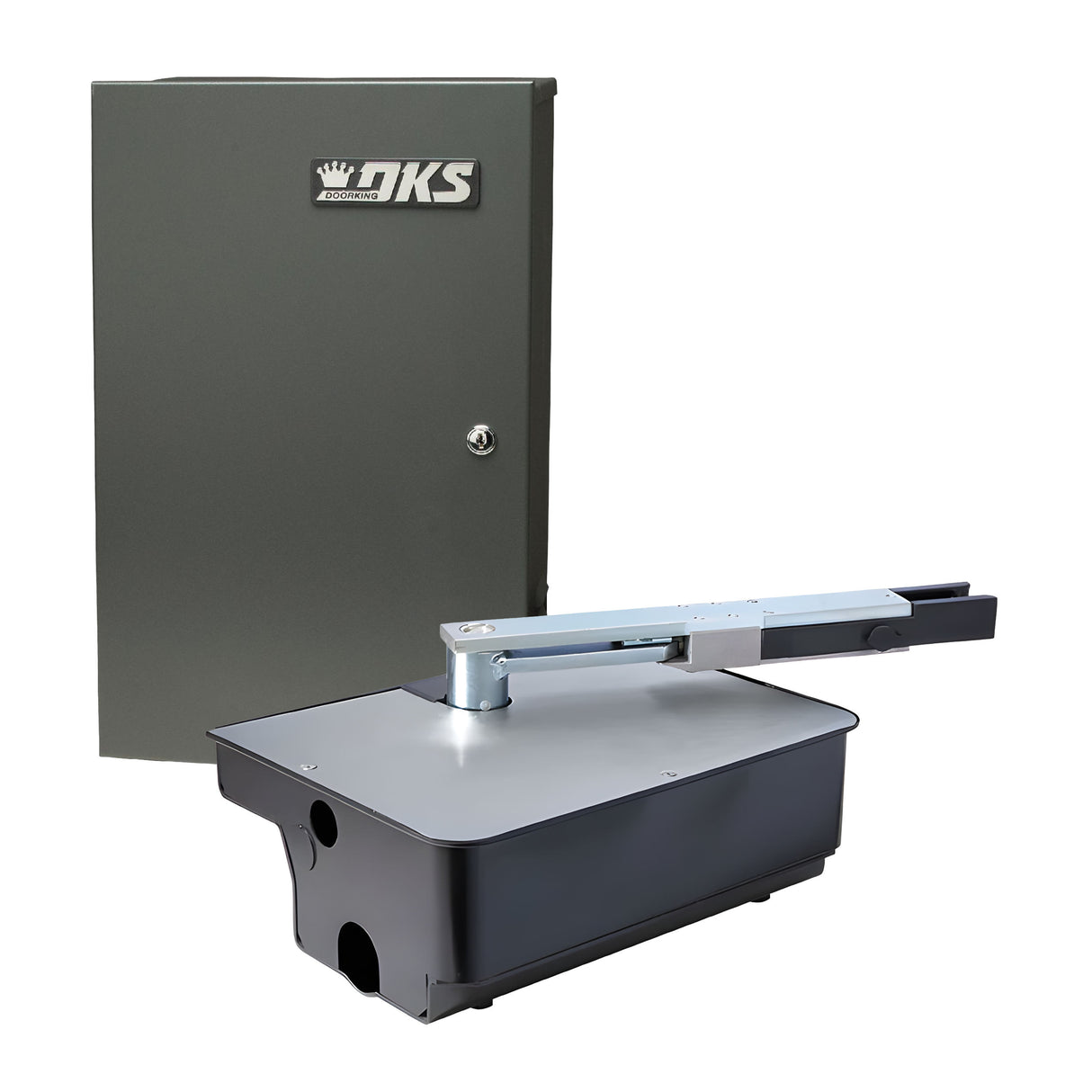

Doorking 6400 Single In-Ground Gate Opener Kit - 115V

Low-Profile In-Ground Gate Automation with Battery Backup

The Doorking 6400 Single Gate Operator Kit offers sleek, in-ground automation for residential swing gates up to 8 feet long and 300 pounds, delivering reliable performance without visual clutter. Designed to remain virtually invisible when installed, the 6400 in-ground actuator pairs discreet aesthetics with professional-grade features, making it ideal for homeowners seeking a low-profile security solution. This version includes the standard 115V AC control box with an integrated battery backup for uninterrupted operation during power outages.

Key Features

• Hidden In-Ground Installation - Actuator is installed below grade for a clean, unobtrusive look
• Soft Start/Stop Function - Enhances smooth gate operation and extends mechanical lifespan
• AC Powered with Battery Backup - Operates on 115 VAC and includes internal charger with two 3.5Ah batteries
• Keyed Manual Release - Lockable fail-secure release offers secure manual override when needed
• Photocell Included - Meets UL 325 entrapment protection requirements
• Corrosion-Resistant Construction - Die-cast aluminum drive and galvanized steel foundation box for long-term durability

Technical Specifications

• Model: Doorking 6400 Single Kit - 115V AC
• Mounting Type: In-Ground
• Max Gate Length: 8 ft
• Max Gate Weight: 300 lbs
• Power Type: AC with battery backup
• Input Power: 115 VAC
• Motor Type: Continuous duty 24VDC
• Opening Speed: 90° in approx. 15 seconds
• Max Opening Angle: 90°
• Operating Temperature: 32°F to 115°F (optimal battery range)
• Protection Rating: NEMA 4X / IP54 (control box)
• Actuator Weight: 80 lbs
• Control Box Size: 12.5″ W x 16.5″ H x 4.25″ D

Kit Includes

• (1) 6400 In-Ground Swing Gate Actuator
• (1) Standard 115V AC Control Box with built-in battery charger
• (2) 12V 3.5Ah Backup Batteries
• (1) Photocell for entrapment protection
• (1) Manual keyed release mechanism
• All required mounting hardware

Conclusion

With its in-ground design and AC-powered reliability, the Doorking 6400 Single Gate Kit is an ideal solution for enhancing residential perimeter security without compromising aesthetics. The included battery backup, keyed release, and UL-compliant safety photocell ensure secure operation across varying conditions. Engineered for durability and simplicity, this operator delivers dependable access control in a discreet form.
