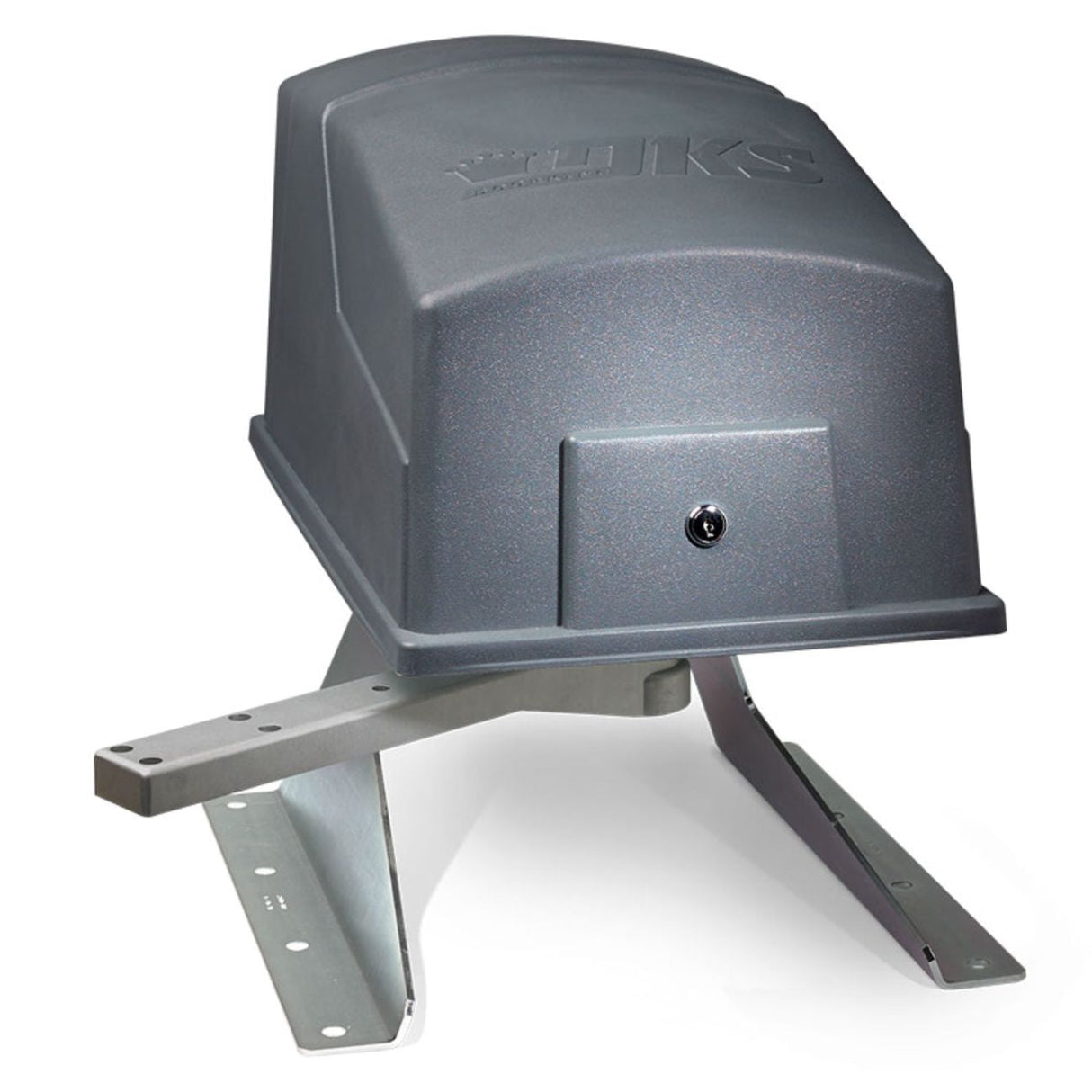

Doorking 6300-385 Secondary Swing Gate Opener (1 HP)

Heavy-Duty Synchronized Access for Dual-Gate Systems

The DoorKing 6300-385 is a powerful and essential component for dual-gate systems, designed to work in harmony with a primary operator (such as the DoorKing 6300-384) to manage bi-parting gates in residential, commercial, and industrial applications. With its robust 1-HP AC motor, the 6300-385 can support gates up to 22 feet long and 800 lbs per leaf, making it ideal for high-traffic areas requiring synchronized, secure access. This secondary operator maintains a streamlined appearance by mounting directly to the gate’s bottom rail, eliminating bulky brackets for a cleaner, more professional look.

Key Features

• Secondary Operator for Dual-Gate Systems: The 6300-385 operates exclusively with a primary unit, providing coordinated, synchronized movement for dual swing gates.
• Heavy-Duty 1 HP Motor: The continuous-duty 1 HP motor delivers reliable performance for large gates, supporting applications with high traffic and heavy loads.
• Aesthetic, Low-Profile Mounting: Designed for bottom-rail mounting, this unit preserves the gate’s appearance by removing the need for visible brackets, maintaining a clean, discreet profile.
• Smooth Start/Stop Mechanism: Equipped with a two-piece articulating arm, the 6300-385 offers smooth, controlled gate movement, preventing wear and minimizing noise.
• UL 325 Compliant Safety: Ensures safety compliance when paired with required monitored photoeyes (sold separately), protecting users and meeting industry standards.

Technical Specifications

• Motor: 1 HP AC, continuous duty
• Power Requirements: Low-voltage power supplied from the primary operator via an 8-wire connection
• Gate Capacity: Accommodates gates up to 22 feet long and 800 lbs per leaf
• Gate Speed: Completes a 90° swing in approximately 16-18 seconds
• Mounting Options: Compatible with Pad Mount Kit (Part Number 2600-264) or Post Mount Kit (Part Number 2600-263), both sold separately
• Operating Temperature: Reliable from 10°F to 115°F; optional thermostatically controlled heater kit available for colder climates

Conclusion

The DoorKing 6300-385 offers synchronized, dependable operation for dual-gate systems, supporting smooth and secure access control for any high-demand environment. Its discreet mounting design and robust 1 HP motor make it a top choice for users who require strength without compromising on aesthetics. When paired with a primary operator, the 6300-385 ensures coordinated, efficient access control in even the most challenging applications.
