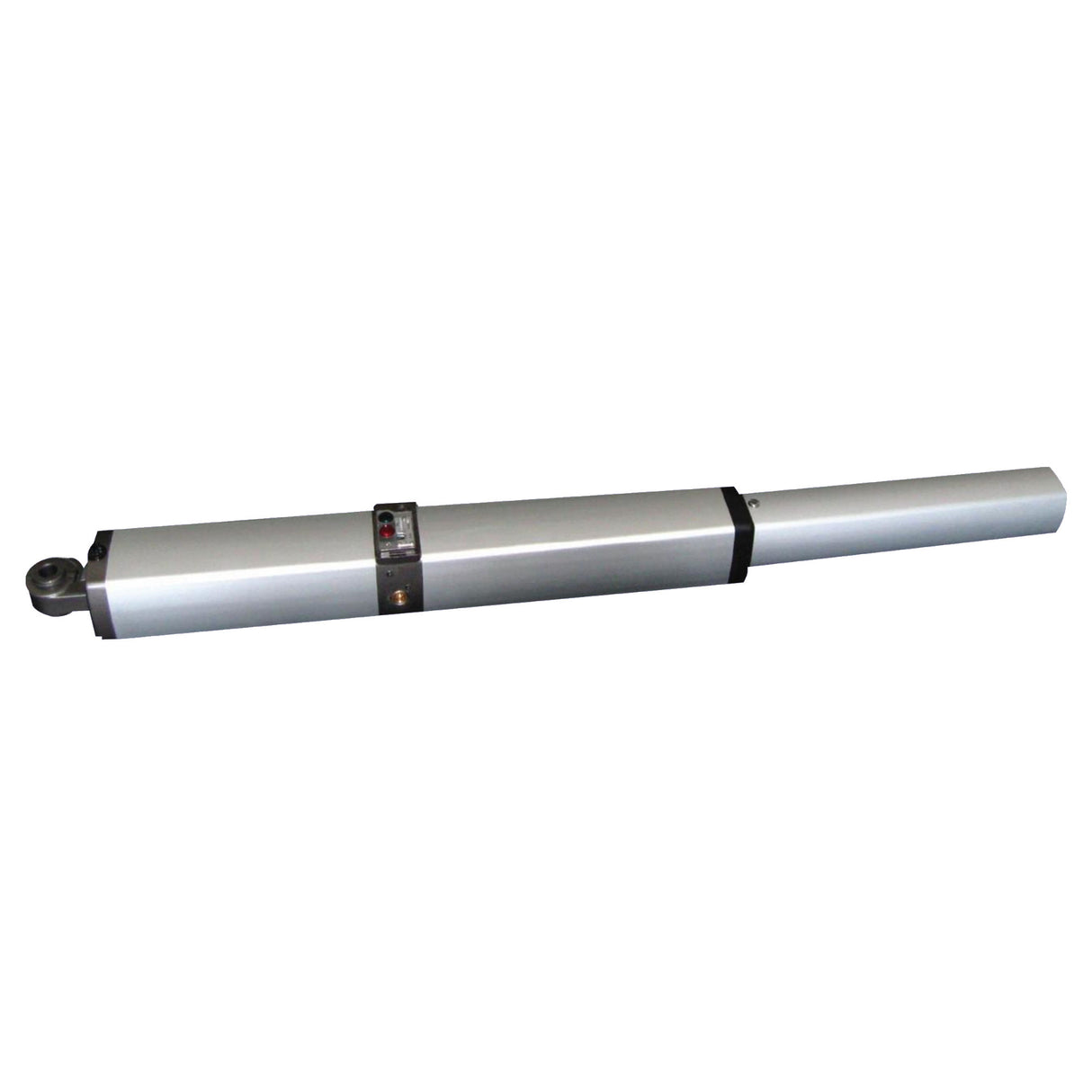

Byan 900 Hydraulic Gate Arm – 3,000 lb Rated

Hydraulic Gate Arm for 3,000 lb Commercial Swing Gates

The Byan Systems 900 is a heavy-duty, continuous-duty hydraulic swing gate operator engineered for high-cycle commercial and industrial access control. Capable of handling gates up to 3,000 lbs and 16 feet in length, this operator is built for rugged reliability and fast performance, even in extreme temperatures from -40°F to 240°F. With an approximate 13-second opening time to 90°, adjustable hydraulic pressure, and a fail-secure design, the 900A G104 is ideal for mission-critical perimeter systems. Control panel sold separately.

Key Features

• Heavy-duty hydraulic operation – Quiet, controlled motion designed for high-cycle environments
• Supports gates up to 3,000 lbs / 16 ft – Suitable for large commercial swing gates
• 115V or 230V AC compatible – Works with standard single-phase control panels
• Fast gate performance – Opens 90° in approximately 13 seconds
• Extreme weather resistance – Rated for operation from -40°F to 240°F
• Manual release valve – Enables access during power outages
• Fail-Secure mode – Remains locked when power is lost
• Control panel not included – Arm only

Technical Specifications

• Model Number: 900, 900A (G104)
• Gate Capacity: Up to 3,000 lbs or 16 ft
• Power Supply: 115V or 230V AC
• Amp Draw: 4 Amps
• Motor: 1/6 HP
• Hydraulic Pump: Spur gear
• Opening Range: Up to 120°
• Opening Speed: ~13 seconds to 90°
• Temperature Range: -40°F to 240°F
• Piston Travel: 9.84 inches
• Length: 42 inches
• Max Width/Height: 4.33 inches
• Duty Cycle: Continuous
• Included: Hydraulic gate arm only (control panel sold separately)

Conclusion

The Byan 900A G104 hydraulic swing gate arm delivers powerful, weather-tolerant performance for large commercial and industrial swing gates. Designed for long-term reliability and rapid access cycles, it offers the strength and consistency required in high-security environments - control panel not included.
