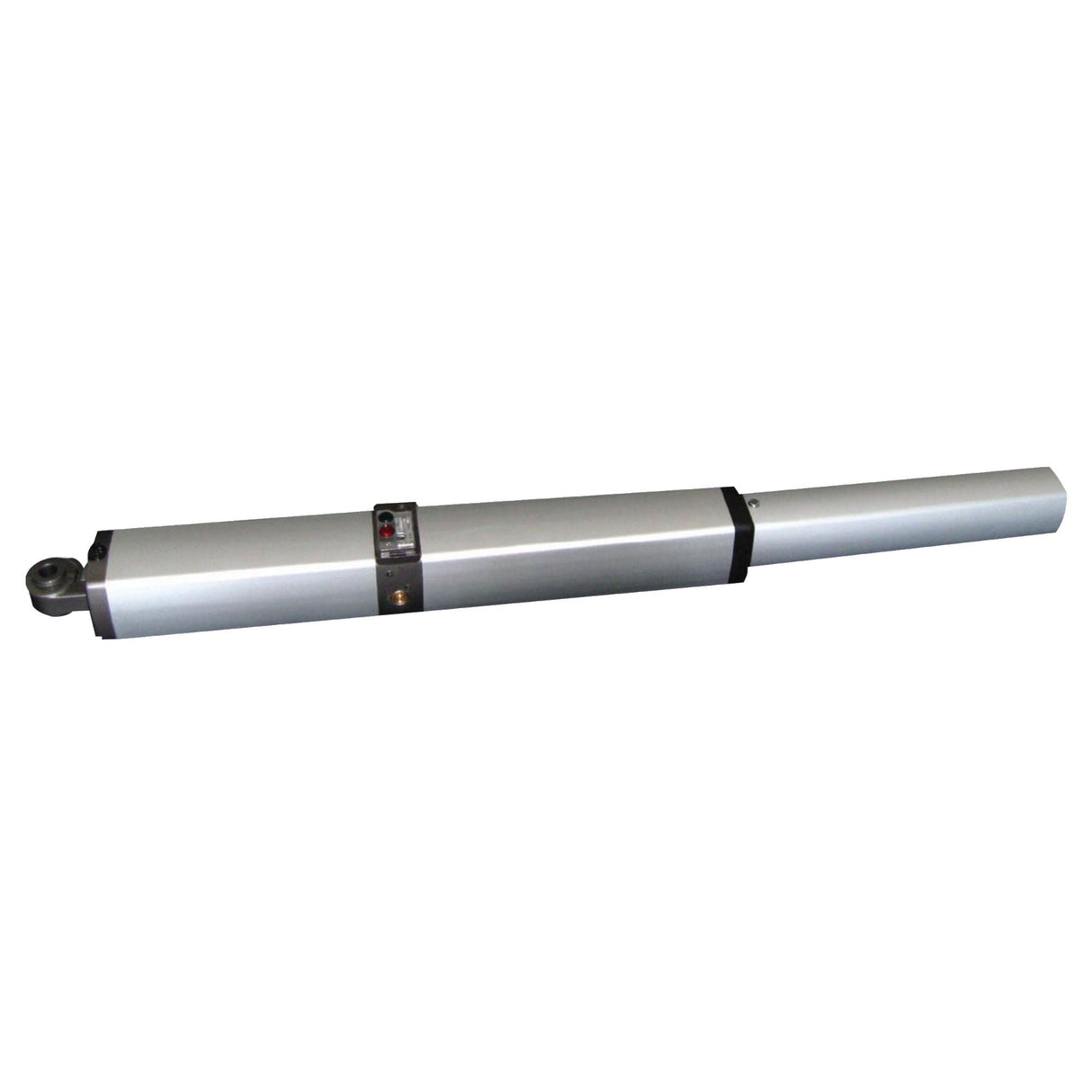

Byan 800 Hydraulic Gate Arm – 800 lb Rated
Byan 800 Hydraulic Gate Arm – 800 lb Rated - 115 Volt is backordered and will ship as soon as it is back in stock.
Core Details
| Product Type | Replacement Swing Arm | Swing Gate Operator |
| Application Type | Gate |
| Installation Type | Residential | Commercial |
| Voltage | 115V | 230V |
| Power Type | AC |
| Mounting Type | Post Mounted |
| Motor Type | Hydraulic |
| Horsepower (HP) | < 0.5 HP |
| UL/ETL Certification | Yes |
| Lock Mode | Fail-Secure |
| Max Gate Weight | 800 lbs |
| Max Gate Length | 14 ft |
| Phase | Single-Phase |
| Weatherproof Rating | Rated for Outdoor Usage |
| Operating Temperature | -40°F to 240°F |
Byan 800 Hydraulic Gate Arm – 800 lb Rated
Description
Description
Hydraulic Gate Arm for Byan Commercial Swing Systems
The Byan Systems 800 is a standalone hydraulic gate arm designed for commercial and industrial swing gate applications. Built to handle gates up to 800 lbs or 14 feet in length, the 800A delivers consistent performance in high-cycle environments where security and reliability are essential. Featuring a fully hydraulic design, this operator offers smooth motion, adjustable pressure, and long service life - even in harsh weather. Control panel sold separately.
Key Features
- Gate arm only – Requires separate control panel for operation
- Hydraulic operation – Delivers quiet, smooth, and controlled gate movement
- Rated for continuous duty – Ideal for commercial and industrial access points
- Supports gates up to 800 lbs / 14 ft – Suitable for medium-weight swing gates
- Manual release valve – Allows gate operation during power outages
- Durable construction – Withstands outdoor exposure and frequent cycling
Technical Specifications
- Model: 800, 800A
- Gate Capacity: Up to 800 lbs or 14 ft
- Mechanism Type: Hydraulic
- Mounting Type: Post-mounted
- Opening Range: Up to 110°
- Duty Cycle: 100%
- Lock Mode: Fail-Secure
- Power Requirement: 115V or 230V AC (via control panel, not included)
- Operating Temperature: -10°F to 160°F
- Included: Hydraulic gate arm only
Conclusion
The Byan 800 offers secure, maintenance-efficient automation for swing gates in commercial and light-industrial settings. Designed to operate under continuous use, it provides the hydraulic reliability required for demanding perimeter access systems—control logic not included.
