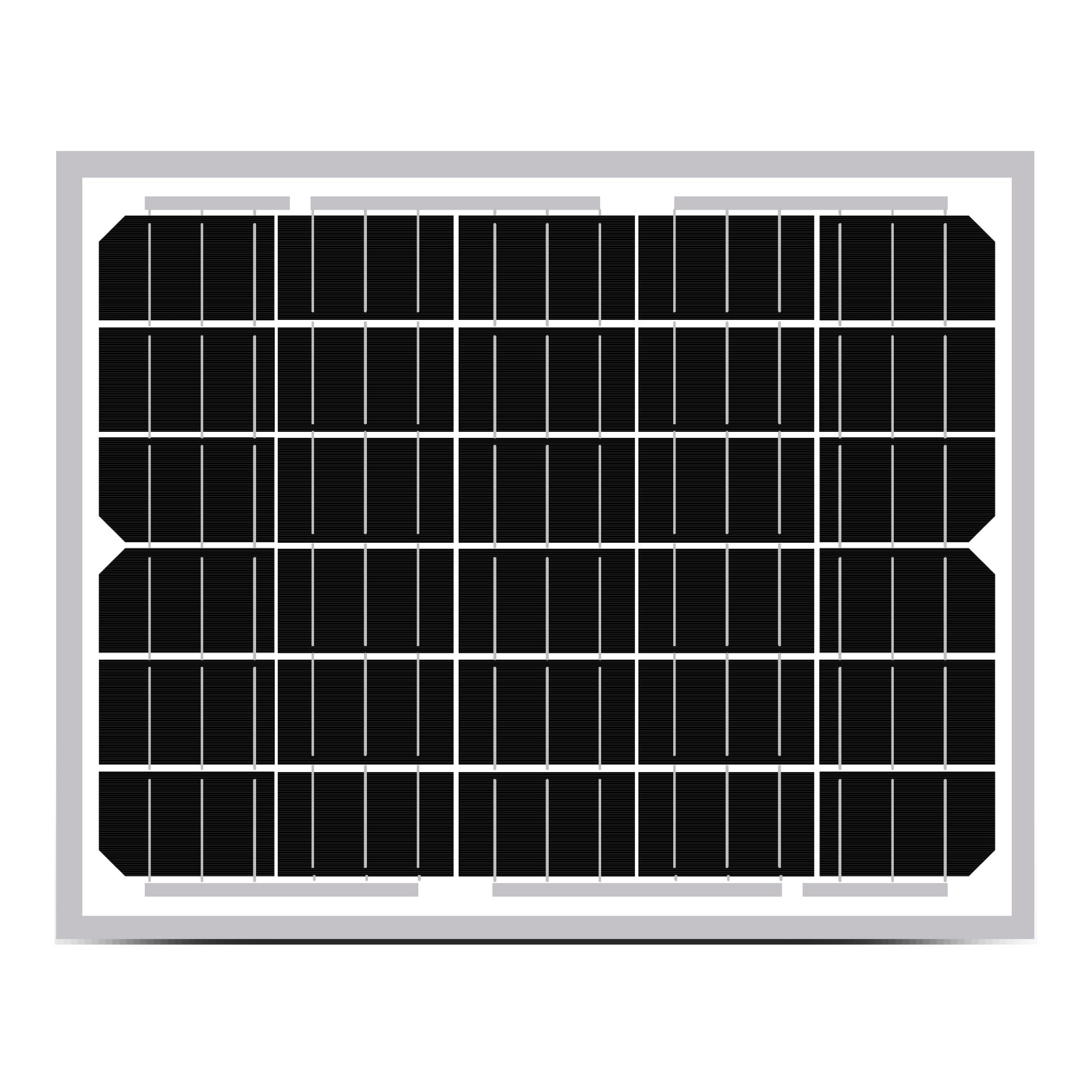

Elite 10W Solar Panel for Gate Operators - 12V

Compact 12V Solar Panel for Gate Operators and Perimeter Access

The Elite 10 Watt Solar Panel Kit 12 Volt with bracket is a compact, high-efficiency monocrystalline module built to support dependable charging for off-grid gate operators and perimeter access equipment. Designed for harsh outdoor conditions, it features a heavy-duty anodized frame and low-iron tempered glass, along with strong wind and snow load ratings for long-term reliability at secured sites.

Key Features

• Nominal 12V DC output for common gate and access power setups
• Monocrystalline, 30-cell design optimized for consistent energy production
• Outstanding low-light performance for improved charging in real-world conditions
• High PID resistance to help maintain output over time
• Tempered low-iron glass and anodized frame for outdoor durability
• Wind and snow load rated to withstand demanding environments
• Positive power tolerance supports dependable field performance

Technical Specifications

• Power Output: 10W
• Module Efficiency: 20.00%
• Cell Type: Monocrystalline silicon
• Cell Count: 30 (5 x 6)
• Voltage at Pmax (Vmp): 17.37V
• Current at Pmax (Imp): 0.58A
• Open-Circuit Voltage (Voc): 20.04V
• Short-Circuit Current (Isc): 0.61A
• Positive Power Tolerance: 0 to +5W
• Operating Temperature: -40°C to 85°C
• NOCT: 47°C ± 2°C
• Max System Voltage: 1000V DC
• Wind Load / Snow Load: 2400 Pa / 5400 Pa

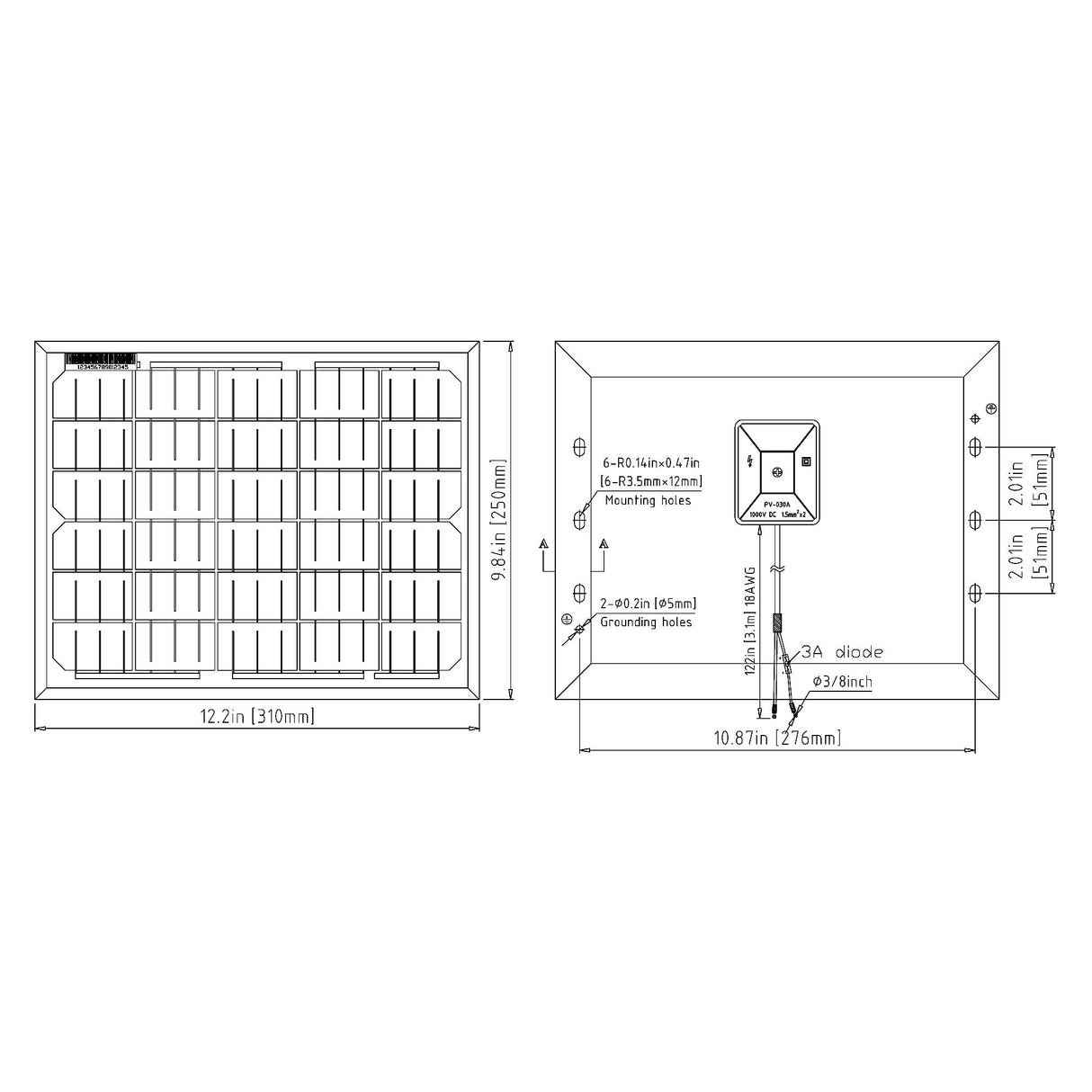

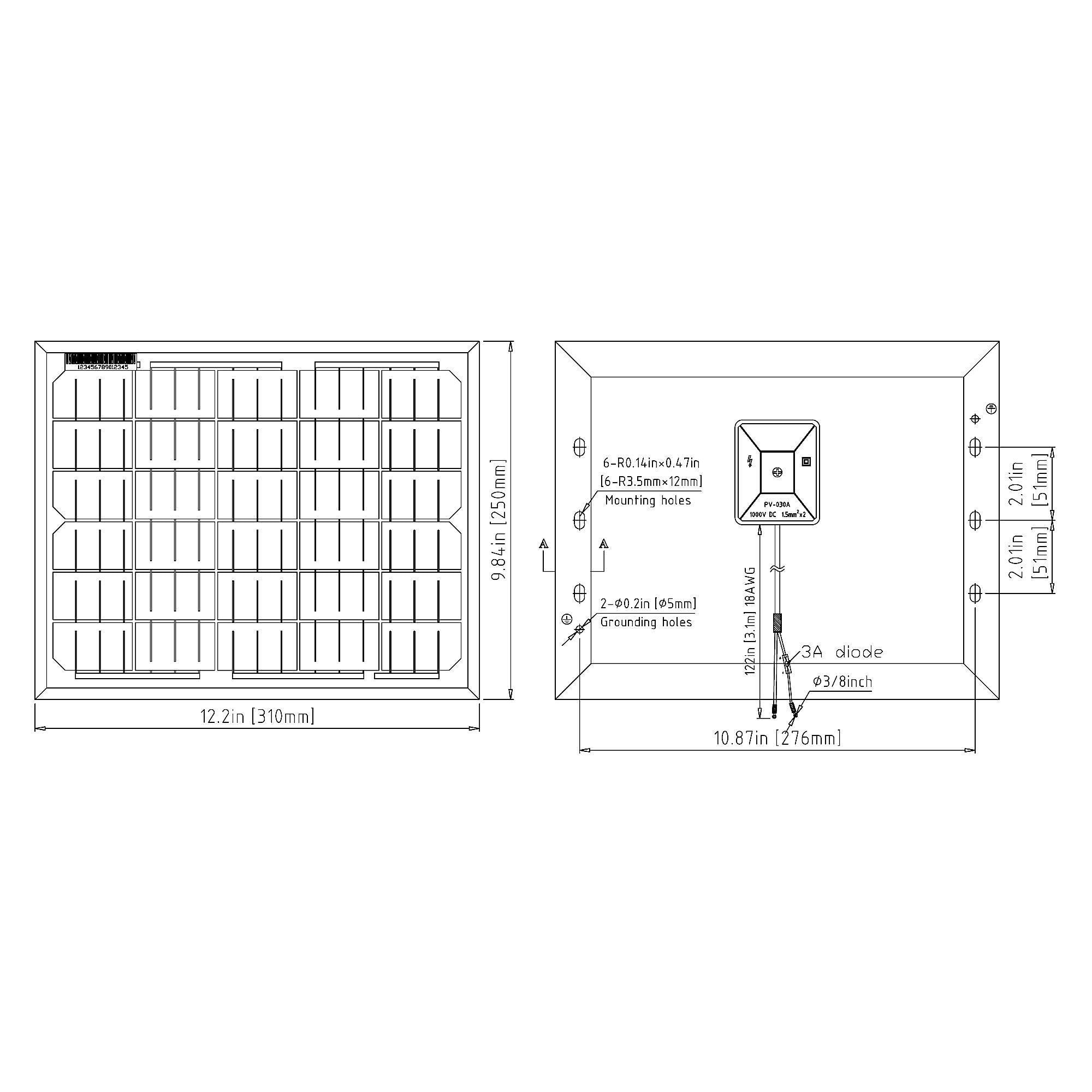

• Dimensions: 9.84 in x 12.20 in x 1.18 in
• Weight: 2.41 lb
• Warranty: 5-year product workmanship, 10-year power warranty, 25-year linear performance

Conclusion

For secured sites that depend on reliable off-grid power, the Elite 10 Watt Solar Panel 12 Volt delivers durable construction, strong environmental ratings, and efficient 12V-class performance in a compact form factor suitable for gate and access control systems.
