LiftMaster TECHNA IBG24DC Industrial Barrier Gate Operator

Industrial Barrier Gate Operator with 24 ft Arm Capacity for High-Cycle Applications

The LiftMaster TECHNA IBG24DC is an industrial barrier gate operator rated for continuous duty in Class I, II, III, and IV vehicular access applications. Built around a 24VDC brushless motor with 303.5:1 direct drive gear reduction, it handles barrier arm spans up to 24 ft functional length at a 6-second cycle time, making it the appropriate choice for wide-lane industrial entries, loading docks, parking structures, and restricted-access sites where the commercial CBG reaches its limit. The 10-gauge powder-coated aluminum cabinet carries an IP65 outdoor rating and ships with two 12V 7Ah batteries standard. All settings, including arm length, speed, limits, and relay functions, are configured through the onboard LCD display with no mechanical dip switches required.

Connectivity runs over Wi-Fi or Cat 5/6 Ethernet to myQ Facility. Additional TECHNA operators and compatible CAP equipment pair wirelessly over 900MHz, supporting tandem configurations. The optional 3PHCONV transformer kit adapts three-phase service (208/240/480/575 VAC) to the operator's 120VAC input for facilities without single-phase power at the installation point.

Key Features

• 24VDC brushless motor, continuous duty, 303.5:1 direct drive; fast cycle time of 6 seconds, adjustable to medium or slow via LCD menu.
• Accepts barrier arms up to 24 ft functional length; arms are sold separately (see Compatible Barrier Arms below).
• UL listed to UL 325 and UL 991, Class I, II, III, and IV; fire department open input standard.
• Standard battery backup (2x 12V 7Ah) delivers up to 5 days standby and approximately 500 gate cycles without AC power.
• Wi-Fi and Ethernet to myQ Facility; 900MHz wireless pairing for tandem and multi-gate configurations; 50-event local log, unlimited via myQ.
• Magnetic arm strike sensor stops arm motion on contact and logs the event locally; push notification available via myQ.
• Solar compatible; supports 40W to 80W, 24V solar panel configurations using LiftMaster SP20W12V panels. Heater accessory is not compatible with solar applications.
• Optional heater (model HTR) extends operating range to -40°F (-40°C) for AC-powered installations.

Technical Specifications

• Part Number: IBG24DCW (White), IBG24DCG (Dark Grey)
• Motor: 24VDC brushless with soft start/stop
• Gear Reduction: 303.5:1 Direct Drive
• Maximum Arm Length: 24 ft functional (sold separately)
• Open/Close Time: Fast: 6.0 sec; Medium: approx. 7.0 sec; Slow (default): approx. 8.0 sec
• Duty Rating: Continuous
• Input Voltage: 120VAC single phase, 12.5A; or 240VAC single phase, 3.5A
• Three-Phase Power: Optional 3PHCONV kit converts 208/240/480/575 VAC to 120VAC
• Battery Backup: 2x 12V 7Ah standard; up to 5 days standby, approx. 500 cycles
• Solar Power: Compatible; 40W min, 80W max, 24V; minimum 2x SP20W12V panels in series, maximum 4x SP20W12V panels; 33Ah batteries strongly recommended for solar applications
• Operating Temperature: -4°F to 140°F standard; -40°F to 140°F with optional heater (AC only)
• IP Rating: IP65
• Arm Wind Rating: Up to 60 mph
• Connectivity: Wi-Fi 802.11 b/g/n 2.4 GHz; Cat 5/6 Ethernet 10/100 Mbps; 900MHz wireless
• Programmable Relays: 5 total (1 main board, 4 via auxiliary boards)
• Display: LCD color display, 4-button interface
• UL Listing: UL 325 and UL 991, Class I, II, III, IV
• Operator Weight: 159 lbs (with bracket and standard batteries)
• Warranty: 2 years
• Manufacturer: LiftMaster / The Chamberlain Group LLC
• Condition: New

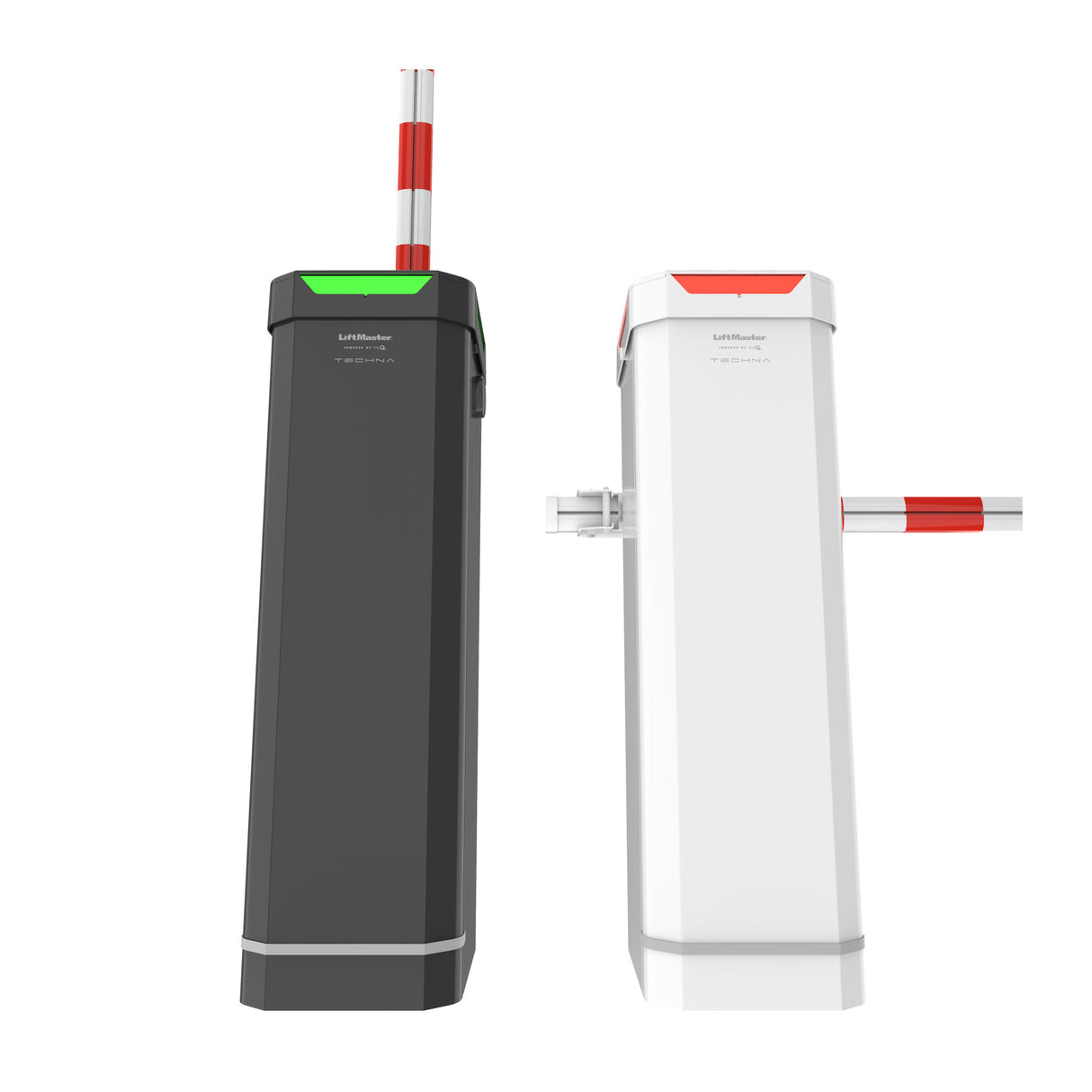

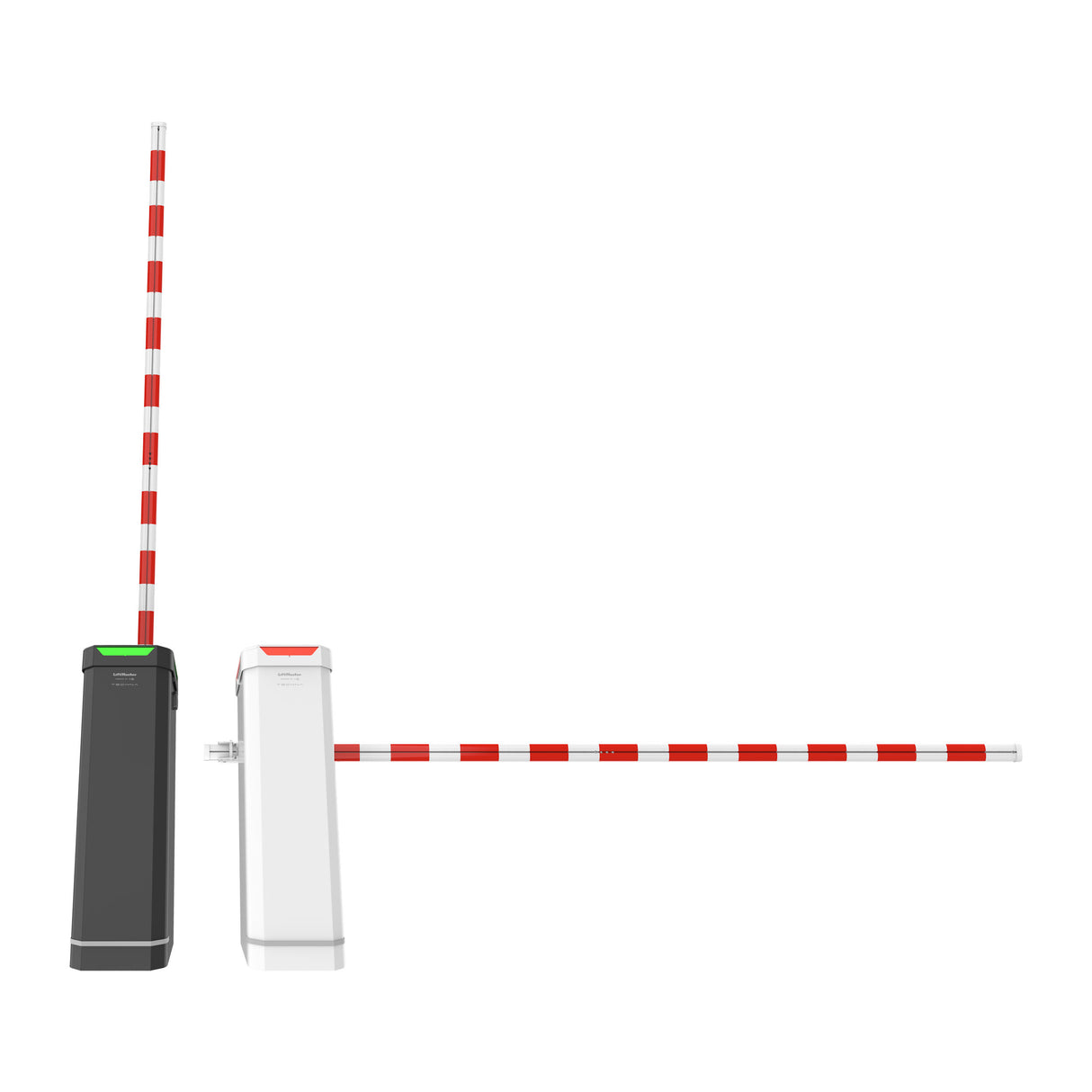

Available Models

Both models are electrically and mechanically identical. Select by finish based on site requirements.

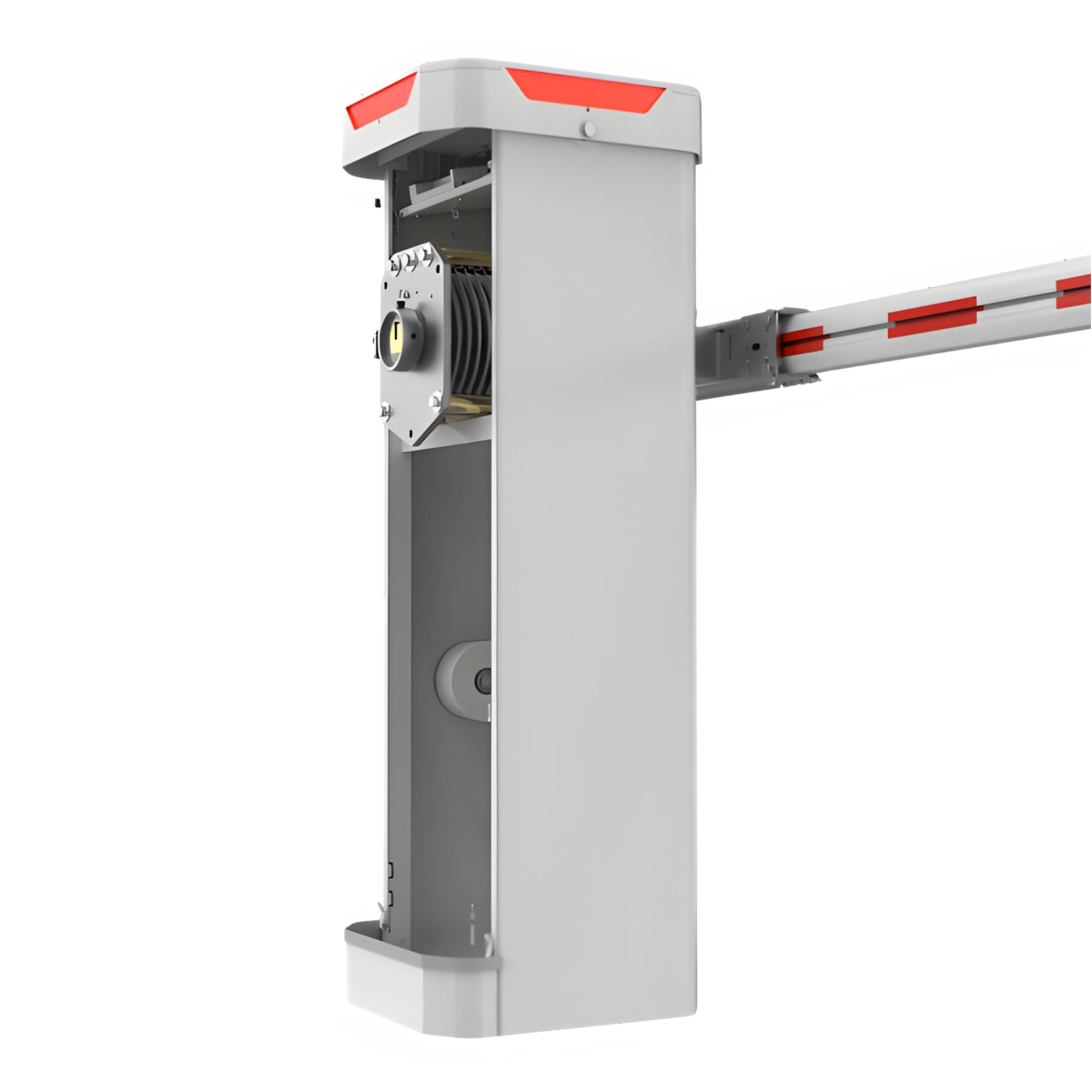

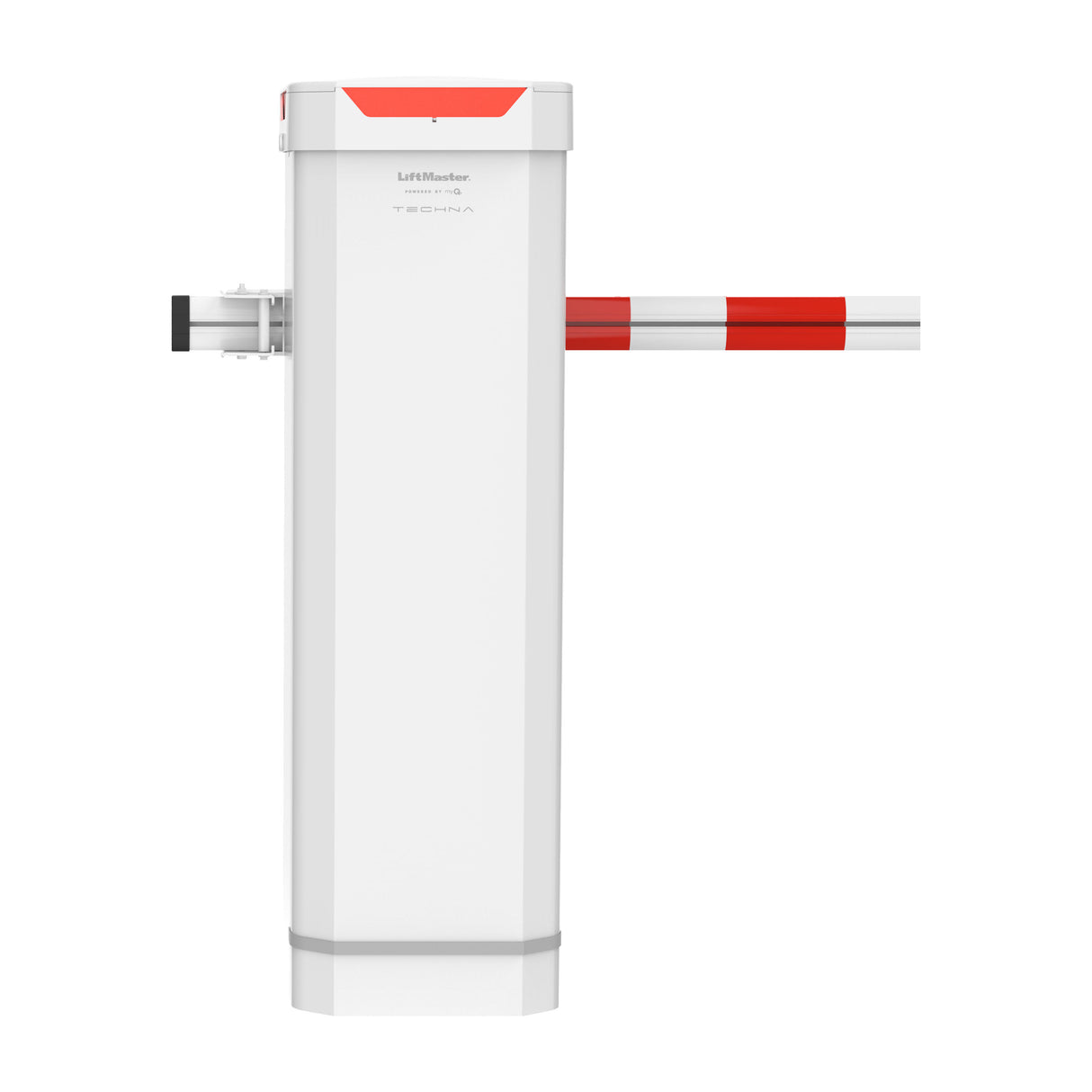

• White: IBG24DCW

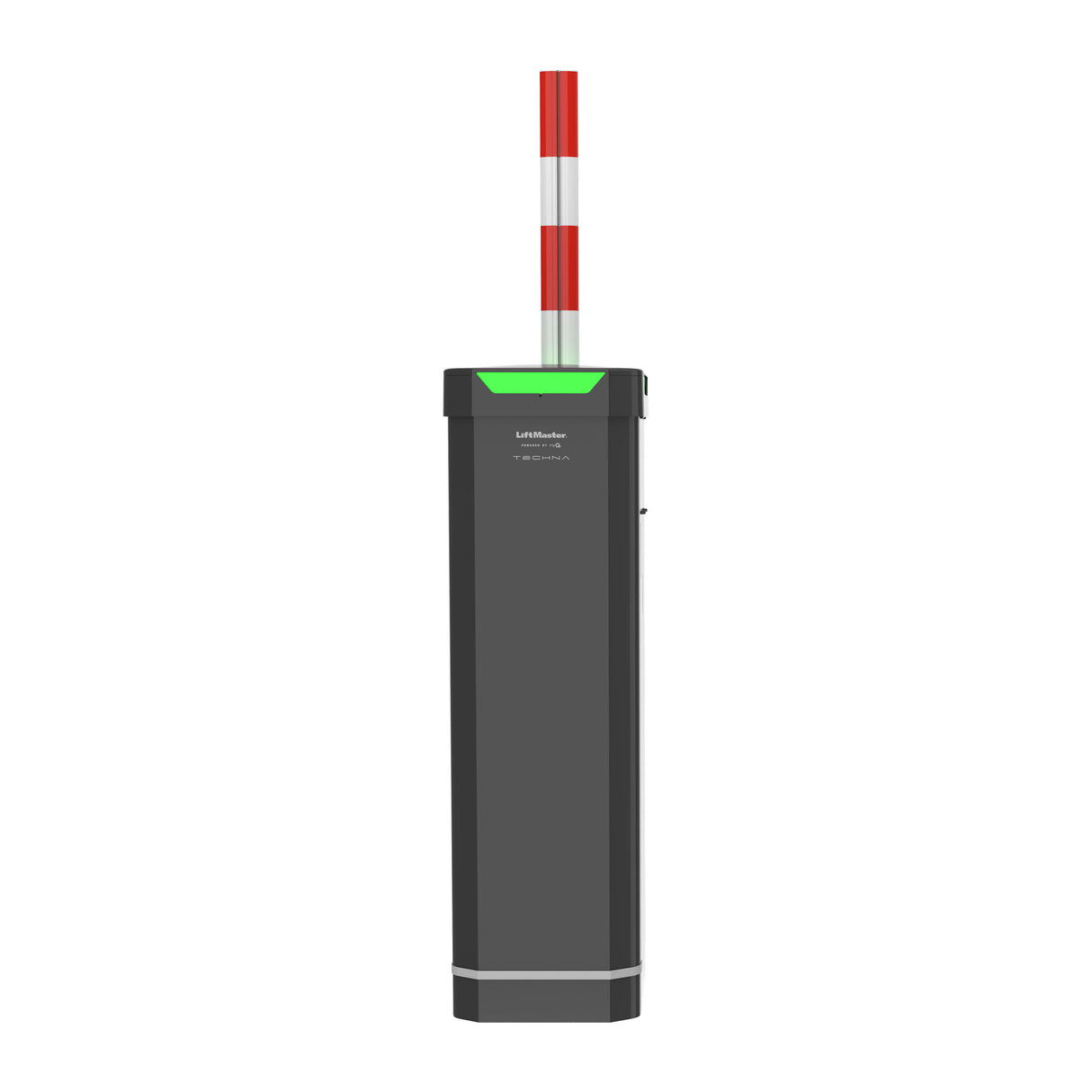

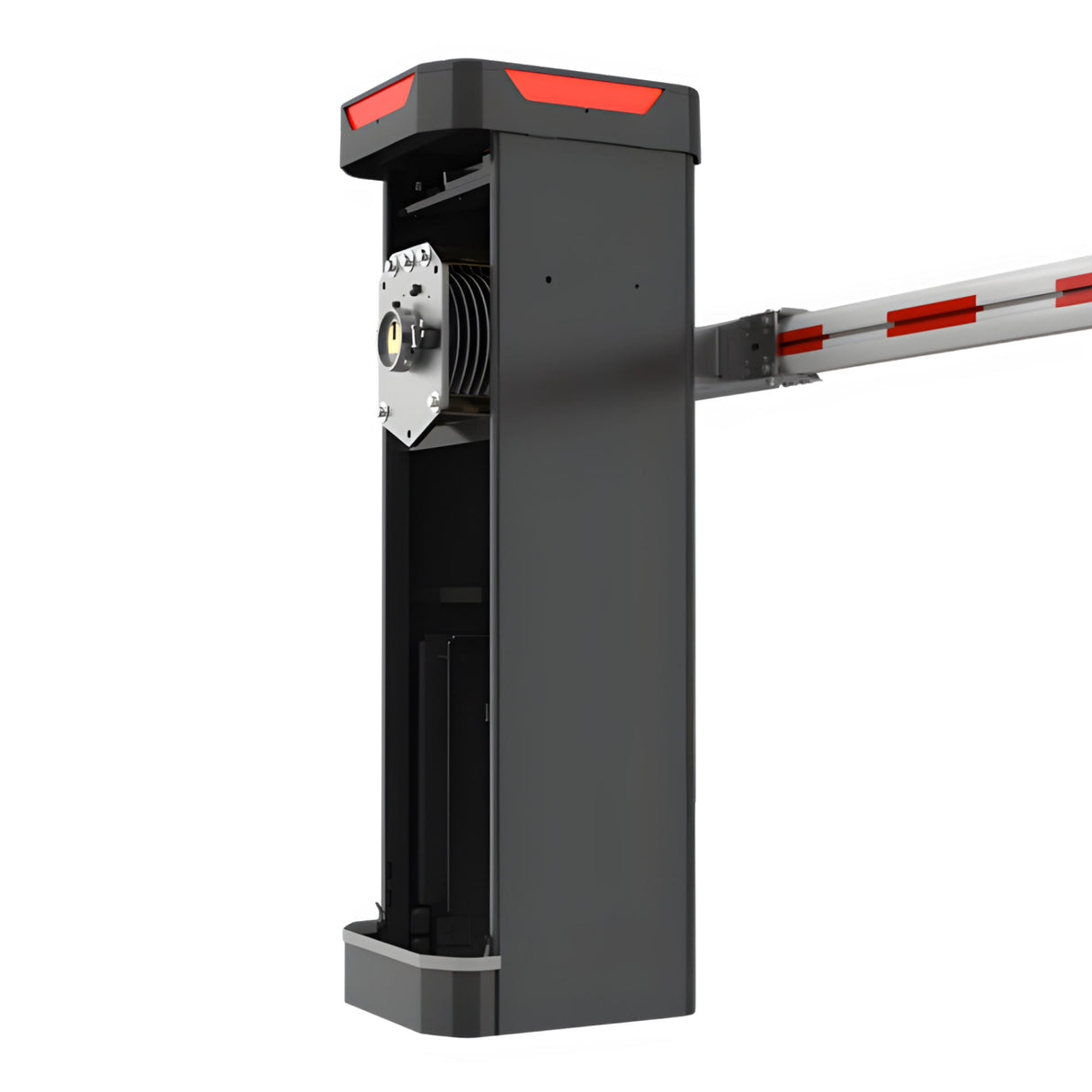

• Dark Grey: IBG24DCG

Compatible Barrier Arms (Sold Separately)

The IBG24DC requires a LiftMaster TECHNA barrier arm. Only LiftMaster arms are UL listed with this operator. Two functional lengths are available, both in standard aluminum. Arms can be cut down in the field to match the required lane width.

• IBGARM18 – 18 ft functional length arm
• IBGARM24 – 24 ft functional length arm

Conclusion

The IBG24DC requires fixed arm installation; swingaway and breakaway configurations are not compatible with this model. Three-phase facilities require the optional 3PHCONV transformer kit. Solar installations require 2x to 4x LiftMaster SP20W12V panels wired in series; the heater accessory (HTR) cannot be used in solar applications, and solar operation is not supported in northern climates. For solar or extended standby applications, upgrading to 2x 12V 33Ah batteries (A12330SGLPK) requires the TRAY33AH tray and K41-0102-000 harness kit, both sold separately.
