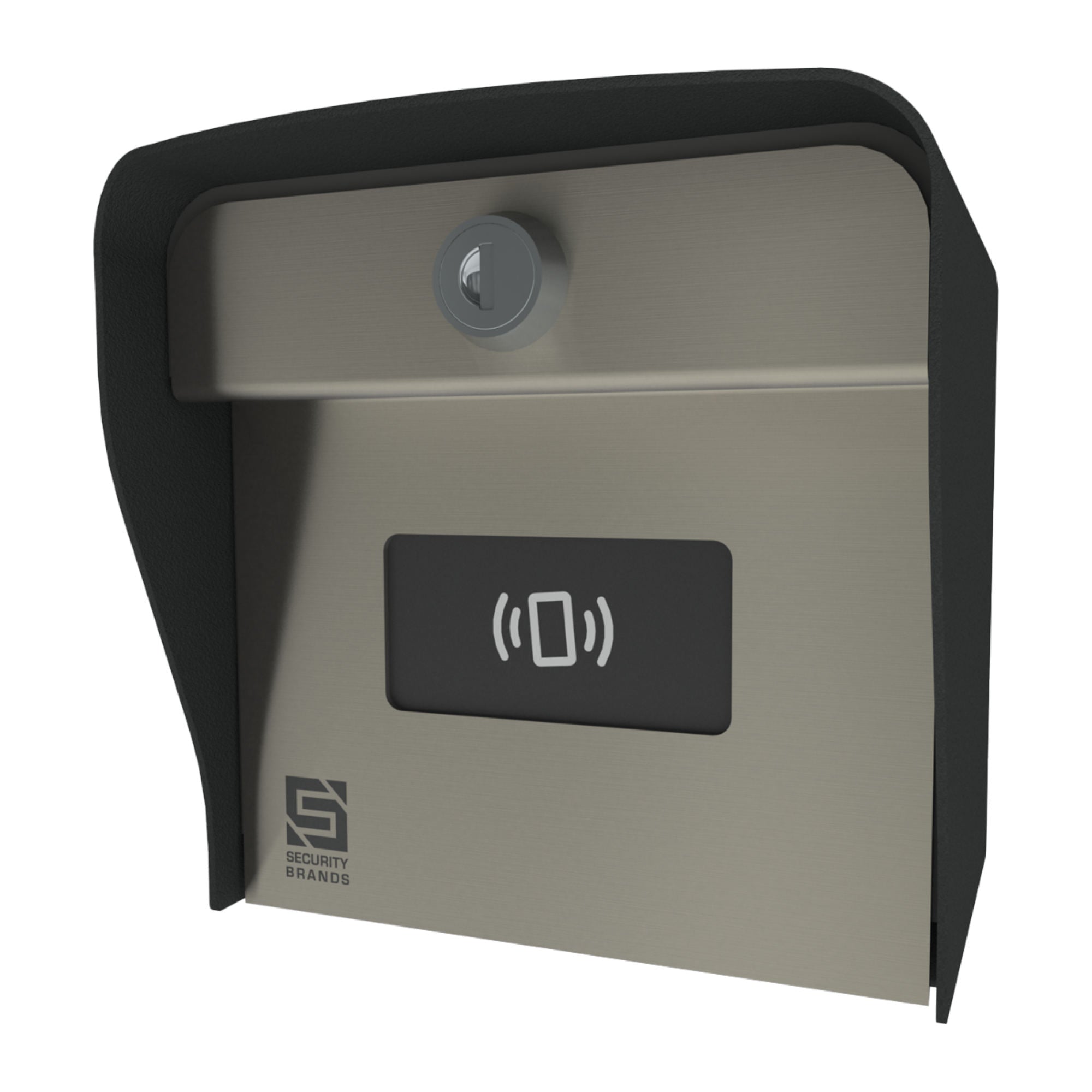

Security Brands 37-LR1 Ascent Link Card Reader

Wireless Mesh Proximity Reader for Ascent Access Systems

The Security Brands 37-LR1 Ascent Link Reader is a wireless mesh proximity card reader for compatible Ascent cellular access control systems. It allows an Ascent-controlled gate, door, or access point to support credential-based entry without running long control wiring back to the primary Ascent unit.

The 37-LR1 communicates through the Ascent Link 900 MHz wireless mesh network and is designed to work up to 1,000 feet from a compatible Ascent Link or primary Ascent unit under typical conditions. Once paired, the reader becomes part of the Ascent access control network and can be managed through Summit Control for cloud-based access control.

This model includes one relay and three digital inputs. The relay can be wired to a gate operator, door opener, magnetic lock, or electric strike, while the digital inputs allow additional accessory devices to be tied into the access control installation. The network status LED provides visual feedback during pairing and operation.

The 37-LR1 requires an Ascent primary controller to operate. For longer wireless distances, Security Brands offers the Ascent Link Extend 37-LE1 and Ascent Link starter kits to help expand the wireless mesh network.

Key Features

• Ascent Link wireless proximity reader
• Security Brands model 37-LR1
• Designed for compatible Security Brands Ascent cellular systems
• Requires an Ascent primary controller
• Connects through the Ascent Link 900 MHz wireless mesh network
• Up to 1,000 ft. wireless range under typical conditions
• One onboard relay for gate, door, lock, or strike control
• Three digital inputs for accessory connections
• Cloud-based access control management through Summit Control
• Supports push and email event and status notifications through the Ascent platform
• Audit trail and detailed reports through the Ascent platform
• Reads SecurePass, HID, MIFARE, and EM cards and fobs
• Stainless-steel faceplate with powder-coated steel enclosure
• Network status LED provides pairing and connection feedback
• Can be paired with Ascent Link Extend 37-LE1 for greater range

Technical Specifications

• Manufacturer: Security Brands
• Series: Ascent Link 37 Series
• Model / Part Number: 37-LR1
• Product Type: Wireless mesh proximity reader
• System Requirement: Compatible Ascent cellular primary controller required
• Wireless Technology: 900 MHz Ascent Link mesh network
• Wireless Range: Up to 1,000 ft.
• Access Management: Summit Control cloud-based management
• Reader Type: Integrated proximity card and fob reader
• Credential Support: SecurePass, HID, MIFARE, and EM cards and fobs
• Relay Outputs: 1
• Digital Inputs: 3
• Power Requirement: 12 to 24 VAC/DC power supply
• Recommended Wiring: 18-gauge stranded wire
• Status Indicators: Power LED, relay status LED, and network status LED
• Network LED Indications: Blue for connected to primary unit; solid magenta for connected to Link unit but not primary unit; flashing magenta for no connection
• Pairing Method: DIP switch matching and pairing process with compatible primary unit
• Relay Wiring Use: Gate operator, door opener, magnetic lock, or electric strike control
• Faceplate Material: Stainless steel
• Enclosure: Powder-coated steel
• Included Components: Reader unit, key, four carriage bolts, and four hex nuts
• Not Included: Ascent primary controller, power supply, gate operator, door hardware, lock hardware, credentials, or Ascent Link Extend
• Optional Range Expansion: Ascent Link Extend 37-LE1
• Installation Note: Unit openings must be sealed after mounting to help prevent enclosure damage
• Safety Note: Cellular and wireless access systems should not be the only entry or emergency egress method

Conclusion

The Security Brands 37-LR1 Ascent Link Reader adds wireless proximity credential access to a compatible Ascent access control system. Its 900 MHz mesh communication, onboard relay, digital inputs, and Summit Control management make it useful for adding a controlled gate or door where long control-wire runs are impractical. An Ascent cellular primary controller is required for operation.
