Security Brands 37-LKR1 Ascent Link Keypad / Reader

Wireless Mesh Keypad and Proximity Reader for Ascent Systems

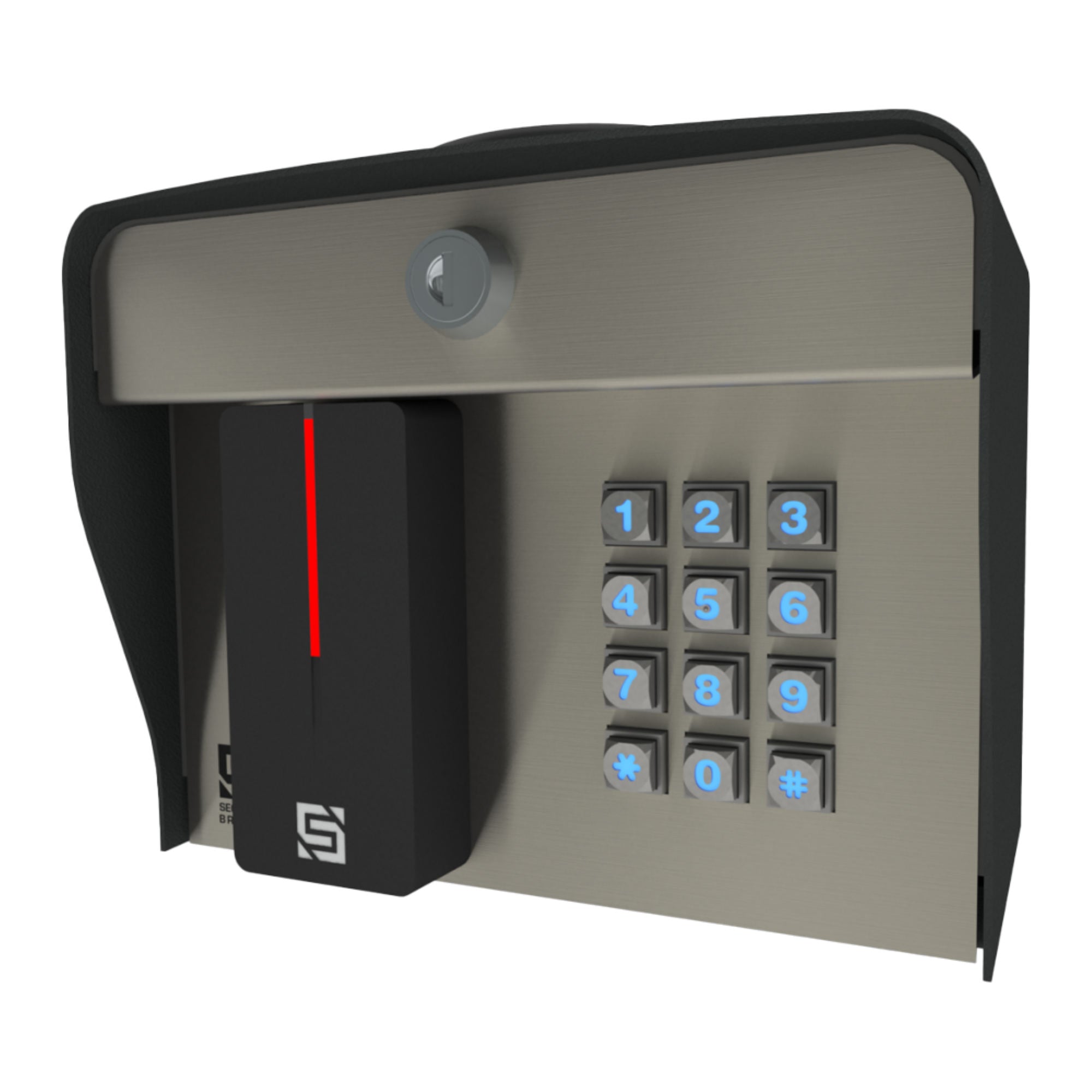

The Security Brands 37-LKR1 Ascent Link Keypad + Reader is a wireless mesh access control accessory for compatible Ascent cellular systems. It combines a keypad and proximity card reader in one pedestal-mount unit, allowing an Ascent-controlled gate, door, or other entry point to support both PIN-code access and credential-based access.

The 37-LKR1 communicates through the Ascent Link 900 MHz wireless mesh network and is designed to work up to 1,000 feet from a compatible Ascent Link or primary Ascent unit under typical conditions. Once paired, the unit becomes part of the Ascent access control network and can be managed through Summit Control for cloud-based user and credential management.

This model includes one relay and three digital inputs. The relay can be wired to a gate operator, door opener, magnetic lock, or electric strike, while the digital inputs allow accessory devices to be connected as part of the larger access control installation. The keypad provides visual feedback through smart LEDs, and the network status LED helps confirm whether the unit is connected to the primary controller.

The 37-LKR1 requires an Ascent primary controller to operate. For longer wireless runs, Security Brands offers the Ascent Link Extend 37-LE1 and Ascent Link starter kits to expand the mesh network.

Key Features

• Ascent Link wireless keypad and proximity reader
• Security Brands model 37-LKR1
• Combines PIN-code entry and card/fob reader access
• Designed for compatible Security Brands Ascent cellular systems
• Requires an Ascent primary controller
• Connects through the Ascent Link 900 MHz wireless mesh network
• Up to 1,000 ft. wireless range under typical conditions
• One onboard relay for gate, door, lock, or strike control
• Three digital inputs for accessory connections
• Cloud-based access control management through Summit Control
• Supports push and email event and status notifications through the Ascent platform
• Audit trail and detailed reports through the Ascent platform
• Audible-tone and smart LED feedback
• Multicolor LED-backlit keypad
• Reads SecurePass, HID, MIFARE, and EM cards and fobs
• Stainless-steel faceplate with powder-coated steel enclosure
• Can be paired with Ascent Link Extend 37-LE1 for greater range

Technical Specifications

• Manufacturer: Security Brands
• Series: Ascent Link 37 Series
• Model / Part Number: 37-LKR1
• Product Type: Wireless mesh keypad and proximity reader
• System Requirement: Compatible Ascent cellular primary controller required
• Wireless Technology: 900 MHz Ascent Link mesh network
• Wireless Range: Up to 1,000 ft.
• Access Management: Summit Control cloud-based management
• Reader Type: Integrated proximity card and fob reader
• Credential Support: SecurePass, HID, MIFARE, and EM cards and fobs
• Keypad: Multicolor LED-backlit keypad
• Relay Outputs: 1
• Digital Inputs: 3
• Power Requirement: 12 to 24 VAC/DC power supply
• Recommended Wiring: 18-gauge stranded wire
• Status Indicators: Power LED, relay status LED, network status LED, and keypad LED feedback
• Network LED Indications: Blue for connected to primary unit; solid magenta for connected to Link unit but not primary unit; flashing magenta for no connection
• Pairing Method: DIP switch matching and pairing process with compatible primary unit
• Relay Wiring Use: Gate operator, door opener, magnetic lock, or electric strike control
• Faceplate Material: Stainless steel
• Enclosure: Powder-coated steel
• Included Components: Keypad + reader unit, key, four carriage bolts, and four hex nuts
• Not Included: Ascent primary controller, power supply, gate operator, door hardware, lock hardware, credentials, or Ascent Link Extend
• Optional Range Expansion: Ascent Link Extend 37-LE1
• Installation Note: Unit openings must be sealed after mounting to help prevent enclosure damage
• Safety Note: Cellular and wireless access systems should not be the only entry or emergency egress method

Conclusion

The Security Brands 37-LKR1 Ascent Link Keypad + Reader expands a compatible Ascent access control system with both keypad entry and proximity credential access. Its wireless mesh communication, onboard relay, digital inputs, and Summit Control management make it useful for adding a controlled gate or door without running long control wiring back to the primary Ascent unit.
