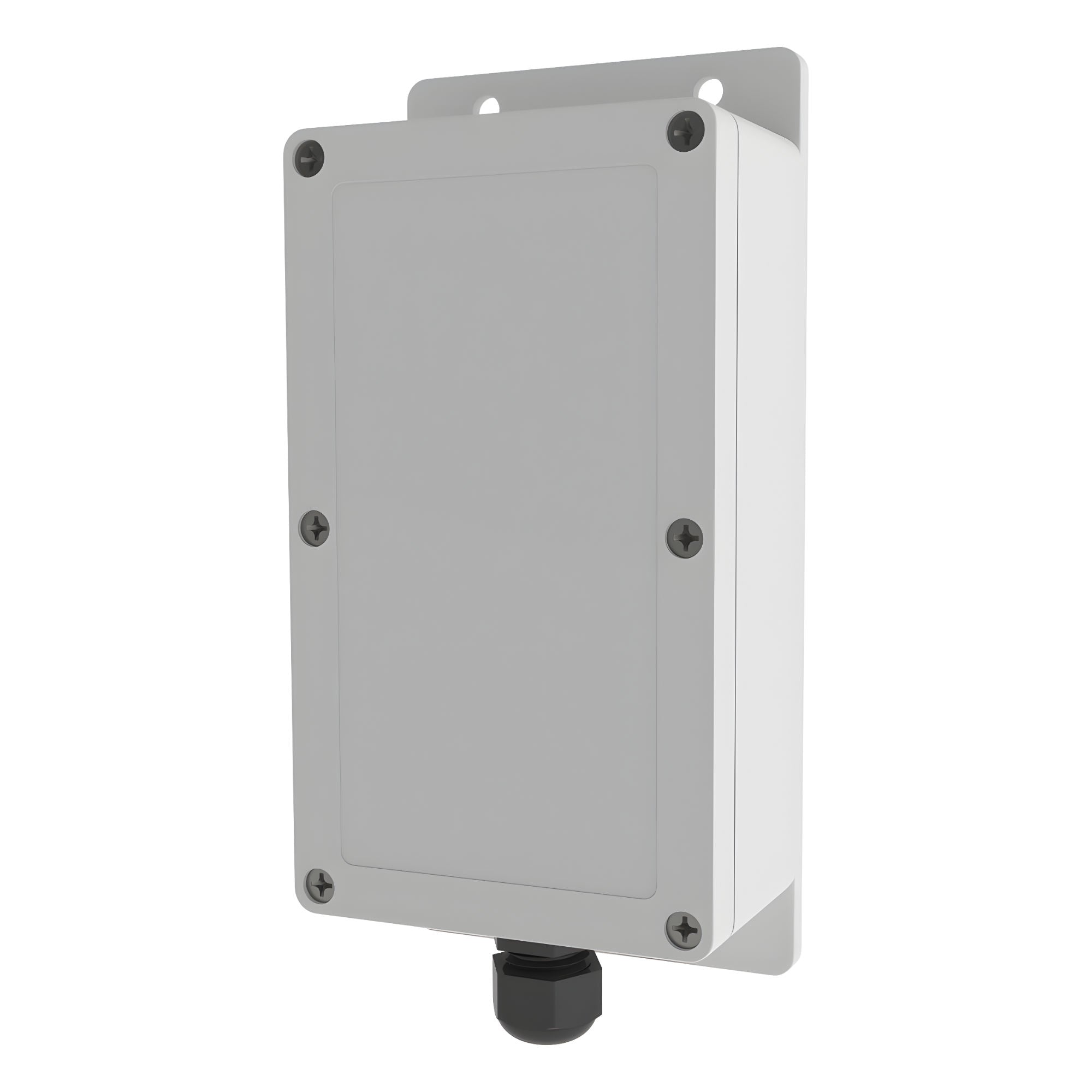

Security Brands 37-LE1 Ascent Link Wireless Extender

Wireless Mesh Range Extender for Ascent Access Control Networks

The Security Brands 37-LE1 Ascent Link Extend is a wireless mesh range extender for compatible Ascent Link access control systems. It is used to expand the Ascent Link 900 MHz wireless mesh network when a keypad, reader, controller, or other Ascent Link device needs to be placed farther from the primary Ascent cellular unit.

The 37-LE1 adds up to 1,000 feet of wireless mesh range under typical conditions. It does not directly control a gate or door and does not include a keypad, reader, relay, Wiegand input, or digital inputs. Its purpose is to improve network reach between compatible Ascent Link devices and the required Ascent primary controller.

Once powered and paired, the 37-LE1 becomes part of the Ascent Link mesh network. Network status LEDs provide visual feedback during setup and operation, showing whether the unit is connected to the primary unit, connected to another Link unit only, or isolated from the network.

The 37-LE1 requires a compatible Ascent primary controller and a 12 to 24 VAC/DC power supply. It is commonly used when the site layout, distance, or structure placement makes a direct wireless connection difficult between Ascent Link access devices.

Key Features

• Wireless mesh range extender for Ascent Link systems
• Security Brands model 37-LE1
• Adds up to 1,000 ft. of wireless mesh range
• Designed for compatible Security Brands Ascent cellular systems
• Requires an Ascent primary controller for operation
• Helps extend communication between Ascent Link devices
• Uses the Ascent Link 900 MHz wireless mesh network
• Supports pairing through DIP switch matching
• Network status LED provides connection feedback
• IP65-rated polycarbonate enclosure
• Powered by 12 to 24 VAC/DC
• Intended for range extension only, not direct gate or door control

Technical Specifications

• Manufacturer: Security Brands
• Series: Ascent Link 37 Series
• Model / Part Number: 37-LE1
• Product Type: Wireless mesh range extender
• System Requirement: Compatible Ascent cellular primary controller required
• Wireless Technology: 900 MHz Ascent Link mesh network
• Range Extension: Adds up to 1,000 ft. of wireless range
• Access Management: Supports Ascent Link network expansion for Summit Control-managed systems
• Relay Outputs: None
• Wiegand Inputs: None
• Digital Inputs: None
• Reader / Keypad: None
• Power Requirement: 12 to 24 VAC/DC power supply
• Recommended Wiring: 18-gauge stranded wire
• Status Indicators: Power indicator LED and network status LED
• Network LED Indications: Blue for connected to primary unit; solid magenta for connected to Link unit but not primary unit; flashing magenta for no connection
• Pairing Method: DIP switch matching and pairing process with compatible primary unit
• Enclosure Rating: IP65
• Enclosure Material: Polycarbonate
• Included Component: Ascent Link Extend unit
• Not Included: Ascent primary controller, power supply, keypad, reader, controller, relay device, gate operator, or door hardware
• Installation Note: Cable gland must be tightened and enclosure openings must be sealed after wiring
• Safety Note: Cellular and wireless access systems should not be the only entry or emergency egress method

Conclusion

The Security Brands 37-LE1 Ascent Link Extend increases the wireless mesh range of a compatible Ascent Link access control network by up to 1,000 feet. It is used to improve communication reach between Ascent devices and the required primary controller, but it does not provide direct gate control, reader input, keypad entry, or relay output by itself.
