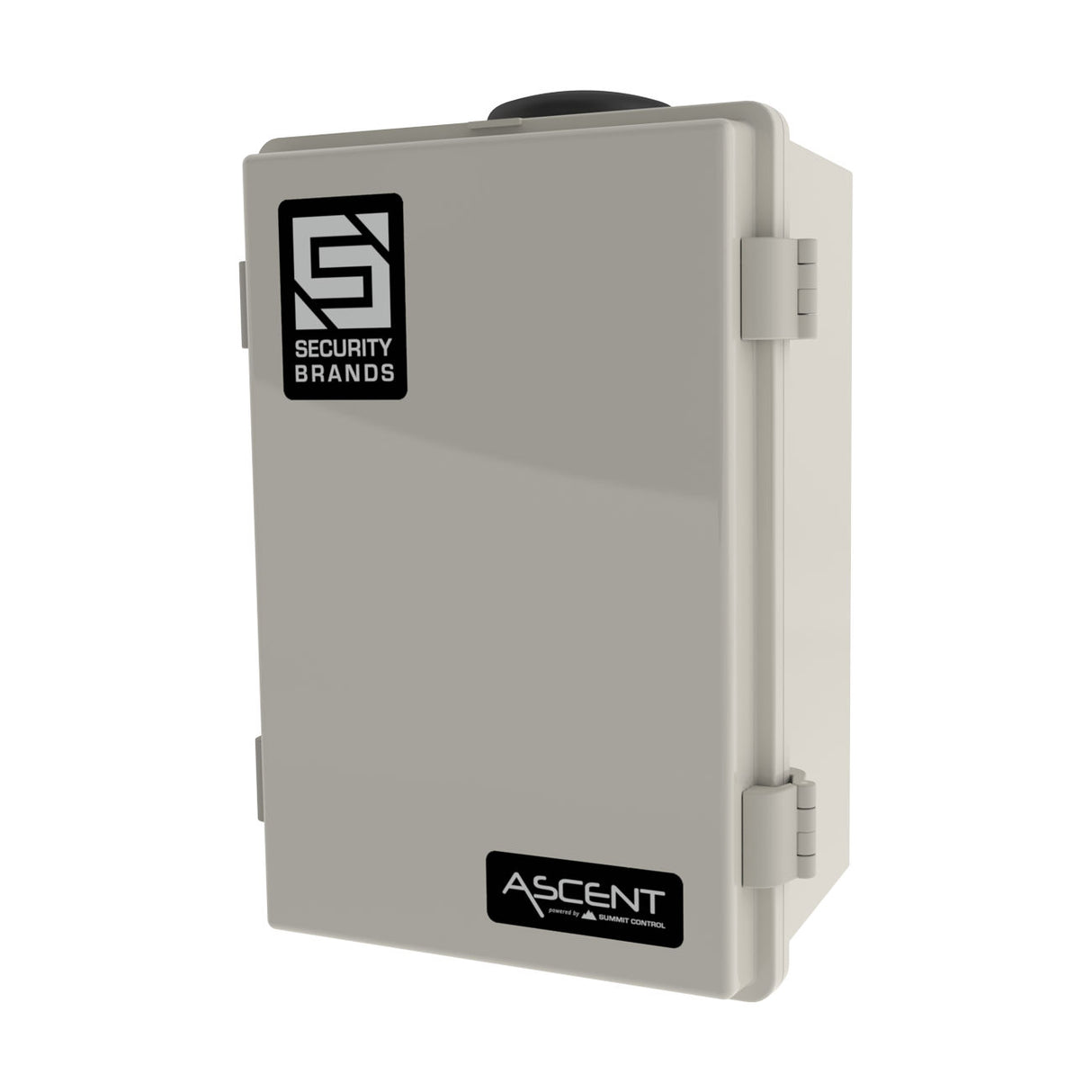

Security Brands 25-C2 Two-Door Cellular Access Control System

Cellular Access Control for Two Doors or Gates

The Security Brands 25-C2 Ascent C2 is a two-door cellular access control system that provides secure, remote management through the Summit Control platform. Designed for flexibility, it supports app, text, voice, and Wiegand inputs, making it suitable for both gate and door applications. With full 4G LTE connectivity and modular expansion capabilities, this controller delivers robust, cloud-managed control in a durable IP65-rated enclosure.

Key Features

• Full 4G LTE cellular connectivity with automatic network selection
• Controls up to 2 doors or gates
• Two Wiegand inputs for keypads, card readers, or other access devices
• Supports up to 10,000 app, text, and voice users (depending on plan)
• Push and email notifications for event and status updates
• Cloud-based management via Summit Control platform
• Rugged, weather-resistant polycarbonate housing rated IP65
• Modular configuration for multi-door setups

Technical Specifications

• Power Input: 12–24 VAC/DC (power supply included)
• Current Draw: <330 mA @ 12VDC; <160 mA @ 24VDC
• Relay Contact Rating: 10A @ 120VAC / 24VDC
• Max Switching Voltage: 250VAC / 30VDC
• Max Switching Current: 15A
• Max Switching Power: 240W / 2,770VA
• Cellular Network: 4G LTE
• Operating Temperature: -15°F to 158°F (-26°C to 70°C)
• Enclosure Rating: IP65-rated polycarbonate housing
• Dimensions: 12.8" H × 8.65" W × 6.0" D
• Shipping Weight: 6 lbs

Conclusion

The Security Brands 25-C2 Ascent C2 controller combines advanced cellular communication with powerful cloud management, offering a versatile and reliable access control solution for dual-door or gate systems. Its Summit Control integration, flexible connectivity, and durable design make it ideal for commercial, industrial, or community installations.
