AES i-GATE WiFi Gate Controller

WiFi Gate Controller for Gates, Barriers, and Doors

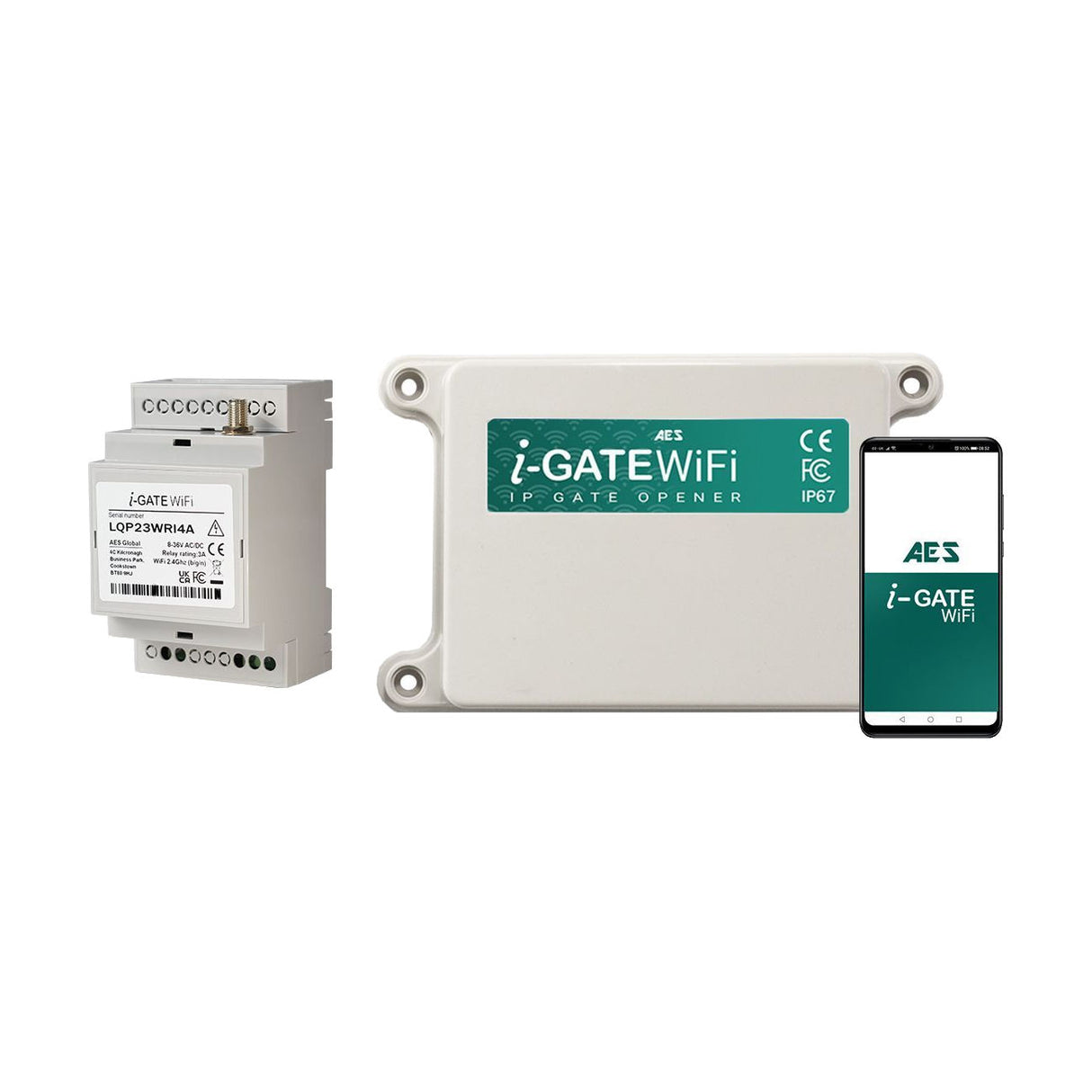

The AES i-GATE WiFi is a compact IP-based gate controller that provides secure and convenient remote control of gates, barriers, and doors using a standard WiFi network. Designed for both residential and commercial properties, it connects directly to 2.4GHz WiFi and is managed through the free AES mobile app for iOS and Android. Available in two versions — IGATE-WIFI (DIN rail, IP20) and IGATE-WIFI-ENC (outdoor enclosure, IP67) - it offers flexibility for both indoor and outdoor installations.

Key Features

• WiFi Connectivity: Connects directly to 2.4GHz WiFi networks for reliable IP-based control.

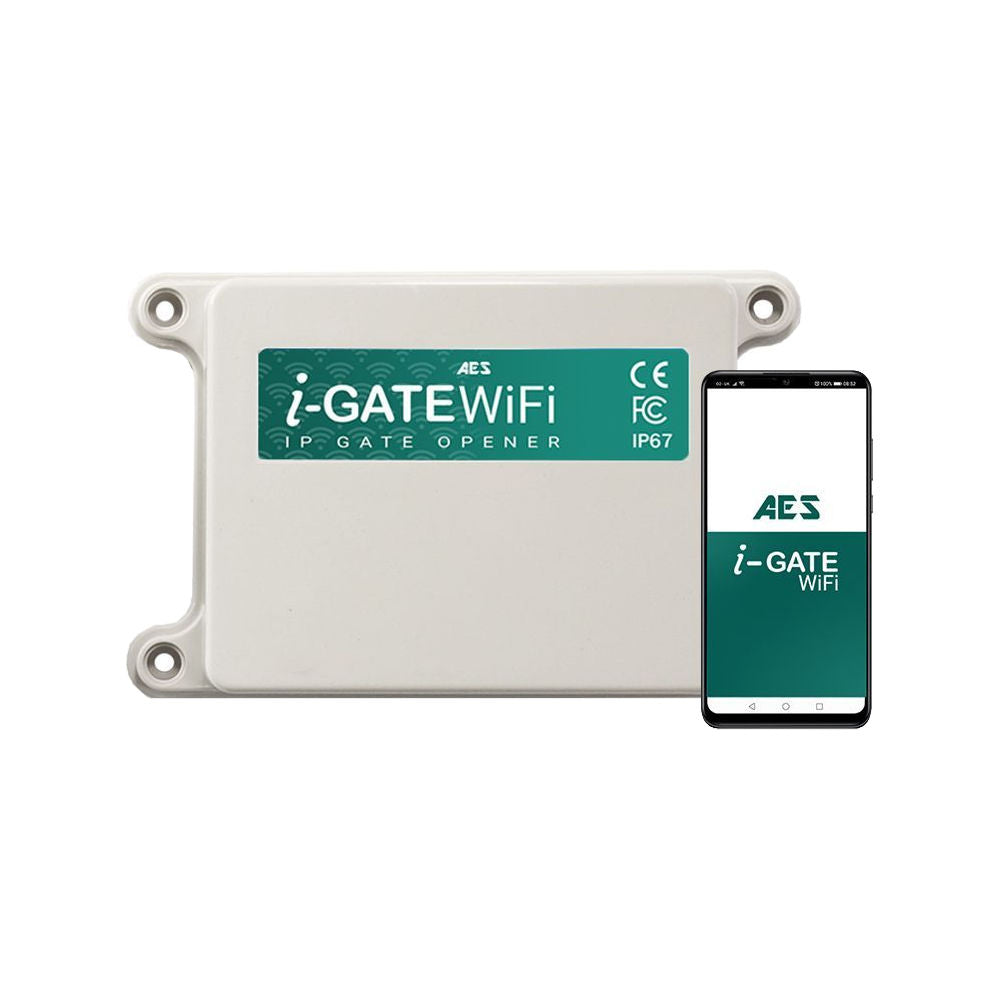

• Mobile App Control: Free i-Gate WiFi app for iOS and Android allows remote triggering, relay timing adjustments, and device sharing.
• Flexible Installation: Choose DIN rail mount (IP20) for internal installs or IP67-rated enclosure for outdoor environments.
• Relay Outputs: Includes two configurable relays (N/O and N/C) with adjustable pulse times from 0.3 to 4 seconds.
• Secure Access Control: Supports multiple devices in one app with customizable permissions and activity logging.
• Voice Integration: Compatible with Alexa and Google Home for voice-activated control.
• Expandable Features: Add multiple devices, share control with other users, and customize icons within the app.

Technical Specifications

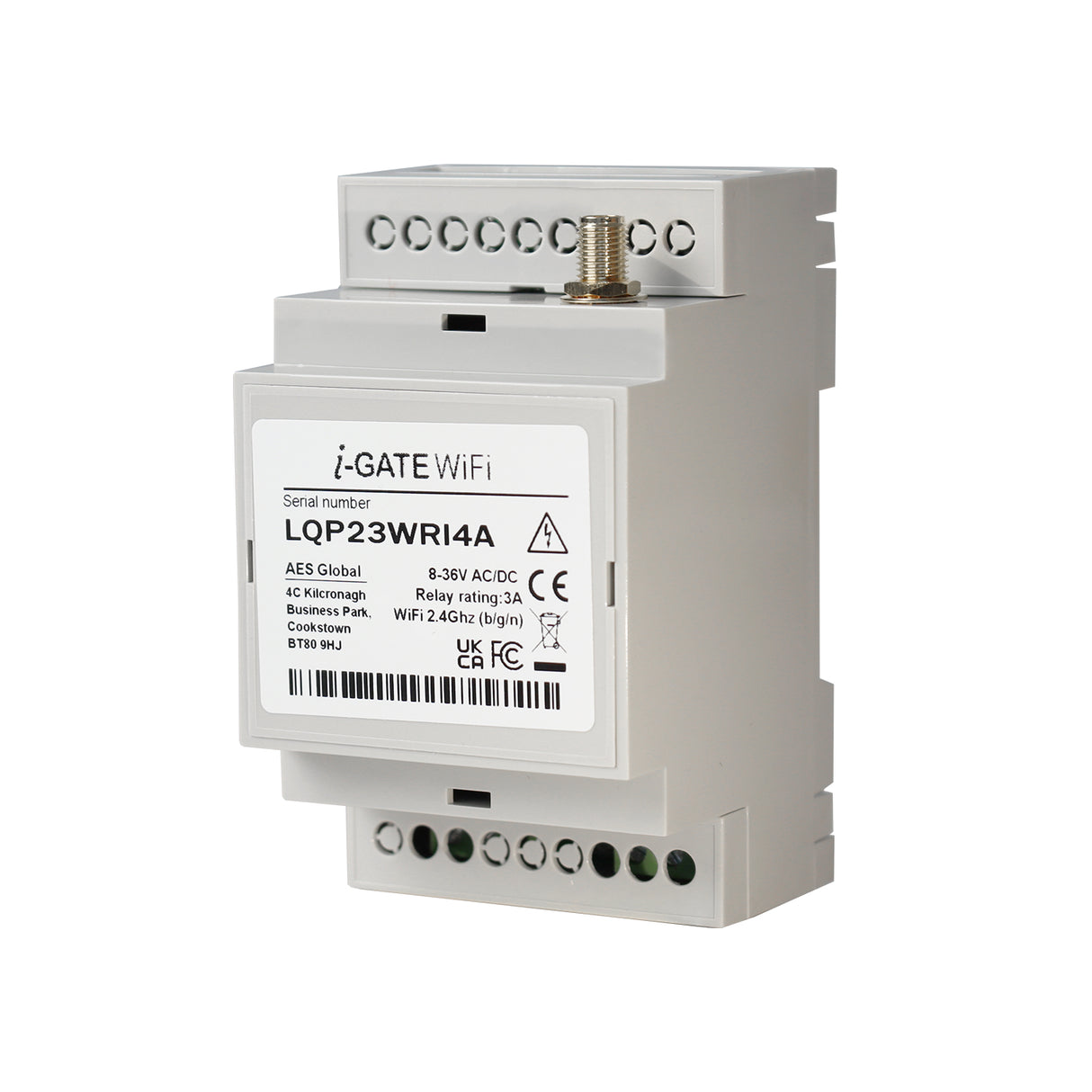

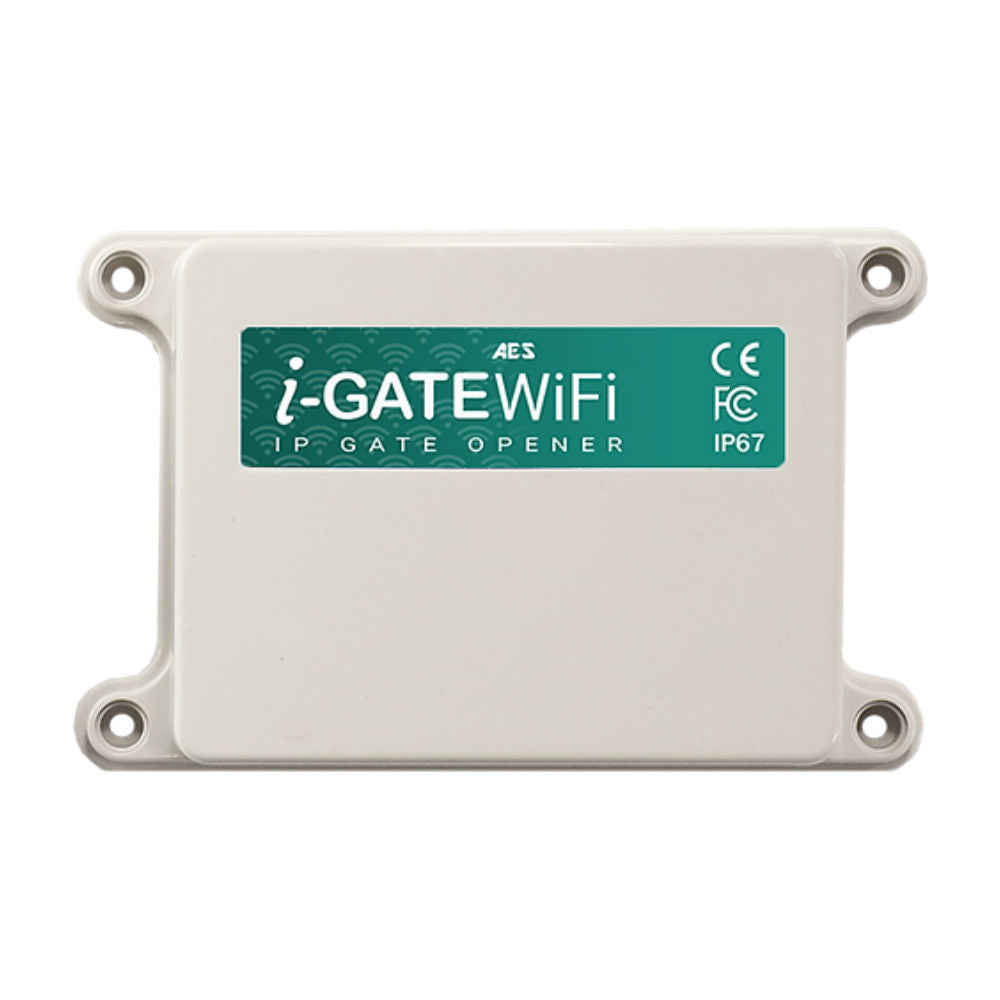

• Model Numbers: IGATE-WIFI (DIN rail), IGATE-WIFI-ENC (outdoor enclosure)
• Power Supply: 8–36V AC/DC (external power required)
• Current Consumption: 27mA standby / 50mA active
• WiFi Standard: IEEE 802.11 b/g/n (2.4GHz)
• Relay Capacity: 3A switching socket
• Relay Type: N/O, N/C & COM (momentary or latching)
• Ingress Protection: IP20 (DIN rail) or IP67 (enclosed model)
• Range: Up to 50+ yards depending on router location and obstructions

Applications

• Residential Gates & Garages: Control entry and exit from your smartphone.
• Commercial Access Points: Manage parking barriers, gate arms, and doors remotely.
• Industrial Sites: Enhance security and operational efficiency with centralized WiFi gate control.

Conclusion

The AES i-GATE WiFi is a versatile gate controller that combines WiFi connectivity, app-based control, and flexible installation options. With IP-rated designs, adjustable relay outputs, and smart home integration, it delivers reliable and modern access control for gates, garages, and automated doors.
