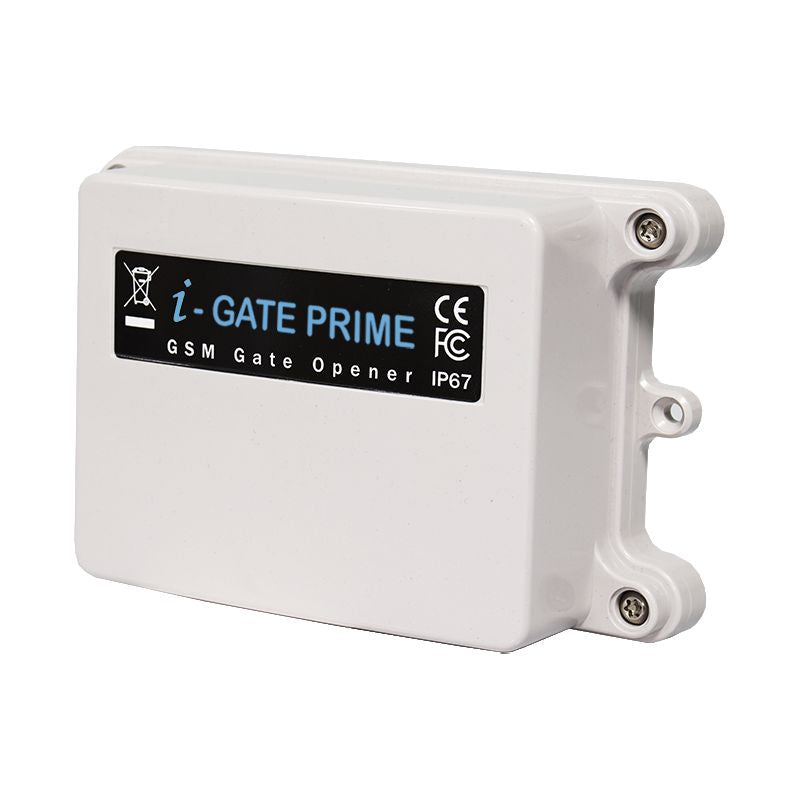

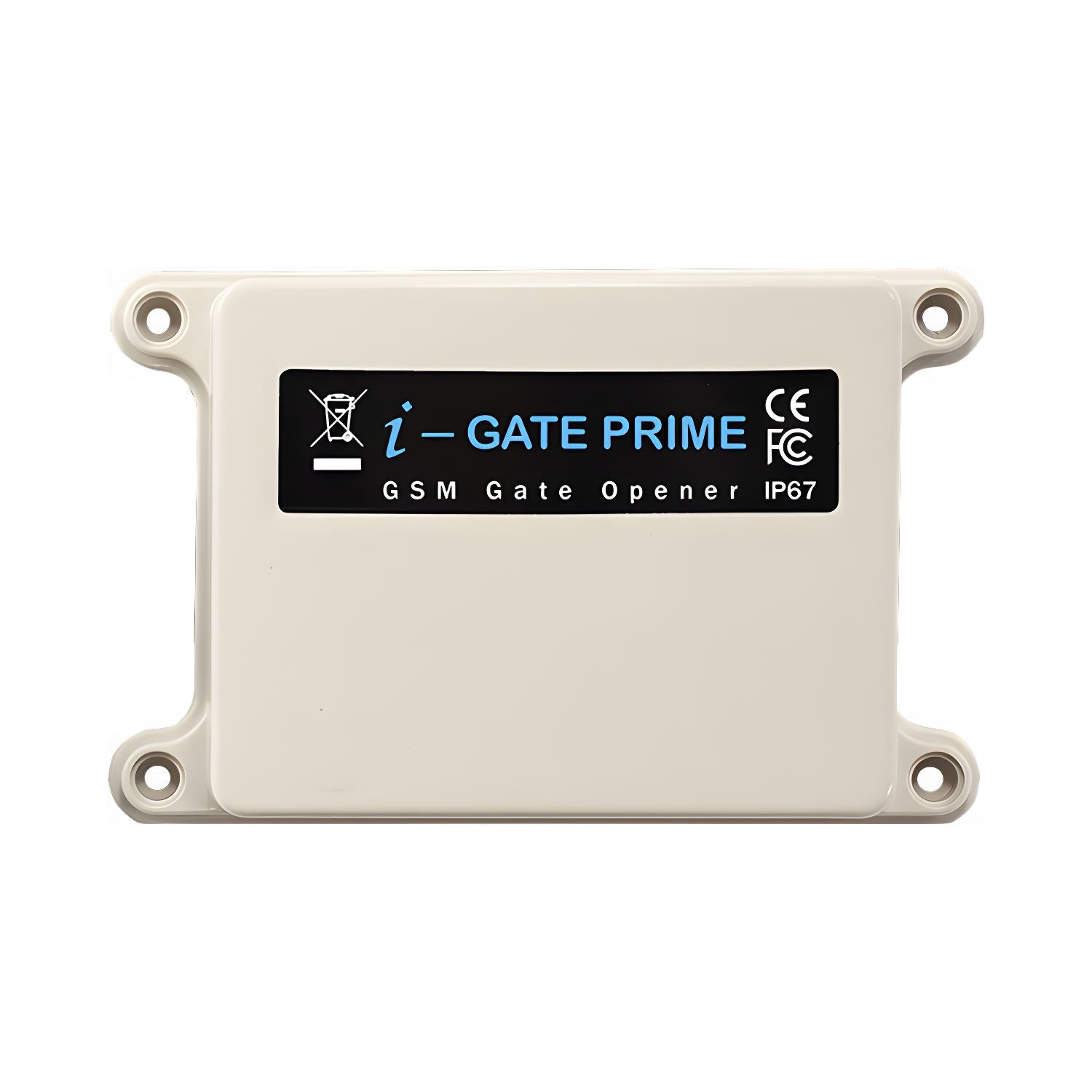

AES I-GATE-PRIME-US Cellular Gate Controller

4G Cellular Gate Opener with Dual Relays and SIM-Based App Control

The AES I-GATE-PRIME-US is an advanced 4G dual-band cellular gate controller that provides secure remote gate access via SMS, phone call, or the AES PRO mobile app (iOS and Android). Ideal for both residential and commercial installations, this device supports up to 250 authorized users and features dual relays for managing gates, doors, or access points. The system uses a voice-enabled SIM card and requires a monthly cellular service fee for network operation.

Key Features

• Dual-Band 4G (US): Reliable connectivity through standard voice-enabled SIM cards.
• Monthly SIM Service Required: Operates using an active SIM card plan with recurring service fees.
• 250 User Capacity: Stores up to 250 phone numbers for caller ID access.
• Multi-Method Access: Trigger, latch, or unlatch gates via SMS, phone call, or AES PRO mobile app.
• Dual Relay Outputs: Two volt-free momentary relays for controlling gates or auxiliary devices.
• SMS & App Monitoring: Check gate status (open/closed) and stored numbers directly from your phone.
• Event Notifications: Automatically call up to four phones when gates or alarms are activated.
• Activity Log: View access history for improved security tracking.
• 7-Day Time Clock: Schedule automatic relay operations.
• Auto Call Function: Prevents SIM deactivation by periodically initiating outgoing calls.
• Passcode Protection: Provides secure SMS access for non-stored users.
• Weatherproof Housing: IP67-rated enclosure for outdoor durability.

Technical Specifications

• Model: I-GATE-PRIME-US
• Network Type: Dual-band 4G (US)
• SIM Requirement: Voice-enabled SIM card with active monthly service
• User Capacity: 250 numbers
• Relay Outputs: 2 x volt-free (N/C and N/O), latching & momentary
• Power Supply: 12–24V AC/DC (not included)
• Current Draw: 45mA (standby), 200mA (active)
• Weather Rating: IP67
• Relay Load: 24V AC, 1A max
• Programming: Via SMS or AES PRO App
• Dimensions: 6.2 in x 4.3 in x 1.5 in

Conclusion

The AES I-GATE-PRIME-US Cellular Gate Controller combines reliability, flexibility, and secure communication in a professional-grade access solution. Designed for users who prefer mobile control through a cellular connection with an active SIM plan, it delivers powerful automation and monitoring features in a compact, weatherproof enclosure.
