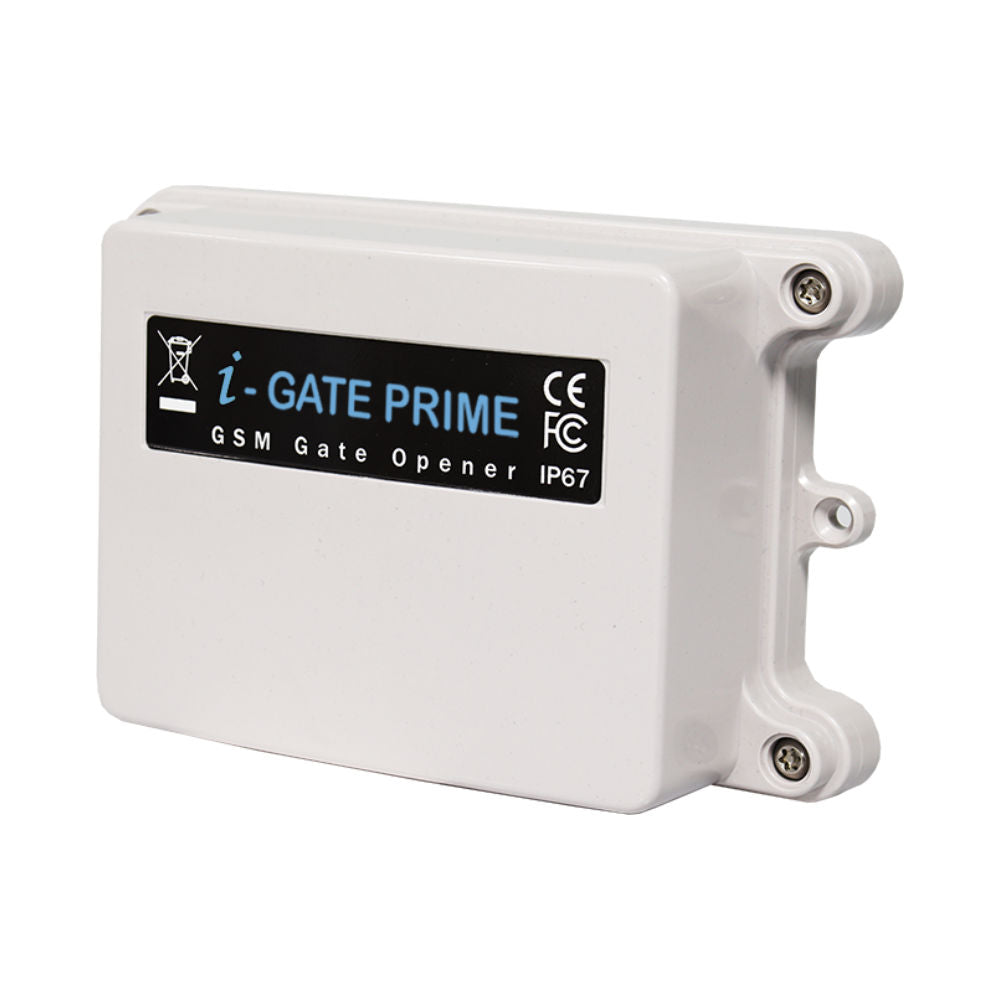

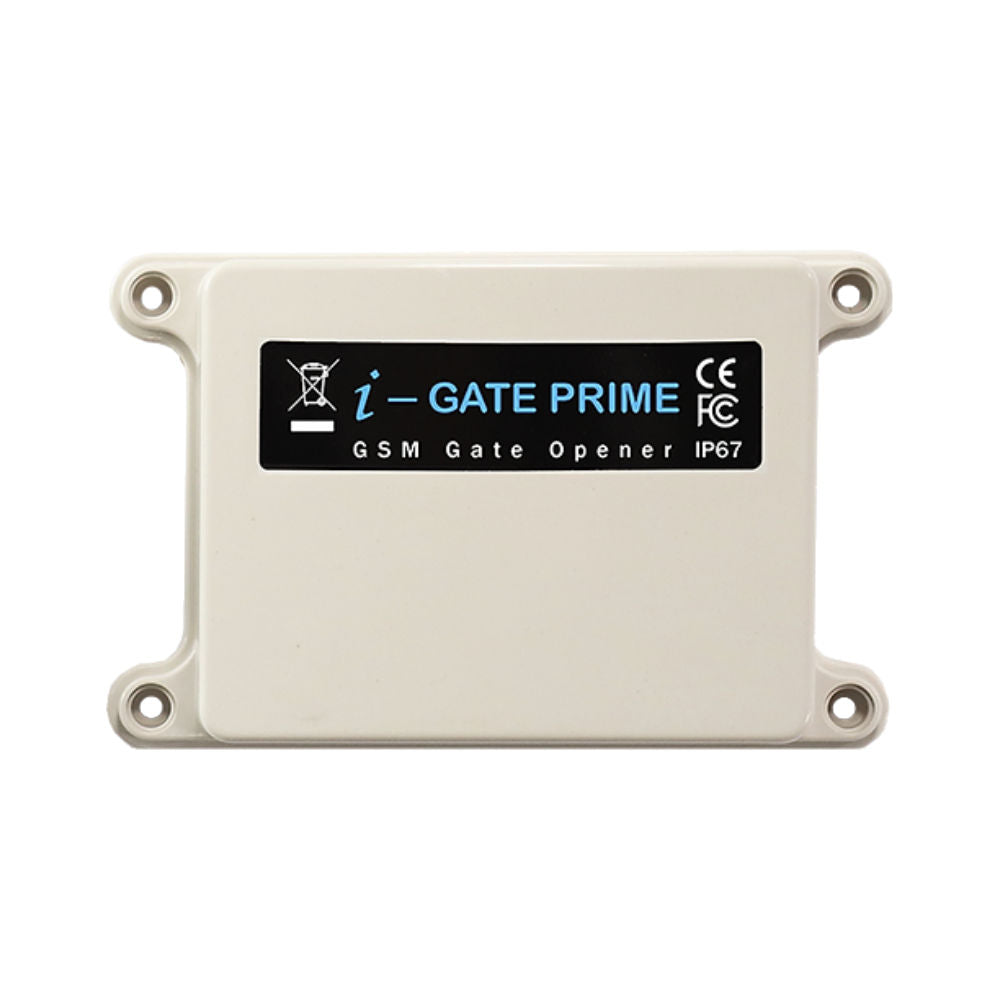

AES i-GATE PRIME-US 4G GSM Switch Cellular Gate Control

4G GSM Switch for Remote Gate Control

The AES i-GATE PRIME-US is a 4G GSM switch that allows secure remote control of gates and automated systems using a smartphone or SMS commands. Built for both residential and commercial applications, it provides seamless connectivity via 4G LTE networks, supporting caller ID access, SMS triggers, and activity logging. With support for up to 250 stored numbers, the i-GATE PRIME ensures convenient and reliable access management.

Key Features

• 4G LTE Connectivity: Uses modern LTE networks for stable remote operation with fallback to 3G where available.
• Caller ID Access: Supports up to 250 authorized numbers for fast, secure entry.

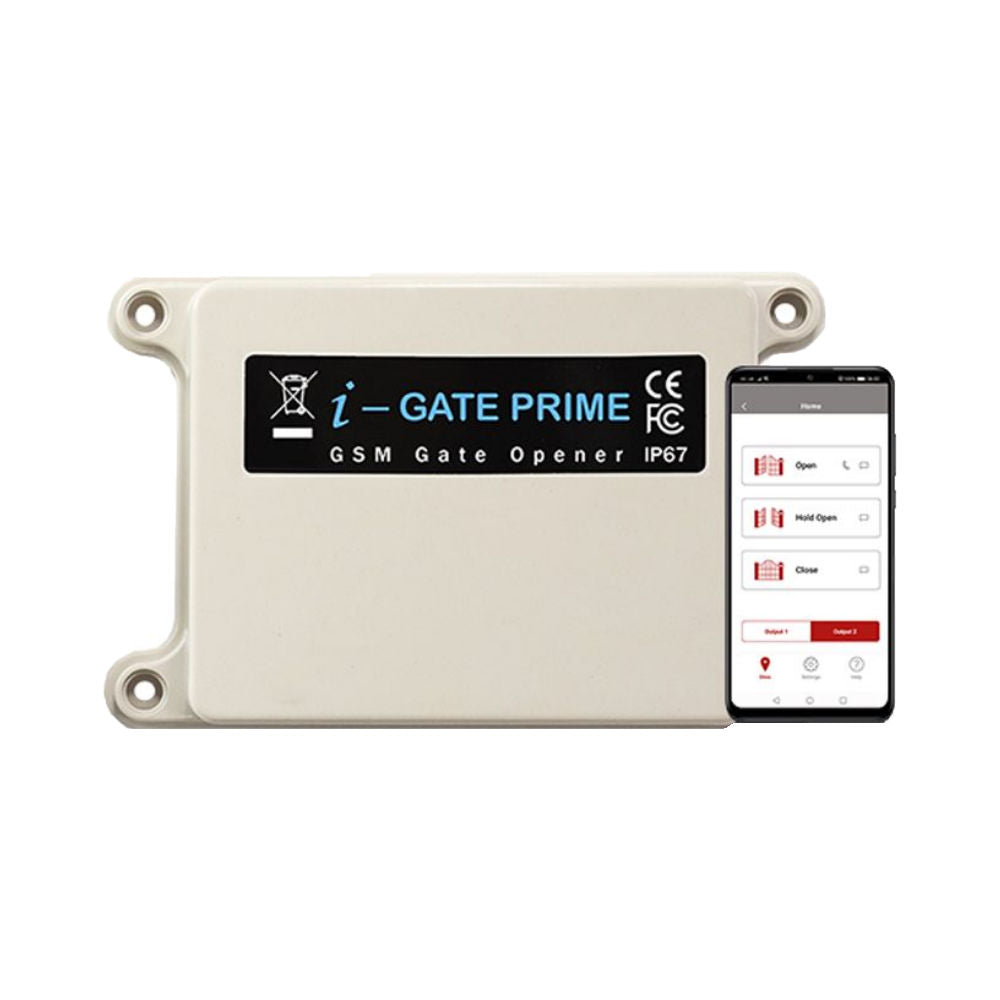

• Remote Control: Trigger, latch, and unlatch gates via SMS or the AES PRO mobile app.
• Event Logging: Tracks access events and system activity for enhanced monitoring.
• SMS Notifications: Receive alerts for relay activity, gate status, and stored number checks.
• Relay Outputs: Includes two volt-free momentary relay outputs for flexible integration.
• Programming Options: Configure user numbers and relay times through SMS commands or app setup.
• Surge Protection Recommended: Designed for outdoor reliability with IP55-rated enclosure when properly sealed.

Technical Specifications

• Model: i-GATE PRIME-US
• Power Supply: 12–24V DC (power supply not included)
• Power Consumption: 80mA standby, 1.2A peak
• SIM Card: Standard voice & SMS SIM required (monthly carrier fee applies)
• Inputs: Supports optional limit switches and external exit buttons
• Outputs: 2 relays, N/O and N/C, latching or momentary
• Ingress Protection: IP55 (when sealed per instructions)
• Dimensions: 6.2” H × 4.3” W (compact wall-mountable design)

Applications

• Residential Gates: Secure homeowner control with caller ID or SMS commands.
• Commercial Properties: Manage staff and visitor access remotely.
• Industrial Sites: Enhance perimeter control for factories, warehouses, and yards.

Conclusion

The AES i-GATE PRIME-US 4G GSM Switch offers a reliable and flexible access control solution using modern LTE networks. With caller ID support, dual relay outputs, and full SMS programming, it ensures dependable gate management for residential, commercial, and industrial environments.
