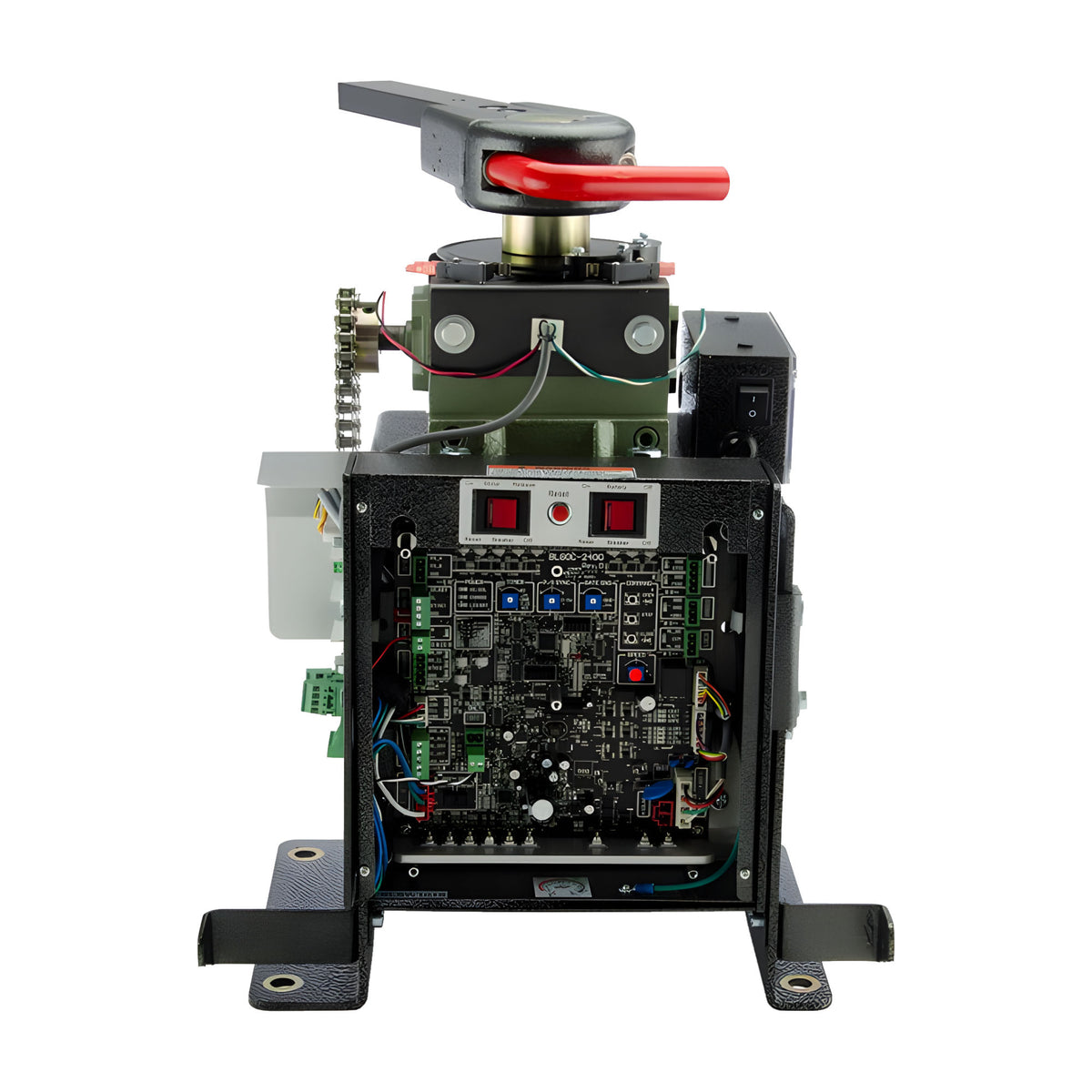

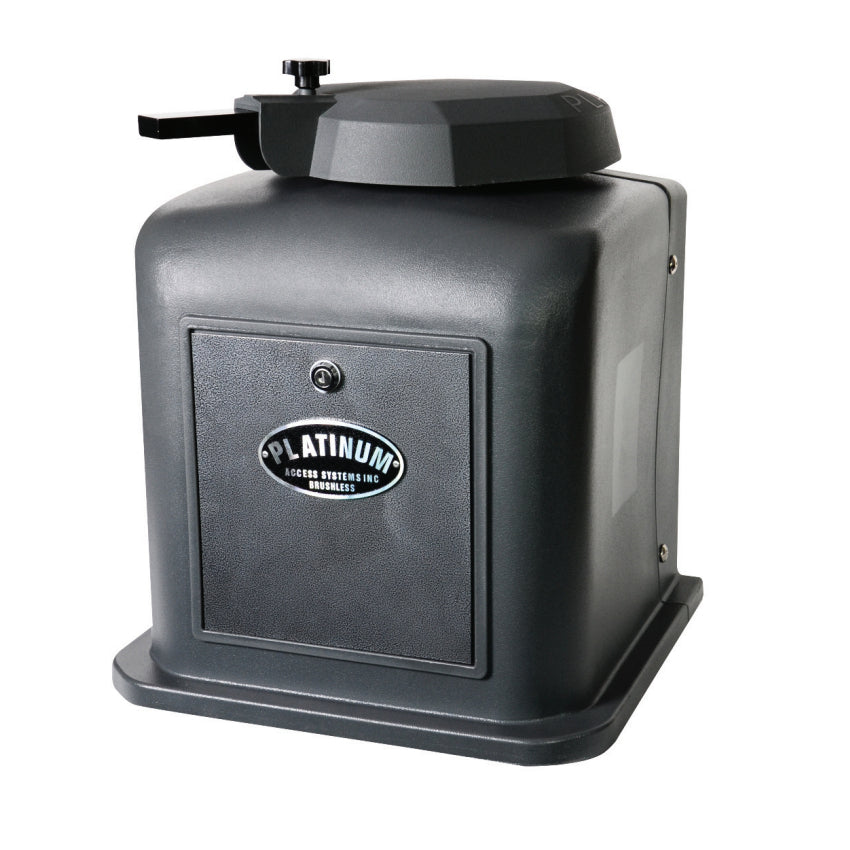

Platinum Access BLSW1016 Swing Gate Operator

High-Capacity Brushless DC Automation for Commercial Swing Gates

The Platinum Access BLSW1016 Swing Gate Operator is a commercial-grade swing gate system powered by a 24 VDC continuous-duty brushless motor. Designed for residential, commercial, industrial, and restricted-access vehicular entrances, it combines high gate capacity with built-in battery backup, soft start and soft stop, obstruction sensing, and flexible access-control integration.

Gate capacity depends on gate size. Platinum Access rates the BLSW1016 for gates up to 1,600 lb at 12 ft or 1,000 lb at 16 ft, with a maximum opening angle of 120 degrees. A 90-degree opening takes approximately 13-18 seconds, depending on the installation geometry.

The BLSW1016 uses Platinum's BLGOC control board, which provides electronic reversing, automatic learning, primary/secondary synchronization, adjustable close timing, maglock control, loop detector integration, and selectable power-failure behavior. Two 12V 7Ah batteries provide built-in 24 VDC backup operation, and the operator also supports direct solar input for properly sized off-grid systems.

Key Features

• 24 VDC continuous-duty brushless motor for high-cycle swing gate operation
• Handles up to 1,600 lb at 12 ft or 1,000 lb at 16 ft
• Maximum gate opening angle up to 120°
• Approximately 13-18 second travel time for a 90° opening
• BLGOC control board with input/output LEDs
• Soft start and soft stop for controlled gate movement
• Electronic reversing sensor with adjustable obstruction sensitivity
• Automatic learning adapts operation after limit setup
• Built-in 24 VDC battery backup with two 12V 7Ah batteries
• More than 100 backup cycles possible depending on gate size and operating conditions
• Direct solar capability with Solar Priority operation
• Primary/secondary synchronization for dual swing gate installations
• Adjustable leaf delay for overlapping bi-parting gates
• Adjustable automatic-close timer
• Advanced magnetic lock control
• Dual-output loop detector rack for vehicle detection integration
• FIRE/KEY input supports emergency release functions
• Selectable fail-safe, fail-secure, and open-on-power-fail operation
• Surge protection and audible alarm functions
• Corrosion-resistant powder-coated chassis
• Weatherproof polyethylene clamshell cover
• ETL listed to UL 325 and UL 991 requirements for Class I, II, III, and IV vehicular gate applications

Technical Specifications

• Manufacturer: Platinum Access Systems
• Model: BLSW1016
• Product Type: Commercial swing gate operator
• Application: Residential, commercial, industrial, and restricted-access vehicular swing gates
• Motor Type: Brushless DC
• Motor Voltage: 24 VDC
• Motor Duty: Continuous duty
• Motor Operation: Instant reversing
• Gear Reducer: Size 70
• Maximum Gate Capacity at 12 ft: 1,600 lb
• Maximum Gate Capacity at 16 ft: 1,000 lb
• Maximum Opening Angle: 120°
• 90° Opening Time: Approximately 13-18 seconds
• Main Power: 120/220 VAC, single phase
• Published AC Requirement: 120 VAC at 2 A or 220 VAC at 1 A
• Battery Backup: Built-in 24 VDC
• Included Batteries: 2 x 12V 7Ah
• Solar Capability: Direct solar connection supported
• Solar Requirement: Minimum 80W solar capacity with manufacturer-specified voltage characteristics
• Auto-Close Timer: Adjustable from approximately 3-60 seconds
• Obstruction Detection: Adjustable electronic reversing sensor
• Limit System: Mechanical limit switches with automatic learning
• Primary/Secondary Operation: Supported with a second compatible BLSW1016 operator
• Primary/Secondary Communication: Shielded cable connection
• Leaf Delay: Adjustable up to approximately 3 seconds
• Loop Detection: Integrated dual-output loop detector rack
• Maglock Control: Supported
• Power-Failure Modes: Fail safe, fail secure, or automatic open
• Manual Release: Mechanical locking handle and clutch release
• Back-Drivable Configuration: Available with appropriate arm configuration; optional PA-EA100 elbow arm extension is specified for back-drivable installations
• Operating Temperature: -4°F to 158°F (-20°C to 70°C)
• Operator Dimensions: Approximately 20.5 x 18.5 x 23 in H
• Compliance: ETL listed, UL 325 and UL 991
• Usage Classification: Class I, II, III, and IV vehicular gate applications
• Residential Warranty: 10 years on brushless motor; 8 years on parts
• Commercial Warranty: 8 years on brushless motor; 6 years on parts

Conclusion

The Platinum Access BLSW1016 is designed for larger swing gates that require more capacity than the BLSW814 while retaining the benefits of brushless DC operation, battery backup, solar capability, and primary/secondary gate control. Its published ratings of 1,600 lb at 12 ft and 1,000 lb at 16 ft make gate length an important part of model selection.

External entrapment protection must be selected for the actual gate layout. The manufacturer manual requires secondary protection devices such as photoelectric sensors or sensing edges and provides dedicated connections for these devices. Safety accessories should not be assumed to be included unless specifically listed with the selected package.
