All-O-Matic Main Pivot Bracket for Overhead Track Gates

Replacement Main Pivot Brackets for Overhead Jamb Track Gate Hardware

The All-O-Matic Main Pivot Bracket is a replacement component used in All-O-Matic overhead jamb track gate hardware. The bracket supports the main pivot point of the power arm assembly and must be selected according to both the installation side and the jamb track hardware configuration.

Four versions are available: left-hand or right-hand brackets for Short/Standard hardware, and left-hand or right-hand brackets for Jumbo hardware. All-O-Matic determines left and right orientation from outside the property looking in.

Key Features

• Replacement main pivot bracket for All-O-Matic overhead jamb track systems
• Supports the main pivot point of the power arm assembly
• Available for Short/Standard or Jumbo hardware
• Separate left-hand and right-hand configurations
• Four model options for proper hardware matching
• Designed for service, repair, or rebuilding of existing jamb track assemblies

Technical Specifications

• Manufacturer: All-O-Matic
• Product Type: Main pivot bracket
• Application: Overhead jamb track gate hardware

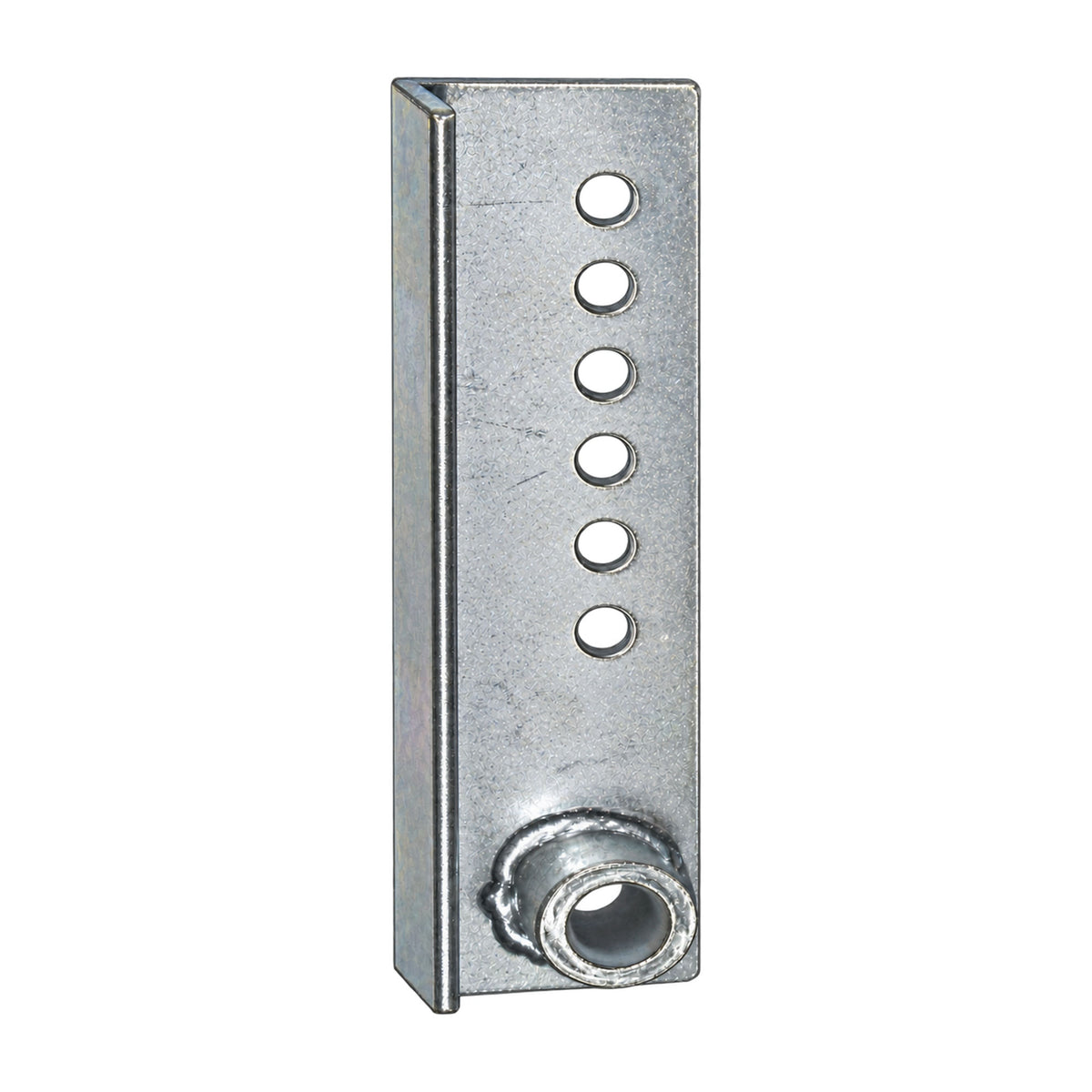

• Short/Standard Left-Hand Model: AOM-4L-3

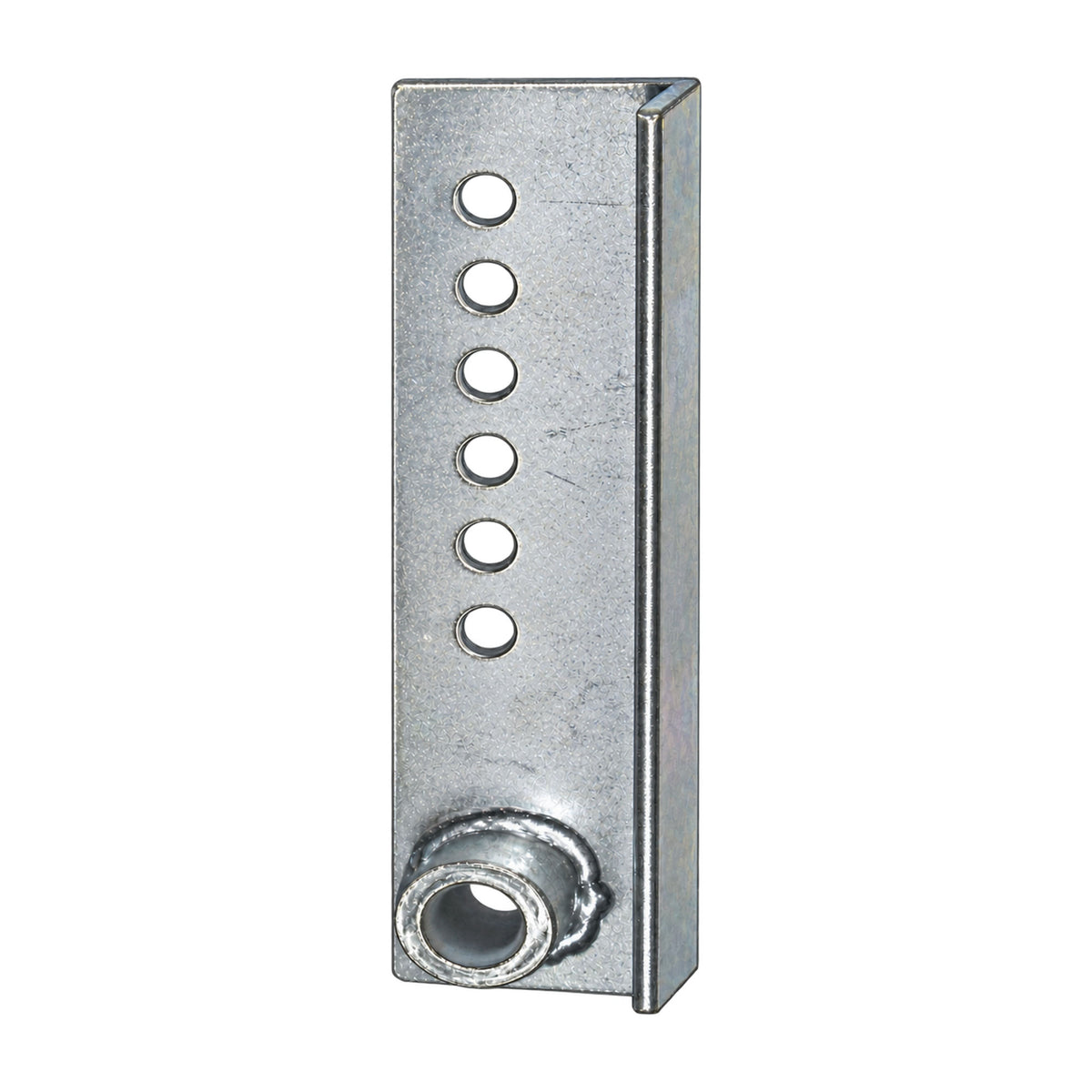

• Short/Standard Right-Hand Model: AOM-4R-3
• Jumbo Left-Hand Model: AOM-4L-4
• Jumbo Right-Hand Model: AOM-4R-4
• Orientation Reference: Left and right are determined from outside looking in
• Quantity: One bracket per selected model

Select Model

• AOM-4L-3: Main Pivot Bracket, Left-Hand, for Short/Standard Hardware
• AOM-4R-3: Main Pivot Bracket, Right-Hand, for Short/Standard Hardware
• AOM-4L-4: Main Pivot Bracket, Left-Hand, for Jumbo Hardware
• AOM-4R-4: Main Pivot Bracket, Right-Hand, for Jumbo Hardware

Conclusion

The All-O-Matic Main Pivot Bracket is available in four configurations to match the jamb track system being serviced. Select the correct Short/Standard or Jumbo hardware version, then choose the appropriate left-hand or right-hand bracket using All-O-Matic's outside-looking-in orientation.
