Platinum BLACT815 Brushless DC Swing Gate Actuator Kits

Brushless DC Swing Gate Actuator w/ Battery Backup

The Platinum Access BLACT815 is a brushless DC motor swing gate actuator designed for residential driveways, apartment complexes, condominium entrances, and light commercial applications. It handles swing gates up to 800 lbs and 15 ft, completing a 90° arc in 21 to 25 seconds. The BLGOC 3000 brushless motor control board manages soft start, soft stop, and instant reversing with an electronic reversing sensor built directly into the board, eliminating the need for external reversing devices. Built-in 24V DC battery backup maintains operation during power outages, and the solar-ready design supports off-grid and solar-supplemented installations without additional hardware.

The actuator arm operates on 24V DC continuous duty with an adjustable auto-close timer from 0 to 60 seconds. Precision limit switches, surge protection, and an alarm reset button are included on the charcoal gray powder-coated control board box. A key-release manual disconnect allows the gate to be pushed back manually when needed. The BLACT815 is available in four configurations to match single or dual gate installations with or without an accessory bundle.

Key Features

• Brushless DC motor: continuous duty, instant reversing, low maintenance, high heat dissipation
• Gates to 800 lbs and 15 ft; 90° opening in 21-25 seconds
• BLGOC 3000 control board with built-in electronic reversing sensor, soft start/stop, and surge protection
• Built-in 24V DC battery backup; solar ready
• Adjustable auto-close timer 0-60 seconds
• Precision limit switches and alarm reset button
• Key-release manual disconnect; optional fail-safe
• 5-year warranty on gearbox and motor

Models and Configurations

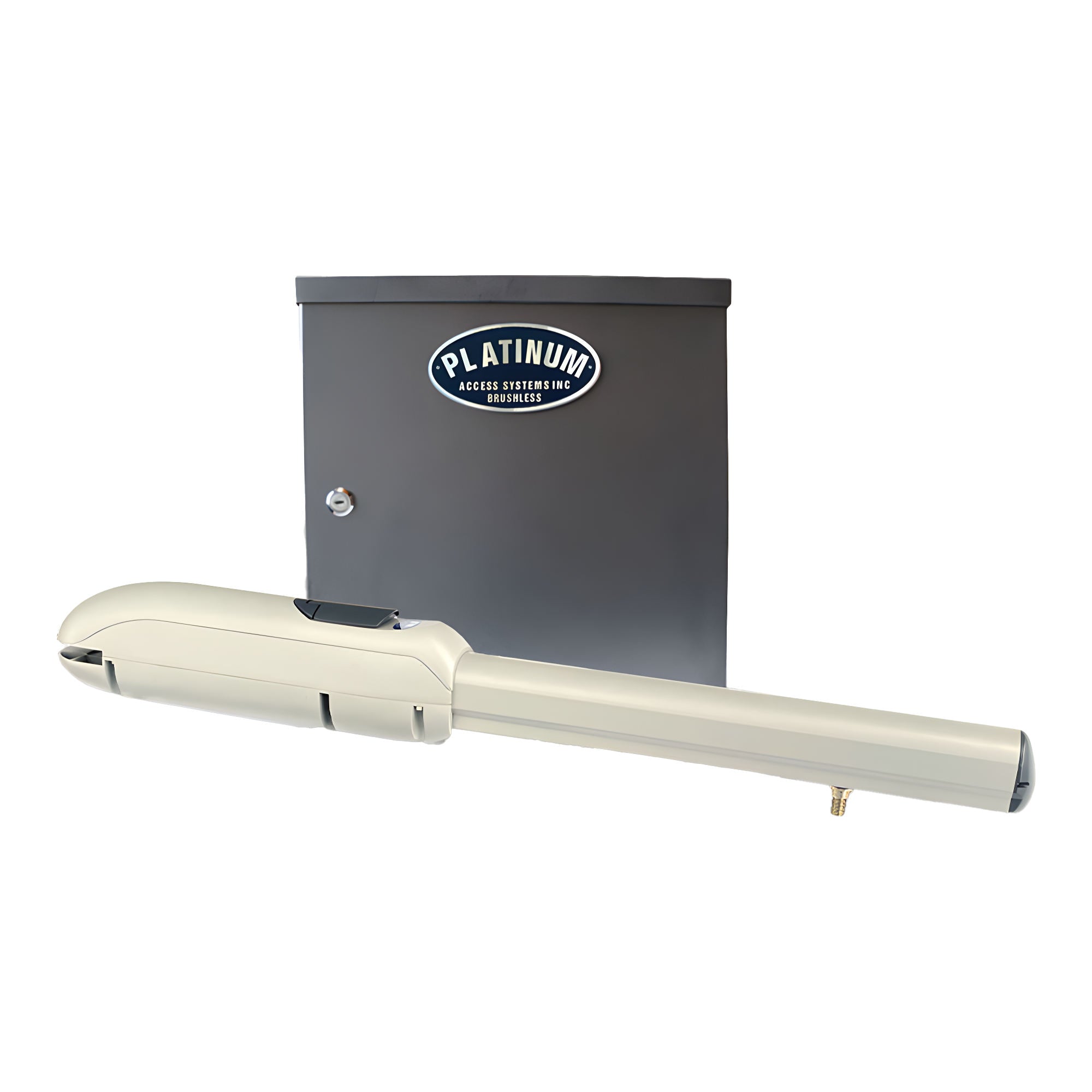

• BLACT815-SK — Single Kit. Controller box with 1 arm. Battery backup, solar ready.

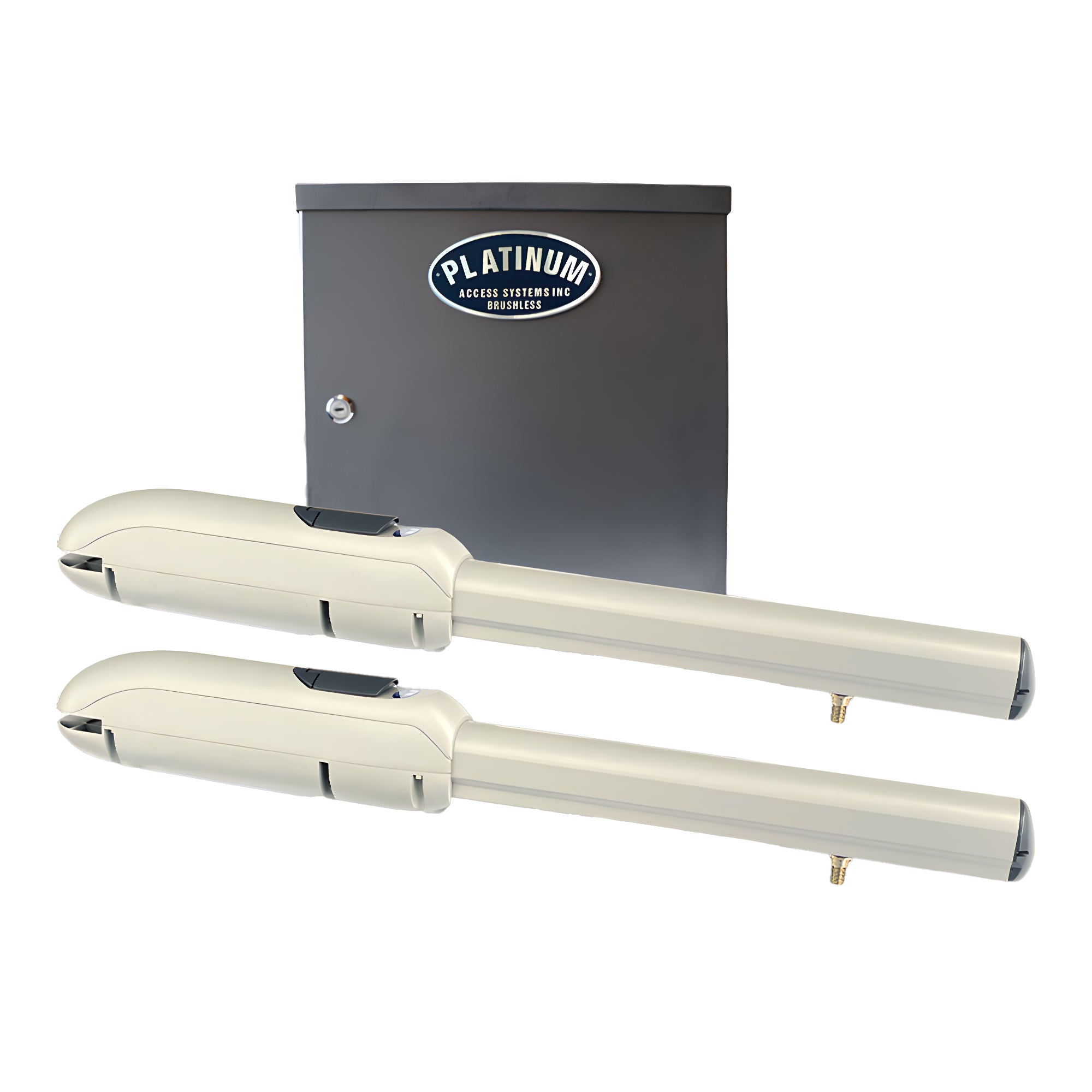

• BLACT815-MSK — Primary/Secondary Kit. Controller box with 2 arms for dual swing gates. Battery backup, solar ready.

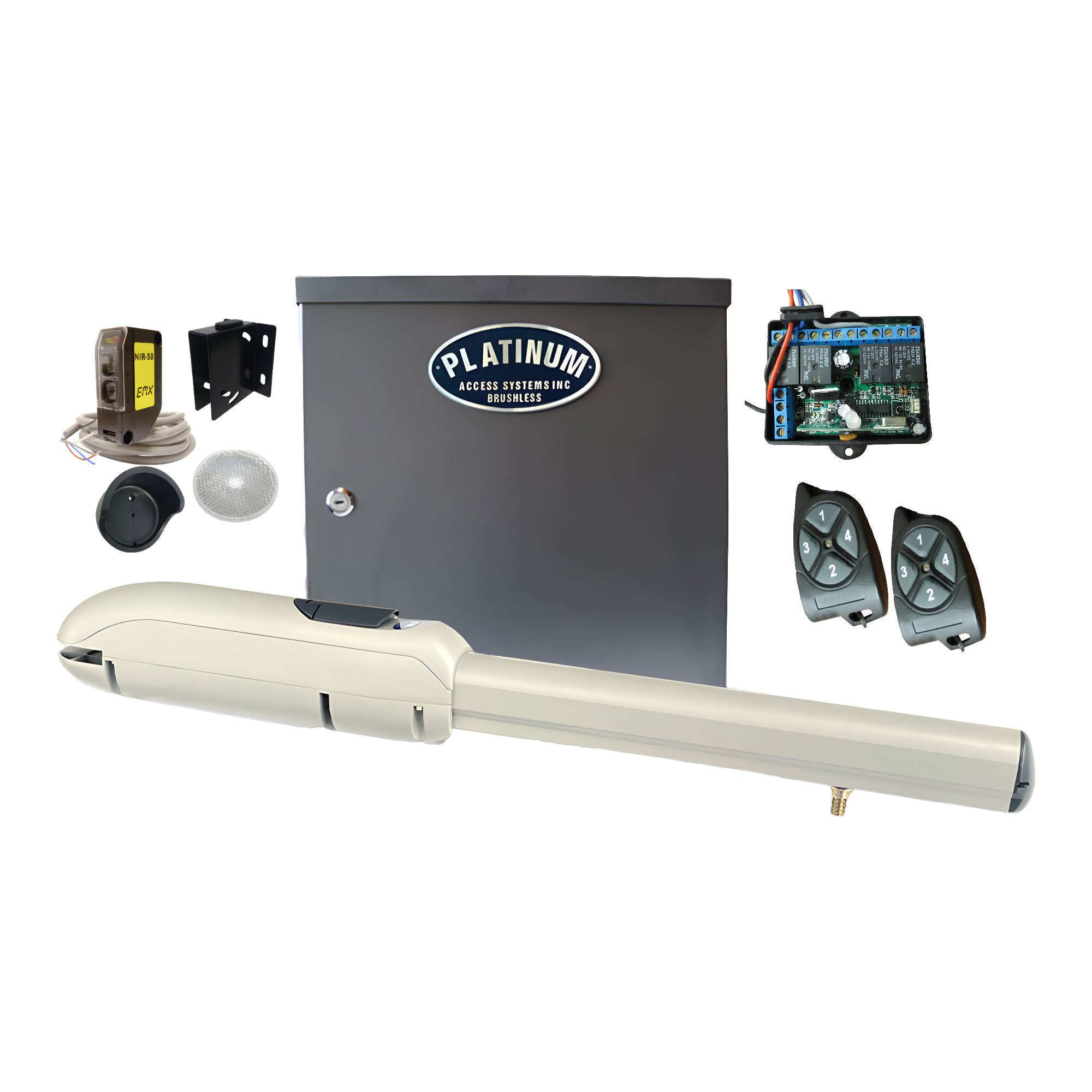

• BLACT815-SK-B — Single Kit Bundle. Controller box with 1 arm, one 50 ft photoeye, one radio receiver with Hold Open function, and two transmitters.

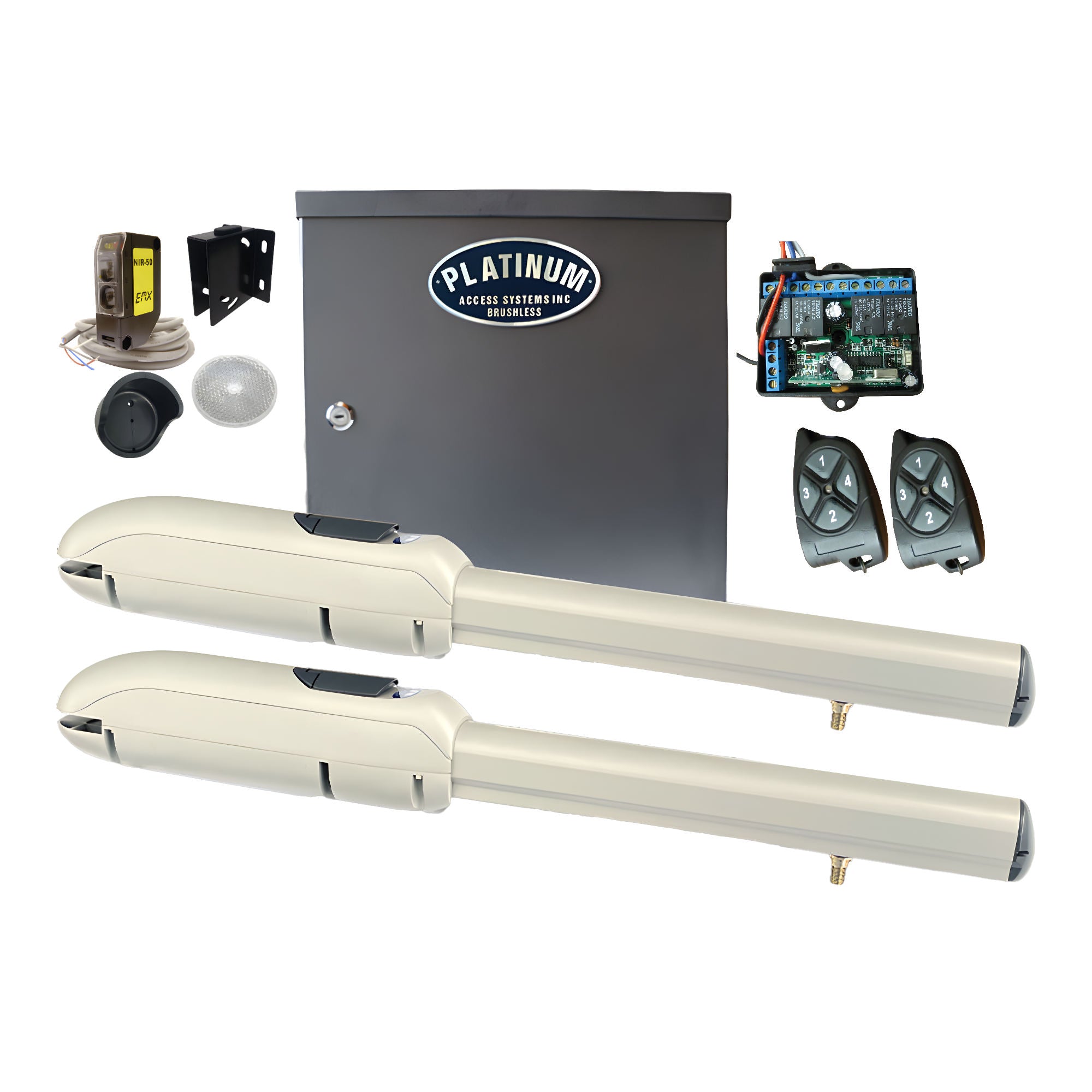

• BLACT815-MSK-B — Primary/Secondary Kit Bundle. Controller box with 2 arms, one 50 ft photoeye, one radio receiver with Hold Open function, and two transmitters.

Technical Specifications

• Part Number: BLACT815 series
• Gate Capacity: 800 lbs maximum
• Maximum Gate Length: 15 ft
• Opening Time: 90° in 21-25 seconds (max at 120VAC)
• Motor: Brushless DC, 24V DC, continuous duty
• Control Board: BLGOC 3000 with input/output board
• Auto-Close Timer: 0-60 seconds, adjustable
• Dimensions (Control Box): 15.5 in H x 14.5 in W x 6.5 in D
• Input Power: 100-240 VAC; switchable 115/230V AC, single phase
• Battery Backup: Built-in 24V DC
• Solar Ready: Yes
• Manual Release: Key release; optional fail-safe
• Finish: Charcoal gray powder coat
• Application: Residential and light commercial
• Warranty: 5 years (gearbox and motor)
• Manufacturer: Platinum Access Systems Inc.
• Condition: New

Conclusion

The BLACT815-SK and BLACT815-SK-B are configured for single swing gate installations. The BLACT815-MSK and BLACT815-MSK-B are configured for dual (bi-parting) swing gates using a primary and secondary arm on a shared controller. The bundle variants (-SK-B and -MSK-B) include a 50 ft photoeye, radio receiver, and two transmitters for installations requiring out-of-the-box access control.
