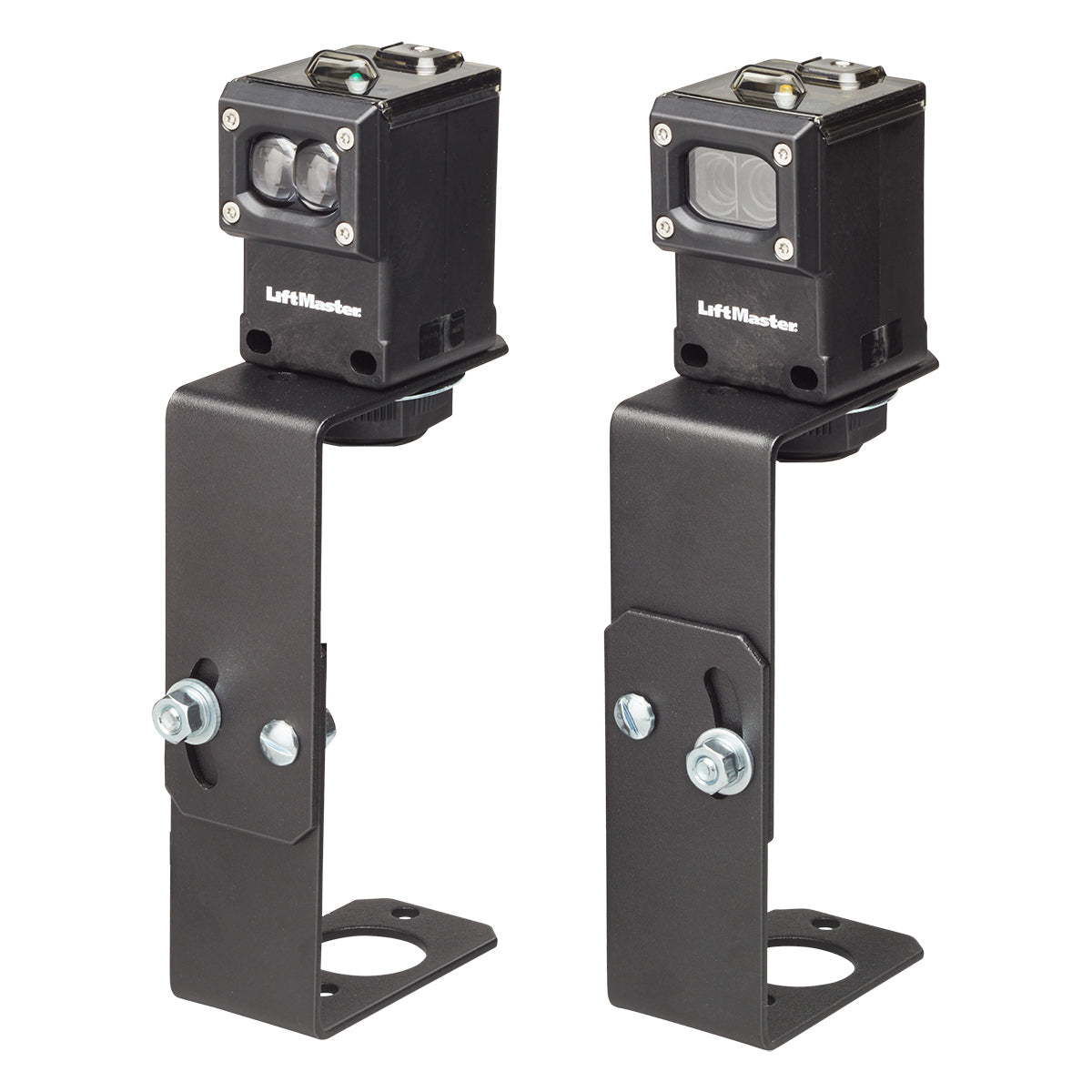

LiftMaster CPSUN4G Monitored Through-Beam Photo Eyes

Commercial Monitored Photo Eyes for LiftMaster Gate Operators

The LiftMaster CPSUN4G Monitored Through-Beam Photo Eyes are commercial-grade, UL 325-compliant entrapment protection sensors engineered for precise obstacle detection in gate and door automation systems. Designed for long-range performance up to 45 feet, the CPSUN4G uses a monitored infrared beam between an emitter and receiver to halt and reverse the gate upon obstruction detection. Built with NEMA 4 weather-resistant housing, LED status indicators, and wireless network capability, it offers dependable performance for both wired and solar-powered installations.

Key Features

• Monitored entrapment protection per UL 325 standards
• Long-range sensing up to 45 ft for wide gate spans
• NEMA 4-rated weather-resistant housing for outdoor use
• LED indicators provide instant diagnostic feedback
• Wireless network capability for dual-gate applications
• Integrated communication with LiftMaster gate operators
• Low-power operation ideal for solar systems
• Easy alignment and mounting using included brackets

Technical Specifications

• Model: CPSUN4G
• Type: Monitored through-beam photo eyes
• Range: Up to 45 ft
• Enclosure Rating: NEMA 4
• Power: Low voltage; compatible with solar operation
• Communication: Wireless network ready
• Indicator Lights: Green (Emitter), Yellow (Receiver)
• Dimensions: 3.45" H × 1.75" W × 2.13" D (with hood)
• Mounting Height: 27.5" max above grade (UL 325 compliant)
• Compatibility: LiftMaster commercial and UL 325 gate operators

Conclusion

The LiftMaster CPSUN4G Photo Eyes deliver advanced safety and monitoring for commercial gate operators, combining long-range detection, wireless capability, and rugged weather protection. With UL 325 compliance and intuitive diagnostics, they provide the reliability and ease of use required for modern access control systems.
