Seco-Larm SD-962 Series of Panic Bars

Heavy-Duty Push-Bar Commercial & Residential Doors

The SECO-LARM ENFORCER rim-type push bar exit devices are built to provide dependable, code-aligned egress from the secure side of a door while keeping the exterior side protected against unauthorized entry. Designed for both commercial and certain residential applications, these rim devices use a deadlocking latch to resist tampering and a non-handed, reversible layout to simplify field installation. Multiple finish and duty-grade variants are available, with select models meeting higher ANSI performance classifications for demanding openings.

Key Features

• Controlled egress: Allows fast, intuitive exit from inside while maintaining outside-side security
• Durable build options: Constructed using heavy-duty steel, stainless steel, or aluminum depending on the variant
• Reversible, non-handed design: Supports right-hand or left-hand door configurations for easier installation
• Deadlocking latch: Helps reduce “credit card” style attacks and prying attempts at the latch point
• Dogging capability: Allows the bar to remain unlocked when operational needs require free passage (model dependent)
• Door fit range: Designed to fit doors from 30 inches to 48 inches wide and up to 1-3/4 inches thick
• Installation support: Includes mounting hardware and templates for standard installation workflows
• Standards alignment: UL Listed and BHMA A156.3 compliant; select Rugged Grade models are ANSI Grade 1


Technical Specifications

• Materials: Heavy-duty steel, aluminum, or plated zinc cast depending on the model.
• Latch Bolt: 3/4" throw, stainless steel.
• Dead Latch: 5/8" throw, stainless steel.
• Dimensions: SD-962A Models: 32 3/4" x 6 7/32" x 2 1/2" / SD-962G Models: 33" x 8" x 2 3/16"
• Door Fit: Compatible with doors 30" to 48" wide and up to 1 3/4" thick.
• Certifications: ANSI Grade 1 (for SD-962G models), UL Listed, BHMA A156.3.

Model Variants

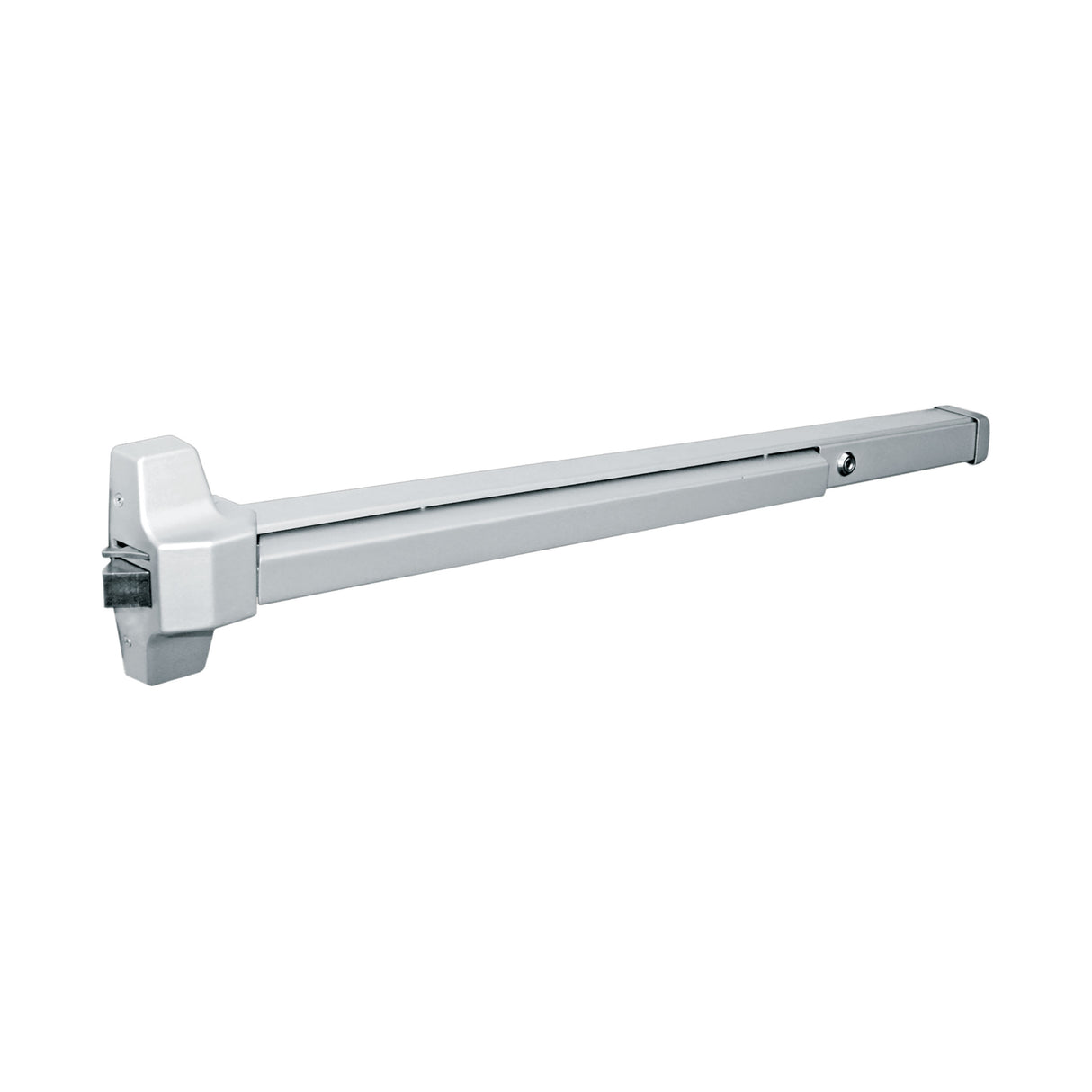

• SD-962AR-36A: Silver finish, heavy-duty steel construction, fits doors 30" to 48" wide, stainless steel 3/4" latch bolt, Allen-type dogging lock.

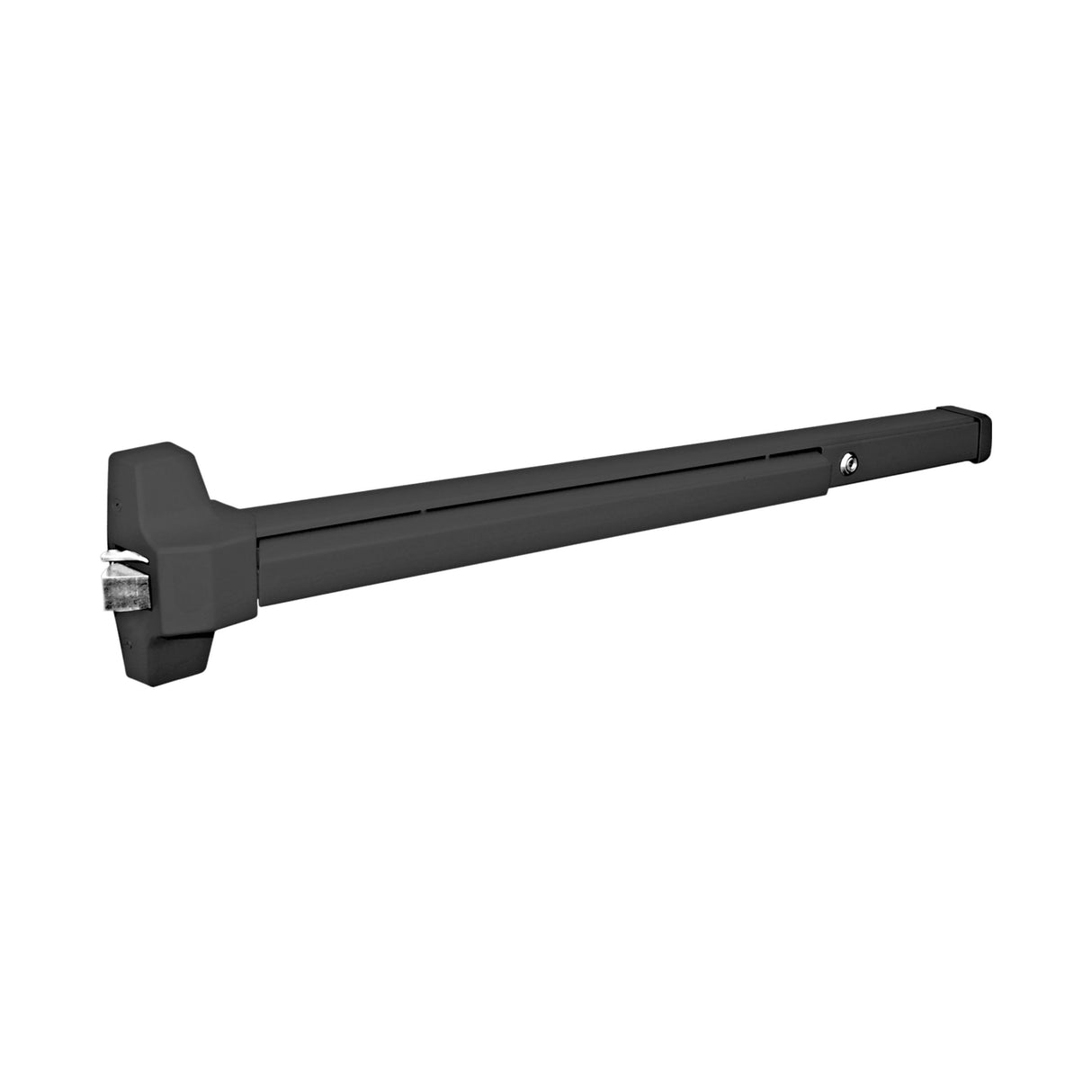

• SD-962BR-36A: Black finish, heavy-duty steel construction, fits doors 30" to 48" wide, stainless steel 3/4" latch bolt, Allen-type dogging lock.

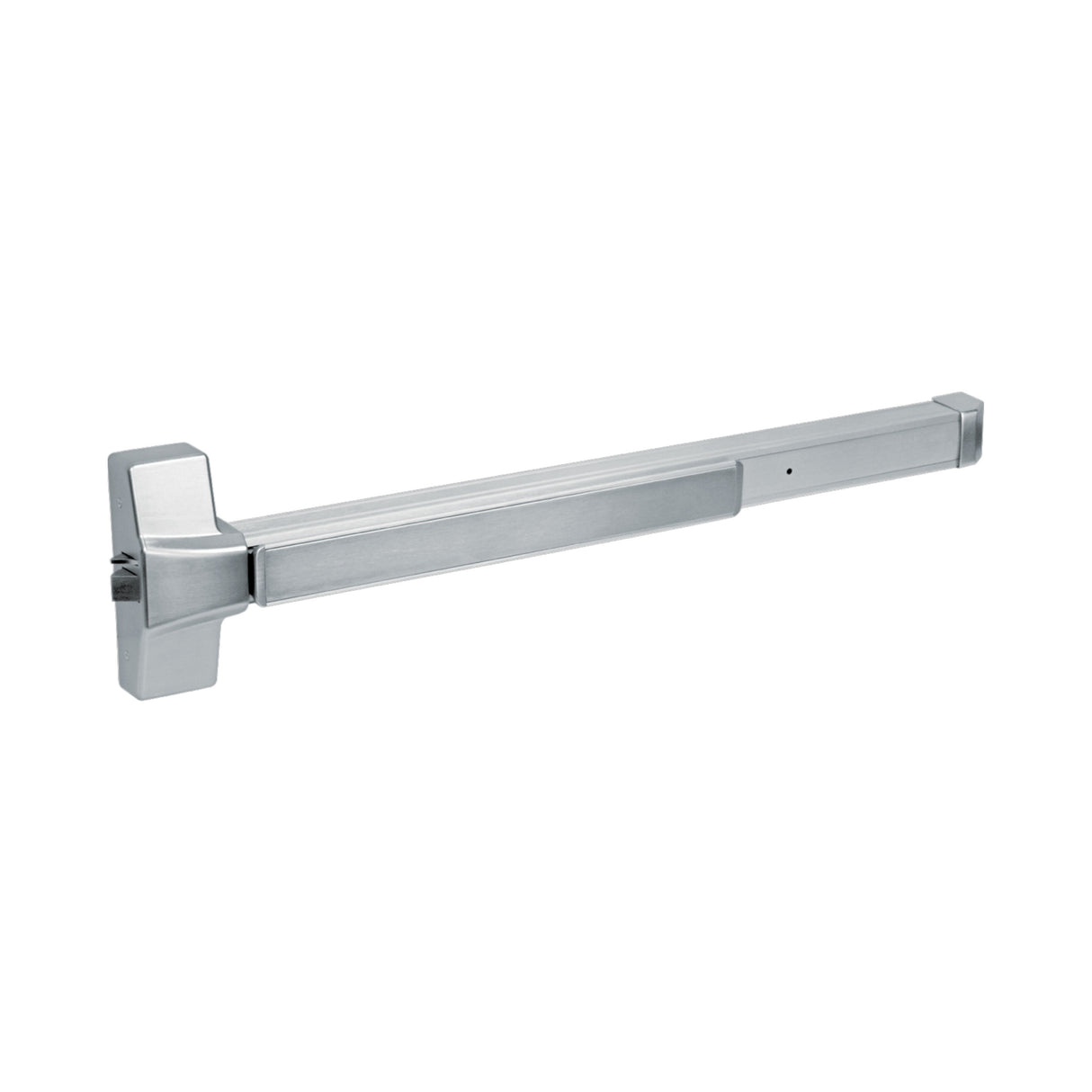

• SD-962AR-36G: Silver finish, Rugged Grade, ANSI Grade 1, heavy-duty plated steel and aluminum, fits doors 33" to 48" wide, stainless steel 3/4" latch bolt, hex-type dogging lock.
• SD-962BR-36G: Black finish, Rugged Grade, ANSI Grade 1, heavy-duty plated steel and aluminum, fits doors 33" to 48" wide, stainless steel 3/4" latch bolt, hex-type dogging lock.

Conclusion

The Seco-Larm Rim-Type Exit Devices, available in A and G variants, are versatile, secure, and built for durability. With compliance to ANSI and UL standards, heavy-duty materials, and user-friendly installation, they deliver exceptional value for secure exit control. Whether you’re securing a residential, commercial, or industrial space, these exit devices provide robust protection and convenience for a variety of access control needs.
