Maximum Controls - MAX AC CONTROL BOX for Swing Gate Operators

DSP Arm Controller for Maximum Controls Linear Swing Gate Operators

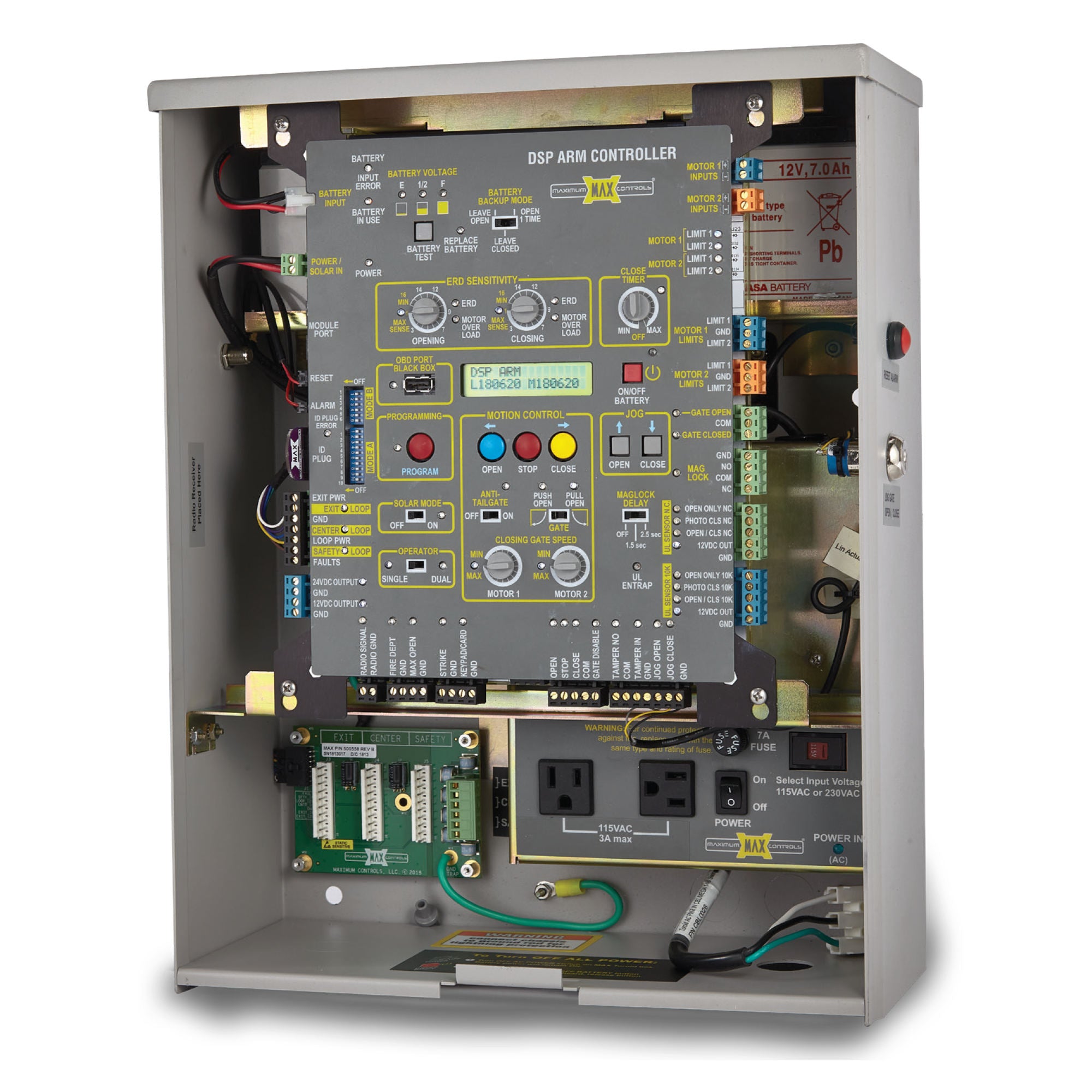

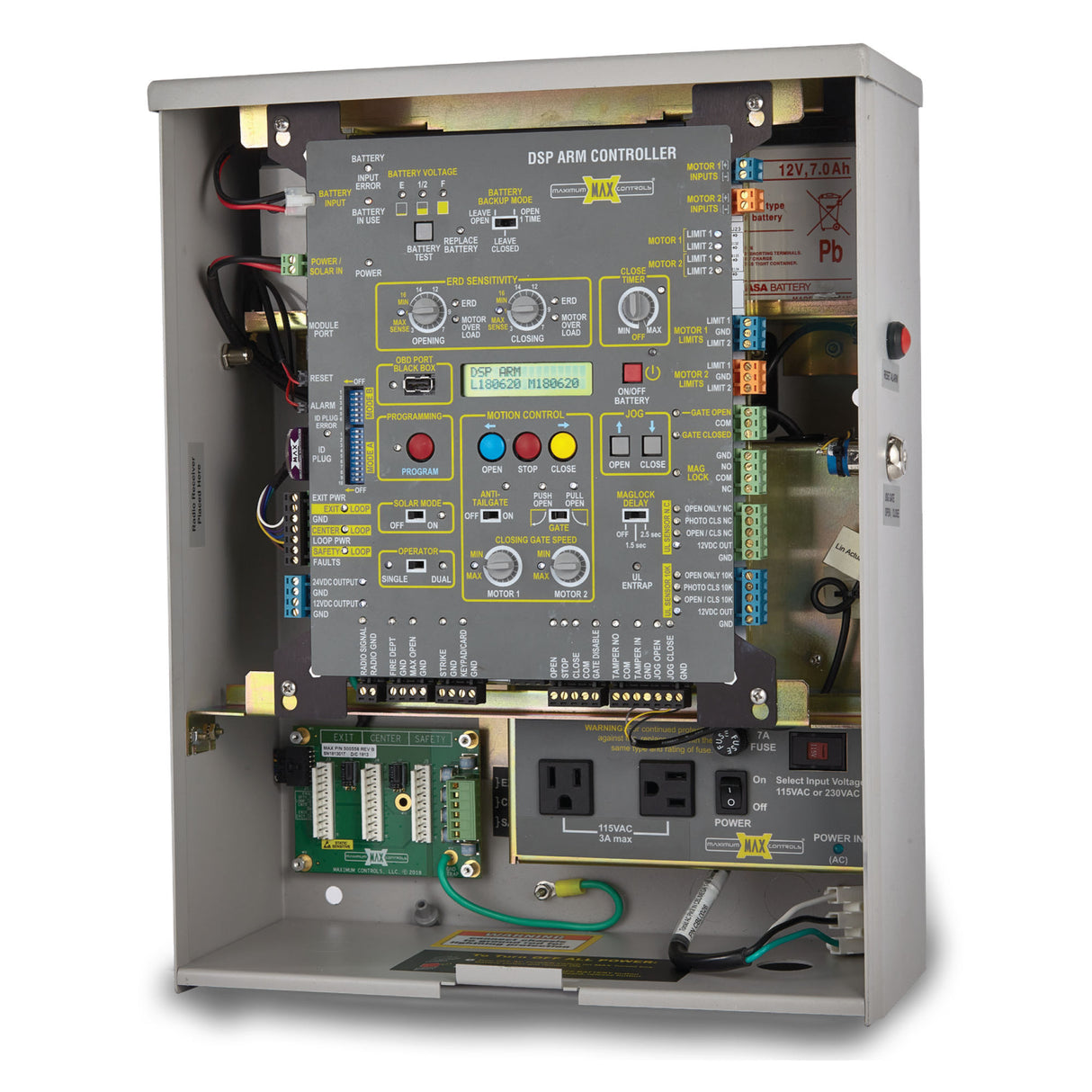

The Maximum Controls MAX AC Control Box is the control enclosure for the full Maximum Controls linear actuator swing gate operator line, compatible with the Max Arm, Max Ultra Arm, MAX Super Arm 1300, and MAX Super Arm 2300. Assembled in the USA, the enclosure houses the DSP Arm Controller, two 12V 7Ah AGM batteries, a 10A power supply with two 115VAC accessory outlets, a loop rack with Safety Loop, Center Loop, and Exit Loop inputs, an LCD display, a jog key switch for emergency access or egress, and an exterior UL reset button. The steel housing carries two-layer corrosion protection through gold zinc plating and electrostatic powder coating, with gold plated automobile-grade connectors throughout. A lockable steel cover secures the interior against unauthorized access. Input voltage is switchable between 115VAC / 6A and 230VAC / 2A, single phase.

The DSP Arm Controller supports both single and dual actuator configurations, making this control box applicable to single-gate and bi-parting installations alike. Two independently adjustable closing speed controls at 16 positions each allow asymmetric closing synchronization on bi-parting gates where leaves open to different angles. Entrapment protection meets UL 325 Type A Inherent via the built-in ERD sensor, with additional inputs for normally closed (N.C.) and 10K-type sensors supporting UL 325 Type B1 photo cell and Type B2 sensing edge devices, monitored when used. The on-board OBD Black Box port logs operational events downloadable via USB for field or factory diagnosis. Security features include a Tamper Alert relay that activates on forced gate movement, a Gate Disable function that blocks all standard open commands except Fire Department and Max Open inputs, advanced anti-tailgate detection, and magnetic lock relay outputs with selectable delay times. The two included 12V 7Ah AGM batteries deliver approximately 500 backup cycles across three selectable modes. A Solar Mode switch reduces idle draw to 5 milliamps for solar-powered installations, and the Magic Box option extends low-voltage remote power wiring up to 1,000 ft. Lightning protection covers all 35 input, output, and communication channels at up to 20,000V and 10,000A.

Key Features

• Compatible with Max Arm, Max Ultra Arm, MAX Super Arm 1300, and MAX Super Arm 2300; supports single and dual actuator configurations from one control point.
• DSP Arm Controller with LCD display, OBD Black Box port, and two independently adjustable closing speed controls at 16 positions each for asymmetric bi-parting sync.
• UL 325 Type A Inherent entrapment protection via built-in ERD sensor; N.C. and 10K inputs for Type B1 and Type B2 safety devices, monitored when used.
• Two 12V 7Ah AGM batteries deliver approximately 500 backup cycles with three selectable modes: open once, leave open, or leave closed.
• Gold zinc plated and powder-coated steel enclosure with lockable cover; gold plated automobile-grade connectors throughout.
• 10A power supply with two 115VAC accessory outlets; switchable 115VAC / 6A or 230VAC / 2A single phase input; 24VDC power output.
• Tamper Alert relay activates on forced gate movement; Gate Disable blocks all standard open commands from tampered keypads or exit loops, activatable by key-switch or timer.
• Solar Mode reduces idle draw to 5 milliamps; Magic Box option enables remote power wiring up to 1,000 ft without battery.
• Lightning protection across all 35 channels rated up to 20,000V and 10,000A, guaranteed to withstand any strike beyond 50 ft.

Technical Specifications

• Model: MAX AC Control Box
• Manufacturer: Maximum Controls LLC (Made in USA)
• Compatible Operators: Max Arm, Max Ultra Arm, MAX Super Arm 1300, MAX Super Arm 2300
• Gate Type: Vehicular swing gate only
• Controller: DSP Arm Controller
• Operator Configuration: Single or dual actuator (selectable)
• Display: LCD with real-time error reporting
• Diagnostics: OBD Black Box port; USB event log download
• Input Power: Switchable 115VAC / 6A or 230VAC / 2A, single phase
• Power Output: 24 VDC
• Power Supply: 10A with two 115VAC accessory outlets
• Battery Backup: Two 12V 7Ah AGM batteries; approximately 500 cycles; three selectable modes
• Battery Warranty: 1 year
• Entrapment Protection: UL 325 Type A Inherent (ERD sensor); N.C. and 10K inputs for Type B1 and Type B2 devices, monitored when used
• Loop Rack: Safety Loop, Center Loop, Exit Loop
• Lightning Protection: Up to 20,000V / 10,000A; 35 channels

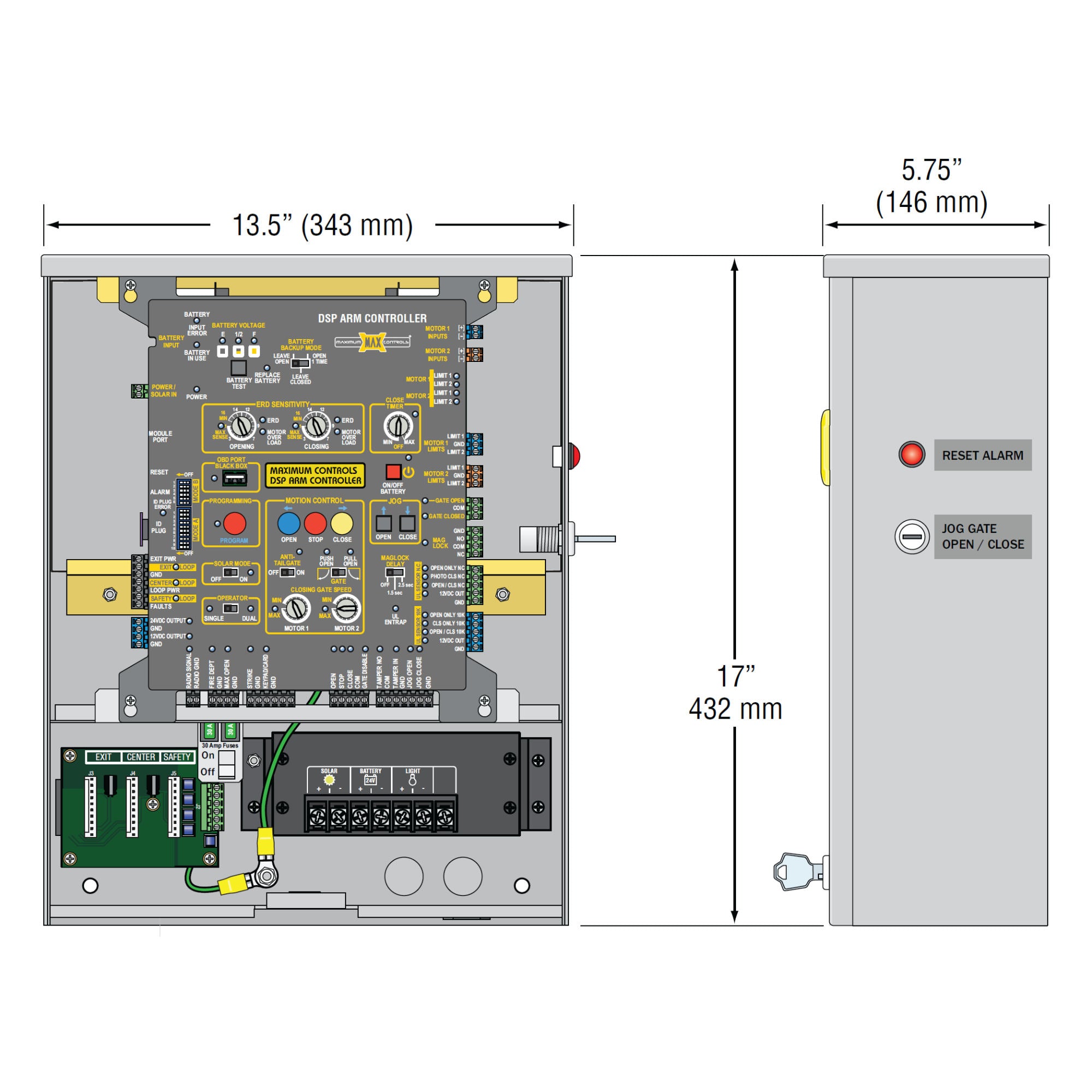

• Dimensions: 13.5" W x 5.75" D x 17" H
• Housing: Steel, gold zinc plated and electrostatic powder coated; lockable cover
• Connectors: Gold plated automobile-grade throughout
• Compliance: UL 325 Class I, II, III, IV
• Shipping Weight: 38 lbs
• Warranty: 2 years or 100,000 cycles, whichever comes first; 1 year on batteries
• Condition: New

Conclusion

This listing is for the MAX AC Control Box only. Actuators are not included and are available separately for the Max Arm, Max Ultra Arm, MAX Super Arm 1300, and MAX Super Arm 2300. For complete operator kits that include the actuator and control box together, full kits are available separately for the Super Arm 1300 and Super Arm 2300. When replacing an existing control box, confirm the actuator model and operator configuration (single or dual) before ordering and set the DSP Arm Controller to the correct operator mode during installation. Warranty coverage applies only to products purchased through authorized distributors.
