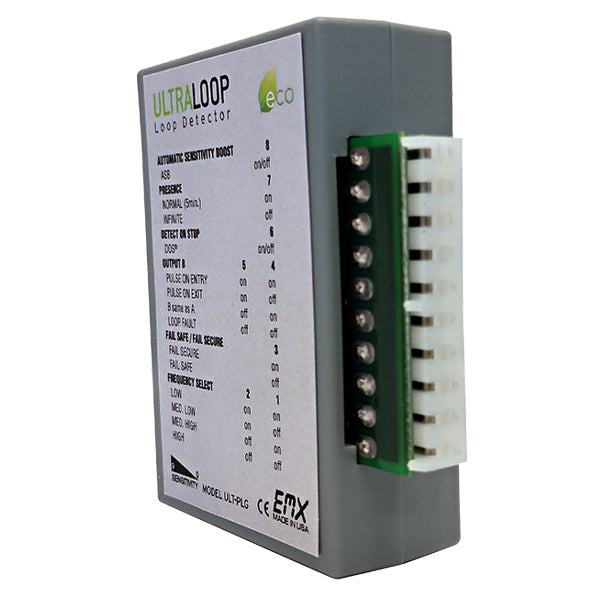

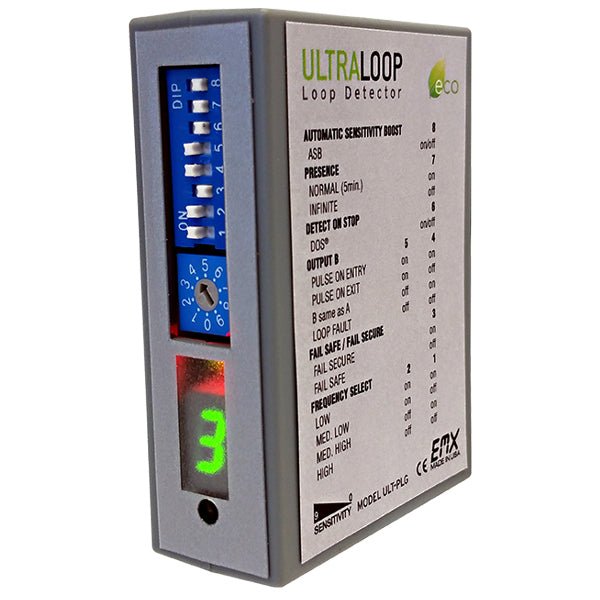

EMX ULTRA-PLG Plug-In Loop Detector

Ultra-PLG Plug-In Loop Detector by EMX

The ULTRA-PLG vehicle loop detector combines small size with full-featured functionality in a plug-in module. This detector features DETECT-ON-STOP™ or (DOS) technology, which allows detection only when a vehicle has come to a complete stop on the loop. This exclusive feature is unique to EMX and is a major advantage if you want to ignore cross traffic in tight spaces. The ULT-PLG provides a solid-state output indicating vehicle presence. The second output can be used for presence, loop fault or pulse on entry/pulse on exit. Our latest vehicle detector provides options for automatic sensitivity boost (ASB), delay, fail-safe/fail-secure and infinite and normal (5 min.) presence. This detector is easy to install and operate. Sensitivity selection is simplified by the ULTRAMETER™. Ten sensitivity settings allow for finer adjustment of the detection level. The four frequency selections help to prevent crosstalk in multi-loop applications.

Features

• ULTRAMETER™ displays optimum sensitivity setting/crosstalk interference
• Frequency count/reset switch
• 10 sensitivity settings
• 4 operating frequencies
• Solid-state output
• Second output, pulse entry/exit, normal/infinite presence
• CE compliant
• DETECT-ON-STOP™ allows detection only when a vehicle has come to a complete stop on the loop
• Plug-in style vehicular loop detector
• Ignores cross traffic in tight spaces with DETECT-ON-STOP™ feature
• Low current draw – green product
• Easy to install and setup with the ULTRAMETER™ sensitivity display
• Compatible with many gate operators
• Cost effective

Specifications

• Sensitivity: 10 levels, 0-9
• UltraMETER™ Display: Indicates optimum sensitivity level, 0-9 diagnostic aid
• Loop Frequency: 4 settings (low, med-low, med-hi, high)
• Loop Inductance: 20…2000µH (Q factor > 5)
• Grounded Loop: Isolation transformer allows operation with poor quality loops
• Automatic Tuning: Detector tunes to loop on power-up and following frequency count function
• Environmental Tracking: Automatic compensation
• Surge Protection: Loop circuitry protected by surge suppressors
• Detect Output: Solid-state (open collector)
• Output B: Solid-state (open collector)
• Output B Inverted: Solid-state (open collector)
• Power / Loop Fault Indicator: Green LED
• Detect / Frequency Count Indicator: Red LED
• Detect-on-Stop: Requires vehicle to stop for a minimum of 1 second (1-2s typical)
• ASB (Automatic Sensitivity Boost): Increases sensitivity after initial detection to prevent dropout due to high-bed vehicles
• Power: 12VDC…24VDC
• Operating Current: 15 mA
• Operating Temperature: -40°C…82°C (-40°F…180°F), 0…95% relative humidity
• Dimensions (L x W x H): 3.0” (76mm) x 0.9” (22mm) x 2.75” (70mm)
• Connector: 10-pin female
