Reno L-1200-R Single Channel Shelf Mount Loop Detector

Shelf-Mount Loop Detector with LCD Diagnostics and NEMA TS 1 Compliance

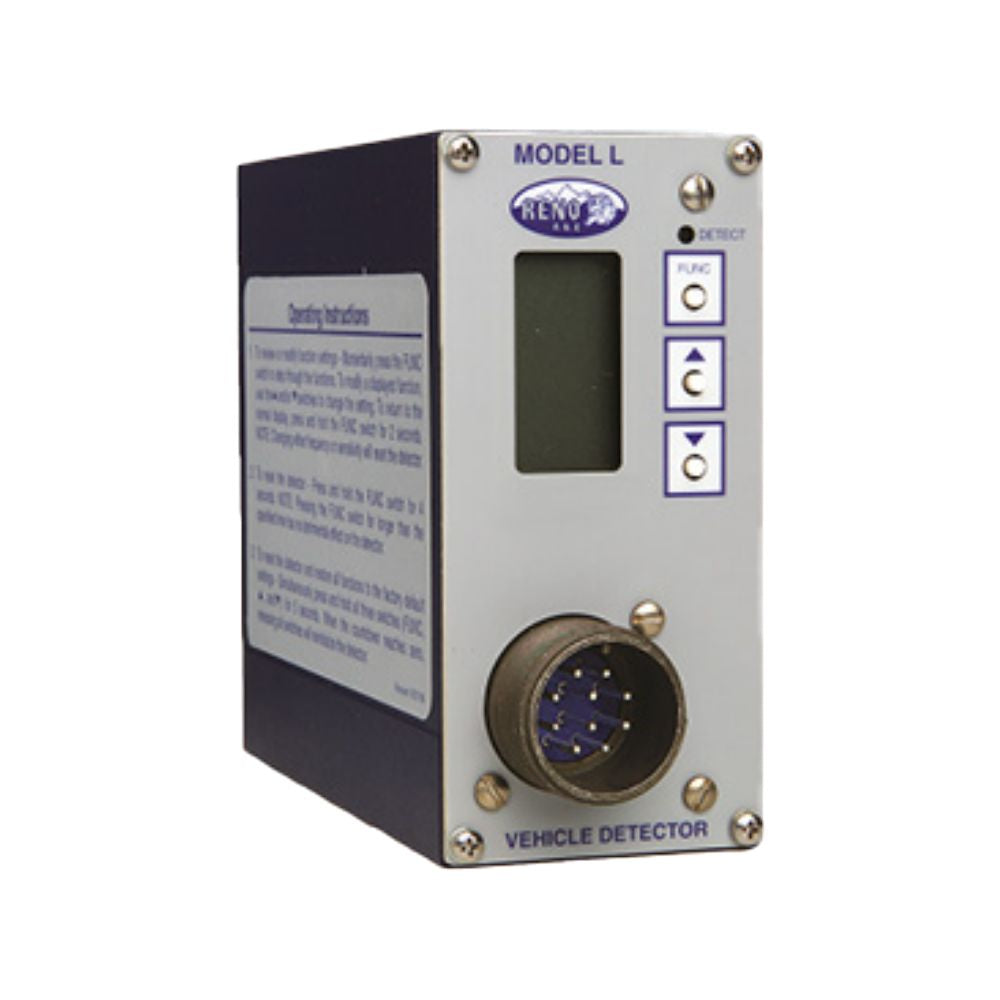

The Reno L-1200-R is a single-channel, shelf-mounted loop detector designed for advanced vehicle detection in access control and traffic management applications. Built to meet or exceed NEMA TS 1-1989 standards, this model features a back-lit LCD screen for live feedback, allowing for simplified setup and diagnostics.

The L-1200-R offers push-button programming, real-time loop frequency display, loop inductance and change tracking, built-in failure logging, and programmable call delay and extension timers. This unit is ideal for integration into NEMA cabinet environments and ensures high reliability with a 120VAC relay output.

Key Features

• LCD Display: Back-lit LCD with loop frequency, inductance, bar graph, and diagnostics
• Programming: Push-button configuration with non-volatile memory
• Sensitivity: 9 selectable levels with visual bar graph calibration
• Diagnostics: Real-time loop status, loop fail tracking, timer countdown
• Audible Signal: Internal buzzer to aid loop setup and testing
• Relay Output: 6A contact rating for flexible system integration
• Logic Modes: Directional detection, delay and extension timers
• Fail-Safe Design: Automatic reset with fault memory logging
• Standard Compliance: Exceeds NEMA TS 1-1989 specifications

Technical Specifications

• Model: L-1200-R
• Channel Count: Single
• Power Input: 120 VAC (range: 89–135 VAC)
• Frequency Range: 20 kHz to 100 kHz (8 selectable bands)
• Loop Inductance: 20 to 2500 µH
• Sensitivity: 0.0025% to 0.64% (ΔL/L), 9 levels
• Output Type: Relay (6A max, 150VDC, 180W)
• Mounting Style: Shelf mount
• Display: Back-lit LCD and red LED detect indicator
• Dimensions: 4.7" H × 2.25" W × 5.3" D
• Operating Temp: -40°F to +180°F
• Weight: 24 oz (680 g)
• Manufacturer: EDI Reno

Conclusion

The Reno L-1200-R delivers precision detection, fault tracking, and easy programming in a compact, shelf-mount design. Ideal for access control and traffic environments that require NEMA-compliant, relay-based loop detection with advanced diagnostic features.

Note: Harness sold separately
