DoorKing 1815-247 Card Reader with Keypad Combo

Wiegand Keypad and Proximity Card Reader Combo for Controlled Entry

The DoorKing 1815-247 is a combination Wiegand keypad and proximity card reader assembly designed for controlled entry points where you want both PIN access and card access at the same location. This unit integrates an IDTeck RF20 proximity reader and a Wiegand-format keypad in one enclosure, providing two separate credential methods for the same door or gate access point.

A key advantage of the 1815-247 is that the keypad and the card reader operate independently. Each device outputs its credential data separately, allowing your access controller to process keypad entries and card reads as distinct inputs. This is useful when you want to support mixed user groups (for example, residents using cards and service vendors using PIN codes) without requiring separate devices or enclosures.

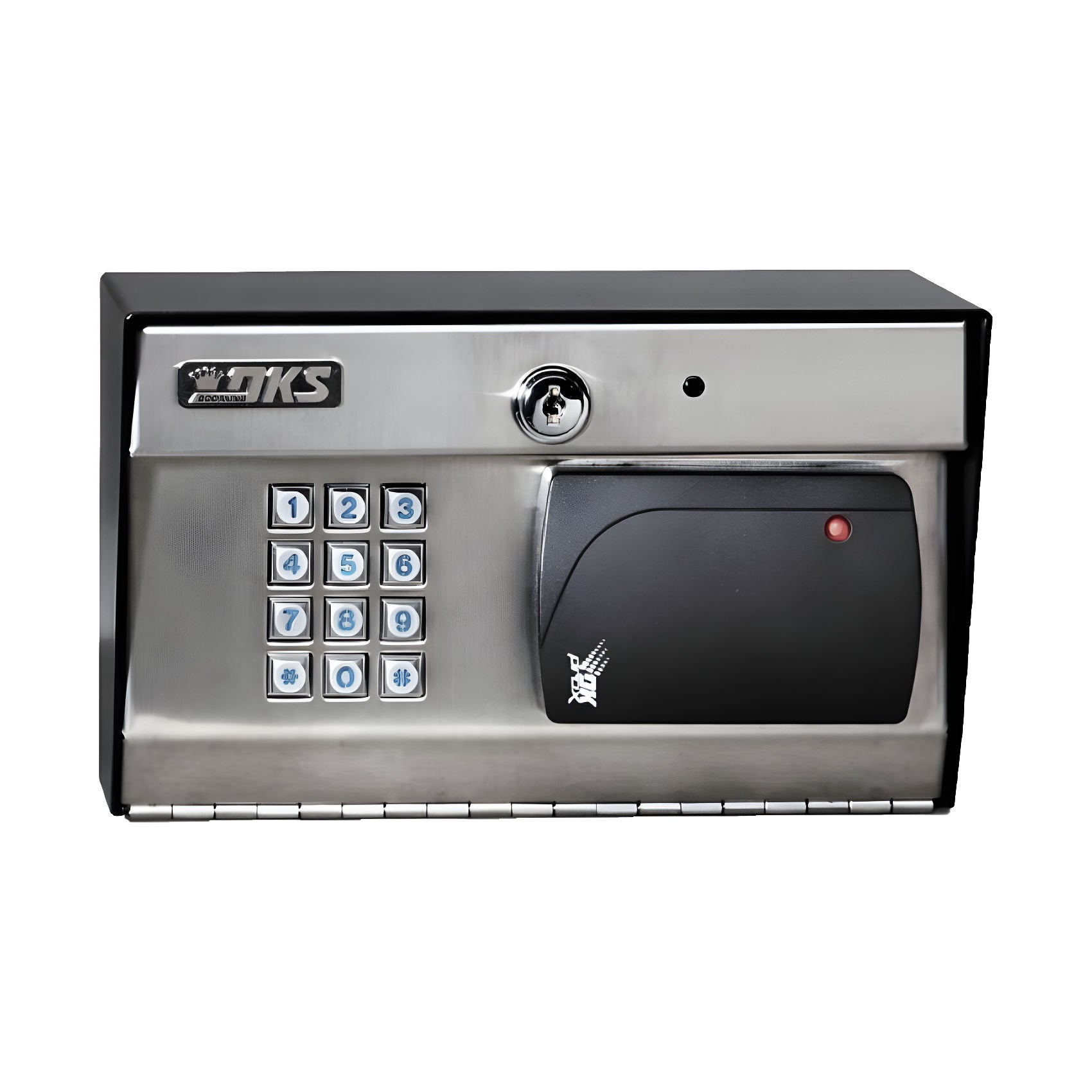

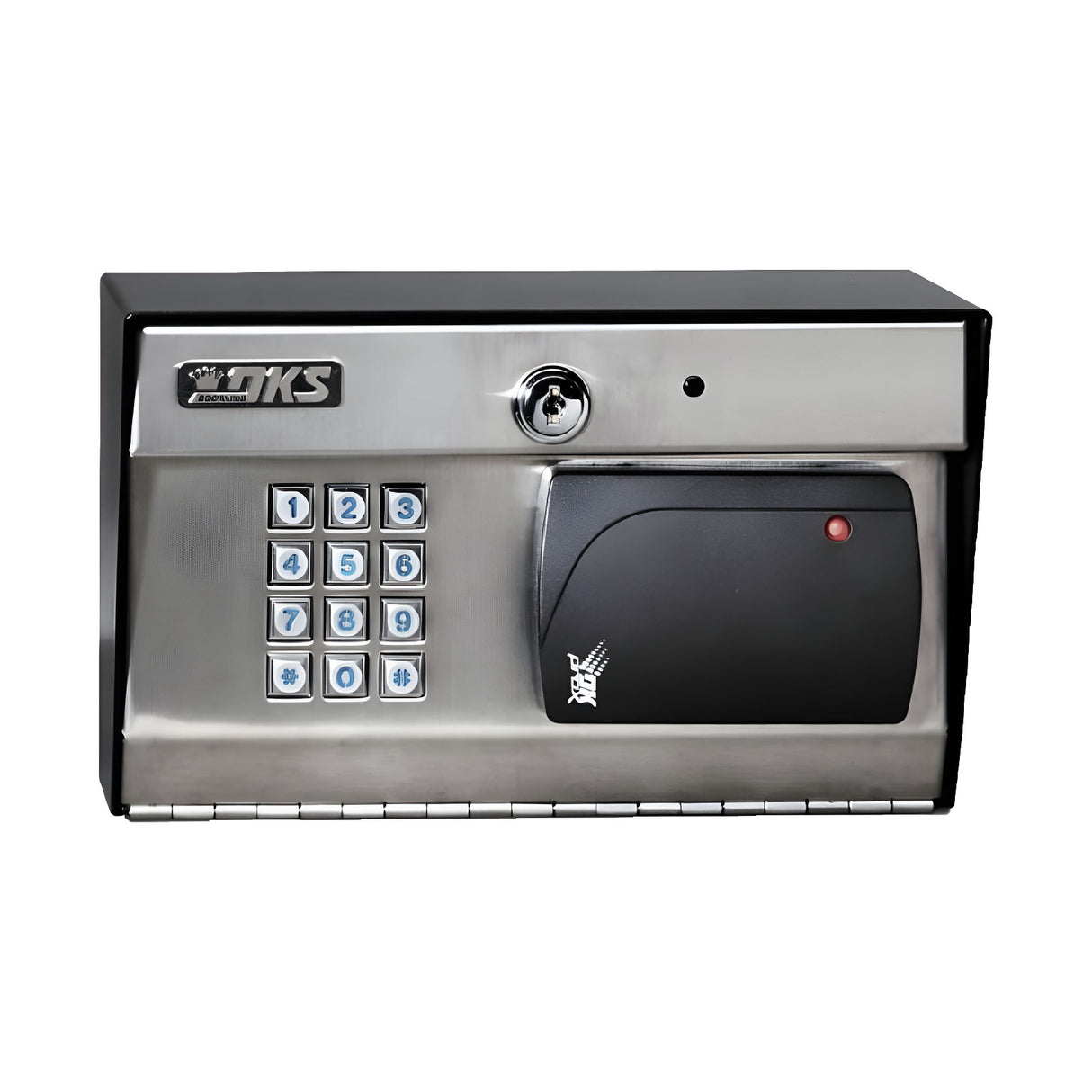

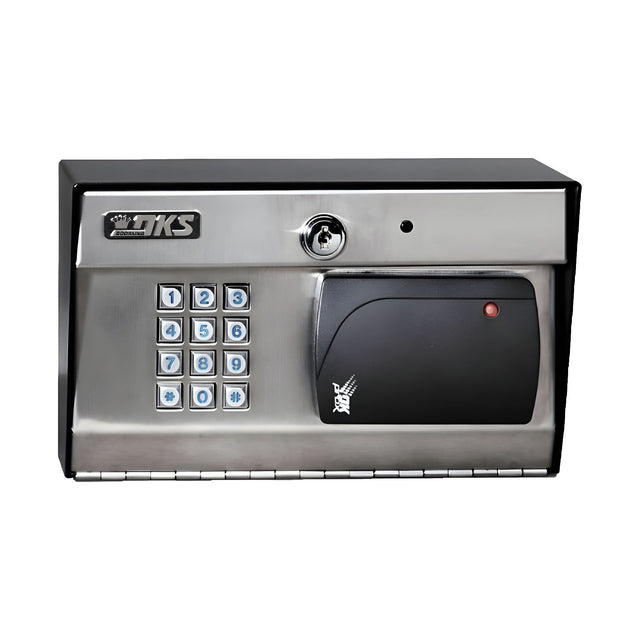

Both the keypad and the reader output data in a 26-bit Wiegand format and must be connected to a compatible access controller. Common compatible DoorKing controllers include models such as 1833, 1835, 1837, and 1838 (or other controllers that accept 26-bit Wiegand input). The product photo is approximate.

Key Features

• Combines a Wiegand keypad and IDTeck RF20 proximity reader in one assembly
• Supports two credential methods at one access point: PIN and proximity card
• Keypad and reader operate independently (separate Wiegand outputs)
• 26-bit Wiegand output format for both devices
• Designed for controlled entry when tied into a compatible access controller

Technical Specifications

• Part Number: 1815-247
• Device Type: Combination Wiegand Keypad + Proximity Reader
• Reader Type: IDTeck RF20
• Output Format: 26-bit Wiegand (keypad and reader)
• Operation: Keypad and reader function independently of each other
• System Requirement: Must connect to an access controller that accepts 26-bit Wiegand
• Common DoorKing Controller Compatibility: 1833, 1835, 1837, 1838 (controller-dependent)
• Photo Note: Picture is approximate
• Brand: DoorKing (DKS)

Conclusion

For access points that need both PIN entry and card-based credentials, the DoorKing 1815-247 provides a single, integrated solution with an independent Wiegand keypad and an IDTeck RF20 proximity reader. Elite recommends confirming your controller supports 26-bit Wiegand and has the appropriate inputs available for both outputs before ordering.
