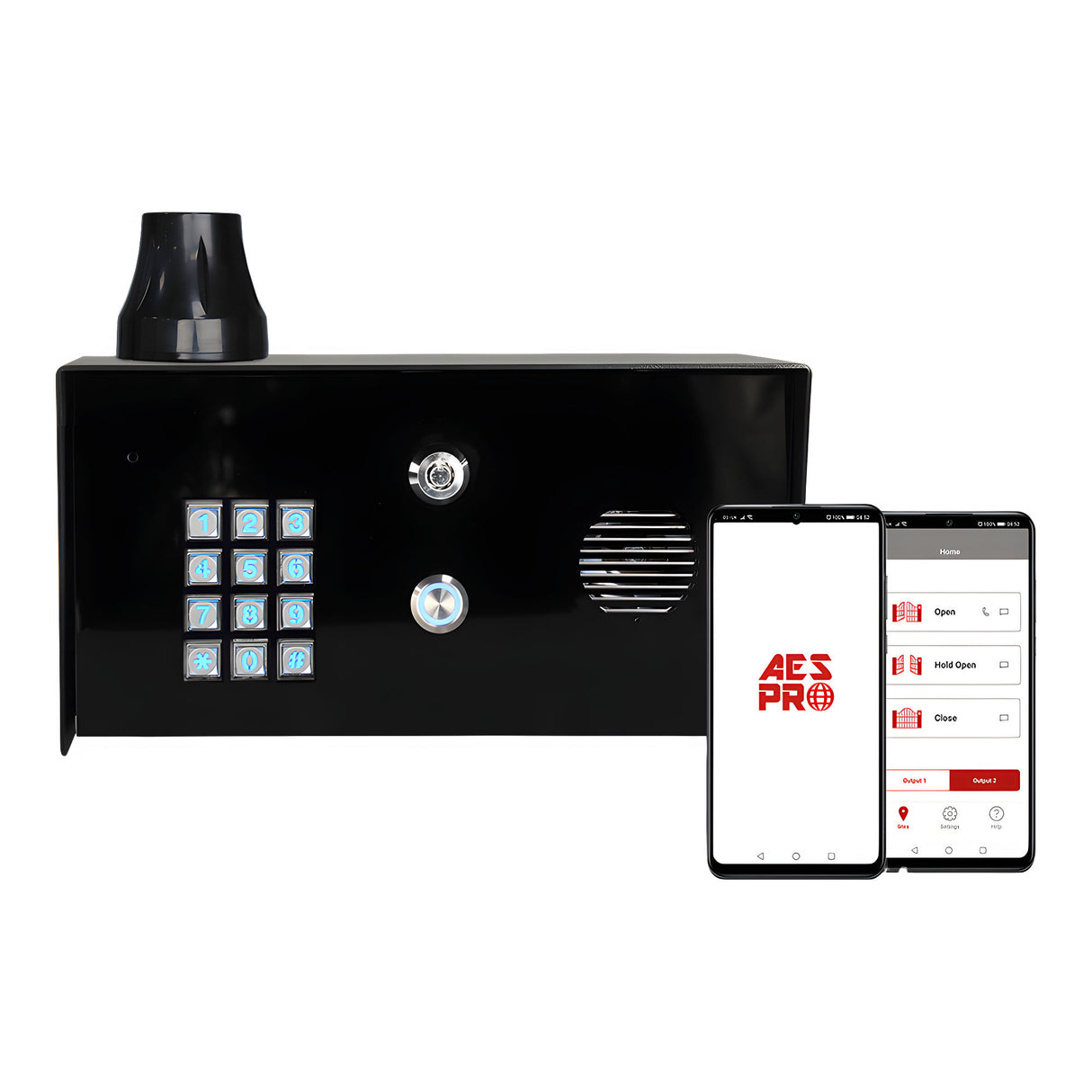

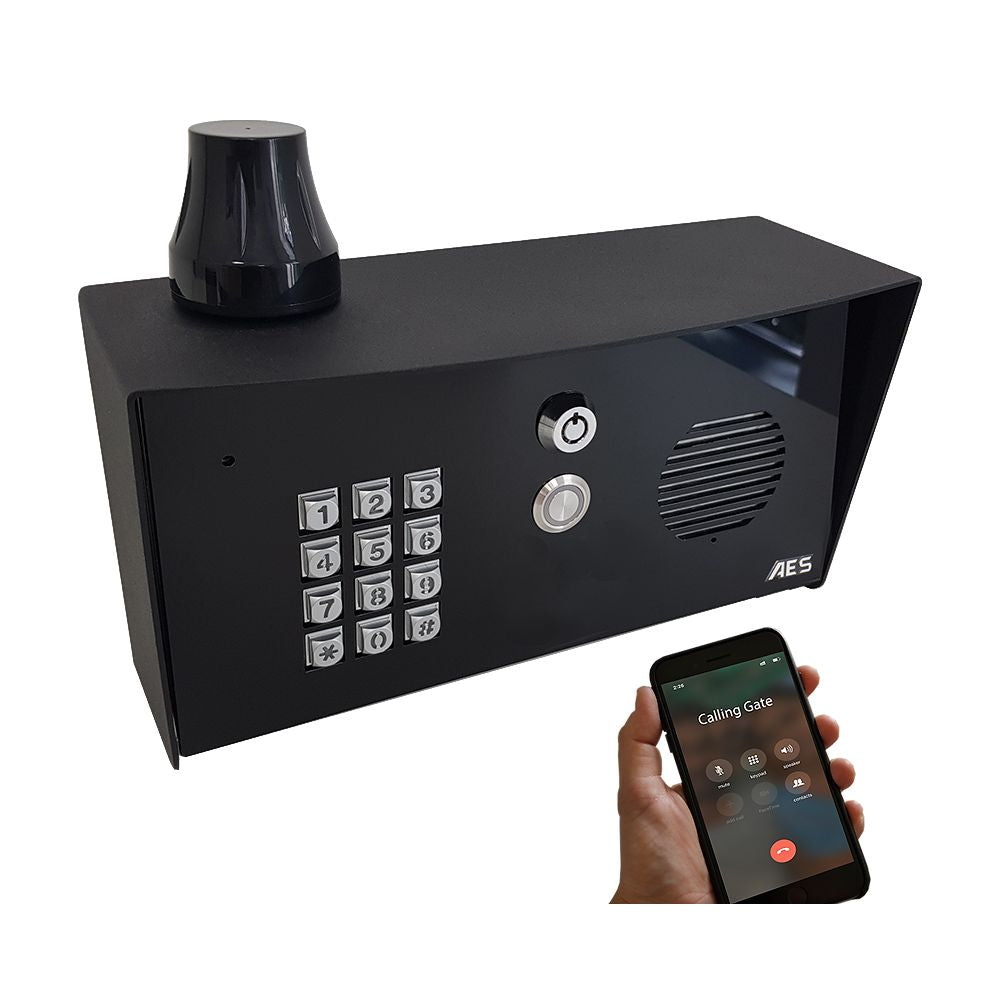

AES PRIME7-PBK-US Cellular Intercom With Keypad

Pedestal-Mount Cellular Intercom With Keypad For Secure Entry Control

The AES PRIME7-PBK-US is a pedestal-mount 4G cellular intercom with an integrated keypad, built for secured gates and controlled perimeter entries where reliable visitor calling and remote access control are required. When a visitor presses the illuminated call button, the unit dials programmed phone numbers with rollover, allowing you to speak with the caller and trigger access remotely. It also supports app-based scheduling, SMS notifications, and SMS control functions, but requires an active voice and SMS SIM plan with an ongoing monthly fee.

Key Features

• Pedestal-mount cellular intercom with integrated keypad for on-site code access
• Rollover calling to up to 4 programmed phone numbers
• 2 relays for common gate control functions such as trigger, latch, and unlatch
• SMS control and alerts, including customizable notifications when a relay is triggered
• App scheduling for automatic open and close times
• FOTA firmware updates via SMS and Dynamic APN for simplified cellular setup
• Supports multiple credential types and schedules including permanent, time-restricted, and temporary keypad codes
• Proximity reader versions are available (not included unless your specific configuration includes prox)

Technical Specifications

• Model: PRIME7-PBK-US
• Mounting Type: Pedestal mount
• Construction: Marine-grade stainless steel panel, powder-coated aluminum hood, gloss black toughened acrylic faceplate
• Cellular Type: 4G (USA)
• SIM Requirement: Voice and SMS SIM plan required (monthly fee applies)
• Dial-Out Capacity: Up to 4 phone numbers
• Relays: 2
• Relay Contacts: N/O and N/C
• Relay Rating: 2A, 24VAC max
• Keypad Code Capacity: 250 permanent, 250 time-restricted, 50 temporary
• Caller ID Capacity: 250 standard, 250 time-restricted
• Power: 24VDC power supply included (per system configuration)

Conclusion

The AES PRIME7-PBK-US is a strong choice for sites that need pedestal-mounted visitor calling plus keypad-controlled entry, with SMS control, app scheduling, and two-relay gate control in a hardened outdoor-ready build. Elite recommends confirming cellular coverage at the site and reviewing the manual to ensure SIM plan requirements and system compatibility match your installation.
