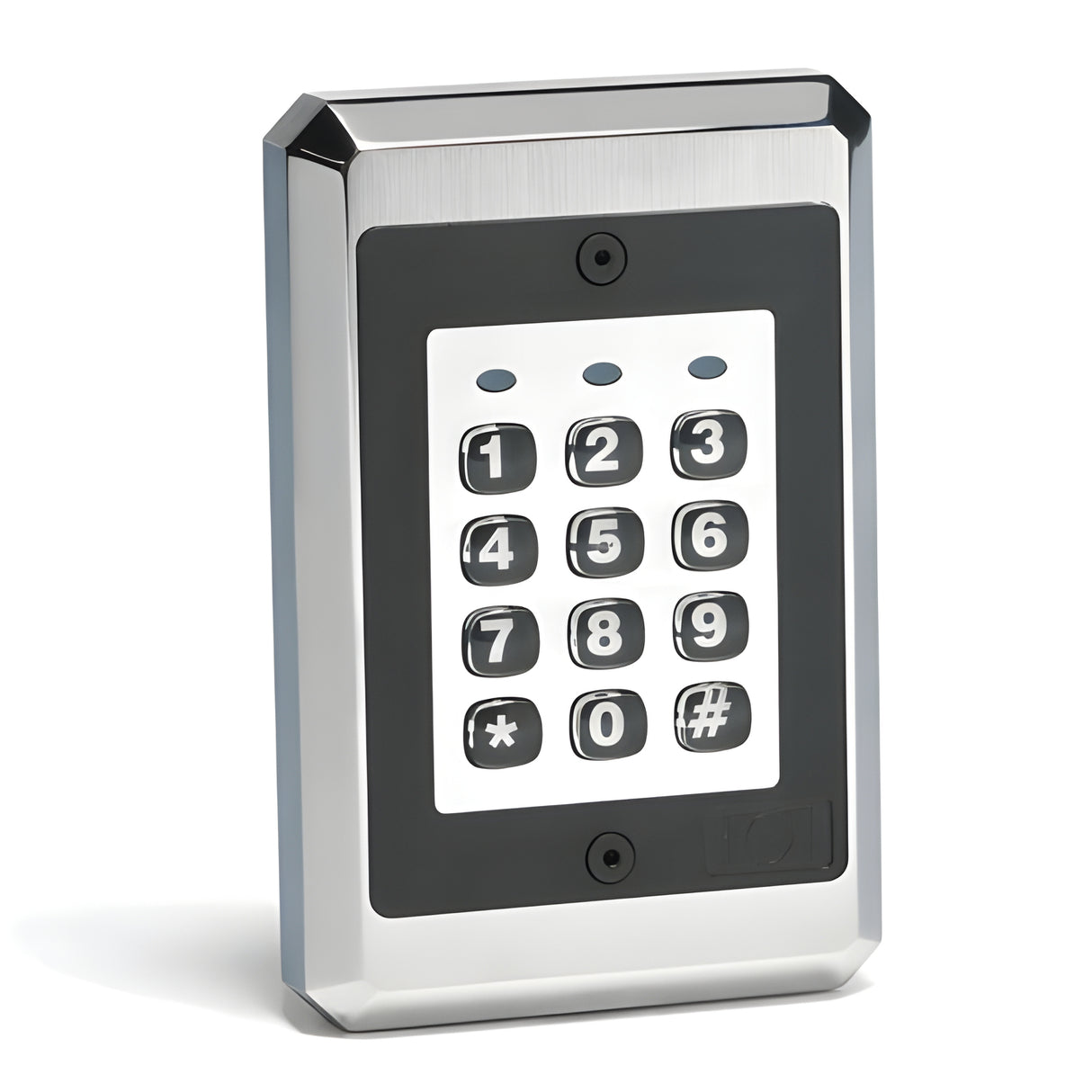

Linear 212iLW Indoor/Outdoor Security Keypad

Reliable Indoor Flush Mount Keypad for Access Control

The Linear 212iLW known as IEI 212iLW is a rugged, vandal-resistant keypad designed to deliver reliable access control for doors, gates, and secure areas. Its durable and stylish chrome-plated trim and hardened, backlit keys offer both protection and visibility, even in low-light conditions. Ideal for residential, commercial, or light industrial settings, the 212iLW supports 120 user PINs, provides real-time LED status feedback, and installs easily into a standard single-gang electrical box - making it a practical and secure solution for a variety of entry applications.

Key Features

• Supports 120 user codes for PIN-based access control
• Durable chrome-plated trim and hardened backlit keys for visibility and tamper resistance
• LED status indicators and audible keypress feedback for user confirmation
• Installs in a standard single-gang electrical box
• Displays Red/Green LED for real-time relay status
• Engineered for indoor or outdoor environments
• Onboard keypad programming – no external software required
• Supports panic, duress, and temporary-use codes
• Low-maintenance solution ideal for doors, gates, and secure entry points

Technical Specifications

• Model: 212iLW
• Voltage: 10–30 VDC or 12–24 VAC (auto-adjusting)
• Current Draw: 93–198 mA (depending on input)
• Relay Output: 2A @ 30 VAC/DC
• Dimensions: 3.47″ W × 5.14″ H × 0.71″ D
• Operating Temp: -20°F to 130°F (-28°C to 54°C)
• Mounting Type: Single-gang flush mount
• Housing: Chrome-plated with conformal-coated electronics
• Part Number: 0-230722

Conclusion

The Linear 212iLW provides dependable, PIN-based access control in a compact, durable form. With user-friendly programming, hardened construction, and secure performance in both indoor and outdoor environments, it’s an ideal choice for property managers, facility operators, and security professionals seeking a streamlined access solution.
