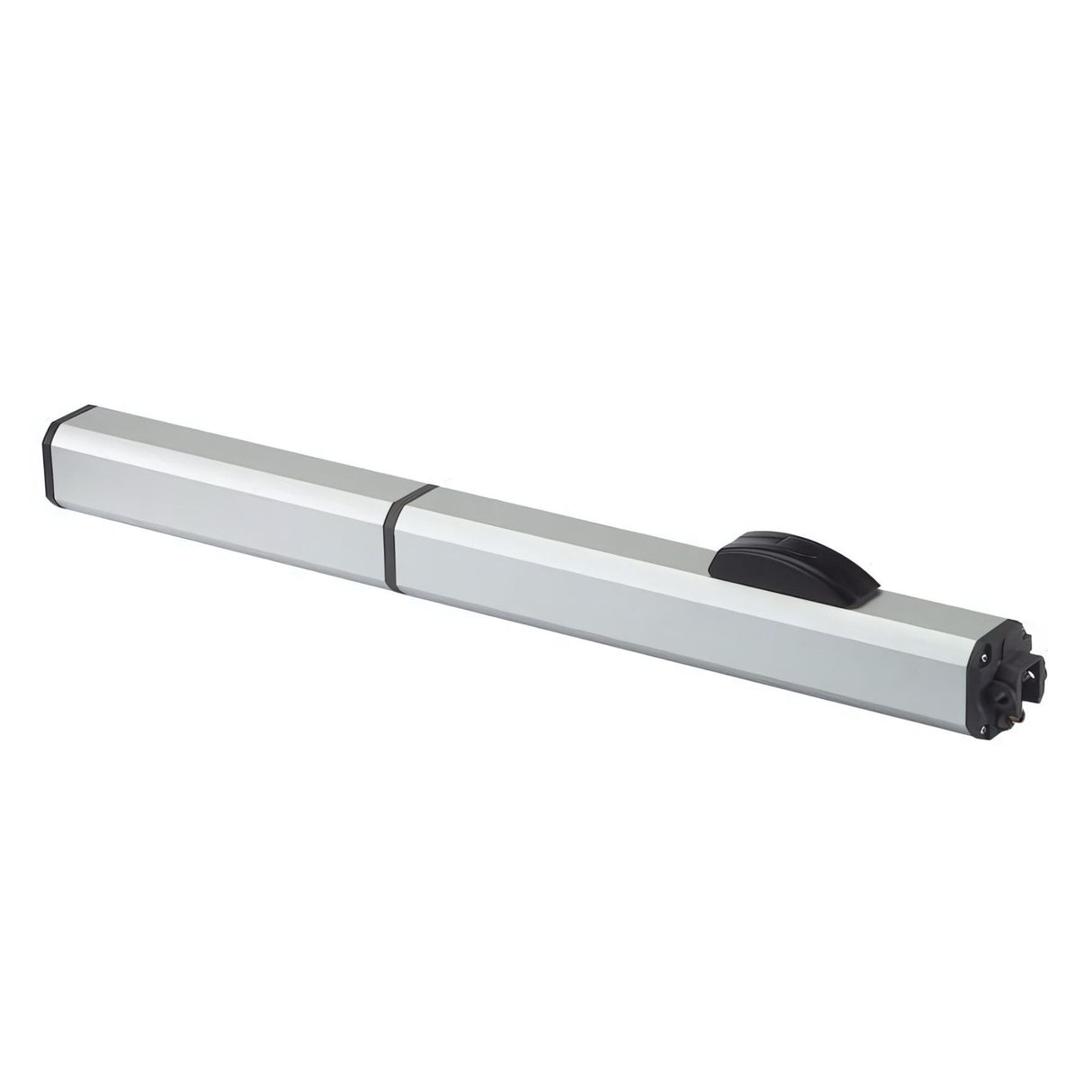

FAAC 400 CBAC EG Extended Gate Arm 115V or 230V
FAAC 400 CBAC EG Extended Gate Arm 115V or 230V - 115 Volts is backordered and will ship as soon as it is back in stock.
Core Details
| Product Type | Replacement Swing Arm |
| Application Type | Gate |
| Installation Type | Residential | Commercial |
| Voltage | 115V | 230V |
| Power Type | AC |
| Mounting Type | Post Mounted |
| Mechanism Type | Hydraulic |
| Motor Type | Hydraulic |
| Horsepower (HP) | < 0.5 HP |
| Battery Backup | Not Compatible |
| UL/ETL Certification | Yes |
| Max Gate Weight | 1,500 Lbs |
| Max Gate Length | 18 Ft |
| Phase | Single-Phase |
| Weatherproof Rating | IP55 – Dust-protected, resists low-pressure water jets |
| Operating Temperature | -4°F to 131°F |
FAAC 400 CBAC EG Extended Gate Arm 115V or 230V
Description
Description
Extended Hydraulic Arm for FAAC 400 Series Gate Systems
The FAAC 400 CBAC EG is a replacement hydraulic swing gate operator arm designed for high-performance applications. This extended version is engineered for gates up to 18 feet long and 1,500 pounds, offering powerful and consistent movement in commercial or residential environments. Built for 115V or 230V systems (selectable by variant), the 400 CBAC EG is ideal for use where longer rod stroke and increased clearance are required.
Key Features
- Replacement operator arm only for FAAC 400 CBAC EG systems
- Extended stroke for longer leaf gates and wider pillar spacing
- Supports gates up to 18 ft and 1,500 lb
- Durable asynchronous single-phase hydraulic motor
- Thermal protection built into the motor windings
- 50.6 in x 4.4 in x 3.3 in overall dimensions
- Weather-resistant IP55 protection class for outdoor use
Technical Specifications
- Model: 400 CBAC EG
- Voltage Options: 115V or 230V (variant selectable)
- Power Consumption: 220W
- Maximum Leaf Length: 18 ft (5.5 m)
- Maximum Leaf Weight: 1,500 lb (680 kg)
- Effective Rod Stroke: 15 in (380 mm)
- Thrust Force: 1,045 lbf (465 daN)
- Pump Flow Rate: 1.5 l/min
- Opening Time (90°): Approx. 18 seconds
- Use Frequency: Up to 50 cycles per hour
- Weight: 22 lb (10 kg)
- Dimensions (L x D x H): 50.6 in x 4.4 in x 3.3 in (1,285 x 113 x 85 mm)
- Protection Rating: IP55
- Operating Temperature: -4°F to 131°F (-20°C to +55°C)
Conclusion
The FAAC 400 CBAC EG extended arm is built for demanding swing gate applications requiring extended reach, heavier gate support, and dependable performance. This arm is sold individually and does not include a control board or accessories. Always verify system compatibility before ordering.
