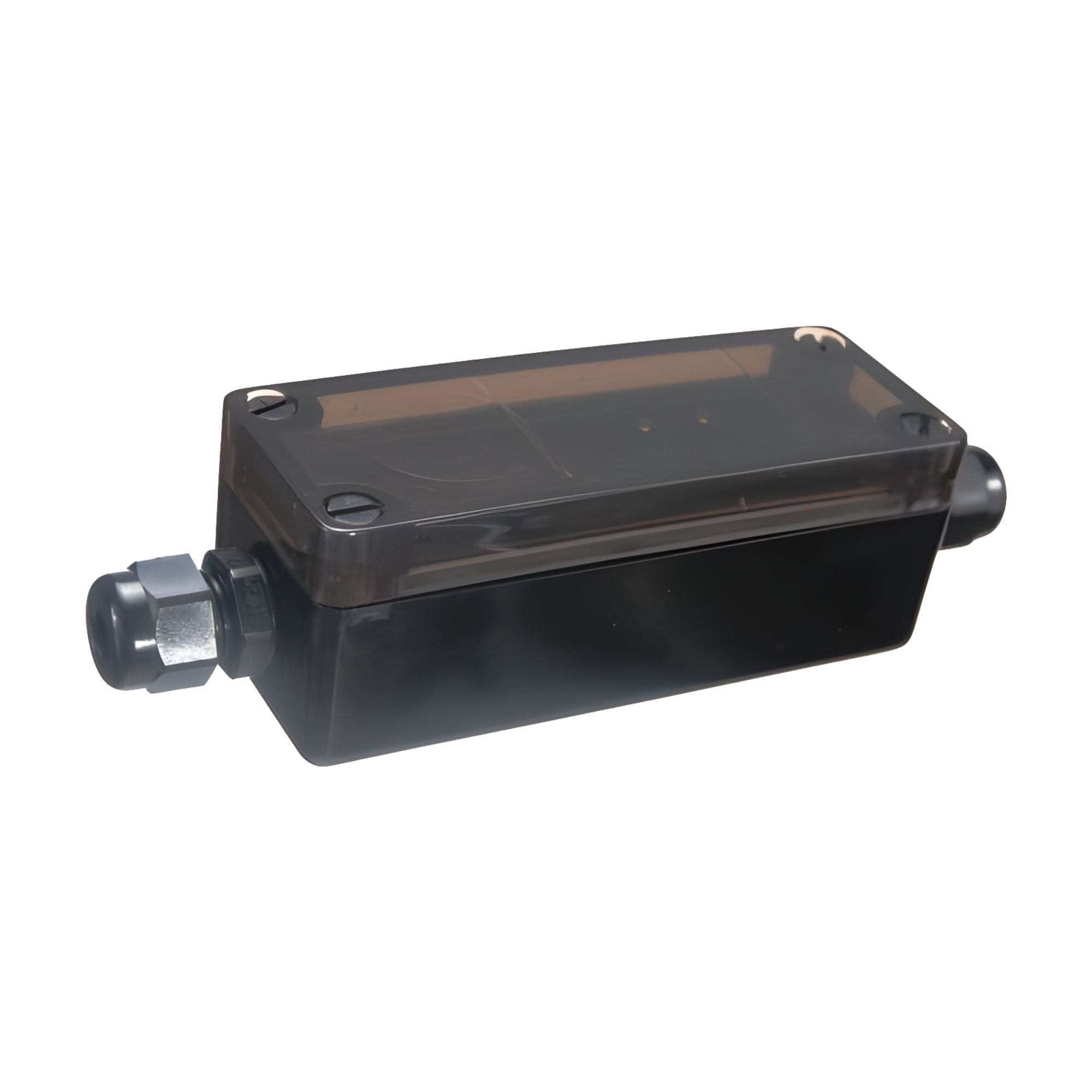

Miller Edge JB-02P-W Junction Box NEMA 4

Polycarbonate NEMA 4 Junction Box for Gate and Commercial Door Wiring

The Miller Edge JB-02P-W is a polycarbonate NEMA 4 junction box used to house splices and wiring connections between sensing edges, coil cords, retracting reels, and control inputs on gate operators and commercial overhead door systems. The NEMA 4 rating provides protection against windblown dust, splashing water, hose-directed water, and ice formation, which is the conditions outdoor perimeter equipment is exposed to year-round. Polycarbonate construction avoids the corrosion issues that metal junction boxes can develop in coastal, agricultural, and washdown environments.

The unit ships with two strain relief fittings to secure incoming and outgoing cable runs without pinching conductors, plus four mounting screws for surface installation. The JB-02P-W is the polycarbonate weatherproof version of the Miller Edge JB-02 platform; the base JB-02 is a metal box with connectors and wire nuts intended for protected installations rather than NEMA 4 exposure.

Key Features

• Polycarbonate junction box with NEMA 4 rating for outdoor and washdown installations
• Houses splices and wiring connections for sensing edges, coil cords, and retracting reels
• Resists corrosion in coastal, agricultural, and high-humidity environments where metal boxes fail
• Includes two strain relief fittings to secure cable entries without pinching conductors
• Includes four mounting screws for surface installation
• Weatherproof counterpart to the metal JB-02 junction box

Technical Specifications

• Part Number: JB-02P-W
• Component Type: Junction box
• Enclosure Rating: NEMA 4
• Material: Polycarbonate
• Included Hardware: 2 strain relief fittings, 4 mounting screws
• Application: Gate operator and commercial overhead door wiring connections
• Manufacturer: Miller Edge
• Condition: New

Conclusion

The JB-02P-W is the correct junction box for outdoor gate and door installations where the wiring connection point will be exposed to weather, dust, or washdown. For protected indoor or in-cabinet splices where weatherproofing is not required, the metal JB-02 with connectors and wire nuts is the lower-cost alternative within the same Miller Edge product family.
