DoorKing 6500-400 Hub Assembly for 6500 Operator 1/2 HP
DoorKing 6500-400 Hub Assembly for 6500 Operator 1/2 HP is backordered and will ship as soon as it is back in stock.
Core Details
| Product Type | Mechanical Component |
| Application Type | Gate |
| Installation Type | Commercial | Industrial | HOA |
| Mounting Type | Direct-Mounted | Bolt-On |
| UL/ETL Certification | Yes |
DoorKing 6500-400 Hub Assembly for 6500 Operator 1/2 HP
Description
Description

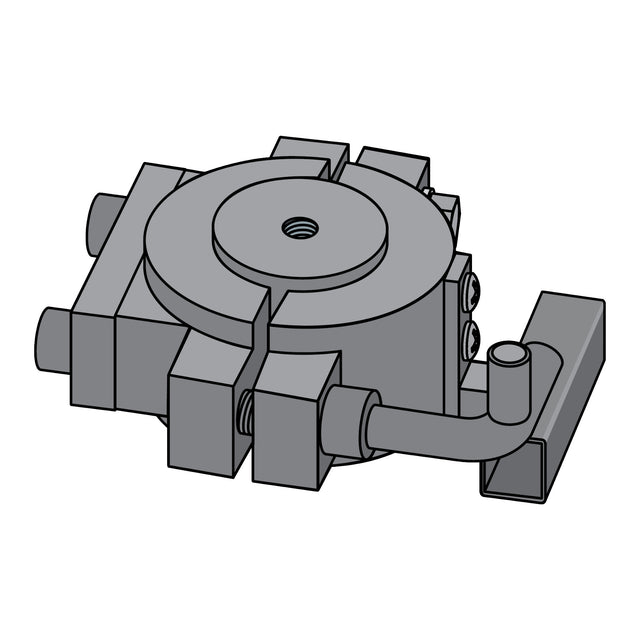

Hub Assembly for DoorKing 6500 Series 1/2 HP Swing Gate Operators
The DoorKing 6500-400 is a genuine OEM hub assembly designed for use with DoorKing 6500 series 1/2 HP swing gate operators. The assembly provides the mechanical hub connection between the operator output shaft and the gate arm, transmitting torque from the operator motor to the gate during open and close cycles. It includes the hub with extension shaft assembly, hub clamps, hub bar holder, bushing brass components, and all associated hardware as detailed in the engineering drawing. All components are factory-specified for dimensional accuracy and proper fit within the 6500 series operator. Consult your operator manual or parts diagram to confirm fitment for your specific model before ordering.
Key Features
- Genuine DoorKing OEM hub assembly for 6500 series 1/2 HP swing gate operators
- Includes hub with extension shaft assembly, hub clamps, hub bar holder, brass bushings, and all hardware
- Factory-spec components ensure dimensional accuracy and proper fit
- Transmits motor torque to gate arm during open and close cycles
- Torque specification: 25 lbs per engineering drawing
Technical Specifications
- Part Number: 6500-400
- Component Type: Hub assembly, 1/2 HP
- Compatible Operator: DoorKing 6500 series 1/2 HP swing gate operators
- Includes: Hub clamp 1/2 HP (6500-180), hub clamp 1/2 HP arm (6500-175), release screw small hub L (6500-185), hub bar holder small (6500-195), hub w/extension shaft assembly 1/2 HP (6500-162), bushing brass 1.125 R x3 (6500-145), and associated washers, bolts, screws, lockwashers, and nuts per engineering drawing
- Manufacturer: DoorKing
- Condition: New, genuine OEM part
Conclusion
The DoorKing 6500-400 is the hub assembly for the 1/2 HP configuration of the 6500 series operator. Confirm your operator model and HP rating in your parts diagram before ordering, as hub assemblies differ between HP configurations. Torque all fasteners to 25 lbs per the engineering drawing specification.
