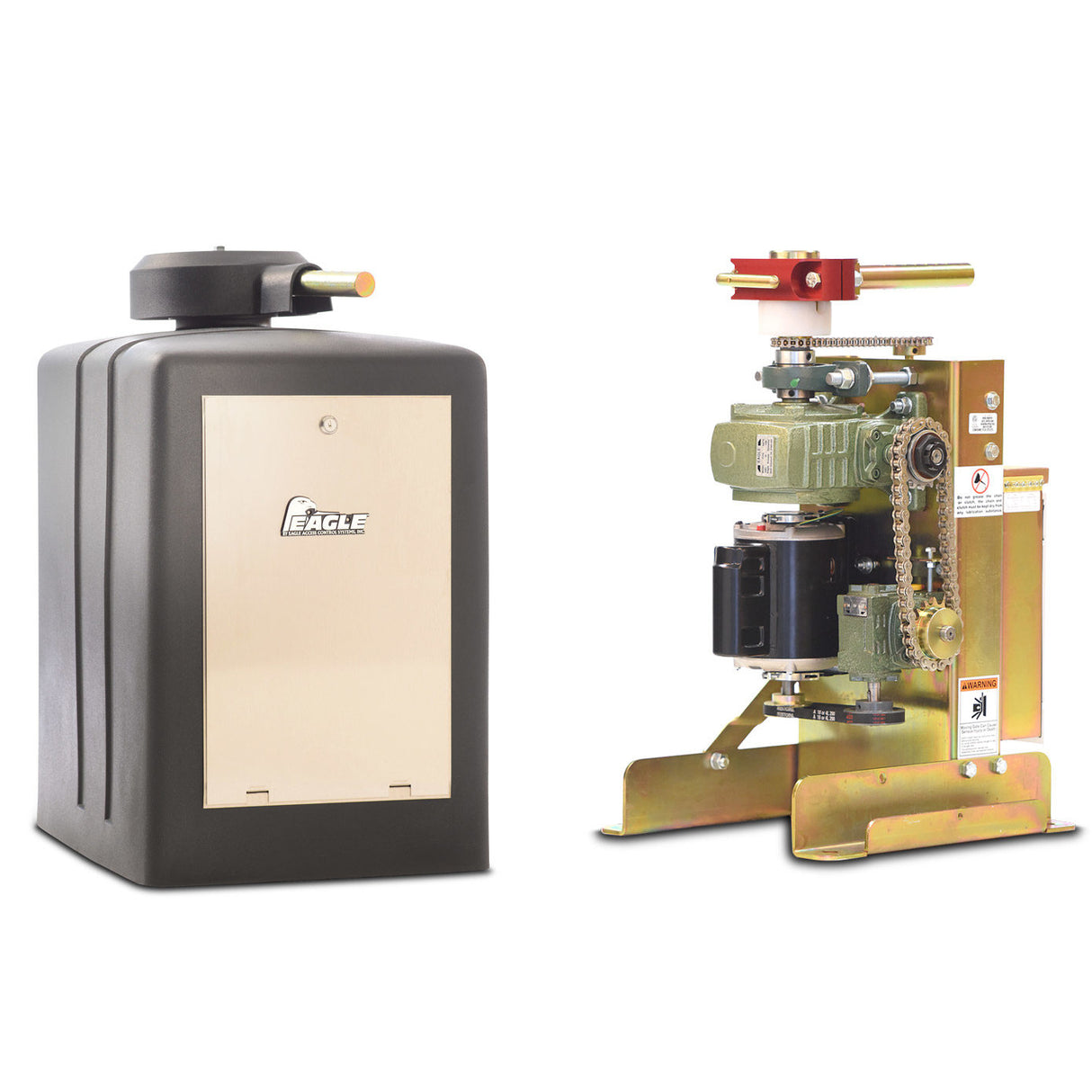

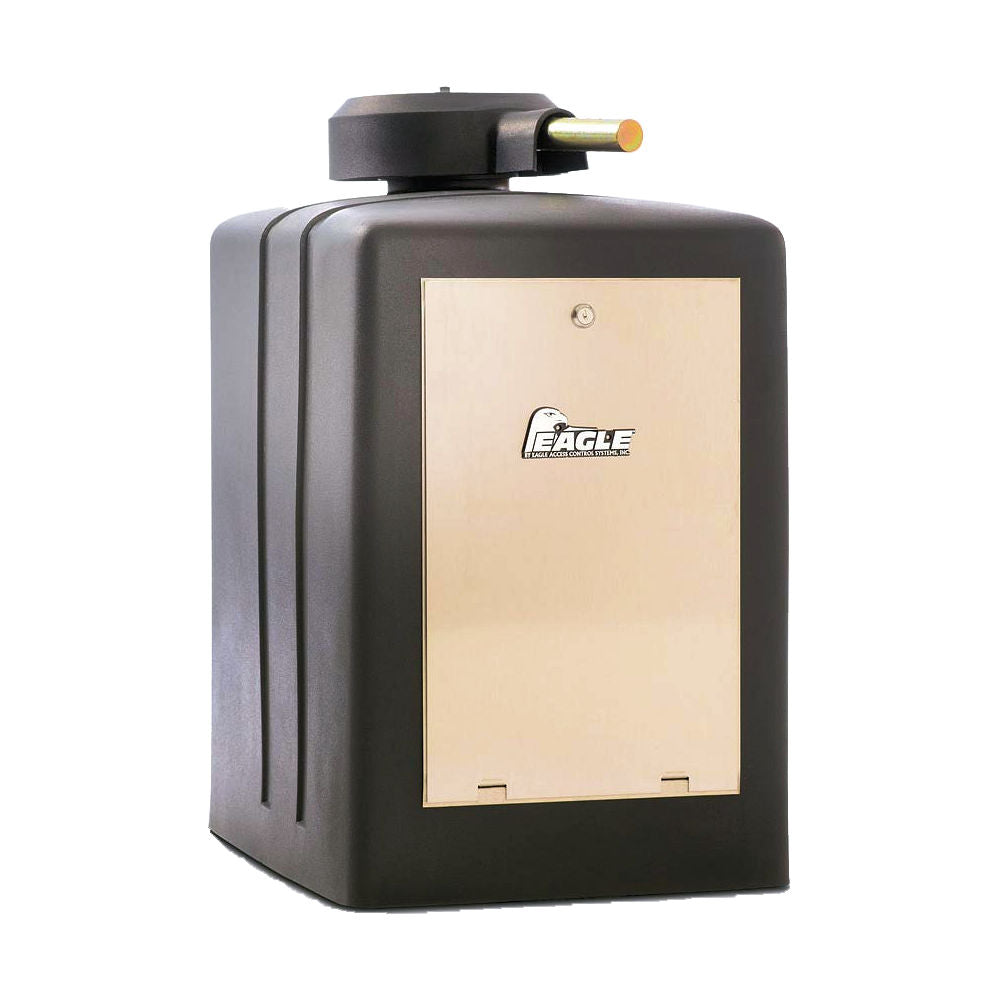

Eagle 200 Swing Gate Operator Kit - 1 HP

1 HP Commercial Swing Gate Operator with Wi-Fi Control

The Eagle 200 is a commercial-duty swing gate operator engineered to handle gates up to 20 feet and 1,000 pounds with reliable continuous-duty performance. Built around Eagle's Diamond Control Board for advanced programmability and diagnostics, this operator delivers robust torque through dual-stage gear reduction for superior gate control and stability. The included EG360 monitored photo eye ensures UL325 Type B1 safety compliance while the EG380 Wi-Fi opener provides smartphone-based remote control, real-time alerts, and wireless access. Factory-engineered with weather-resistant construction and built-in surge protection for long-term reliability in commercial and industrial perimeter access applications.

Key Features

• 1 HP continuous-duty AC motor delivers robust torque and consistent operation for heavy gates
• Diamond Control Board offers advanced programmability with built-in diagnostics and plug-in loop detector slots

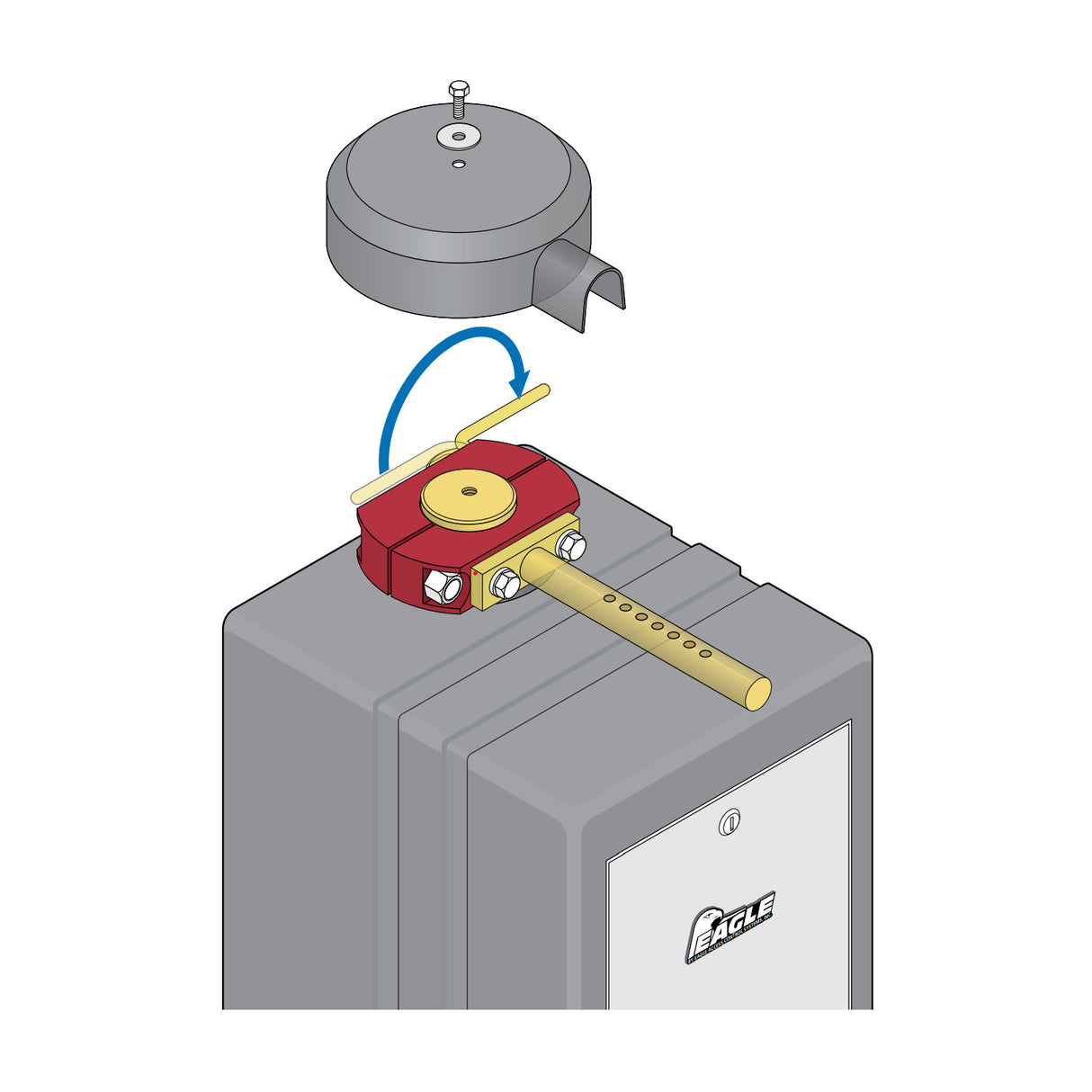

• Quick release handle allows for manual gate operation during power failure
• EG360 monitored photo eye provides UL325 safety compliance with reliable obstruction detection
• EG380 Wi-Fi opener enables smart control with real-time alerts and wireless smartphone access
• No-weld swing arm assembly ensures smooth gate motion and straightforward installation
• Dual-stage gear reduction (Size 60 and 40) enhances torque delivery and gate stability
• Built-in surge and lightning protection guards components from voltage spikes
• Adjustable auto-close timer from 1 to 60 seconds for precise gate closure control
• Stop-reverse safety function automatically reverses when obstruction is detected
• Weather-resistant design with UV-resistant HDPE all-weather cover protects against corrosion

Technical Specifications

• Motor: 1 HP continuous-duty AC
• Power Supply: 115VAC, 60Hz, 11A
• Maximum Gate Length: 20 ft
• Maximum Gate Weight: 1,000 lbs
• Drive Chain: #50 nickel-plated
• Gear Reducer: Dual-stage (Size 60 and 40)
• Cycle Time: 18 seconds (0°–90°)

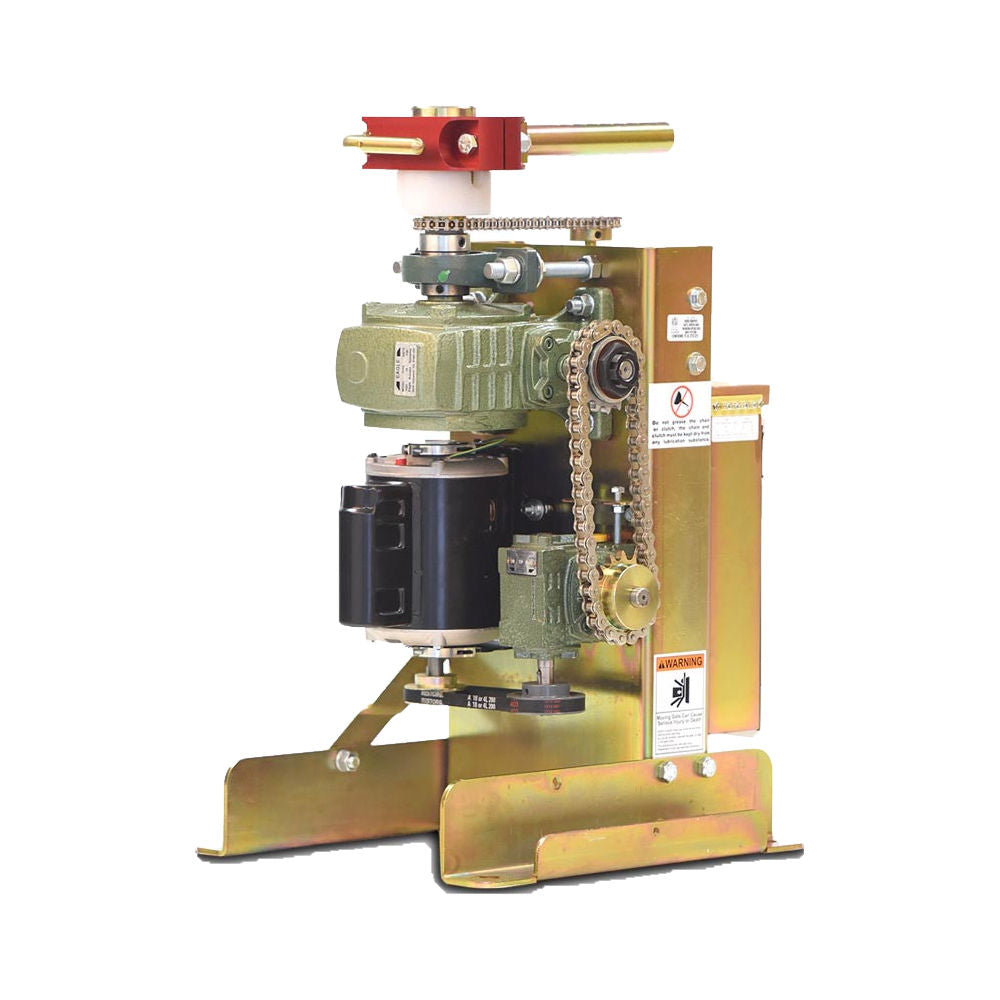

• Chassis: 3/16 in zinc-plated steel
• Cover: UV-resistant HDPE all-weather housing
• Accessory Power Output: 120VAC
• Safety Listing: UL325 and UL991 ETL listed

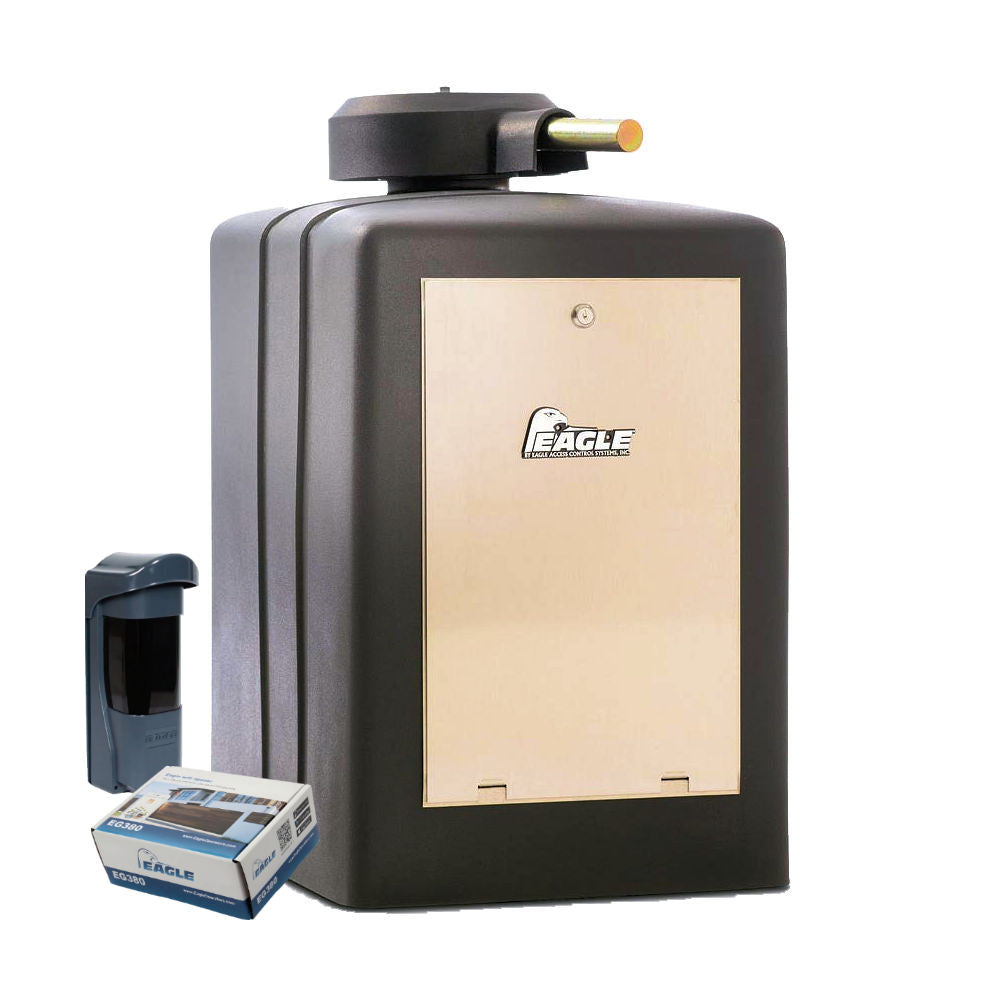

• Included Accessories: EG360 monitored photo eye, EG380 Wi-Fi smart opener
• Warranty: 5-year commercial / 7-year residential

Conclusion

The Eagle 200 provides powerful commercial automation for swing gate applications with integrated safety compliance and modern Wi-Fi connectivity. The combination of dual-stage gear reduction, Diamond Control Board programmability, and included smart opener ensures smooth operation and reliable long-term performance from American-built construction in demanding commercial and industrial environments.
