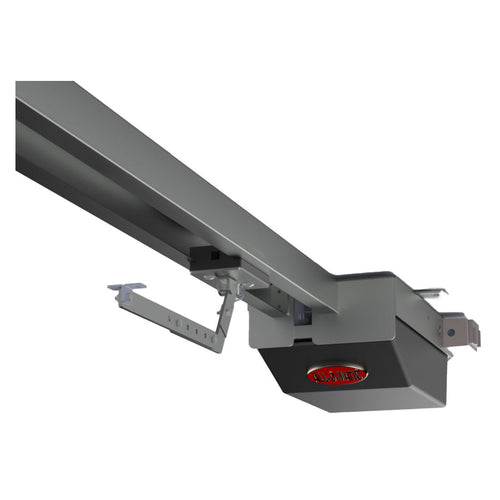

All-O-Matic OH-200 AC Overhead Gate Opener

All-O-Matic OH-200 DC overhead gate operator is a commercial overhead gate operator available with a true integrated long term battery backup.The OH-200 DC overhead gate operator comes equipped with an industry first Brushless DC motor, built in loop rack, slow start/stops algorithm, heavy duty frame and parts that last a life time. It offers days of uninterrupted operation in the event of a power failure by seamlessly switching from AC power to backup mode to runs off of its included two 8Ah batteries. For multi residential and commercial applications such as apartment buildings or large underground parking structures there is no other choice than the All-O-Matic OH-200 DC Overhead Gate Operator.

DC operators are equipped with a control board that offers an array of features that include a programmable relay and leaf delay, slow start/stop algorithm, and solar power capability. The brushless DC motors are smooth and quiet but are powerful and durable and require zero maintenance.

Download Spec Sheet Download Manual

Feature

Max Gate Weight	800 lbs.
Max Gate Length	22 feet
Motor	24 VDC brushless – ½ HP motor
Gate Speed	20 seconds for full open (6.5’ to 8’ gate)
Power Options	115/230 VAC single phase and 24 VDC solar panel
Duty Cycle	Continuous
Battery Back Up	Integrated, with (2) 7Ah 12VDC batteries
Battery Back Up Capacity	100 cycles on a 800 lb. gate
Temperature Range	-40 to 160°
Gearbox Ratio	30:1
Width X Length X Height	13” X 144” X 8”
Emergency Release	Lockable quick release drive arm and carriage
Belt Size	4L-200 (AX18)
Main Sprocket Size	41B15X5/8
Chain Size	41NP
Gearbox Sprocket	41B15X5/8
Limit Shaft Sprocket	N/A
Breaker Requirement	20 amp dedicated
Gearbox Pulley	2 ½” with ½” bore
Motor Pulley	2” with 5/8” bore

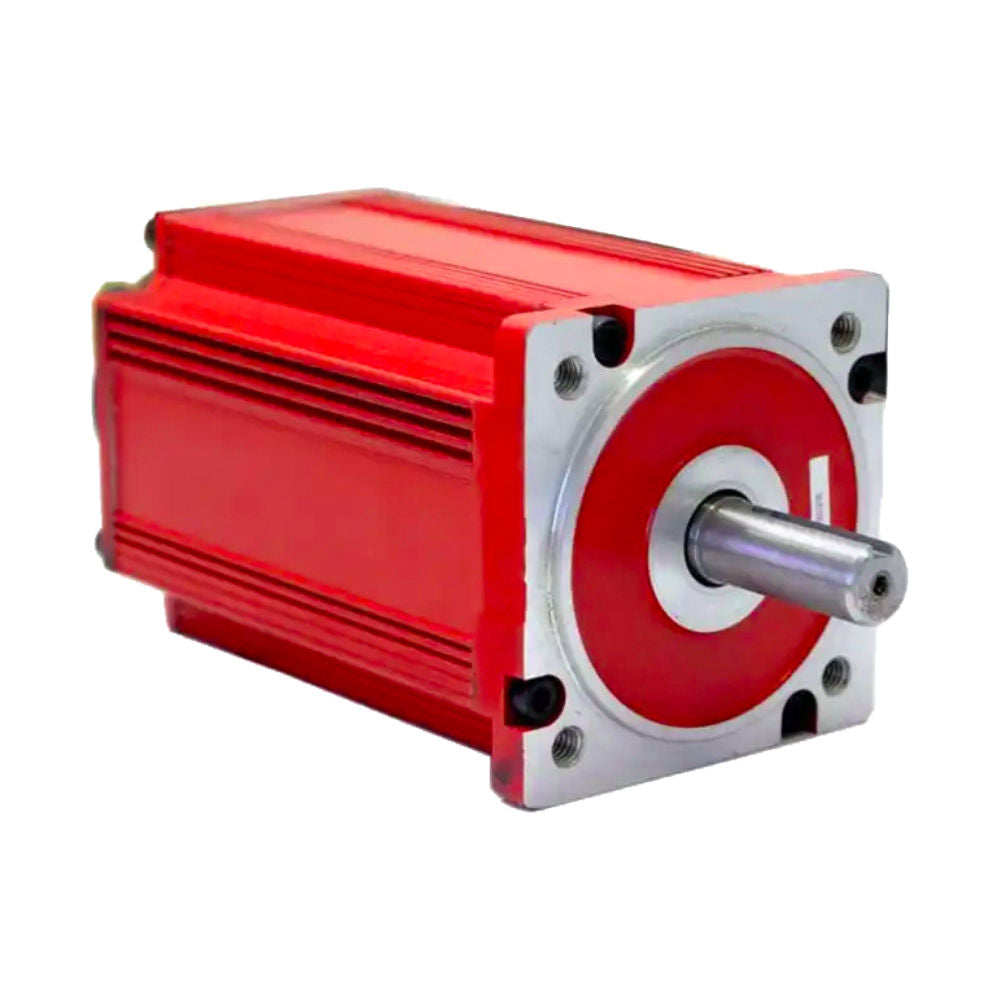

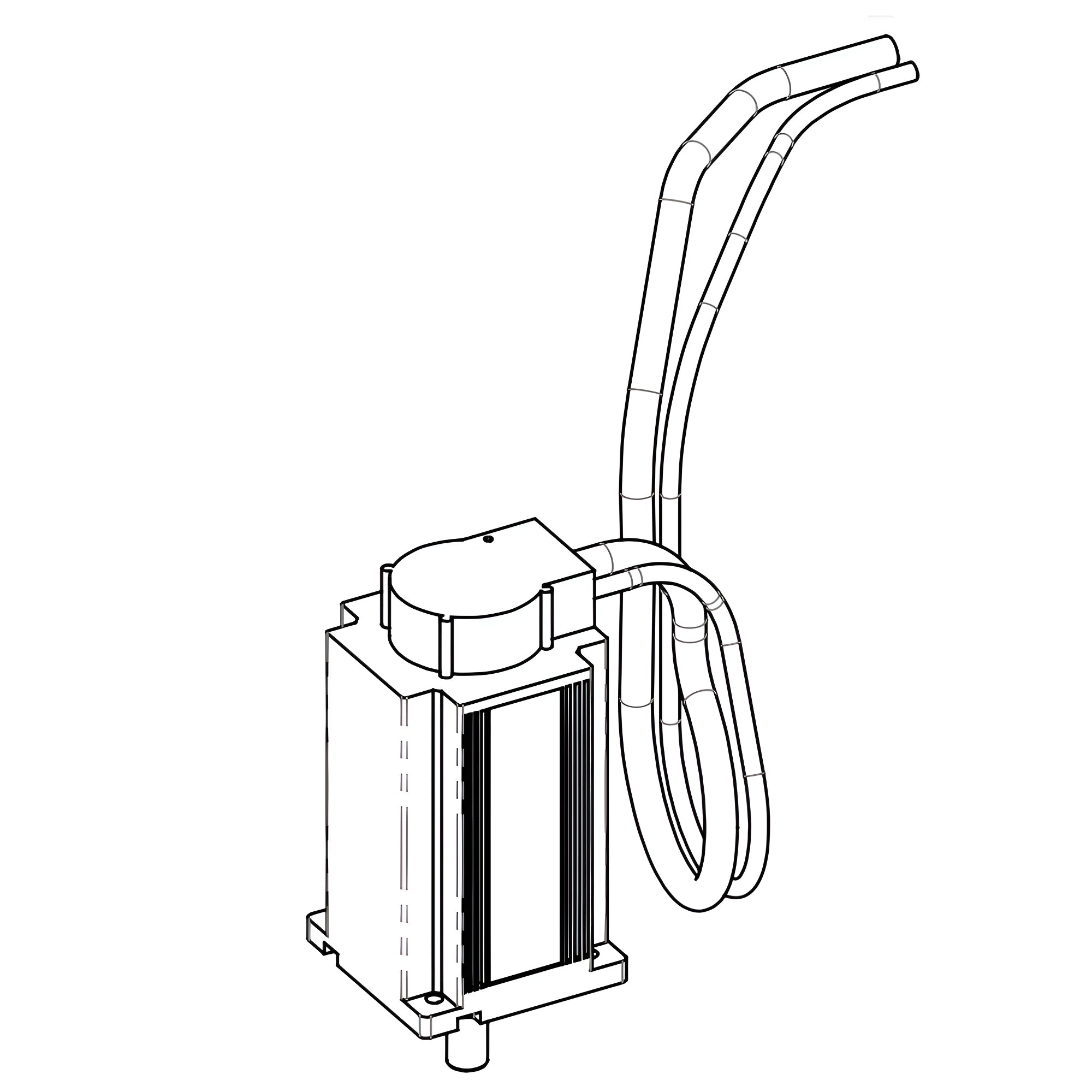

Allomatic MTR-1750 DC Motor 1hp

Allomatic MTR-1750 DC Motor 1hp

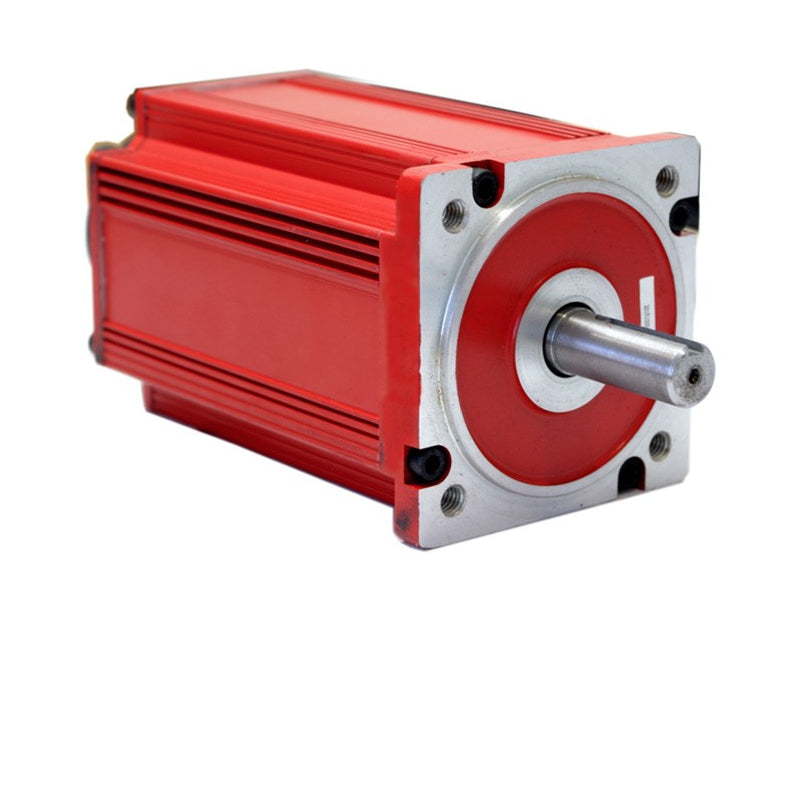

Allomatic 1/2 Horsepower DC Motor
