LiftMaster LA500UL Dual Swing Gate Actuator Kit

High-Capacity Dual-Leaf Automation with Battery Backup and Gate Sequencing

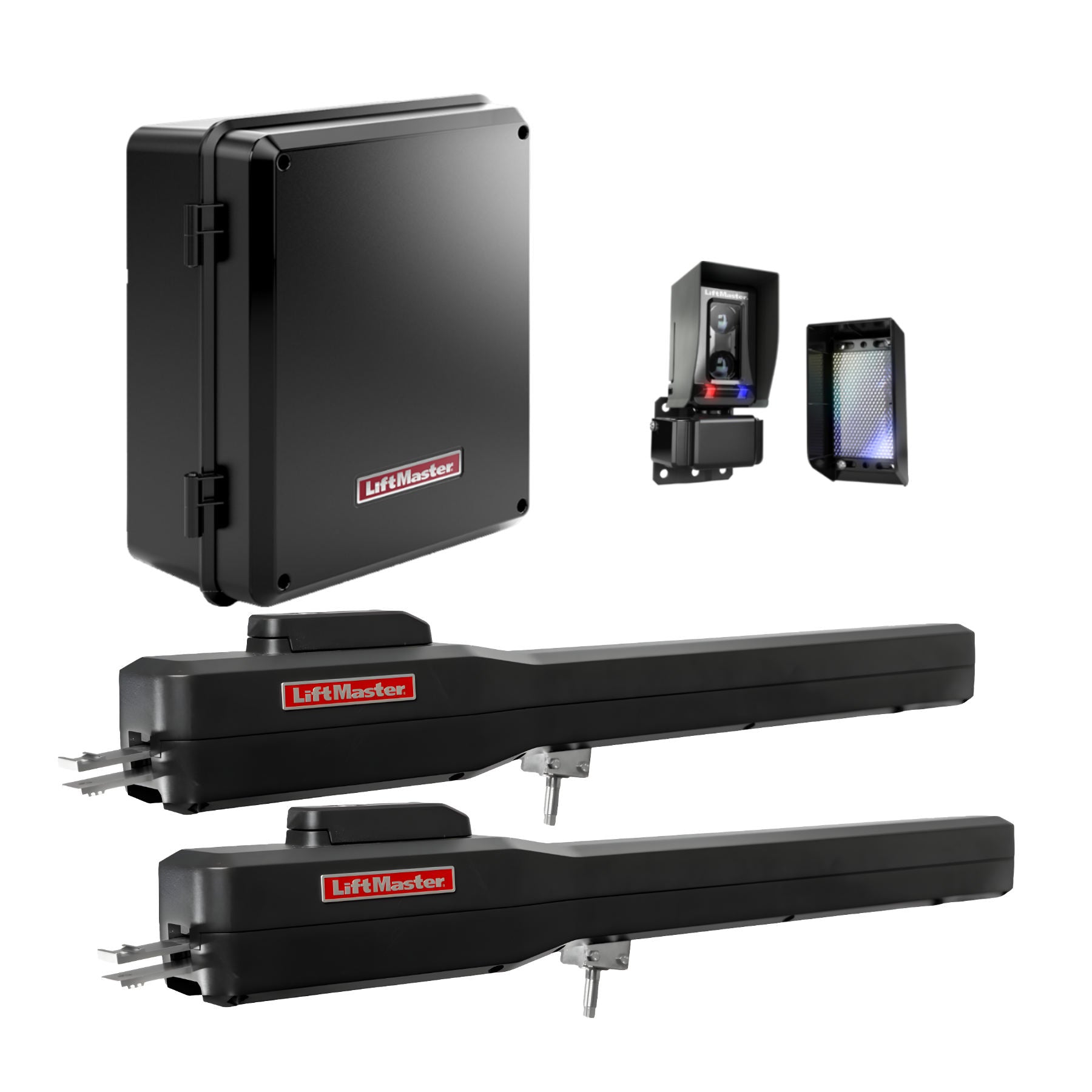

The LiftMaster LA500UL Dual Swing Gate Actuator Kit combines two LA500 linear operators with a single control system for automating bi-parting residential and light commercial vehicular swing gates. The configuration uses the LA500PKGUL primary system with an LA500DCS secondary actuator, giving both gate leaves the power and control capabilities of LiftMaster's high-capacity LA500 platform.

Gate capacity is based on the length and weight of each individual leaf. Each LA500 actuator supports up to 1,600 lb at 8 ft, 1,200 lb at 12 ft, 800 lb at 16 ft, or 600 lb at 18 ft. The 24 VDC continuous-duty motors use precision-machined all-metal gear drives and open a properly configured gate approximately 90 degrees in 15-17 seconds.

For the standard wired dual-gate installation, the secondary LA500DCS connects to the primary control box through its included junction box and extension cable. Both operators are then managed from the same control board, with separate limit programming for each leaf and a programmable Bi-Part Delay for gates that need one leaf to open first and close last.

The system includes battery backup, solar capability, Security+ 2.0 radio, monitored safety inputs, and myQ compatibility for remote monitoring and control when paired with compatible LiftMaster connectivity equipment.

Key Features

• Dual LA500 linear actuators for bi-parting swing gate entrances
• Supports up to 1,600 lb at 8 ft per gate leaf
• Maximum gate length up to 18 ft per leaf at the corresponding weight rating
• 24 VDC continuous-duty motors rated for up to 300 cycles per day
• Commercial-duty cast aluminum actuator housings
• Precision-machined all-metal wormgear drives
• Approximately 15-17 second travel time for a 90° opening
• Soft start and soft stop for controlled gate movement
• Electronic open and close limits programmed independently for each operator
• Programmable Bi-Part Delay coordinates overlapping gates, locks, and staggered closing
• Synchronized Close available for dual-gate applications
• Standard wired dual setup uses one control box and the included secondary extension cable
• Wireless dual-gate communication is also supported when a second control box is used
• Two 12V 7Ah batteries included for battery-backed operation
• 120/240 VAC single-phase power capability
• Solar-ready with compatible LiftMaster solar components
• myQ compatible for remote gate monitoring and operation
• Security+ 2.0 onboard receiver supports up to 50 compatible remote controls
• Compatible with supported Security+ 3.0 MAX and Universal accessories
• Built-in obstruction sensing with adjustable reversal force
• LMRRUL monitored retro-reflective photoeye included
• Expansion board included for additional safety devices, loop detectors, auxiliary relays, Quick Close, and Anti-Tailgate functions
• Pre-motion warning alarm can activate 3 seconds before gate movement
• Keyed manual release on each actuator
• UL listed for Class I, II, III, and IV vehicular swing gate applications

Technical Specifications

• Manufacturer: LiftMaster
• Operator Series: LA500UL
• Primary Package: LA500PKGUL
• Primary Actuator: LA500DC
• Secondary Actuator: LA500DCS
• Product Type: Dual linear swing gate actuator kit
• Gate Configuration: Dual swing / bi-parting vehicular gate
• Number of Actuators: 2
• Motor: 24 VDC continuous duty
• Gear Drive: Precision-machined all-metal wormgear
• Housing: Commercial-duty cast aluminum
• Daily Cycle Rating: Up to 300 cycles per day
• Maximum Gate Capacity at 8 ft: 1,600 lb per leaf
• Maximum Gate Capacity at 12 ft: 1,200 lb per leaf
• Maximum Gate Capacity at 16 ft: 800 lb per leaf
• Maximum Gate Capacity at 18 ft: 600 lb per leaf
• 90° Travel Time: Approximately 15-17 seconds
• Maximum Travel Range: 115°
• Main Power: 120 VAC at 2 A or 240 VAC at 1 A, single phase
• System Operating Voltage: 24 VDC transformer run with battery backup
• Accessory Power: 24 VDC, 500 mA maximum
• Battery Backup: 2 x 12V 7Ah batteries included
• Solar Capability: Up to 60 W with compatible LiftMaster solar equipment
• Radio System: Security+ 2.0 onboard receiver
• Remote Capacity: Up to 50 compatible Security+ 2.0 remote controls
• myQ Connectivity: Supported with compatible LiftMaster myQ connectivity equipment
• Dual Gate Control: Wired through one control box or wireless with a second compatible control box
• Gate Sequencing: Bi-Part Delay and Synchronized Close
• Limit Setting: Electronic, independently programmable for each actuator
• Obstruction Protection: Inherent reversing sensor plus monitored external entrapment protection
• Main Board Safety Inputs: Up to 3 monitored entrapment protection inputs
• Expansion Board: Included
• Expansion Board Safety Inputs: Up to 3 additional configurable monitored inputs
• Loop Detector Support: Exit, Shadow, and Interrupt plug-in detector positions
• Manual Operation: Keyed manual release
• Actuator Dimensions: Approximately 40.41 in L x 5.85 in H x 3.65 in W
• Actuator Weight: Approximately 35 lb each
• Standard Control Box Dimensions: Approximately 16.41 in H x 14.44 in W x 6.63 in D
• Primary Kit Includes: LA500DC actuator, standard control box with control and expansion boards, 2 x 7Ah batteries, LMRRUL monitored photoeye, post bracket, gate bracket, keys, warning signs, mounting hardware, and documentation
• Secondary Kit Includes: LA500DCS actuator, post bracket, gate bracket, junction box, terminal block connector, watertight connector, extension cable, connection hardware, and keys
• Remote Controls: Not included
• UL Usage Classification: Class I, II, III, and IV
• Warranty: 2 years

Conclusion

The LiftMaster LA500UL Dual Swing Gate Actuator Kit is designed for properties that need coordinated automation of two larger swing gate leaves while retaining battery backup, solar capability, myQ connectivity, programmable gate sequencing, and commercial access-control integration.

For the standard installation, the included LA500DCS secondary arm connects to the primary control box using the supplied extension cable and junction box. Wireless communication is available, but requires a second control box.

Gate capacity should be evaluated per leaf using both length and weight. The 1,600 lb rating applies to an 8 ft leaf, while an 18 ft leaf is rated up to 600 lb. The included LMRRUL provides one monitored external entrapment protection device, but additional photoeyes or sensing edges may be required depending on the entrapment zones created by the dual-gate installation.
