All-O-Matic 100-PDT Mounting Pedestal for SL100

8" Elevated Steel Mounting Pedestal for SL100 Slide Gate Operator

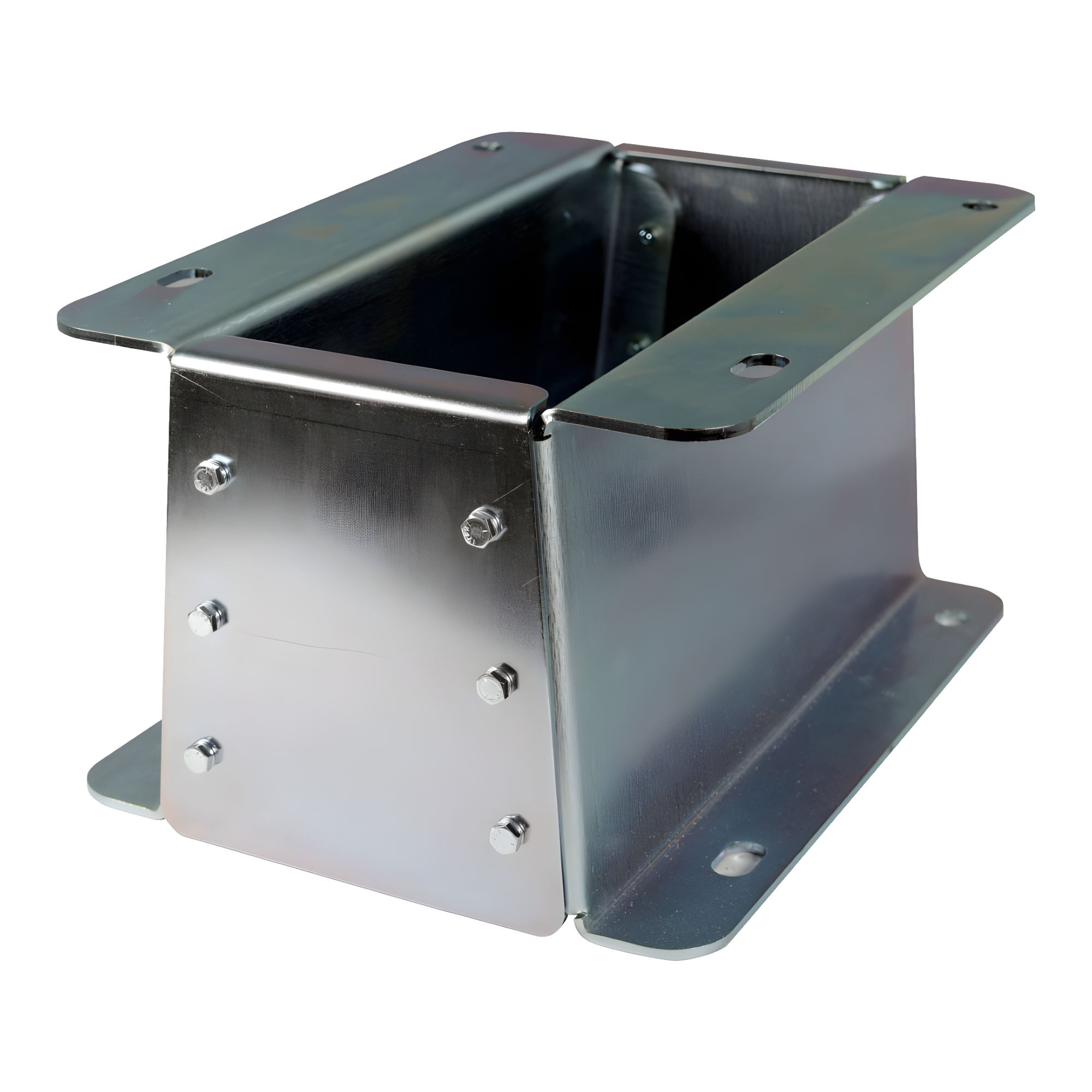

The All-O-Matic 100-PDT is a zinc-plated cold rolled steel mounting pedestal engineered to elevate the SL100 slide gate operator 8 inches above grade. Raising the operator off the ground protects internal components from water intrusion, surface runoff, and flood exposure - a common failure point in ground-level installations. The elevated position also simplifies conduit routing and wiring access during installation and future service calls. The open-top design accepts the SL100 operator housing directly, with the gate face line marked on the drawing for proper field alignment. Mounting hardware is included. The base plate anchors to a concrete pad using the four 0.630 in mounting holes located at each corner.

Key Features

• Raises SL100 slide gate operator 8 in above grade to protect against water intrusion and ground-level flooding
• Zinc-plated cold rolled steel construction for corrosion resistance in outdoor installations
• Open top accepts SL100 operator housing with gate face alignment reference for correct positioning
• Base plate anchor holes at each corner for concrete pad mounting
• Simplifies conduit routing and wiring access during installation and service
• All mounting hardware included: hex bolts, split lock washers, and hex nuts
• Compatible with All-O-Matic SL100 slide gate operator

Technical Specifications

• Part Number: 100-PDT
• Compatible Operator: All-O-Matic SL100 slide gate operator
• Height: 8.00 in
• Overall Width: 15.375 in
• Overall Depth: 11.25 in
• Top Opening: 10.00 in x 3.435 in
• Wall Thickness: 0.188 in
• Base Mounting Hole Diameter: 0.630 in
• Material: Cold rolled steel, zinc-plated finish
• Hardware Included: 1/4-20 x 1/2 in hex bolts (x12), 1/4 in split lock washers (x12), 1/2-13 x 1.5 in hex bolts (x4), 1/2-13 hex nuts (x4)
• Manufacturer: All-O-Matic
• Condition: New

Conclusion

The All-O-Matic 100-PDT is the correct pedestal for SL100 installations in areas subject to surface water, runoff, or where a raised operator position improves conduit access. Confirm your installation surface is a concrete pad sized to accommodate the 15.375 in x 11.25 in base plate footprint before ordering.
