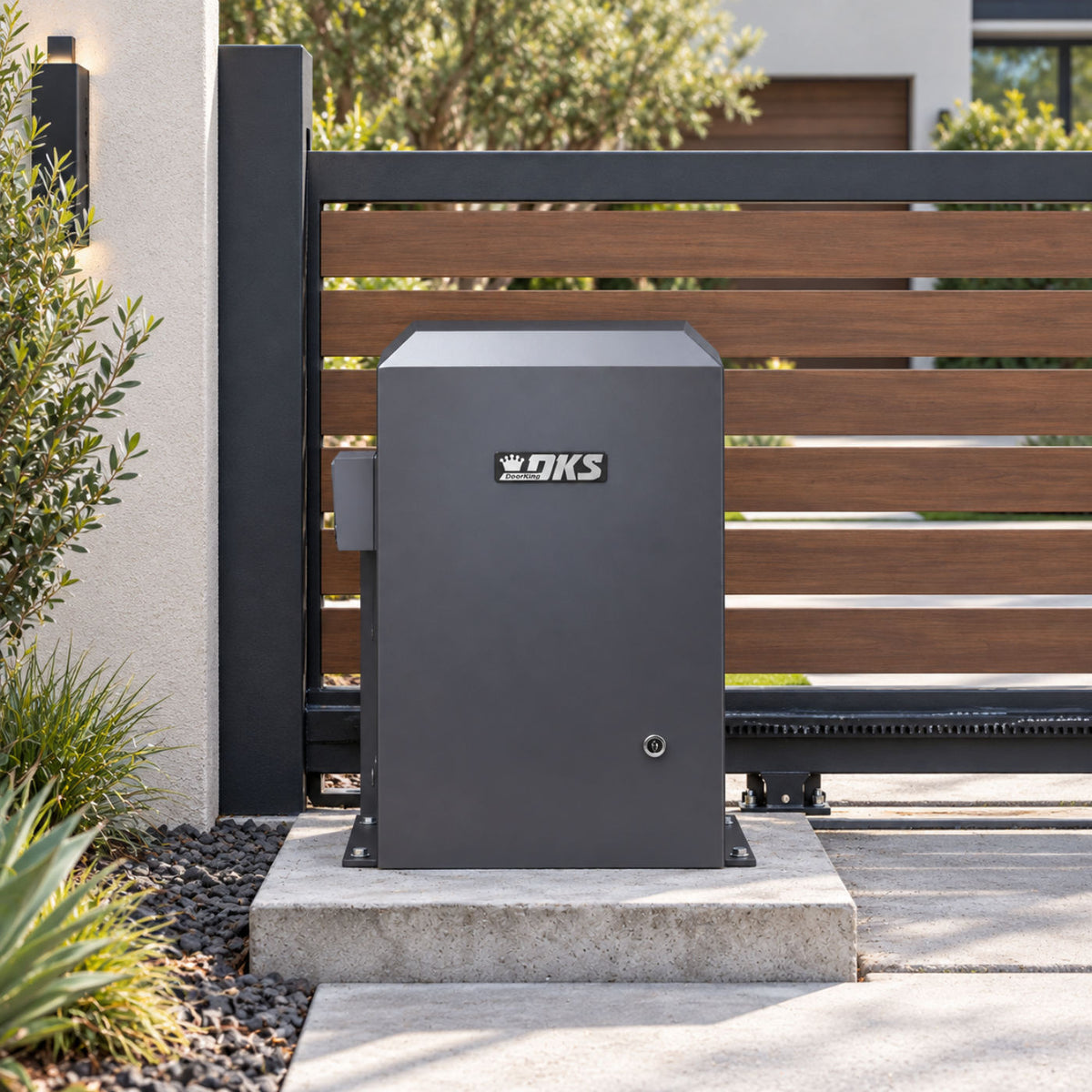

Doorking 9150-384 Slide Gate Operator - Steel Cover 1/2 HP

Commercial Chain-Drive Automation for Slide Gates up to 1,000 lb

The DoorKing 9150-384 Slide Gate Operator is the 1/2 HP steel-cover configuration of the 9150 series, designed for residential, commercial, industrial, and restricted-access vehicular slide gates. It supports gates up to 1,000 lb and 30 ft long, combining a continuous-duty AC motor with DoorKing's #40 chain-drive system and advanced 4602 control board.

A key feature of the 9150 is its automatic self-setting limit system. Instead of manually positioning traditional mechanical limit switches, the operator learns the gate's fully open and closed positions using the physical gate stops. Whenever AC power is restored, the first open command initiates an automatic learning sequence to establish those travel limits.

The control system provides adjustable inherent obstruction sensing, automatic closing, partial opening, Quick Close, anti-tailgating functions, programmable relay operation, and dedicated ports for DoorKing plug-in Exit and Reverse loop detectors. Gate Tracker integration is also supported with compatible DoorKing access control systems when the optional expansion board is added.

A factory-installed fail-safe manual release allows the gate to be manually pushed open during an AC power failure without a key or crank. An optional fail-secure release kit is available for installations where the gate must remain mechanically locked during a power outage.

Key Features

• 1/2 HP continuous-duty AC motor
• Supports slide gates up to 1,000 lb and 30 ft
• Heavy-duty steel operator cover
• Approximately 1 ft/sec gate travel speed
• Published cycle rate of up to 60 cycles per hour on a properly installed level gate
• #40 chain-drive system with 20 ft of chain included
• Automatic self-setting open and close limits
• Built-in Type A inherent reversing system
• Mechanical slip clutch provides additional obstruction response
• Adjustable auto-close timer from 1-23 seconds
• Partial-open input opens the gate approximately 14 ft
• Quick Close function helps reduce the opportunity for vehicle tailgating
• Reverse-loop input can be configured to stop or reverse a closing gate
• Dedicated plug-in ports for DoorKing Exit and Reverse loop detectors
• Programmable dry relay for locks, warning lights, gate-status functions, and other accessories
• Built-in solenoid lock system
• Factory-installed fail-safe manual release
• Optional fail-secure keyed manual release
• Gate Tracker support with compatible DoorKing access control systems
• Two 115 VAC convenience outlets for accessory transformers
• Pad, post, rear, center, and supported ceiling-mount configurations
• UL 325 Class I, II, III, and IV vehicular gate applications
• 5-year limited manufacturer warranty

Technical Specifications

• Manufacturer: DoorKing
• Model: 9150-384
• Series: 9150
• Product Type: Chain-drive vehicular slide gate operator
• Cover: Steel
• Motor: 1/2 HP AC
• Motor Duty: Continuous duty
• Standard Input Power: 115 VAC, 60 Hz, single phase
• Current Draw at 115 VAC: 5.4 A
• Optional Input Voltages: 208, 230, 460, or 575 VAC with DoorKing 2600-266 High Voltage Kit
• Maximum Gate Weight: 1,000 lb
• Maximum Gate Length: 30 ft
• Gate Speed: Approximately 1 ft/sec on a properly installed level gate
• Published Cycle Rate: 60 cycles per hour when installed level
• Drive Chain: #40 roller chain
• Included Chain: 20 ft
• Primary Reduction: Single cog belt
• Limit System: Automatic self-setting electronic magnetic limits
• Limit Reference: Physical open and close gate stops required
• Control Board: DoorKing 4602-018, Revision A or higher
• Auto-Close Timer: Adjustable from 1-23 seconds
• Partial Open: Approximately 14 ft
• Inherent Entrapment Protection: Type A adjustable reverse sensor
• Mechanical Protection: Adjustable slip clutch
• External Entrapment Protection: Monitored Type B1 photoelectric sensors and/or Type B2 sensing edges required
• Minimum External Protection: At least one monitored external device in each direction of gate travel
• Loop Detector Ports: DoorKing plug-in Exit and Reverse detector ports
• Manual Release: Factory-installed fail-safe release
• Optional Fail-Secure Kit: DoorKing 2600-865
• Gate Tracker Compatibility: DoorKing 1833, 1835, 1837, and 1838 systems with optional 2358 expansion board
• Accessory Power: 24 VAC outputs plus two 115 VAC convenience outlets
• Operating Temperature: 10°F to 140°F (-12°C to 62°C)
• Cold Weather Option: Thermostatically controlled heater kits available separately
• Mounting: Concrete pad standard; optional post and other supported mounting configurations
• UL Classification: Class I, II, III, and IV
• Compliance: Listed to ANSI/CAN/UL 325; certified to CAN/CSA C22.2 No. 247
• Warranty: 5-year limited warranty

Conclusion

The DoorKing 9150-384 provides the control features and steel enclosure of the 9150 platform for slide gates within the 1,000 lb and 30 ft capacity range. Its self-setting magnetic limits, loop detector integration, programmable traffic-control functions, and fail-safe manual release make it suitable for residential communities, commercial properties, and other controlled vehicular entrances.

The operator requires monitored external entrapment protection in both directions of gate travel. DoorKing specifies at least one monitored Type B1 or B2 device for the opening direction and at least one for the closing direction.

For gates exceeding 1,000 lb or 30 ft, the DoorKing 9150-380 1 HP steel-cover model increases capacity to 1,500 lb and 45 ft.
