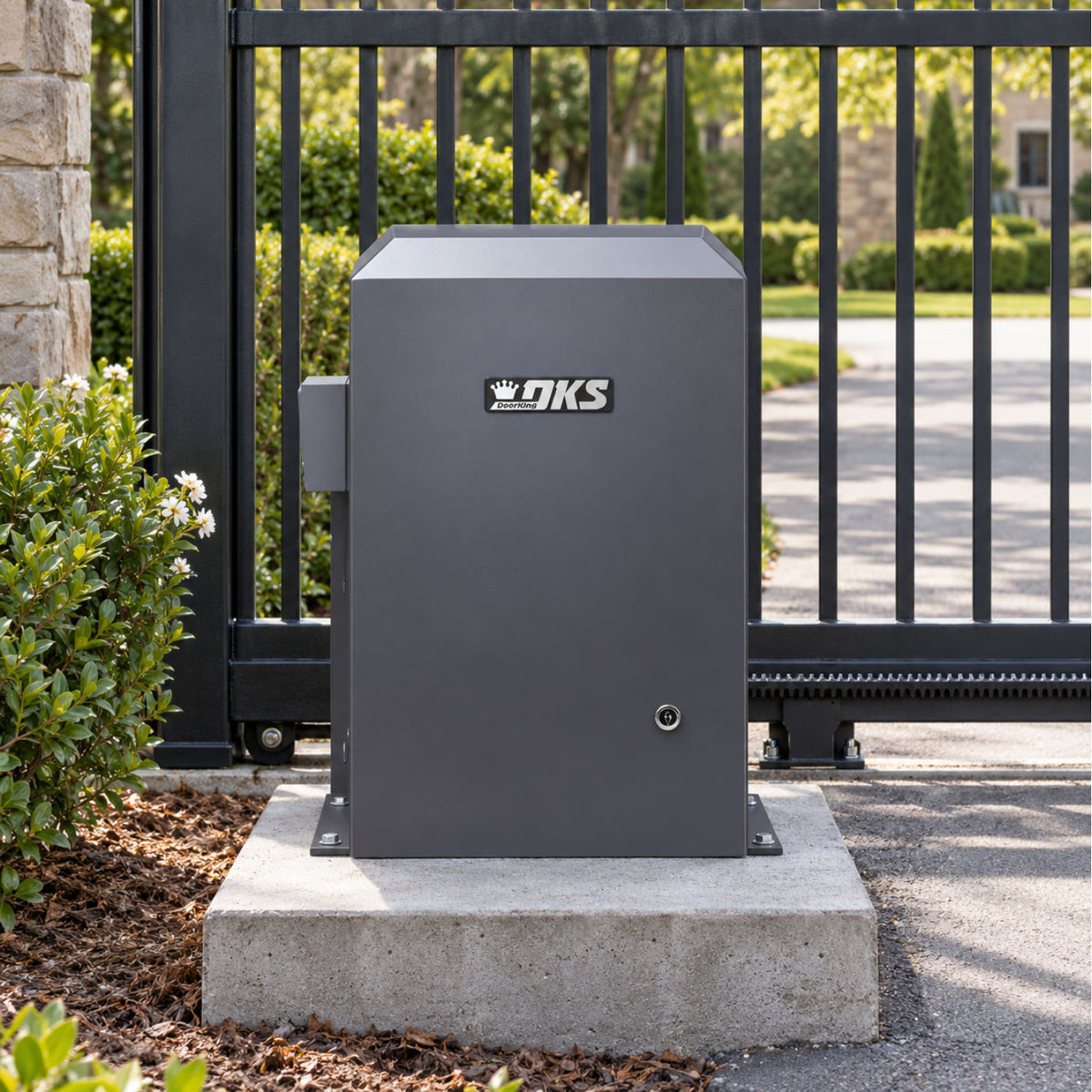

DoorKing 9150-380 Slide Gate Operator - Steel Cover 1 HP

Heavy-Duty Chain Drive Automation for Large Commercial Slide Gates

The DoorKing 9150-380 Slide Gate Operator is the 1 HP steel-cover configuration of the 9150 series, designed for larger residential, commercial, industrial, and restricted-access vehicular slide gates. It handles gates up to 1,500 lb and 45 ft long, using a continuous-duty AC motor and #40 chain drive for frequent gate operation.

One of the 9150's defining features is its automatic self-setting limit system. Instead of manually adjusting traditional mechanical limit switches, the operator learns the gate's full open and closed positions using the physical gate stops. Each time AC power is restored, the first open command initiates an automatic learning sequence that locates and stores those positions.

The 4602 control board provides adjustable inherent obstruction sensing, automatic closing, partial opening, Quick Close, anti-tailgating functions, programmable relay operation, and dedicated ports for DoorKing plug-in Exit and Reverse loop detectors. The 9150 also supports Gate Tracker integration with compatible DoorKing access control systems when the optional expansion board is installed.

A factory-installed fail-safe manual release allows the gate to be manually pushed open during an AC power failure without a key or crank. For sites where the gate must remain mechanically secured during an outage, an optional fail-secure release kit is available.

Key Features

• 1 HP continuous-duty AC motor for larger slide gates
• Handles gates up to 1,500 lb and 45 ft
• Heavy-duty steel operator cover
• #40 chain-drive system with 20 ft of chain included
• Automatic self-setting open and close limits
• Approximately 1 ft/sec gate travel speed
• Built-in Type A inherent reversing system
• Mechanical slip clutch provides additional obstruction response
• Adjustable auto-close timer from 1-23 seconds
• Partial-open input opens the gate approximately 14 ft
• Quick Close function helps reduce the opportunity for vehicle tailgating
• Reverse-loop input can be configured to stop or reverse a closing gate
• Dedicated plug-in ports for DoorKing Exit and Reverse loop detectors
• Programmable dry relay for locks, warning lights, gate-status functions, and other accessories
• Built-in solenoid lock system
• Factory-installed fail-safe manual release
• Optional fail-secure keyed manual release kit
• Gate Tracker support with compatible DoorKing access control systems and optional expansion board
• Two 115 VAC convenience outlets for accessory transformers
• Front, rear, center, post, pad, and selected ceiling-mount configurations supported
• UL 325 Class I, II, III, and IV vehicular gate applications
• 5-year limited manufacturer warranty

Technical Specifications

• Manufacturer: DoorKing
• Model: 9150-380
• Series: 9150
• Product Type: Chain-drive vehicular slide gate operator
• Cover: Steel
• Motor: 1 HP AC
• Motor Duty: Continuous duty
• Standard Input Power: 115 VAC, 60 Hz, single phase
• Current Draw at 115 VAC: 9.7 A
• Optional Input Voltages: 208, 230, 460, or 575 VAC with DoorKing 2600-266 High Voltage Kit
• Maximum Gate Weight: 1,500 lb
• Maximum Gate Length: 45 ft
• Gate Speed: Approximately 1 ft/sec on a properly installed level gate
• Drive Chain: #40 roller chain
• Included Chain: 20 ft
• Primary Reduction: Single cog belt
• Limit System: Automatic self-setting electronic magnetic limits
• Limit Reference: Physical open and close gate stops required
• Control Board: DoorKing 4602-018, Revision A or higher
• Auto-Close Timer: Adjustable from 1-23 seconds
• Partial Open: Approximately 14 ft
• Inherent Entrapment Protection: Type A adjustable reverse sensor
• Mechanical Protection: Adjustable slip clutch
• External Entrapment Protection: Monitored Type B1 photoelectric sensors and/or Type B2 sensing edges required
• Minimum External Protection: At least one monitored external device in each direction of gate travel
• Loop Detector Ports: DoorKing plug-in Exit and Reverse detector ports
• Manual Release: Factory-installed fail-safe release
• Optional Fail-Secure Kit: DoorKing 2600-865
• Gate Tracker Compatibility: DoorKing 1833, 1835, 1837, and 1838 systems with optional 2358 expansion board
• Accessory Power: 24 VAC outputs plus two 115 VAC convenience outlets
• Operating Temperature: 10°F to 140°F (-12°C to 62°C)
• Cold Weather Option: Thermostatically controlled heater kits available separately
• Mounting: Concrete pad standard; optional post and other supported mounting configurations
• UL Classification: Class I, II, III, and IV
• Compliance: Listed to ANSI/CAN/UL 325; certified to CAN/CSA C22.2 No. 247
• Warranty: 5-year limited warranty

Conclusion

The DoorKing 9150-380 is the 1 HP steel-cover model in the 9150 family and is intended for gates that need greater capacity than the 1/2 HP versions. Its 1,500 lb and 45 ft ratings, self-setting magnetic limits, commercial control functions, loop-detector integration, and fail-safe manual release make it well suited to larger perimeter entrances.

The operator will not run without monitored external entrapment protection in both directions of gate travel. DoorKing requires at least one monitored Type B1 or B2 device for the opening direction and at least one for the closing direction. These can be properly positioned photoeyes, sensing edges, or a combination based on the actual entrapment zones.
