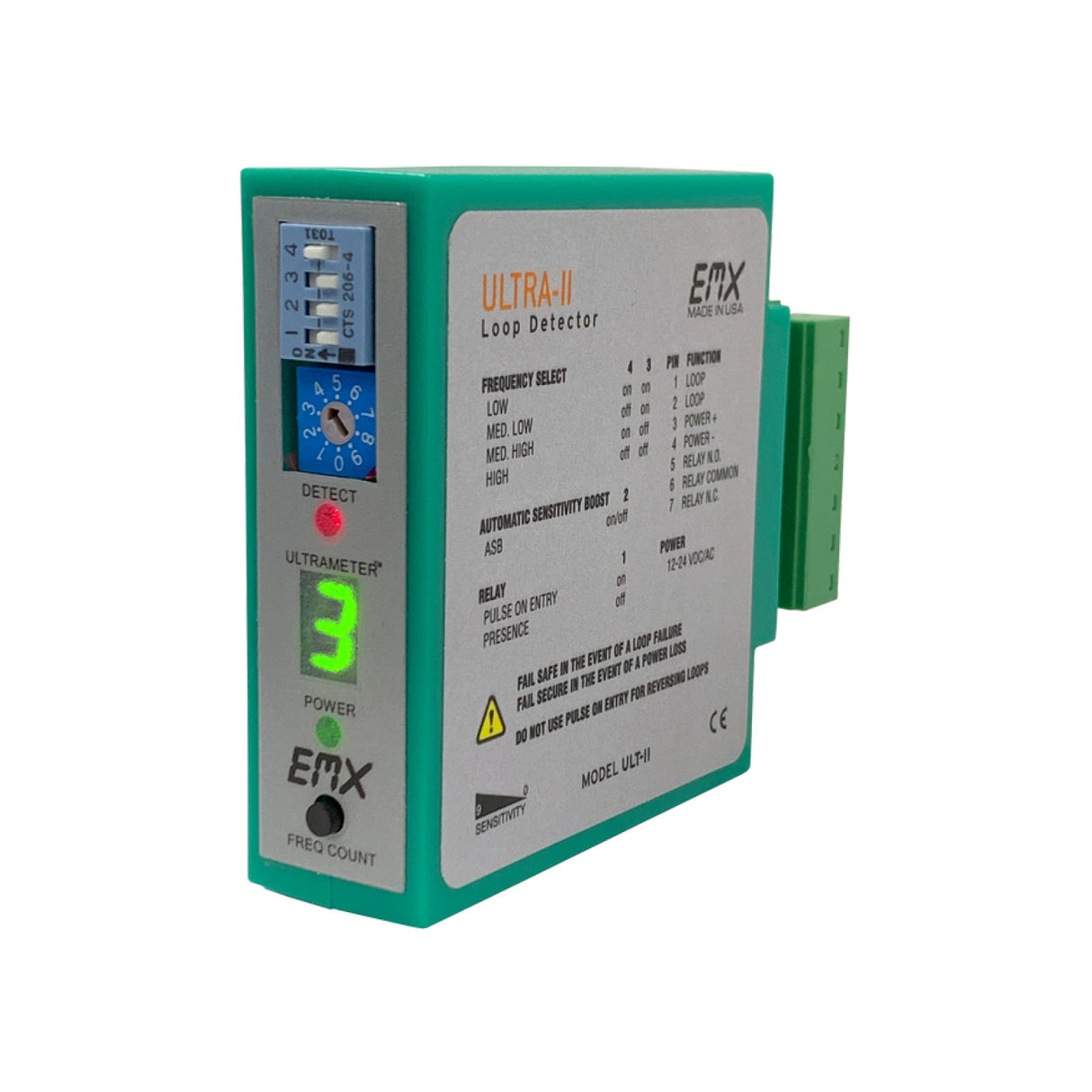

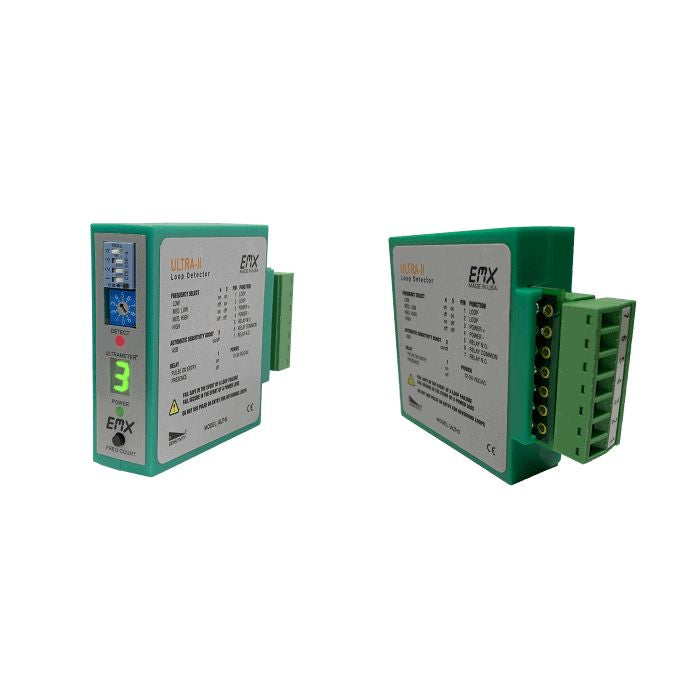

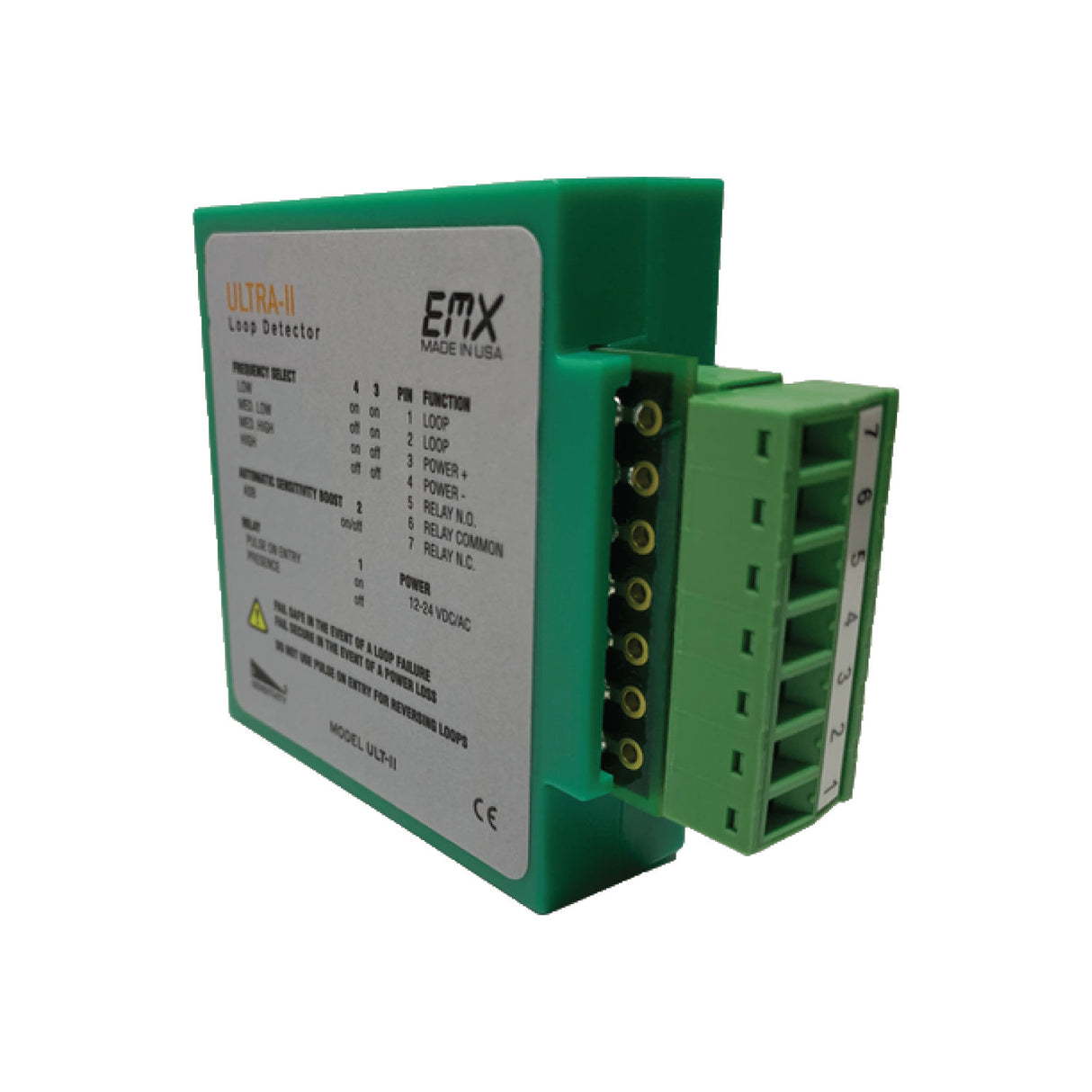

EMX ULTRA II Vehicle Loop Detector

Compact, Reliable Vehicle Detection for Industrial and Residential Applications

The ULTRA II Vehicle Loop Detector by EMX Industries offers a powerful, compact solution for efficient vehicle detection in diverse settings. With its detachable 7-pin screw terminal and ULTRAMETER™ display, setup and calibration are straightforward, making it ideal for both residential driveways and commercial access control. The detector’s fail-safe operation and automatic sensitivity boost (ASB) ensure precise and reliable detection, even for high-bed vehicles.

Key Features

• ULTRAMETER™ Display: Visual guide for optimal sensitivity calibration with 10 levels of adjustment.
• Fail-Safe and Fail-Secure Modes: Maintains operational reliability during power loss or loop failure.
• Automatic Sensitivity Boost (ASB): Enhances sensitivity after initial detection to prevent dropout for high-bed vehicles.
• Multi-Frequency Settings: Four frequency options to prevent crosstalk in multi-loop setups.
• Surge Protection: Protects loop circuitry from lightning strikes and electrical surges.
• Energy Efficiency: Operates at a low 18 mA, reducing power consumption.

Technical Specifications

• Power Supply: 12-24 VDC/AC
• Current Draw: 18 mA max
• Dimensions: 3″ x 0.9″ x 2.75″ (76 mm x 22 mm x 70 mm)
• Operating Environment: -40°F to 180°F (-40°C to 82°C), 0-95% relative humidity
• Loop Inductance: 20-2000 μH
• Connection: 7-pin screw terminal

Why Choose the ULTRA II?

The ULTRA II Vehicle Loop Detector combines advanced technology with robust construction, making it an excellent choice for secure vehicle detection. Its ULTRAMETER™ display simplifies setup, while the automatic sensitivity boost (ASB) and multi-frequency options ensure precise detection without interference. Designed to operate in extreme temperatures and equipped with fail-safe functionality, this detector is reliable in any environment.
