EMX Carsense 303 Flat Probe Vehicle Detection Kit

Flat Pack Vehicle Detection Kit for Saw-Cut Installations

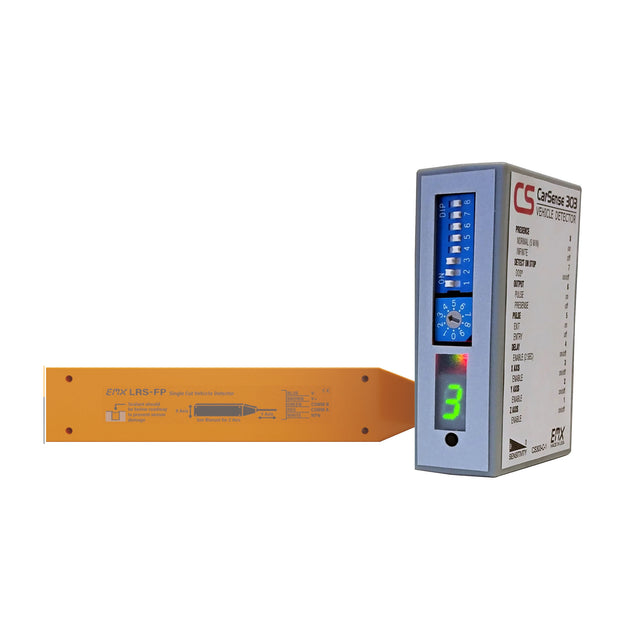

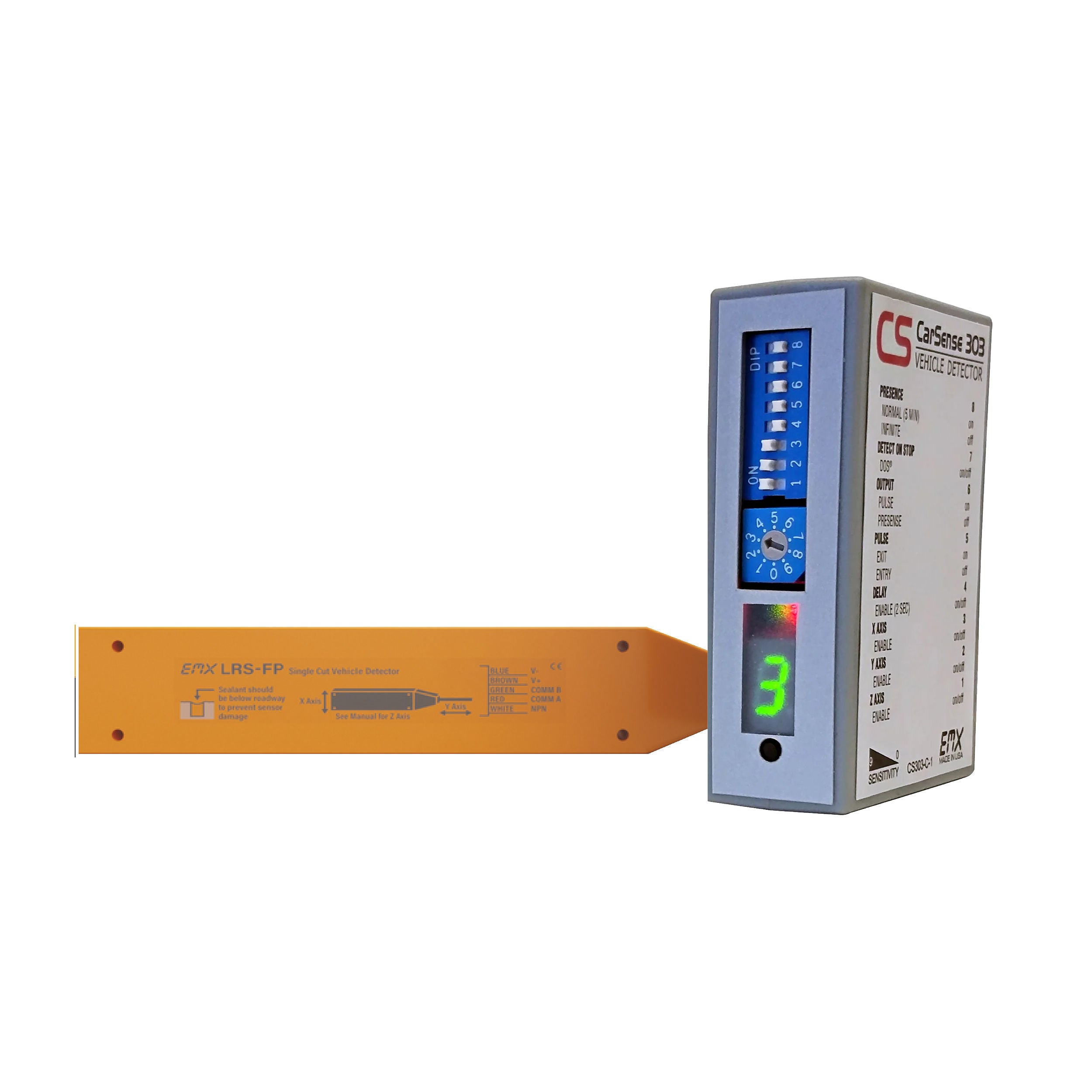

The EMX CarSense 303 Flat Probe Kit includes the LRS-FP magnetoresistive sensor and LRS-C1 controller, offering a complete vehicle detection solution that replaces traditional loop systems with fast, reliable, and non-intrusive installation. Designed for saw-cut concrete or asphalt, the flat probe installs in a single 2" x 3/8" slot and seals with epoxy—eliminating the need for full loop cuts.

With 3-axis magnetic field sensing and the ULTRAMETER™ sensitivity display on the controller, this kit enables precise tuning for exit and safety loop applications. Its compact size, low power draw, and customizable output make it ideal for high-security gate operators, barrier arms, and automated entry systems where loop cutting is impractical.

This is a complete plug-and-play detection kit for saw-cut vehicle detection. Just add epoxy and wire it into your gate system.

Key Features

• Complete kit: Includes LRS-FP flat sensor and LRS-C1 controller
• Replaces standard vehicle loops with compact saw-cut probe
• 3-axis magnetic sensing (X, Y, Z) for high-accuracy detection
• Detect-on-Stop™ (DOS®) mode prevents false triggers from cross-traffic
• Infinite presence or pulse mode selectable via DIP switch
• ULTRAMETER™ LED display shows live sensitivity for fast calibration
• Relay and open-collector output – integrates with most gate operators
• Compact design and IP30 housing ideal for indoor/outdoor control boxes

Technical Specifications

• Kit Options: LRS-FP-50-K (50 ft lead) / LRS-FP-100-K (100 ft lead)
• Sensor Model: LRS-FP
• Controller Model: LRS-C1
• Detection Radius: Up to 10 ft
• Response Time: 125 ms
• Power Input: 12–30 VDC or 24 VAC
• Current Draw: 40 mA
• Sensor Dimensions: 4.3” × 0.9” × 0.3”
• Controller Dimensions: 3.0" × 0.9" × 2.75"
• Environmental Rating: IP30
• Operating Temp: -40°F to 180°F
• Relay Rating: 1A @ 24–120VDC
• Installation: Saw-cut epoxy-filled slot (2” long, 3/8” wide)
• Application: Exit loop, safety loop, vehicle presence detection

Available in two variants:

• LRS-FP-50-K: Includes sensor with 50 ft lead and LRS-C1 controller
• LRS-FP-100-K: Includes sensor with 100 ft lead and LRS-C1 controller

Conclusion

The EMX CarSense 303 Flat Probe Kit offers a high-performance alternative to inductive loops in saw-cut environments. With its quick-install flat probe, programmable controller, and precise detection tuning, it’s the go-to solution for professionals upgrading to modern vehicle detection in secure gate systems.
