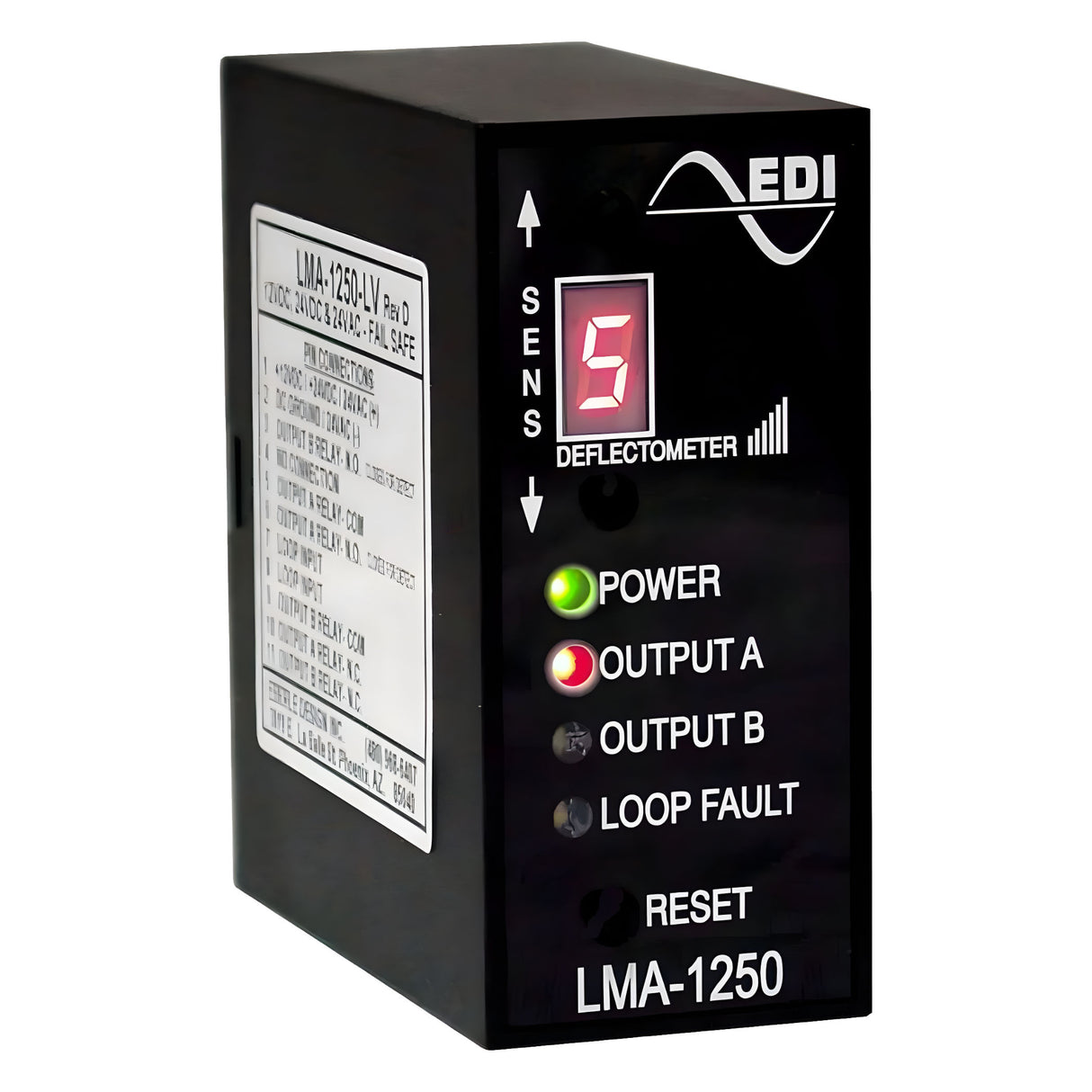

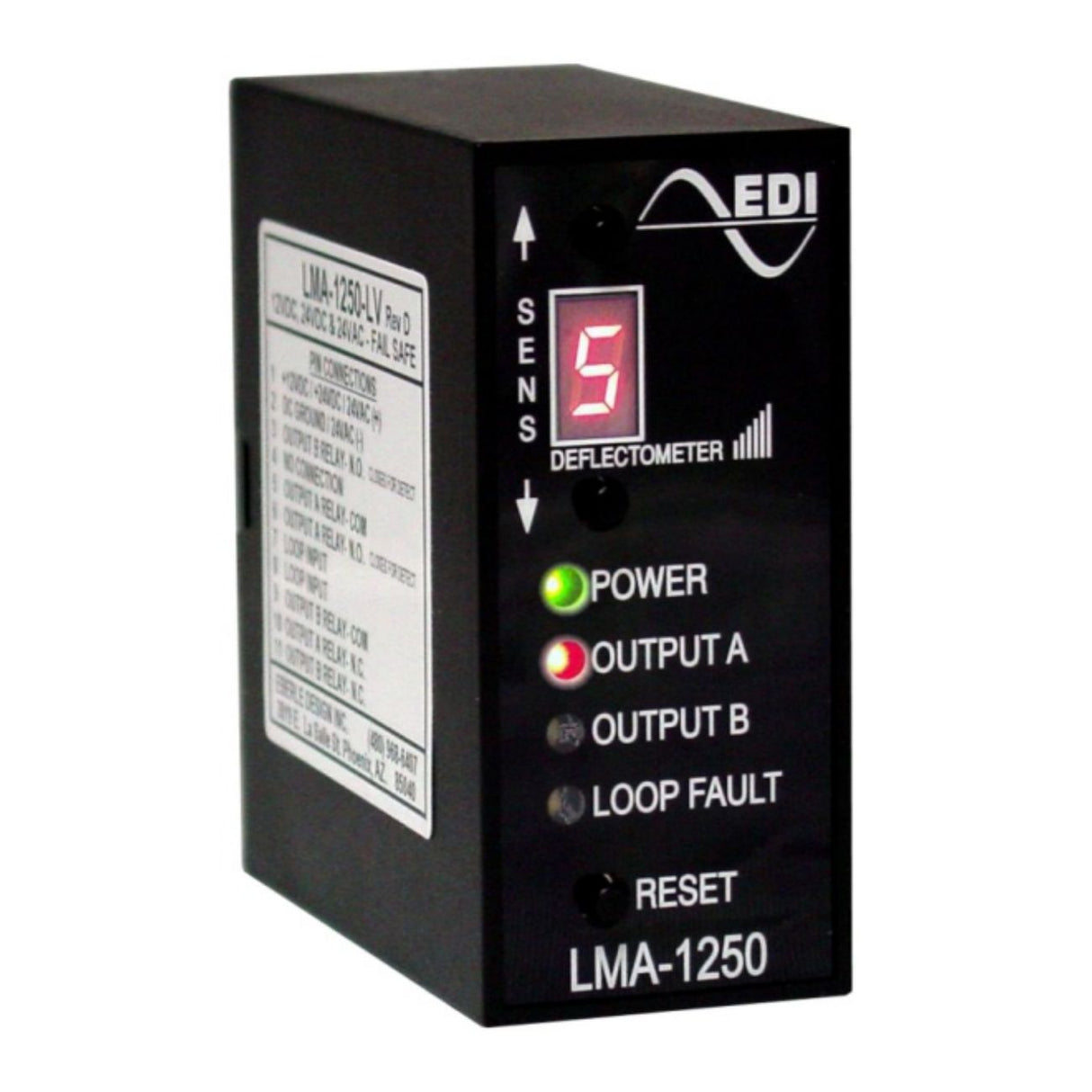

EDI LMA-1250 Loop Detector Dual Relay Output

Reliable and Easy Vehicle Detection

The EDI LMA-1250 Loop Detector delivers dependable vehicle detection for gates, barriers, and parking systems. Designed for both commercial and industrial applications, it combines precision sensing with simplified setup using the patented DEFLECTOMETER® display. Whether controlling a single entrance or managing a complex access system, the LMA-1250 ensures smooth, consistent performance with robust surge protection and intuitive adjustment controls.

Key Features

• Easy Sensitivity Adjustment with DEFLECTOMETER®: The built-in DEFLECTOMETER® display eliminates guesswork by showing exact sensitivity levels to detect anything from motorcycles to large trucks.
• Dual Relay Output for Flexibility: Provides two relay outputs that can be configured to control gates, barriers, or warning systems with custom timing.
• Advanced Diagnostics: Constantly monitors for loop failures or faults and stores diagnostic data for quick troubleshooting and reduced downtime.
• Built to Last: Includes integrated lightning and surge protection to withstand harsh environments and maintain reliable operation year-round.
• Customizable Timing: Adjustable delay settings (2, 5, or 10 seconds) let you control how long a gate or barrier remains open after detection.

Technical Specifications

• Loop Inductance Range: 20 to 2500 micro-Henries
• Relay Output: 5A, 250VAC
• Operating Temperature: -34°C to +74°C (-30°F to +165°F)
• Dimensions: 2.875" x 1.375" x 3.0625"
• Note: Harness sold separately

Available Models

• LMA-1250-LV: Low voltage (12VDC, 24VDC, 24VAC)
• LMA-1250-HV: High voltage (120VAC, 240VAC)

Conclusion

The EDI LMA-1250 Loop Detector offers professional-grade vehicle detection with simple setup, advanced diagnostics, and rugged protection features. Its DEFLECTOMETER® display makes tuning effortless, while its fail-safe operation and surge-resistant design ensure reliable performance in all conditions. Ideal for parking lots, gated entries, and barrier systems, this detector combines durability with precise detection accuracy.
