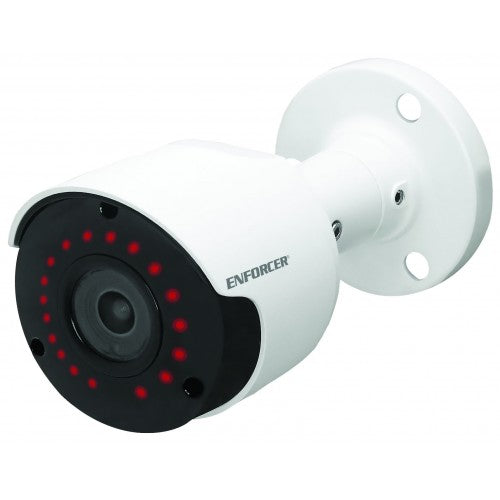

Seco-Larm EV-Y1501-A2WQ CCTV Camera

Enforcer EV-Y1501-A2WQ CCTV Camera

Download Specs Download Manual

Features

• 5MP Resolution
• ICR Module
• Joystick OSD Control
• 2DNR (Digital Noise Reduction)
• D-WDR (Digital Wide Dynamic Range)
• Rugged, weatherproof (IP66) construction
• Cables concealed in bracket to prevent tampering

Specs

• Housing color White
• Formats TVI (Default) / CVI / AHD / Analog (CVBS)
• CMOS 1/2.7" 5MP CMOS
• Resolution (HD) 2592x1944
• 2DNR Yes
• D-WDR Yes
• OSD (On-Screen Display) Yes
• Cable OSD control Yes
• Megapixels 5MP
• Lens 2.8mm ICR
• Viewing Angle 121°
• # of IR LEDs 18 (SMT)
• IR Range Up to 50ft (20m)
• FPS 20FPS
• F Stop 2
• Minimum illumination - IR On 0Lux
• Minimum illumination - IR Off 0.05Lux
• S/N Ratio 35dB
• Shutter control Auto
• Gain control Auto
• Operating voltage 12VDC
• Current Draw - IR On 320mA
• Current Draw - IR Off 80mA
• IP Rating IP66
• Operating temperature -22°~131° F (-30°~55° C)
• Dimensions 5-1/2" x 2-3/4" x 2-13/16" (140x69x71 mm)
