Doorking 6524-381 Solar Only Dc Swing Gate Opener
DoorKing 6524-081 Solar Swing Gate Opener
**MUST HAVE AT LEAST 1 PHOTOEYE TO ACTIVATE**
*SOLAR PANEL SOLD SEPARATELY*

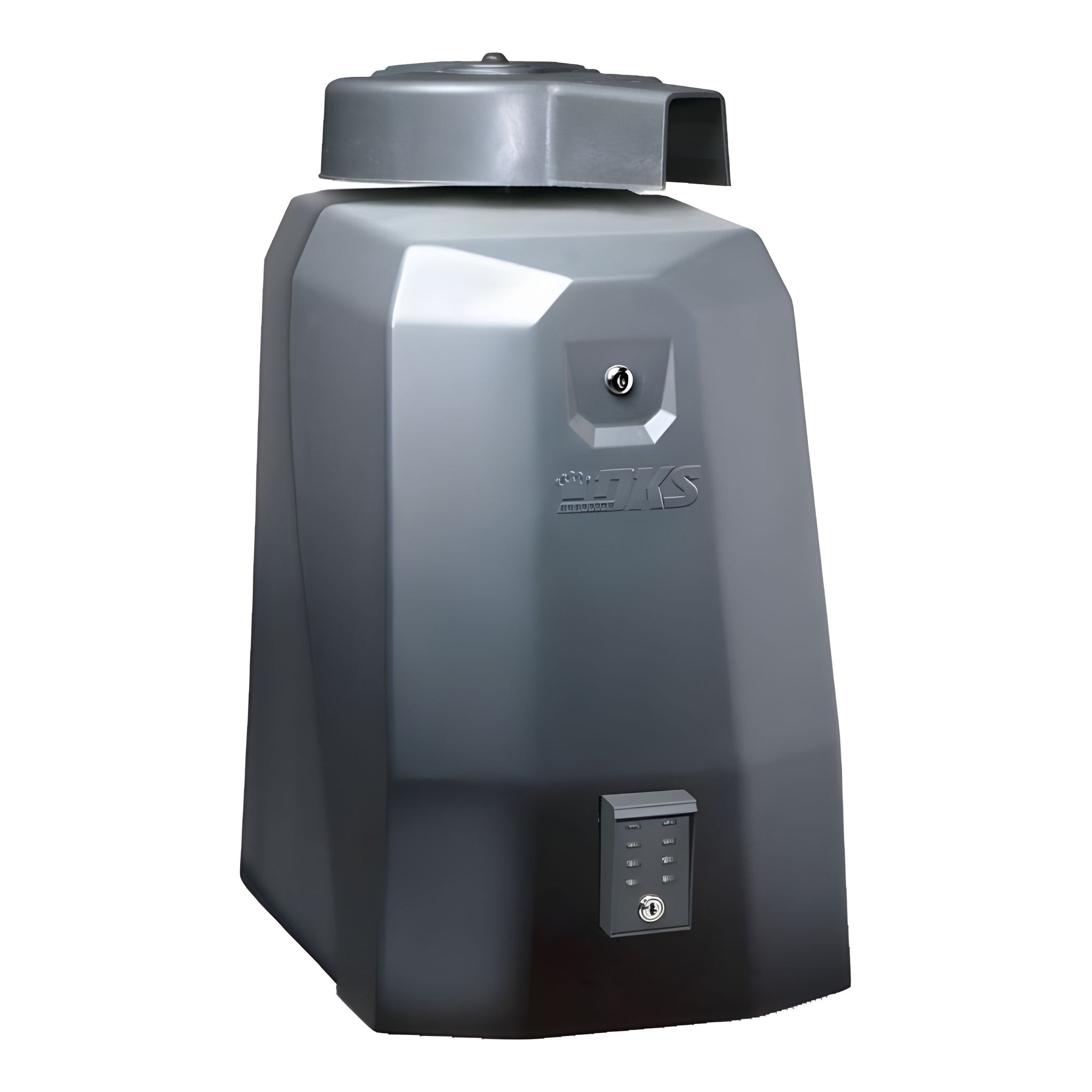

This swing gate operator offers convenience, reliability and safe operation in a small, compact design and is ideally suited for residential or commercial applications. The 1/2 HP Quadra Drive DC Motor provides powerful and long lasting operation and is backed up with built-in 7.2 Ah batteries to provide operation if AC power is interrupted.
For longer backup operation, optional 18 Ah batteries can be chosen for up to 150 gate cycles at 16'/800lbs The 6524 features a pully / belt drive 60:1 worm gear-box reduction system to provide powerful, yet extremely quiet, slide gate operation.
The 6524 uses an advanced microprocessor control circuit with outstanding features. Designed with versatility in mind, the DKS Model 6524 provides everything you expect from a gate operator in this class – and more.
- 60:1 worm gear reduction system
- 90° in approximately 12-14 seconds
- Mounted on a steel frame plated for corrosion resistance
- Two-piece articulating arm
- Mechanical slow start / slow stop function.
- Keyed access to release arm for manual gate operation
- Split polyurethane housing
- Adjustable electronic magnetic limits
- Auto-close timer (1-30 seconds)
- Gate overlap feature for bi-parting (dual) gate operation
- Built-in On / Off switch
- Built-in alarm reset switch
- Magnetic lock power
- Ports for plug-in loop detectors.
- Three 115 VAC convenience outlets
- Gate Tracker reporting output provides operator
- data to access control system (DKS 1833, 1835,
- 1837 or 1838 only)
- DC Power Shut-Off switch
- Battery protection circuit
