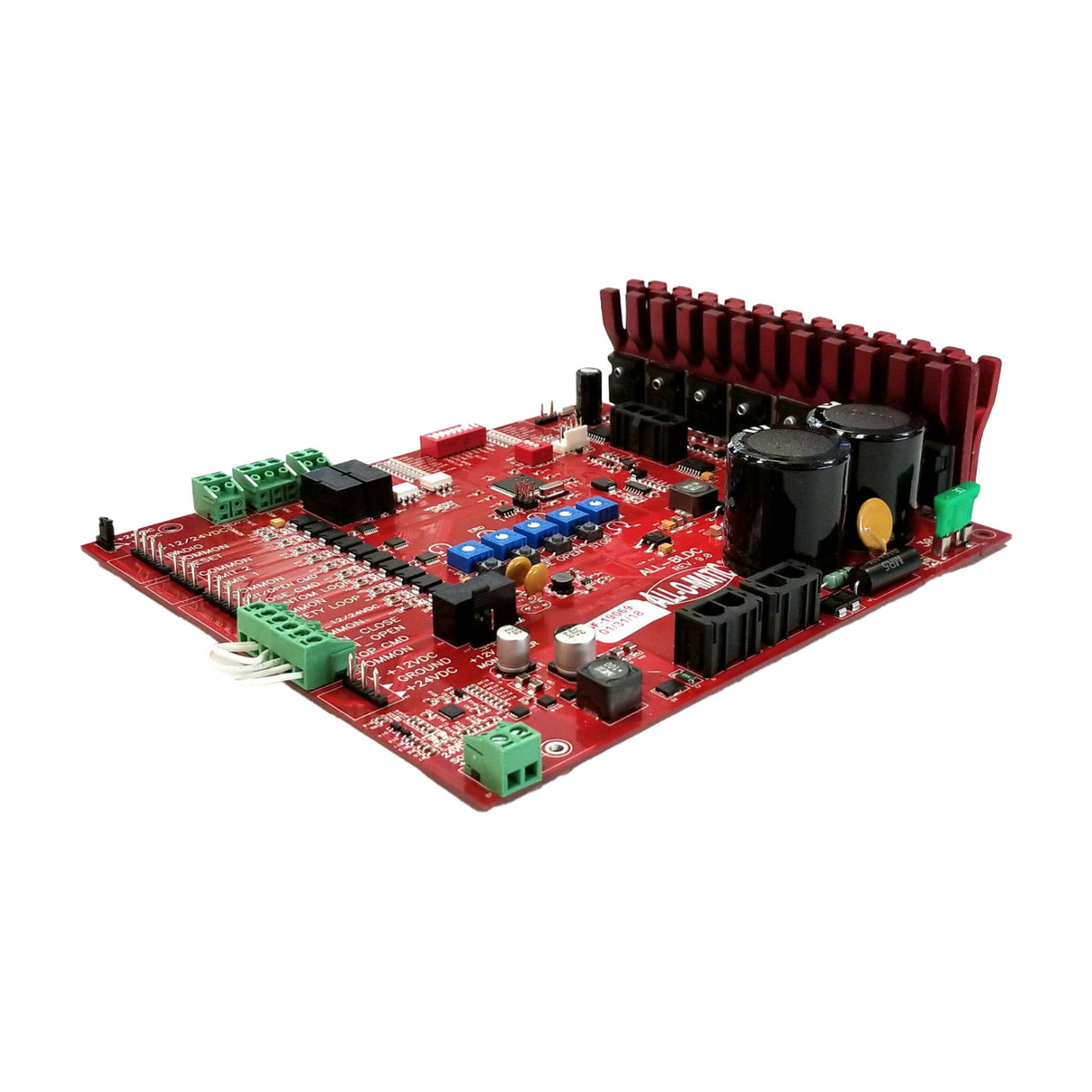

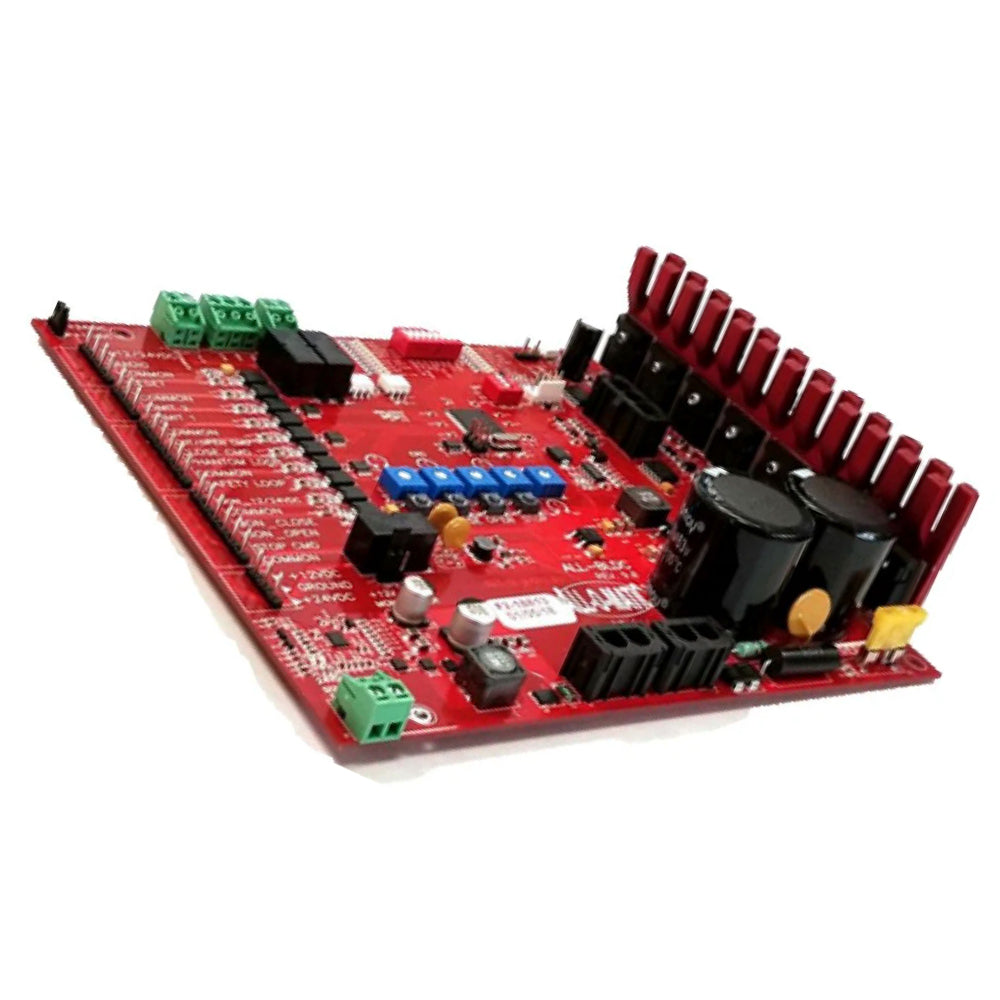

All-O-Matic BLDC-PCB1 Circuit Board for 1-HP DC Motors (Non-UL)

Powerful, Non-UL Control Board for All-O-Matic 1 HP Gate Motors

The All-O-Matic BLDC-PCB1 Circuit Board is an efficient, non-UL-compliant replacement for 1 HP DC gate motors. Perfectly compatible with All-O-Matic models, it provides reliable gate control without the need for monitored safety devices. This circuit board includes features such as the Electronic Reversing Device (ERD), programmable relay functions, and adjustable leaf delay, making it ideal for residential and light commercial settings where compliance-free operation is desired.

Key Features:

• Built for All-O-Matic 1 HP Motors: Specifically designed for seamless integration with All-O-Matic 1 HP DC gate motors, ensuring optimal performance.
• Non-UL Compliant Flexibility: Suitable for installations that do not require UL safety compliance, operating effectively without monitored photoeyes.
• Electronic Reversing Device (ERD): Prevents damage by reversing gate motion upon detecting an obstruction.
• Programmable Relay Output: Customize relay outputs for functions such as alarms or lighting, enhancing operational control.
• Adjustable Leaf Delay: Control the open and close cycles, ensuring smooth and efficient gate movement.

Technical Specifications:

• Compatibility: Designed for All-O-Matic 1 HP DC gate motors, no monitored photoeyes required
• Output: ERD functionality, programmable relay
• Operating Temperature: -40°F to 160°F (-40°C to 71°C)

Why Choose the BLDC-PCB1?

For installations requiring dependable control without UL compliance, the BLDC-PCB1 offers a straightforward, powerful replacement solution. Ideal for older systems and custom setups, it provides essential safety and control features for All-O-Matic 1 HP motors.
