Maximum Controls - MAX EDGE 1 Safety Edge for Slide Gate Operators

48 Inch Reversing Safety Edge for UL 325 Slide Gate Compliance

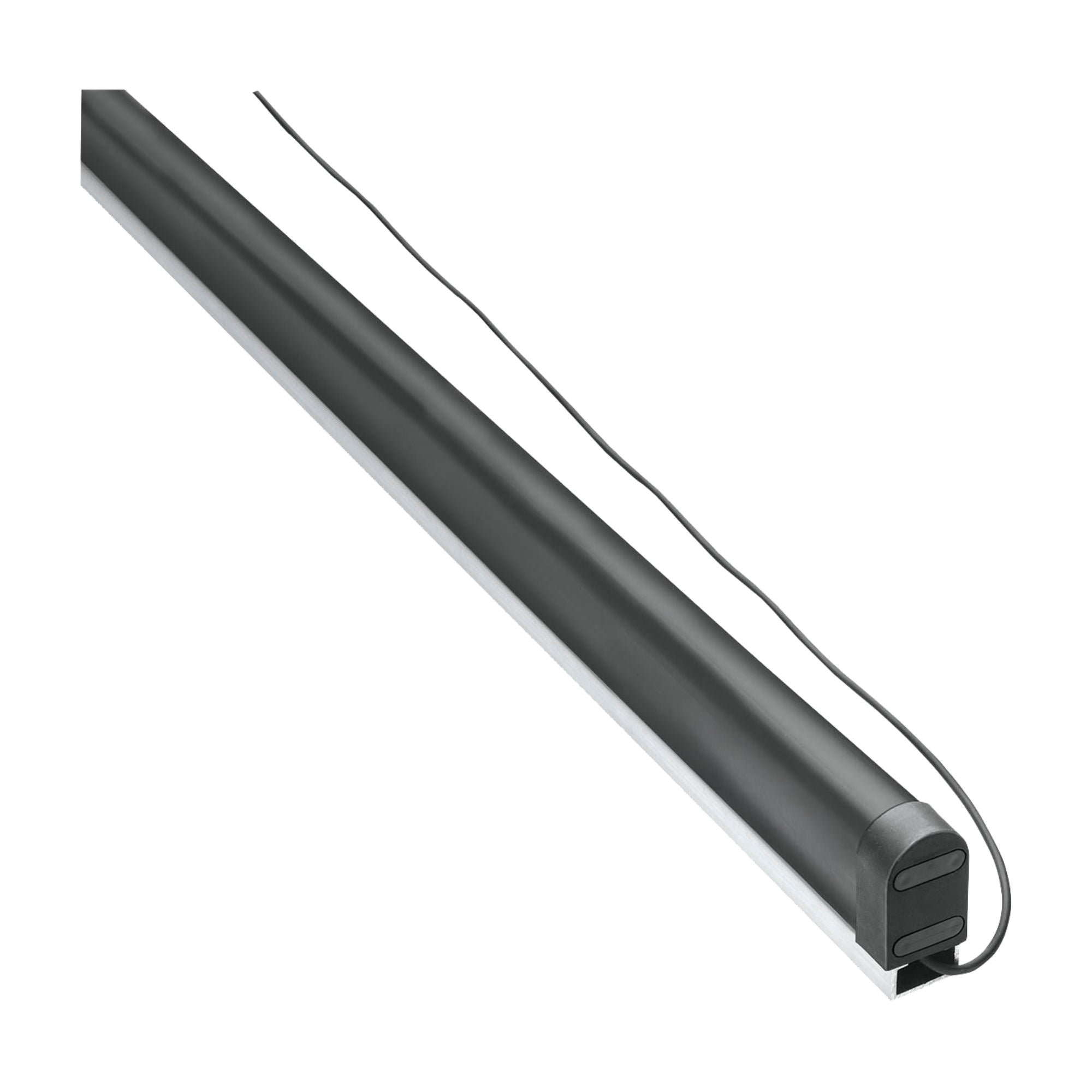

The Maximum Controls MAX Edge 1 is a maintenance-free EPDM rubber reversing safety edge designed for slide gate installations where UL 325 2018 entrapment protection compliance is required. Manufactured in Germany and ETL listed, the MAX Edge 1 uses a large cushioned contact surface with soft touch engagement to detect obstructions during gate travel. When contact is made, the edge triggers gate reversal, stopping movement to reduce the risk of injury or equipment damage. The EPDM construction and rainproof sealed ends allow the sensor to perform across an operating temperature range of -13°F to +167°F (-25°C to +75°C), covering installations in extreme cold and high-heat climates without heaters or additional weatherproofing.

Multidirectional sensing detects contact from multiple angles rather than a single face, providing broader coverage on the leading edge of the gate. The 48 in aluminum attachment bar is included for mounting to the gate frame. A 15 ft (5M) PUR matte black attachment cable connects the edge sensor to the gate operator control input. The MAX Edge 1 is maintenance free with no moving parts requiring service or adjustment.

Key Features

• EPDM rubber construction with large cushioned contact surface and soft touch engagement for obstruction detection during slide gate travel.
• Multidirectional sensing detects contact from multiple angles on the leading edge.
• Operates from -13°F to +167°F (-25°C to +75°C); rainproof sealed at both ends for all-weather outdoor installation.
• 48 in aluminum attachment bar included for gate frame mounting.
• 15 ft (5M) PUR matte black cable for connection to gate operator safety input.
• Maintenance free with no serviceable parts.
• ETL listed; UL 325 2018 compliant.

Technical Specifications

• Model: MAX Edge 1
• Manufacturer: Maximum Controls LLC (Made in Germany)
• Application: Slide gate leading edge entrapment protection
• Material: EPDM rubber
• Length: 48 in
• Activation Force: Soft touch engagement
• Sensing: Multidirectional
• Operating Temperature: -13°F to +167°F (-25°C to +75°C)
• Rainproof: Both ends sealed
• Attachment Hardware: 48 in aluminum bar (included)
• Cable Length: 5M / 15 ft
• Cable Material: PUR matte black
• Maintenance: Free
• Compliance: UL 325 2018; ETL listed
• Warranty: 1 year
• Condition: New

Conclusion

The MAX Edge 1 is designed for slide gate applications and is sized at 48 in. For installations where the gate leading edge height exceeds 48 in, additional edge sensors may be required to achieve full UL 325 2018 Type B2 entrapment protection coverage. Confirm operator compatibility with the gate operator's safety input type (N.C. or 10K) before ordering.
