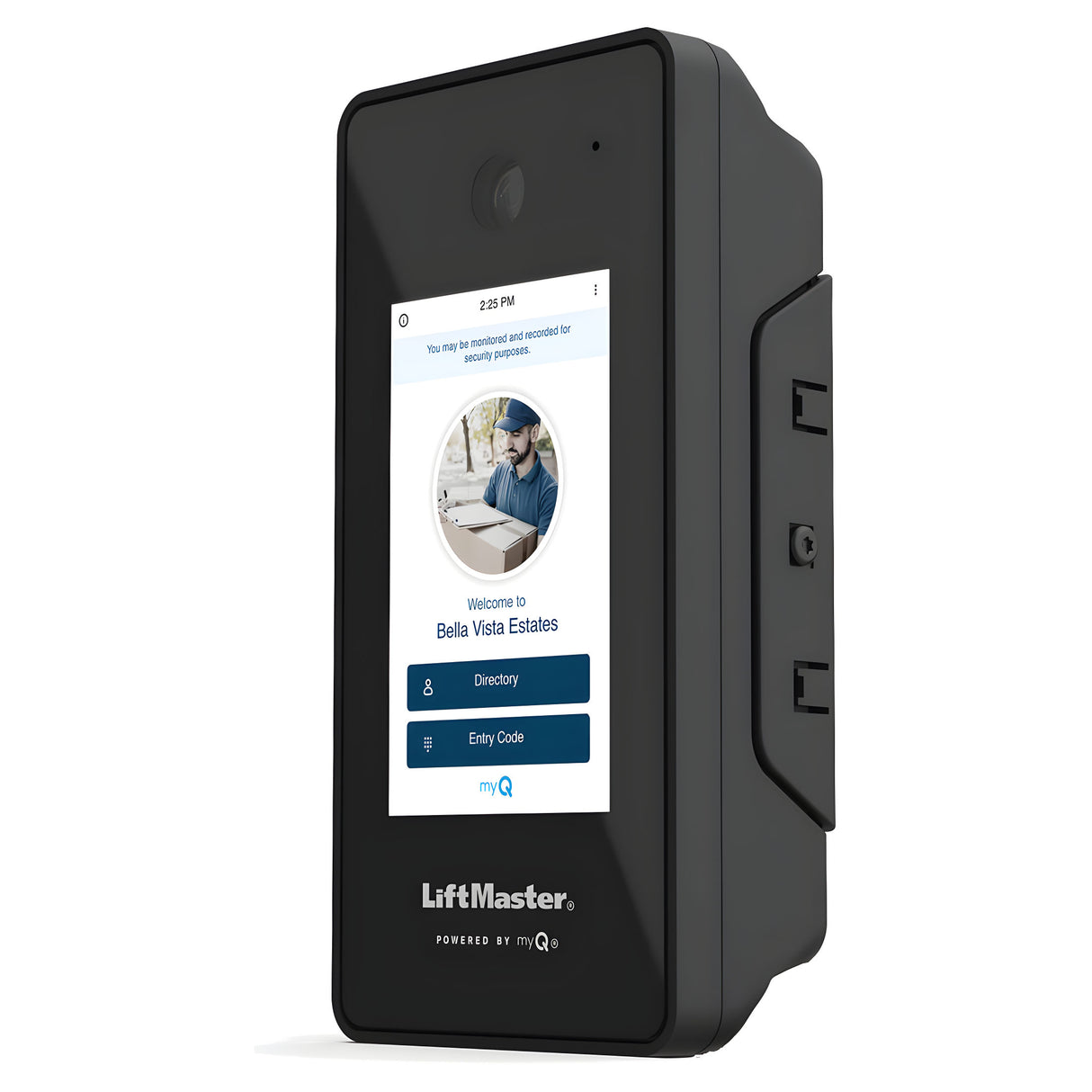

Liftmaster CAPXS Smart Video Intercom

Cloud-Based Access Control with Video Monitoring and Mobile Credentials

The LiftMaster CAPXS Smart Video Intercom is designed for small multi-tenant buildings and single-family gated homes, offering a luxury access control solution through cloud-based technology. This smart intercom system integrates video communication with mobile credentials, providing a safe and convenient way to manage access. With the myQ Community app, residents can see who is at the door before granting or denying access—all from their smartphones.

The CAPXS eliminates the need for traditional keys, allowing property managers to oversee entry from a centralized dashboard. Residents use mobile credentials for secure entry, while managers can control access to the building remotely.

Please note: a monthly subscription is required for full functionality, including cloud management and video monitoring through the myQ Community platform.

Key Features:

• 1080p Wide-Angle Camera: The 135° camera provides a clear view of the entrance with live video streaming and recorded events. Integrated Night Vision ensures visibility in both high and low light conditions.
• Wi-Fi & Ethernet Connectivity: Dual connectivity options provide flexibility and reliability. Requires a minimum upload/download speed of 5 Mbps to support the camera feed.
• Mobile Credential Access: Integrated BLE radio enables residents to use myQ Mobile Credentials for secure entry. Residents can unlock doors by tapping their phone or receiving a push notification as they approach.
• Cloud-Based Security: Data is securely stored with two-factor authentication. Manage access remotely, adding or deleting residents and assigning permissions.
• 5-Inch High-Definition Touchscreen: Intuitive display for an easy experience.

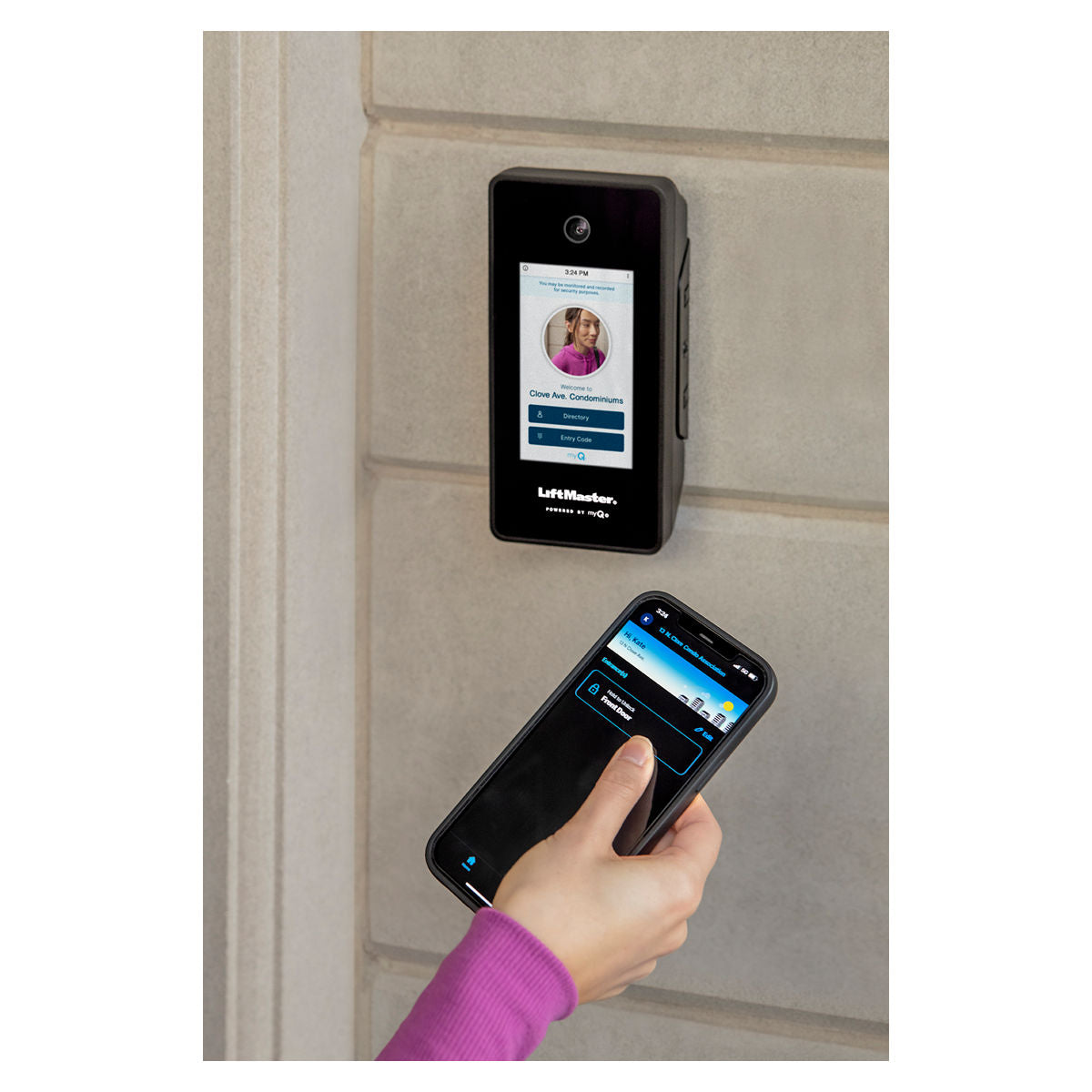

• myQ Community App: Enables residents to manage visitors with one-way video and two-way voice communication. Remote unlocking, guest passes, and Siri integration simplify access control.
• Anti-Tamper Alarm: A shock sensor triggers an alarm if tampering is detected, safeguarding against unauthorized access.

Technical Specifications:

• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Network Compatibility: 10/100 Ethernet, Wi-Fi 802.11 b/g/n
• Power Supply: 120 VAC, 16 VDC input, 40W output
• User Capacity: 500 local users
• Camera Resolution: 1080p with 135° viewing angle
• Wiegand Format Support: 26-Bit, 37-Bit HID, and MiFare formats
• Event History: Store up to 3,000 local events
• Weatherproof Rating: IP54 for outdoor use

Why Choose the LiftMaster CAPXS?

The LiftMaster CAPXS Smart Video Intercom offers complete cloud-based video intercom and access control. Its mobile credential integration eliminates traditional keys, while the myQ Community platform allows property managers to remotely monitor and control access. With motion-activated video, night vision, and robust security features, the CAPXS is ideal for enhancing both security and convenience. Note: a monthly subscription is required for access to cloud features and video monitoring.
