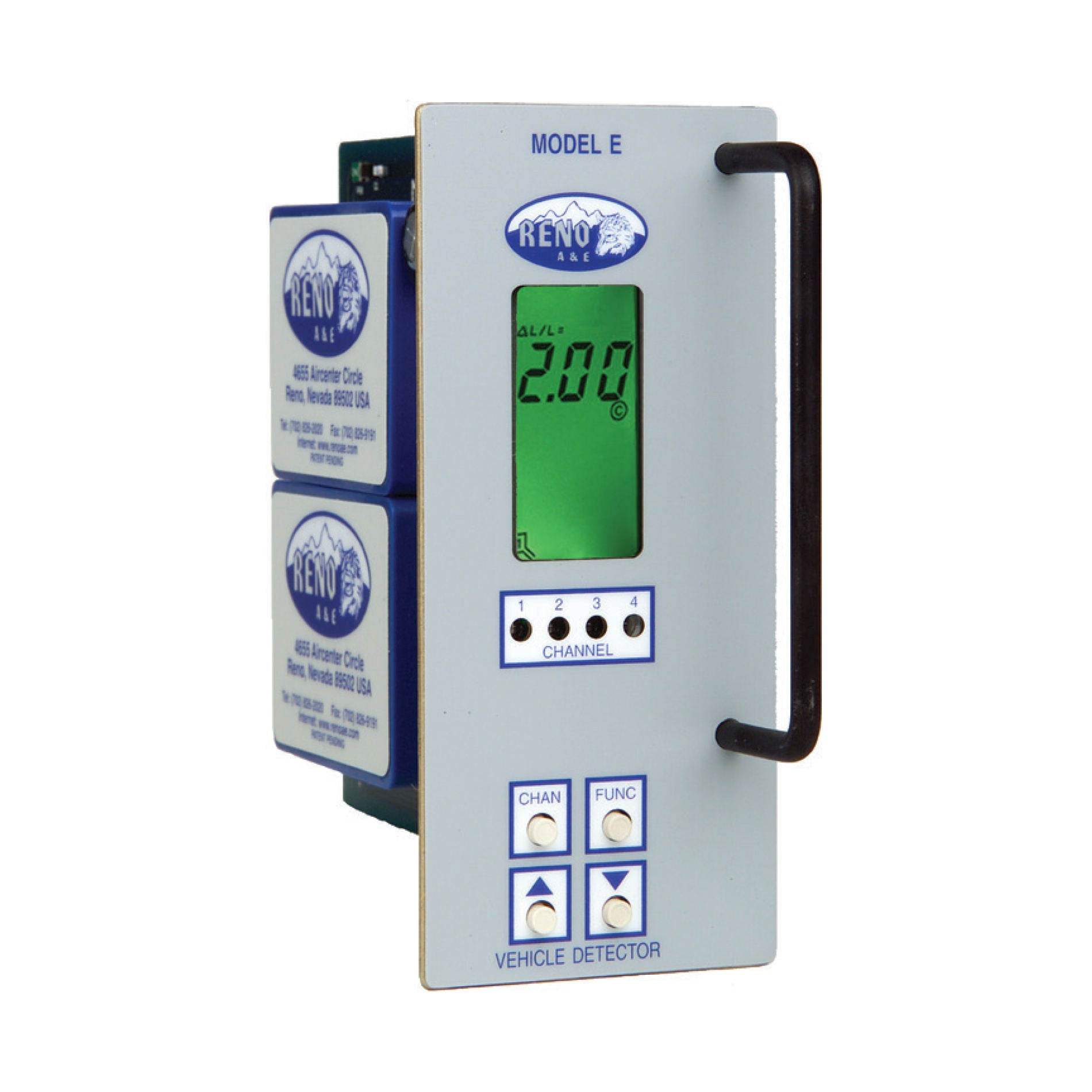

Reno E-1200 Four Channel Rack Mount Loop Detector

Four-Channel Rack Mount Loop Detector for Traffic Control

The Reno E-1200 is a high-performance, four-channel vehicle loop detector designed for rack mount installation in traffic and access control cabinets. Built to exceed NEMA TS-1/TS-2 standards, the E-1200 features a backlit LCD display and intuitive push-button programming for effortless setup and diagnostics. Its advanced firmware provides real-time data on loop frequency, sensitivity, and failures, enabling fast troubleshooting and system optimization.

This model is ideal for high-traffic environments requiring reliable detection across multiple lanes. All settings are stored in non-volatile memory to ensure long-term performance and configuration retention, even during power loss.

Key Features

• Display Interface: Backlit LCD screen for complete detector status and function settings
• Visual Feedback: Real-time frequency and sensitivity readouts ensure accurate calibration
• Diagnostic Tools: Access to loop inductance, relative change (∆L/L%), and fault history
• Audible Alert: Buzzer provides audible detect signal for fast loop testing
• Modular Firmware: Processor socket allows user-specific option upgrades
• Reliable Programming: Push-button configuration eliminates mechanical switch failures
• Non-Volatile Memory: Retains all settings after power loss
• Directional Logic: Built-in support for directional detection and logic control

Technical Specifications

• Model: E-1200
• Channels: 4
• Mounting: Standard 19" rack (single or double width options available)
• User Interface: 3-button programming with backlit LCD
• Diagnostics: Loop inductance, ΔL/L%, loop fail log, bar graph indication
• Loop Types: Compatible with long or multiple 6x6 ft loops
• Storage: Non-volatile memory for all parameters
• Audible Signal: Yes
• Applications: Traffic control, vehicle detection, multi-lane access points

Available Variants:

• E-1200-SS: NEMA TS-1/TS-2 cabinet compatible
• E/2-1200-SS: Compact 1.12" faceplate

Conclusion

The Reno E-1200 Rack Mount Loop Detector is a dependable solution for multi-channel vehicle detection in professional traffic management systems. With intuitive controls, advanced diagnostics, and robust design, it delivers exceptional performance for complex access points, intersections, and high-security areas. Designed for longevity and ease of use, the E-1200 is a trusted choice for traffic engineers and system integrators.
