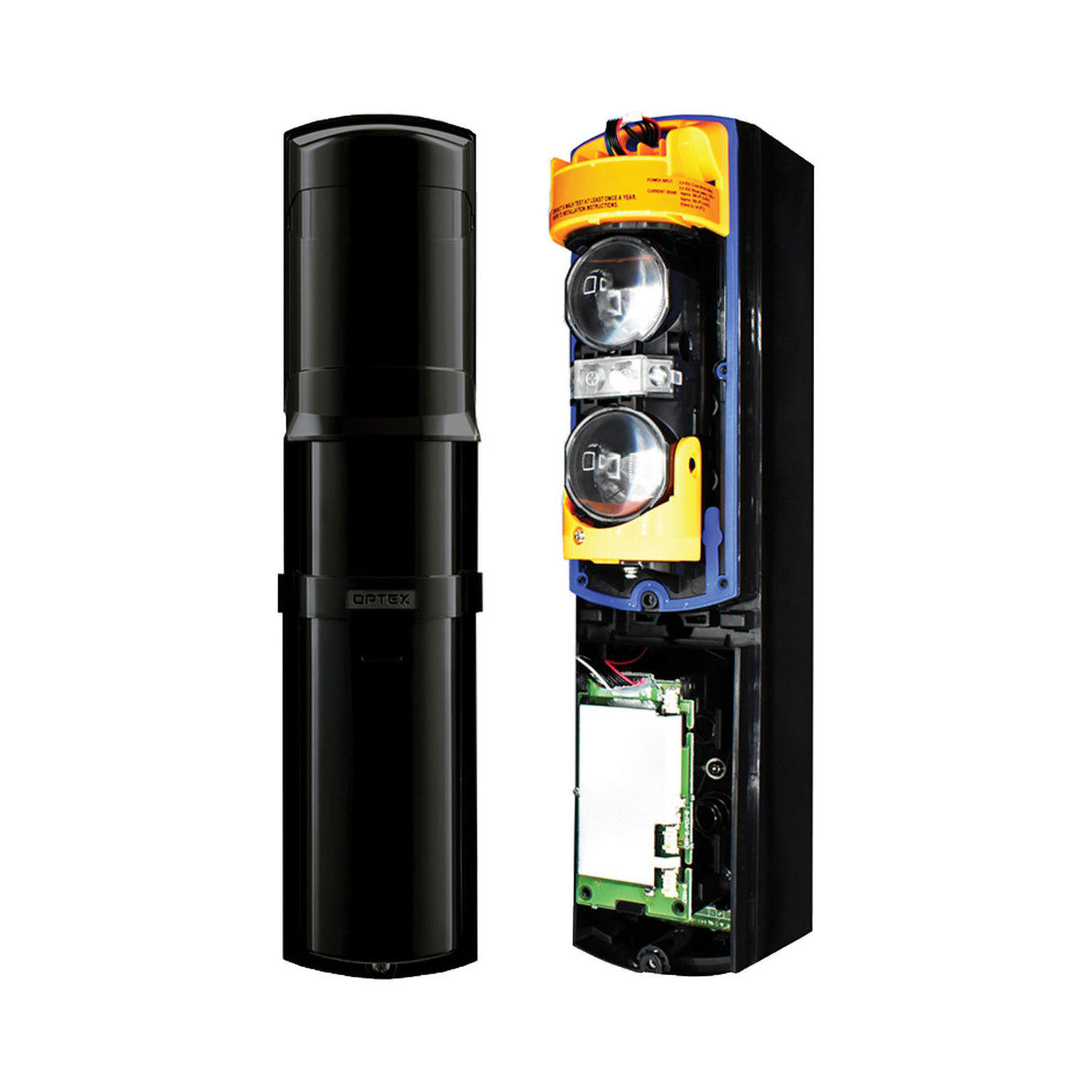

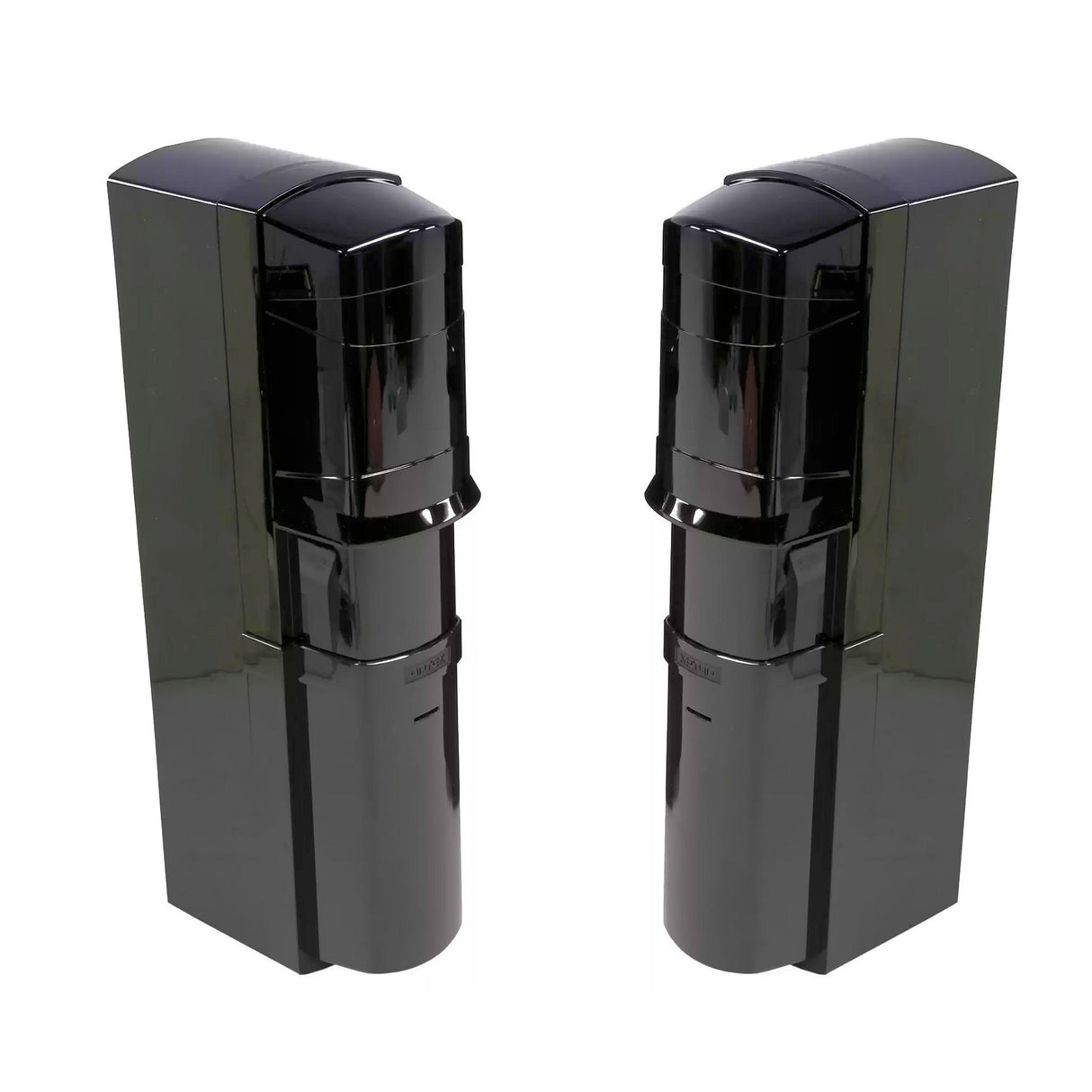

Optex OVS-50 TNR Monitored Hybrid Through Beam Photoeyes

Optex OVS-50 TNR Monitored Hybrid Through Beam Photoeyes

The OVS-50 TNR from Optex is a high-performance Monitored Hybrid Through Beam Photoeye designed for robust and reliable operation in a variety of outdoor environments. Featuring advanced active infrared detection technology, the OVS-50 TNR ensures exceptional stability and accuracy, even in challenging weather conditions such as rain, snow, and fog.

Features

• Advanced Detection Technology: Utilizes twin infrared beams to provide precise interruption detection, minimizing false alarms.
• UL325 Compliance: Ensures the system meets stringent safety standards for automated gates.
• Long Battery Life: Operates up to 8 years on two D-size lithium batteries (recommended: Saft LSH-20), significantly reducing maintenance needs.
• Weatherproof Design: IP65-rated waterproof structure ensures reliable performance in various weather conditions.
• Extended Range: Provides a detection range of up to 50 feet (15 meters), making it suitable for wide driveways and large gate areas.
• Easy Installation: Battery-powered transmitter eliminates the need for wiring on one side, reducing installation time and costs. No concrete cutting required.
• Optical Alignment Technology: Features a Sniper Viewfinder with x2 magnification for straightforward and accurate alignment.

Specifications

• Detection Range: 50 feet (15 meters)
• Detection Method: Twin infrared beam interruption detection
• Power Source: Transmitter: 3.6 VDC D size lithium batteries (2 units) / Receiver: 12-24 VDC
• Battery Life: Approximately 8 years
• Current Draw: Transmitter: 130µA (at 25°C, DC 3.6V) / Receiver: 80mA (max.)
• Operating Temperature: -4°F to 140°F (-20°C to +60°C)
• Operating Humidity: Up to 95%
• Alignment Angle: ±90° horizontal, ±5° vertical
• Dimensions: 11.6” H x 2.7” W x 4.6” D
• Weight: 42.3 oz. (total for transmitter and receiver)
• Output: Form C relay; 30VDC 0.2A
• Output Hold Time: Blocked beam period +0.5 sec
• Indicators: Receiver: Alignment/Level LED, Output indicator / Transmitter: Power/Low battery indicator
• International Protection: IP65

Installation and Maintenance

The OVS-50 TNR is designed for user-friendly installation and maintenance:

• No Wiring on Transmitter Side: Simplifies setup and reduces labor costs.
• Simplified Optical Adjustment: The Sniper Viewfinder facilitates quick and accurate alignment.
• Battery Replacement: Accessible battery compartment allows easy battery changes without needing to realign the beams.

Applications

Ideal for securing automated gates, driveways, and other outdoor perimeters, the OVS-50 TNR offers unparalleled reliability and performance. Its robust construction and advanced features make it a cost-effective solution for residential, commercial, and industrial settings.
